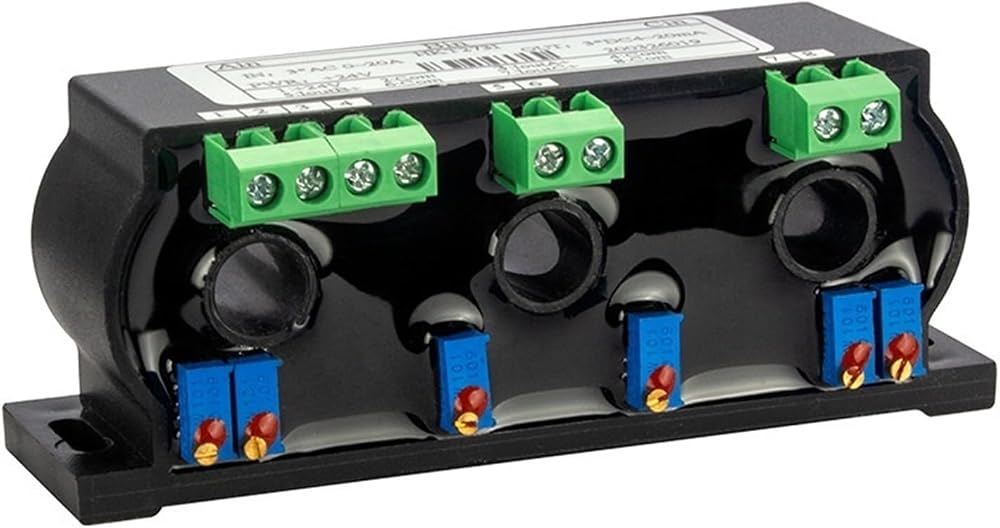

sensor
Inductors
Installation method: Flat screw
Primary rated current: 3*5A; 3*10A; 3*20A; 3*50A; 3*100A; 3*200A; 3*400A; 3*500A; customized
Rated output: 3*5V 3*10V 3*DC0~20mA 3*DC4~20mA RS485 customized
Power supply: DC+24V; DC+15V DC+12V; 220V; customized
Load capacity: voltage output -5mA; current output -6V
Linearity: 0.1%
Accuracy: 0.2%; 0.5%
Bandwidth: 20~5KHz
Overload capacity: 10 times the nominal input
Isolation withstand voltage: 3KV/50Hz 2mA 1M in
Offset voltage: 10mV
Working temperature: -20℃~+80℃
Temperature drift: 100PPM/℃
Storage temperature: -25℃~+85℃
