I. Basic Product Information

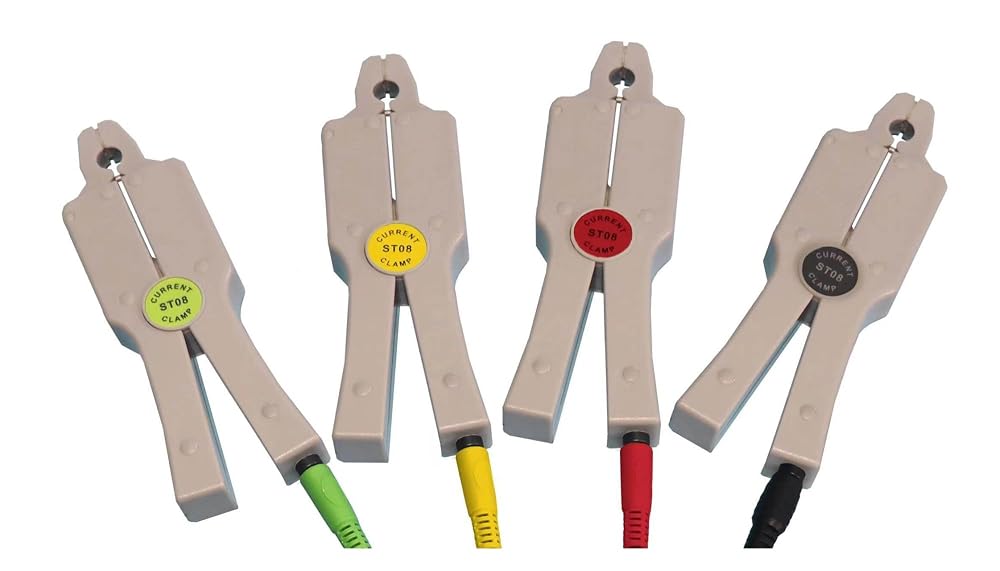

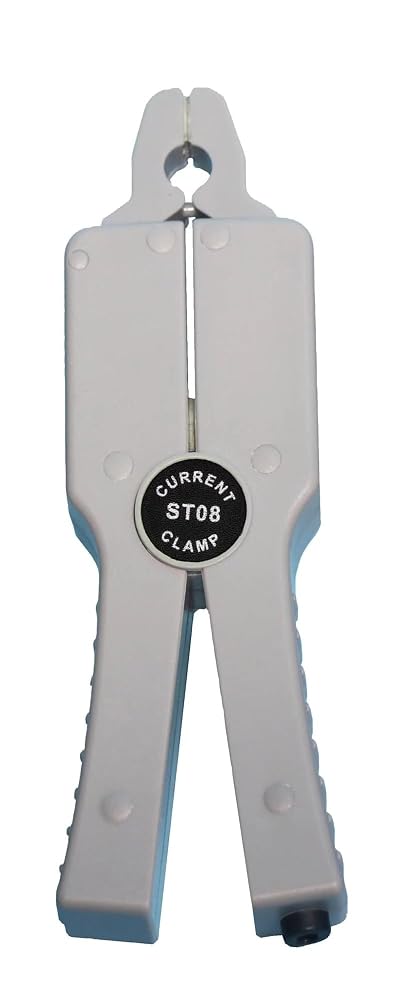

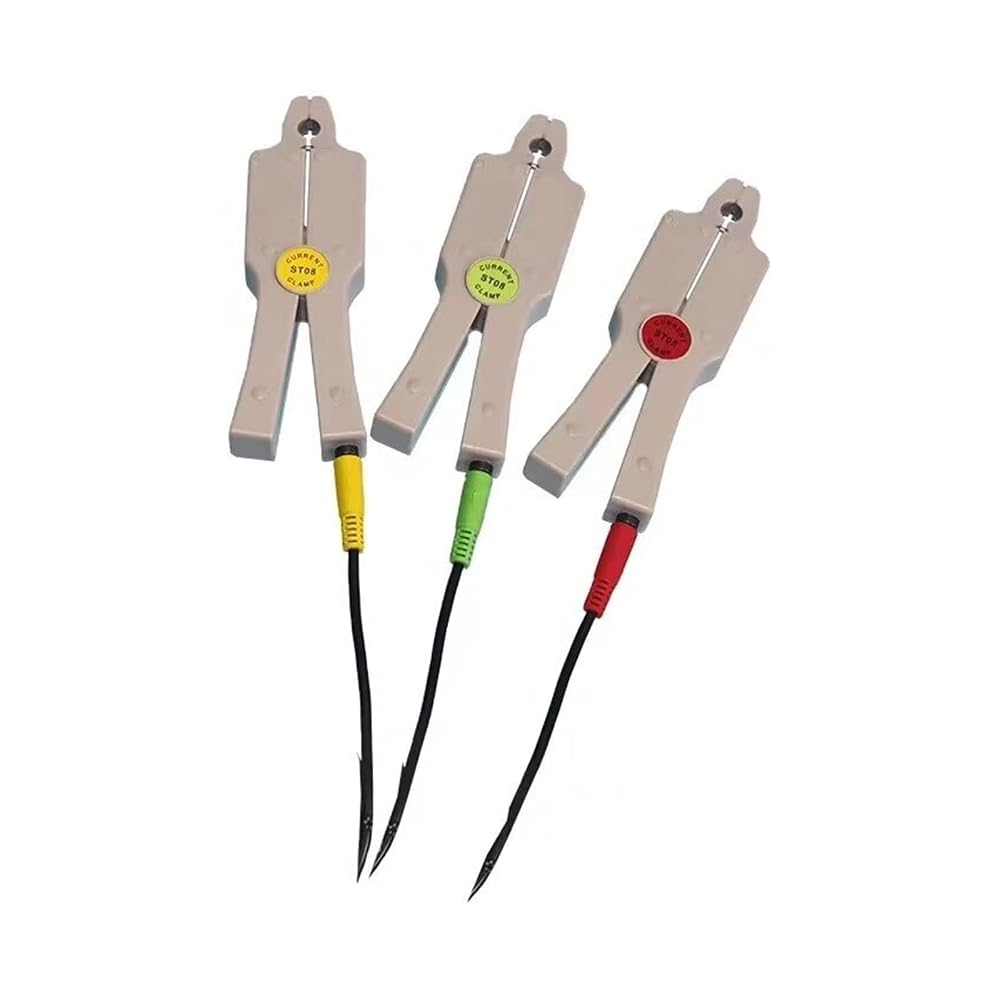

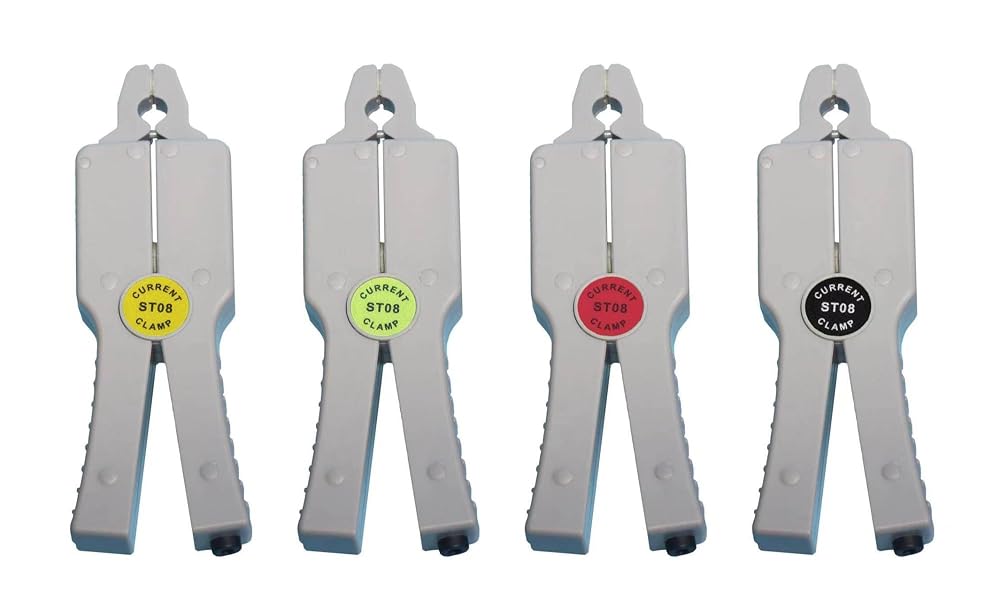

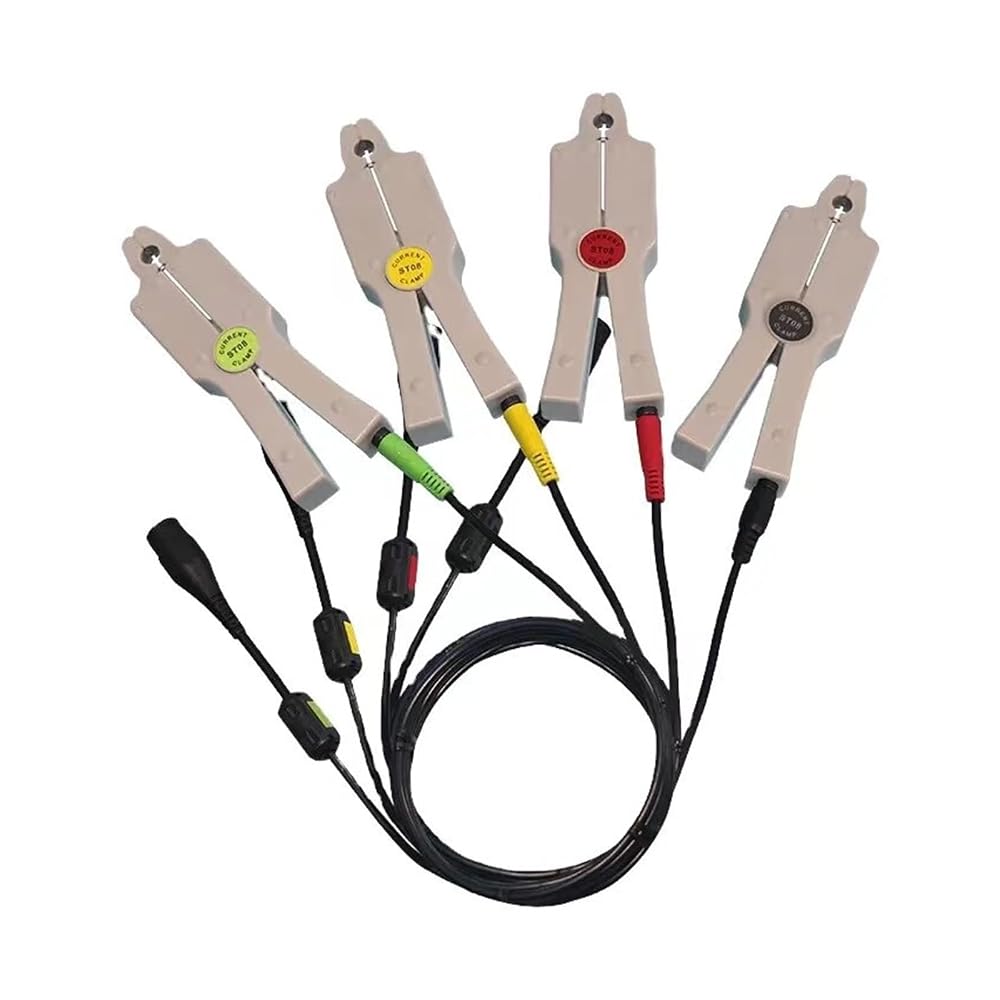

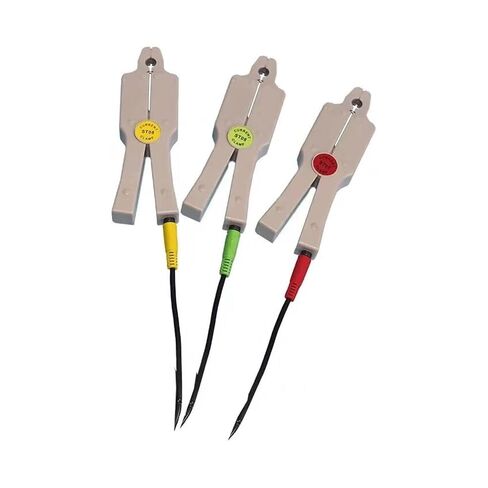

Model: ST08
Product Type: Open-type Current Clamp
Applicable Scenarios: Online current measurement of 5A and 10A cables, compatible with MQ31 power quality analyzer
Standards: GB1208, IEC60044-1
Installation Method: Clamp type
Voltage Parameters: Rated voltage 0.66kV, insulation class 2kV
Compatible Wire Diameter: Can clamp Φ8mm cables
Load Capacity: ≤4Ω

II. Core Electrical Parameters
Table Parameter Item Technical Specifications
Rated Transformation Ratio 10A/4mA
Amplitude Accuracy 0.5% (100mA~10A)
Phase Accuracy ≤0.5° (45Hz~66Hz)
Bandwidth 30Hz~5kHz

III. Physical and Environmental Parameters
Table Parameter Item Technical Specifications
Weight ≤150g
Dimensions 42mm×139mm×20mm
Operating Temperature: -20℃~50℃
Storage Temperature: -30℃~80℃
Relative Humidity: Maximum 80%, non-condensing
Protection Rating: IP20

IV. Compatibility Instructions
This current clamp is a dedicated sensor for the MQ31 power quality analyzer, used for precise measurement of small currents, with a range covering 10mA~10A. It can complement TRC and NRC series Rogowski coils to achieve full-range current monitoring from 0.5A to 7200A.
Rogowski Coil: Responsible for high-current (600A~7200A) measurement
ST08 Current Clamp: Responsible for high-precision measurement of small currents (10mA~10A)
