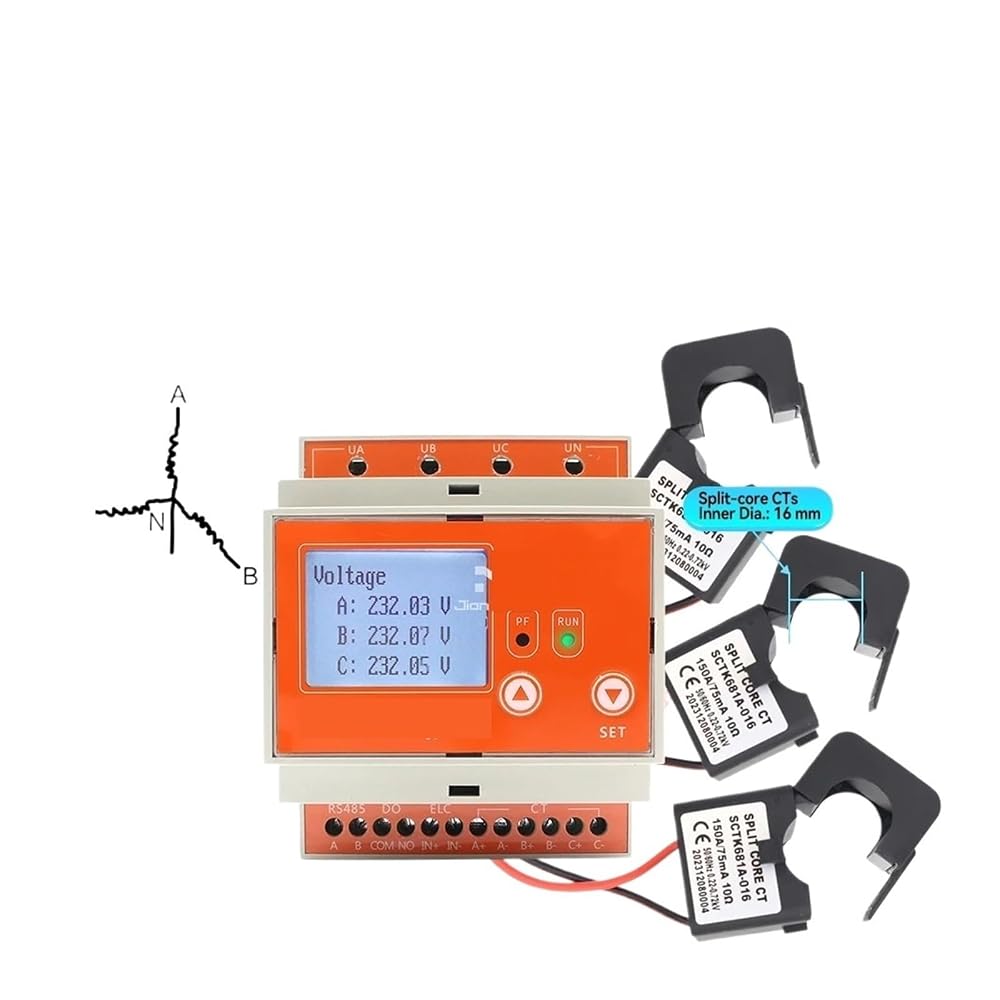

Power Quality Analyzer, RS485 Bidirectional Measurement 150A AC Smart Energy Meter 3 Phase 4 Wire KWh Power Monitor Clamp Current Transformer

KWD 97
Brand
HUIWOSEN
Weight
1.2 kg
– 1 +

Special Features

  • High-precision measurement with a current range of 50mA to 150A and voltage range of AC 100-380V.
  • Supports MODBUS-RTU communication protocol for seamless integration with various monitoring systems.
  • Compact design with dimensions of 72×58×92mm, for 35mm DIN rail mounting in electrical panels.
  • Operates efficiently in a wide temperature range from -20℃ to +60℃ and can withstand storage temperatures as low as -40℃.
  • Collects comprehensive data including voltage, current, power, energy, power factor, and frequency for detailed energy analysis.

Description

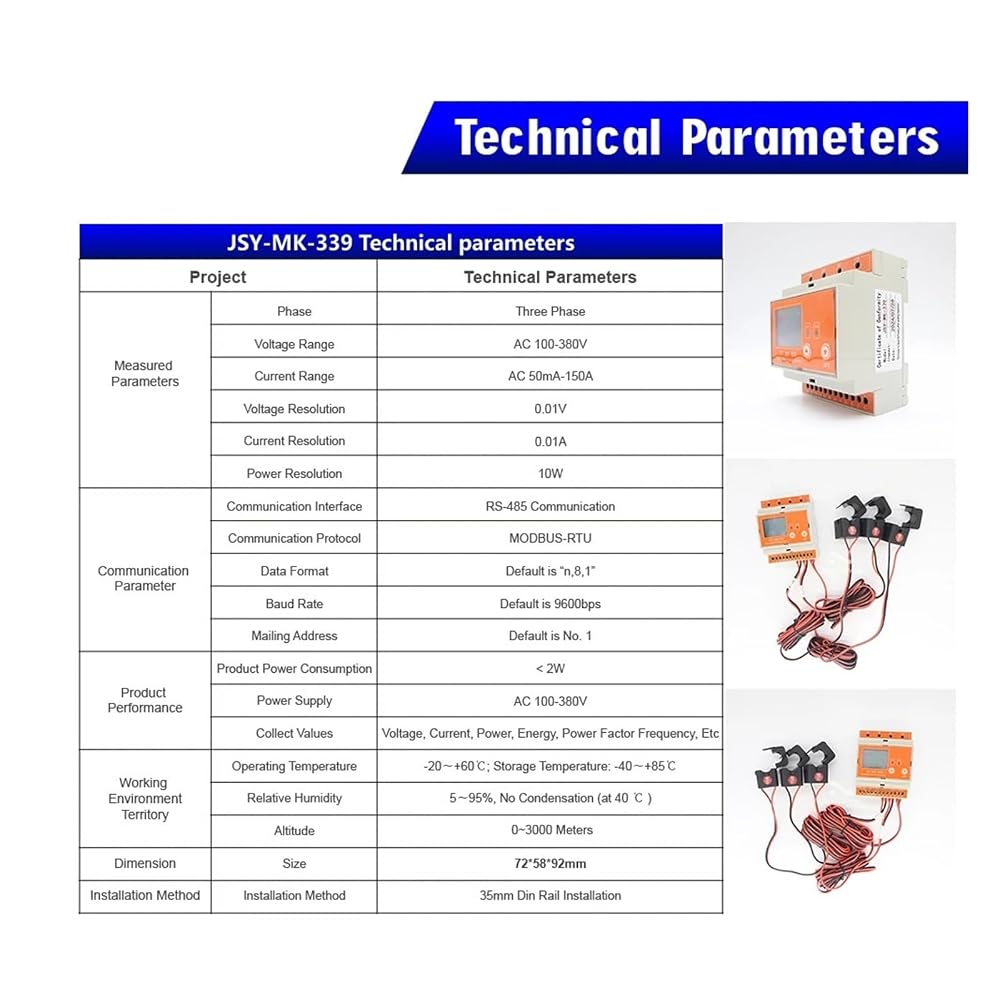

Three-phase voltage range: AC 100-380V
Current range: AC 50mA-150A
Voltage resolution: 0.01V
Current resolution: 0.01A
Power resolution: 10W
Communication interface: RS-485
Communication protocol: MODBUS-RTU
Data format: Default "n,8,1"
Baud rate: Default 9600bps
Communication address: Default is No. 1
Power supply: AC 100-380V
Data collected: Voltage, current, power, energy, power factor, frequency, etc.
Operating temperature: -20~+60℃; Storage temperature: -40~+85℃
Relative humidity: 5-95%, non-condensing (at 40℃)
Altitude: 0-3000 meters

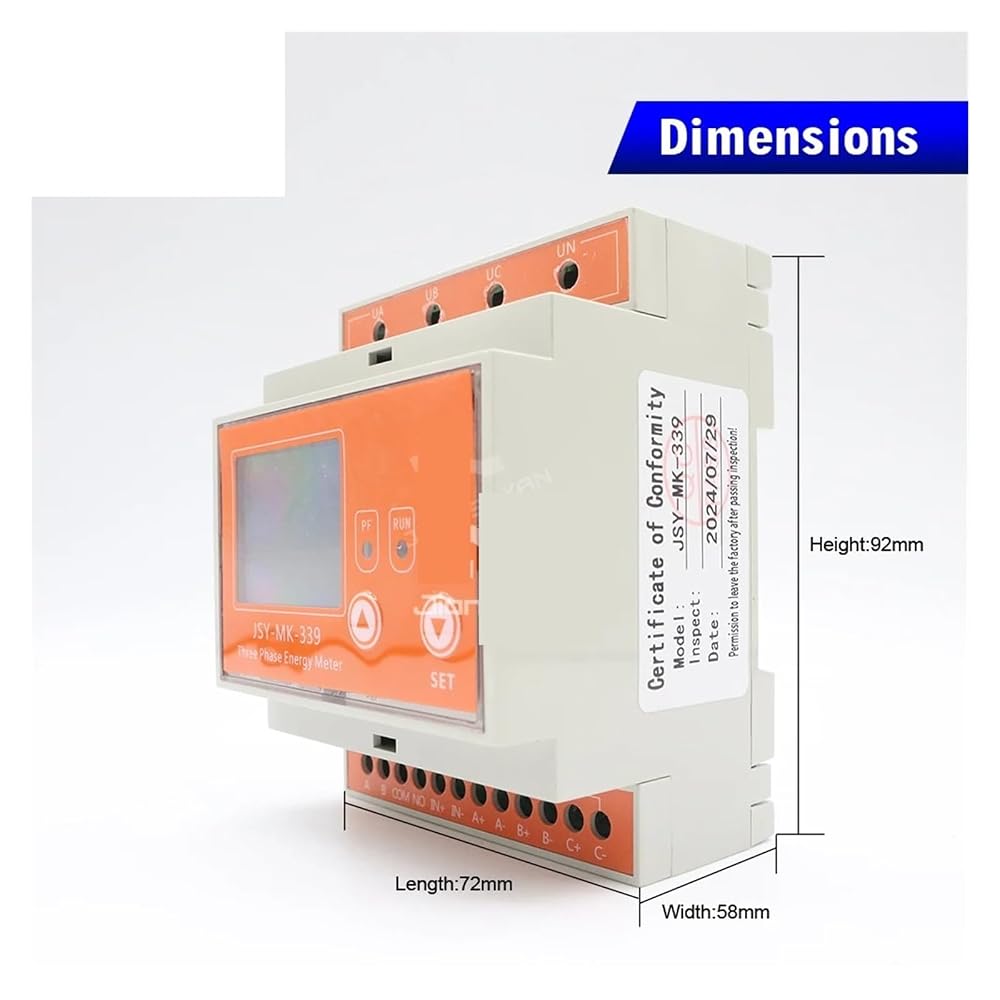

Dimensions: 72×58×92mm
Installation method: 35mm DIN rail mounting
