Mounting type Multi-circuit

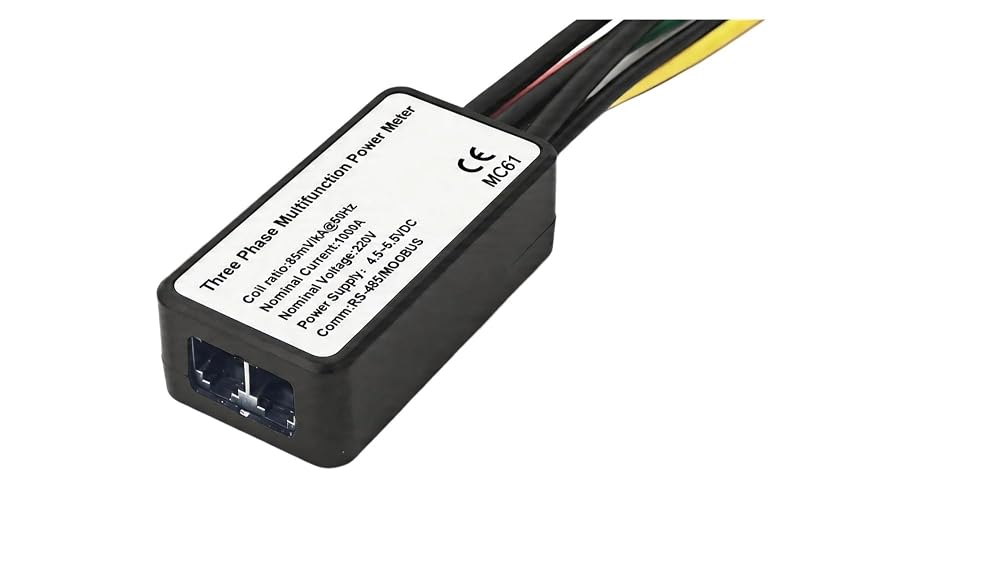

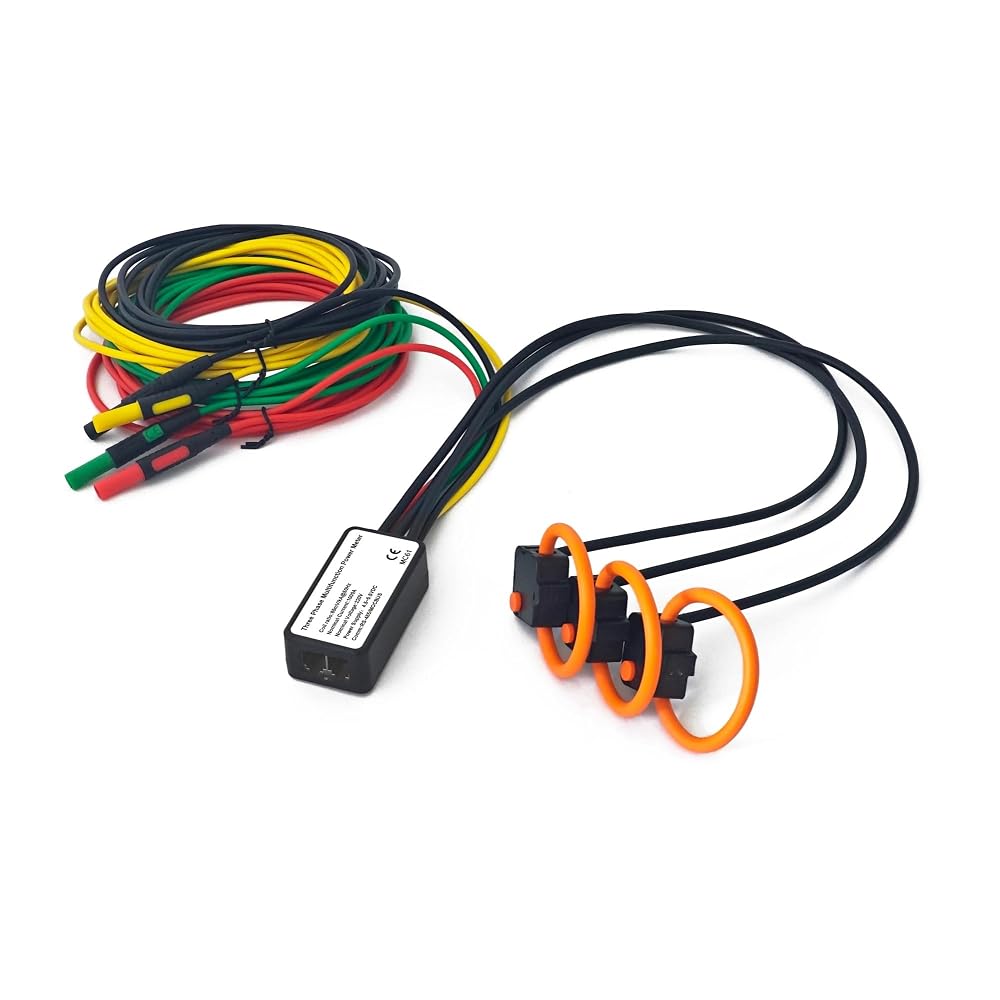

Type of current sensor Rogowski coil / Voltage-output current transformer

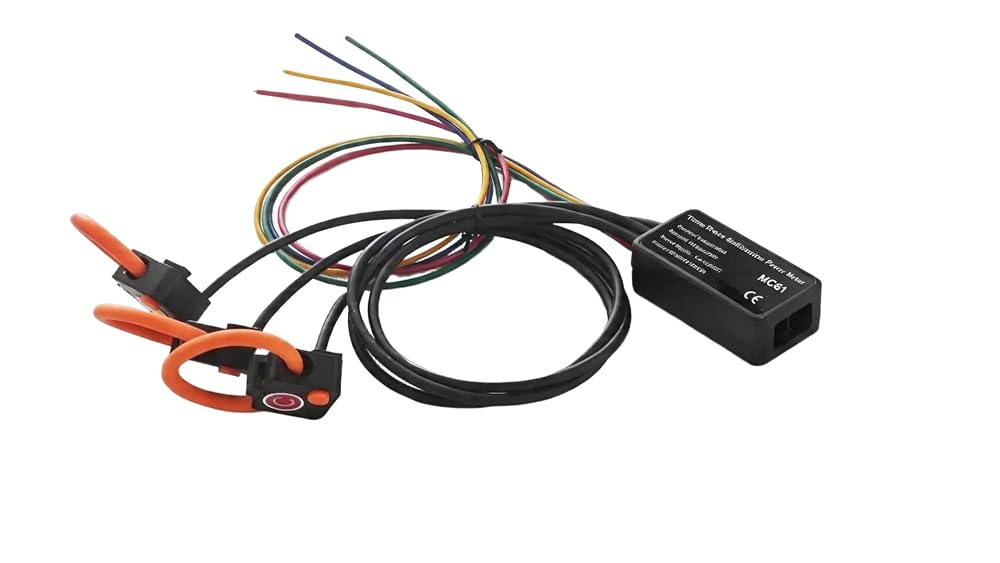

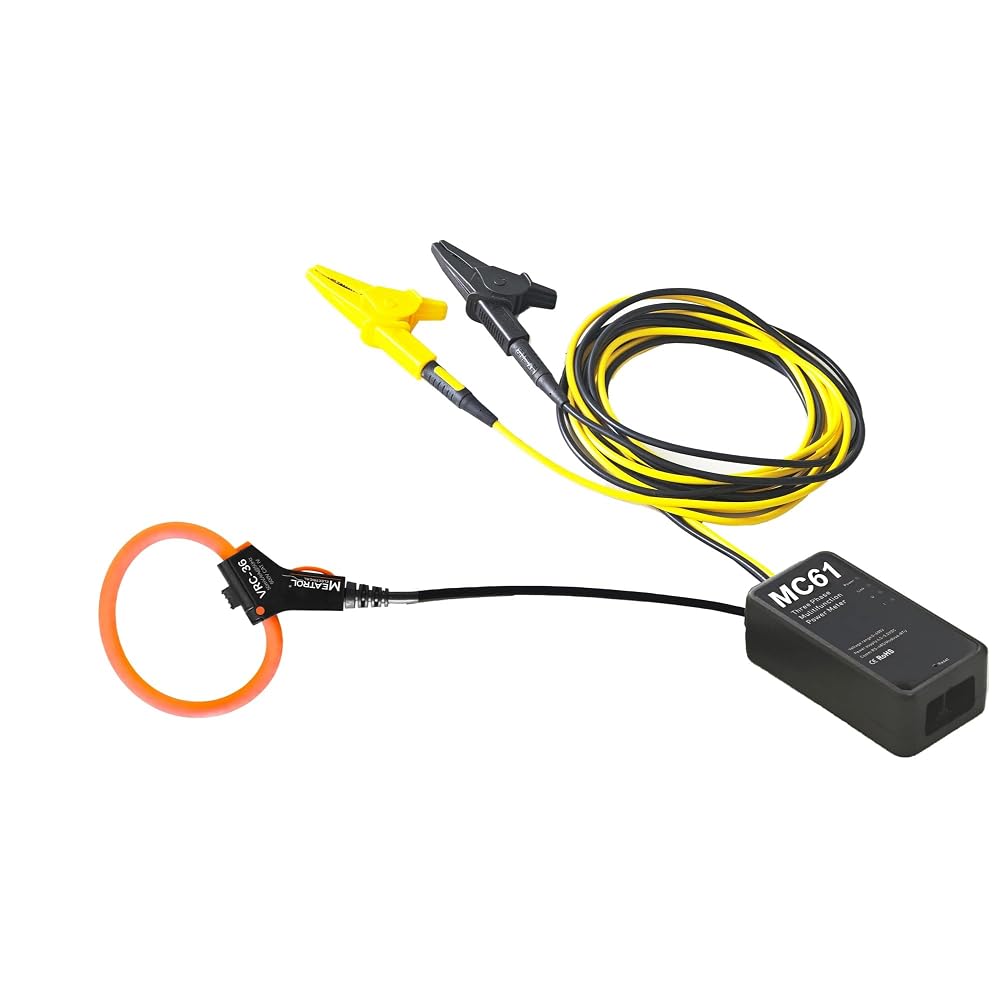

Feature Directly connect to Rogowski coil
Advantage Wide current range, measurement without dismantling
Wiring system 3P4W_3CT, 3P3W_3CT, 3P3W_2CT, 1P3W, 1P2W
Application field Power analysis and energy consumption monitoring
Display screen None
Weight 59g

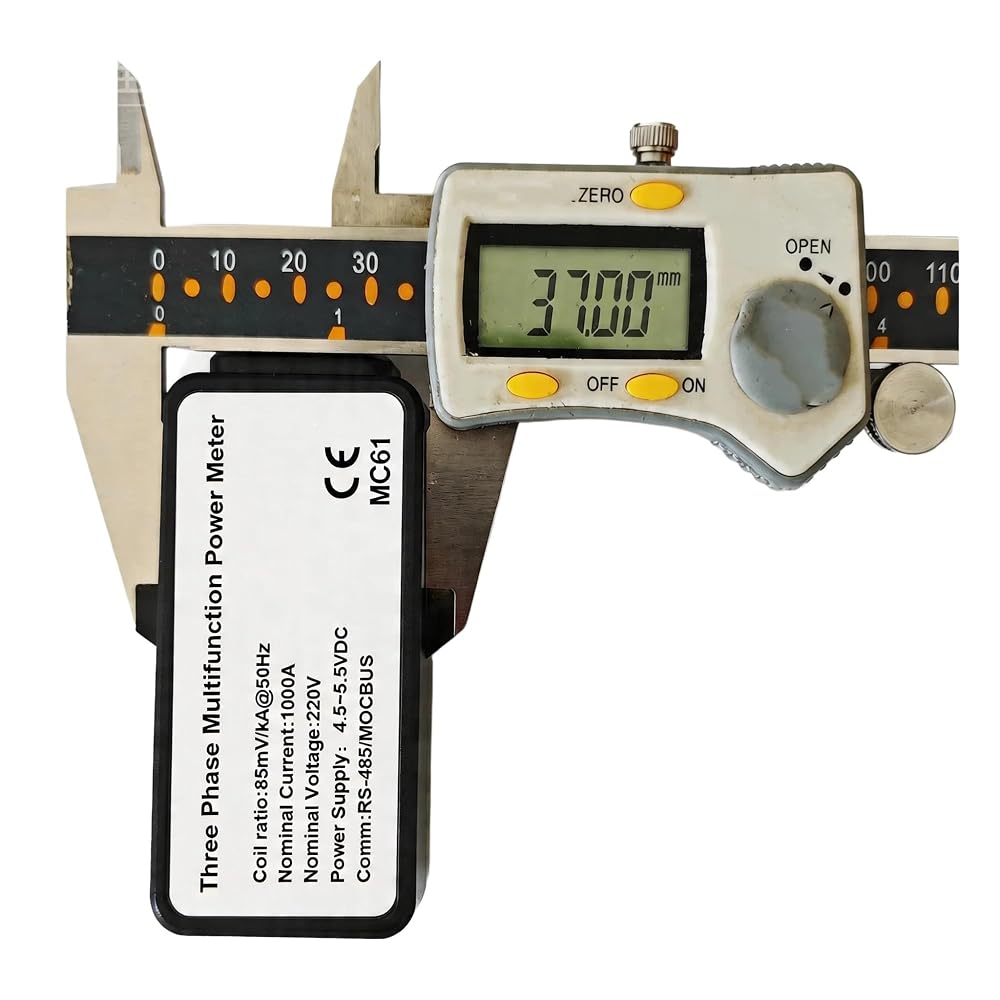

Dimension LWD: 7.53.72.4CM
Color Black
Channel input voltage range 0-900mVAC peak, 636 mV RMS
Measurement range Different current sensors have different measuring ranges
Rogowski coil 50mV/kA@50Hz (0-12000A), @60Hz (0-10000A)
85mV/kA@50Hz (0-7000A), @60Hz (0-6000A)
100mV/kA@50Hz (0-6000A), @60Hz (0-5000A)
Voltage-output CT 0~99999A
Measurement range 0~600VAC
Maximum measured value 720VAC

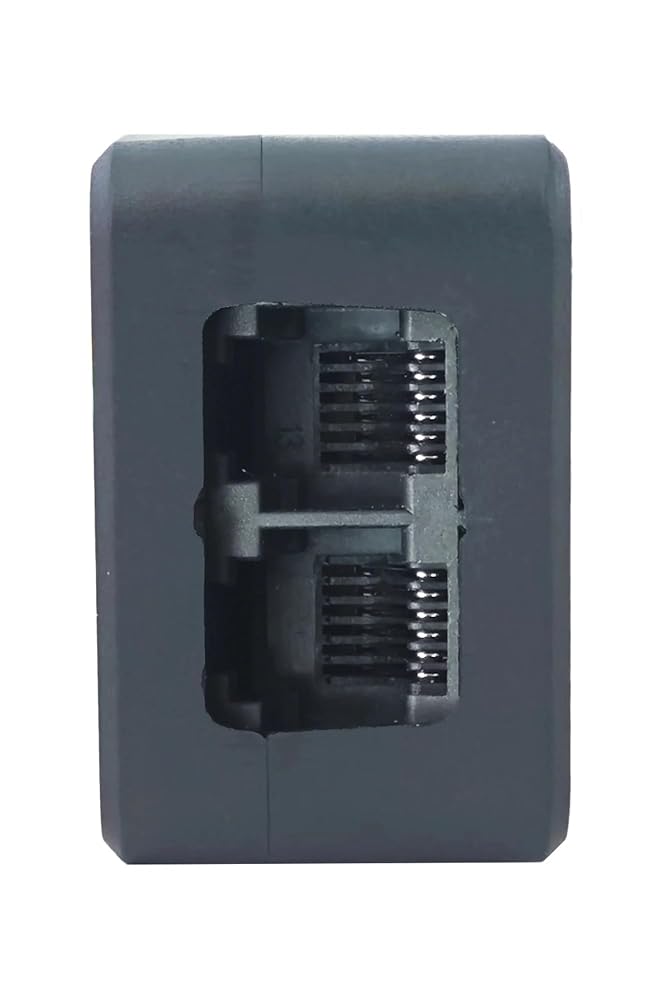

RS485 Communication One RS485 communication interface
Interface type: two-wire half-duplex
Communication baud rate: 2400bps~38400bps
Protocol: Modbus-RTU
Input Self-powered from main circuit (85-265 VAC)
Maximum power consumption ≤3.5VA
