Note The actual pictures vary depending on the product model Actual product has been received accurate.
LHT-25-50-III
Reduction ratio: 50
Rated Tq at input 2000r/min: 39Nm 4.0kgfm
Allowable peak Tq when starting and stopping: 98Nm 10kgfm
Allowable maximum average load Tq: 55Nm 5.6kgfm
Instantaneous maximum allowable Tq: 186Nm 19kgfm
Allowable maximum input speed: 5600r/min
Allowable average input speed: 3500r/min
Backlash: 20AS

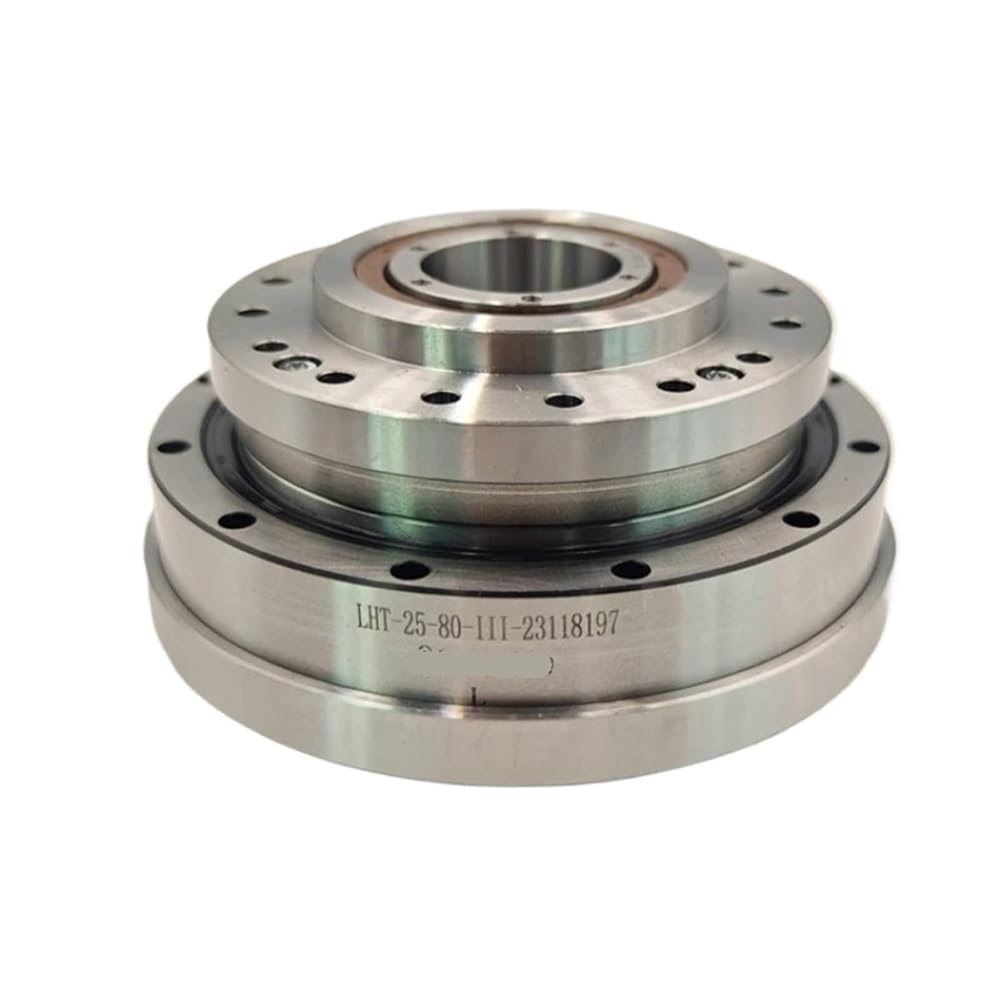

LHT-25-80-III
Reduction ratio: 80
Rated Tq at input 2000r/min: 63Nm 6.4kgfm
Allowable peak Tq when starting and stopping: 137Nm 14kgfm
Allowable maximum average load Tq: 87Nm 8.9kgfm
Instantaneous maximum allowable Tq: 255Nm 26kgfm
Allowable maximum input speed: 5600r/min
Allowable average input speed: 3500r/min
Backlash: 20AS
LHT-25-100-III
Reduction ratio: 100
Rated Tq at input 2000r/min: 67Nm 6.8kgfm
Allowable peak Tq when starting and stopping: 157Nm 16kgfm
Allowable maximum average load Tq: 108Nm 11kgfm
Instantaneous maximum allowable Tq: 284Nm 29kgfm
Allowable maximum input speed: 5600r/min
Allowable average input speed: 3500r/min
Backlash: 20AS
LHT-25-120-III
Reduction ratio: 120
Rated Tq at input 2000r/min: 67Nm 6.8kgfm
Allowable peak Tq when starting and stopping: 167Nm 17kgfm
Allowable maximum average load Tq: 108Nm 11kgfm
Instantaneous maximum allowable Tq: 304Nm 31kgfm
Allowable maximum input speed: 5600r/min
Allowable average input speed: 3500r/min
Backlash: 20AS
