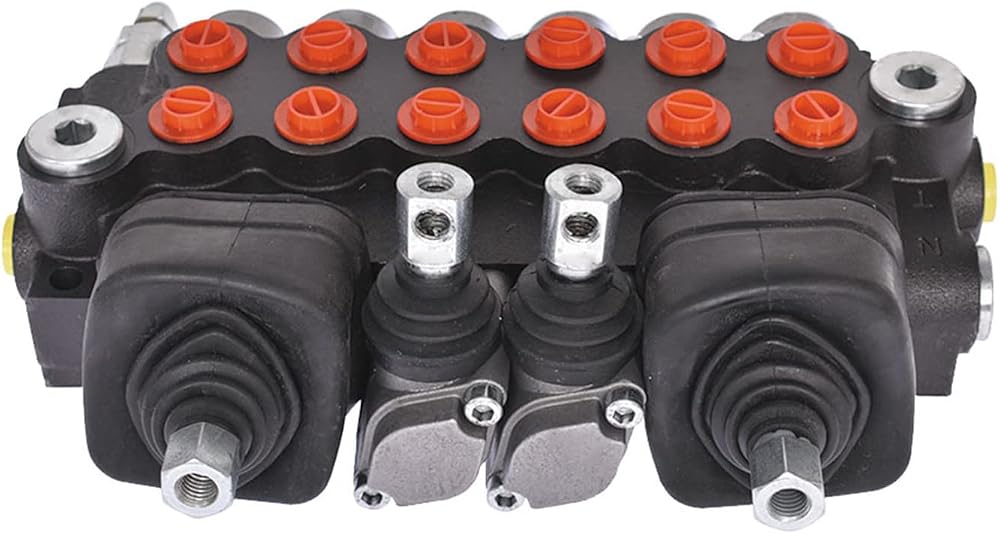

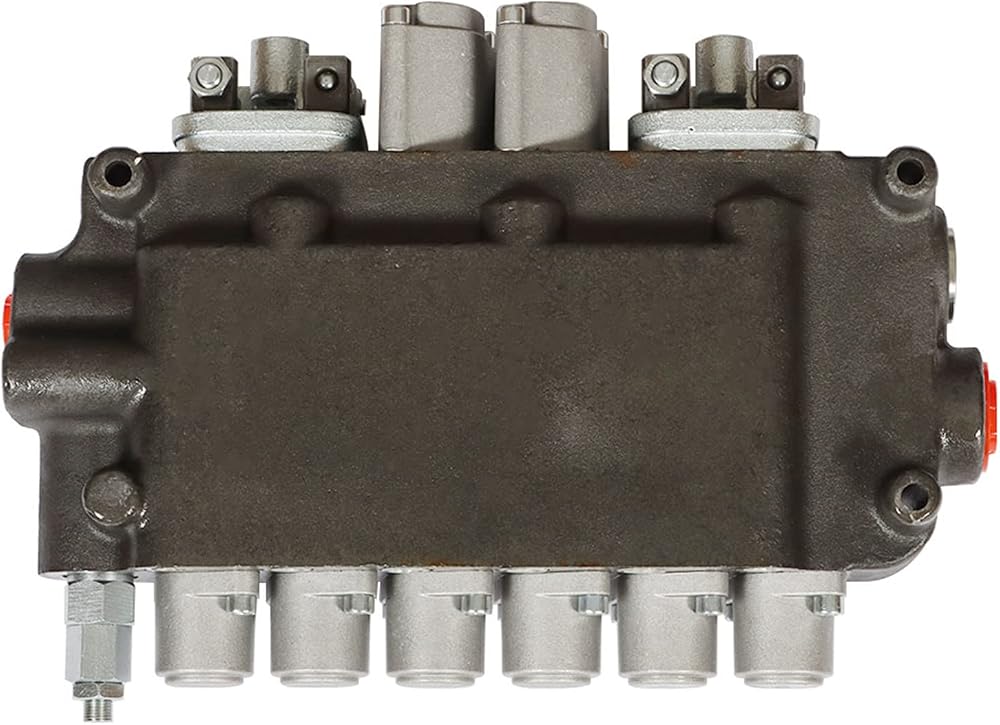

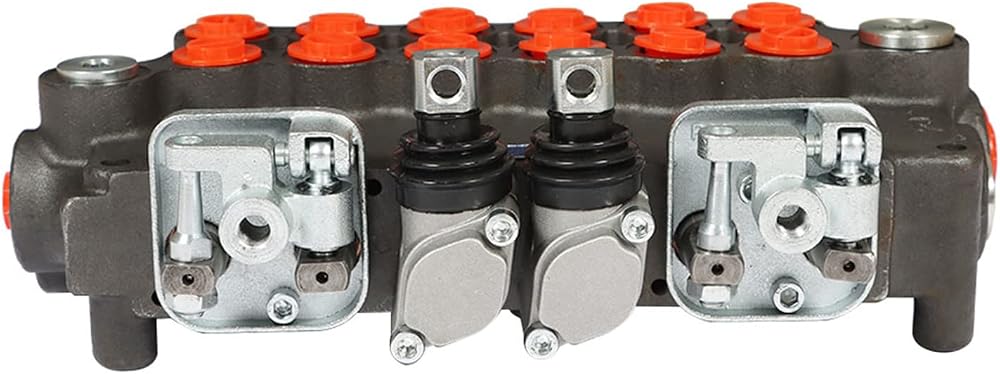

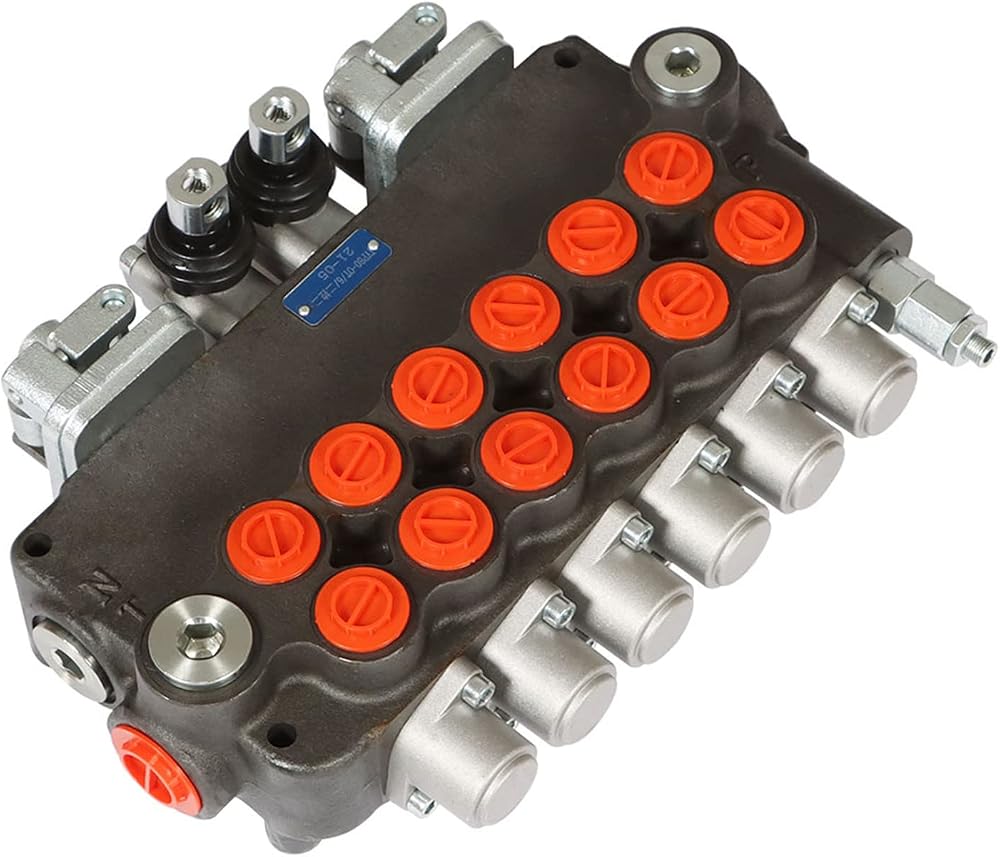

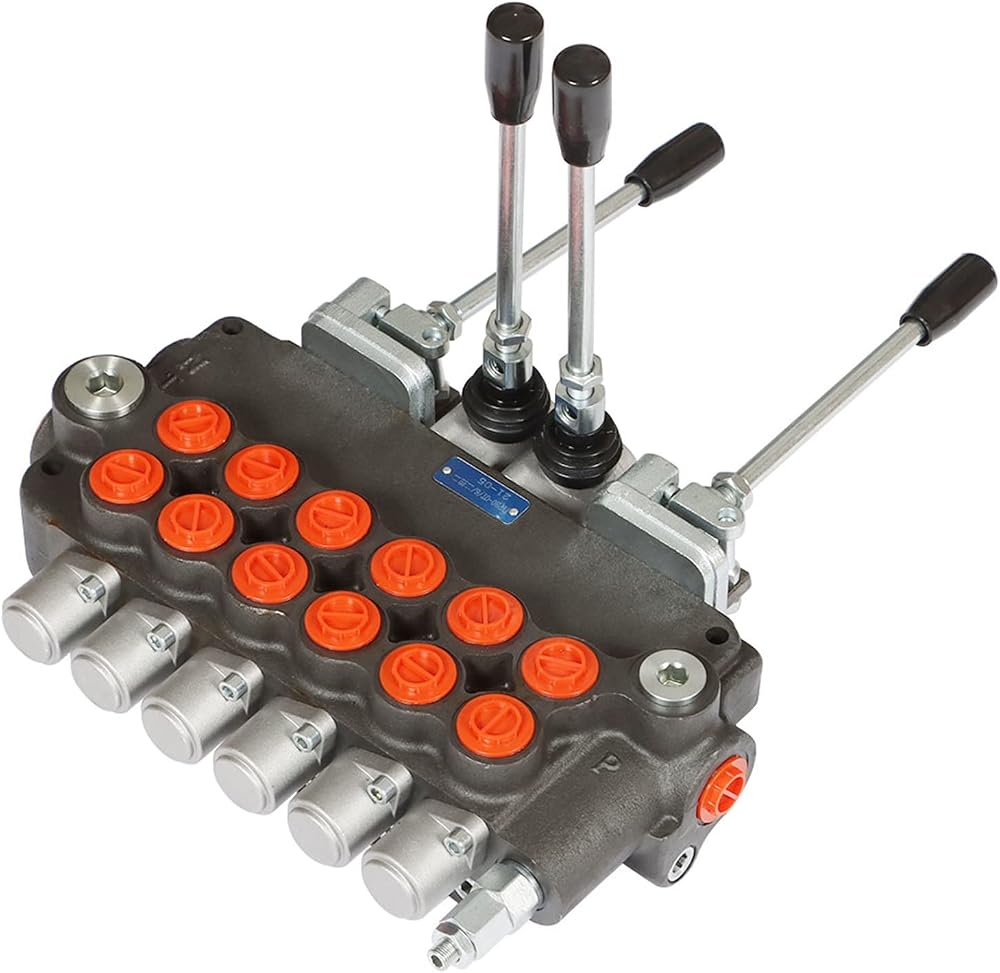

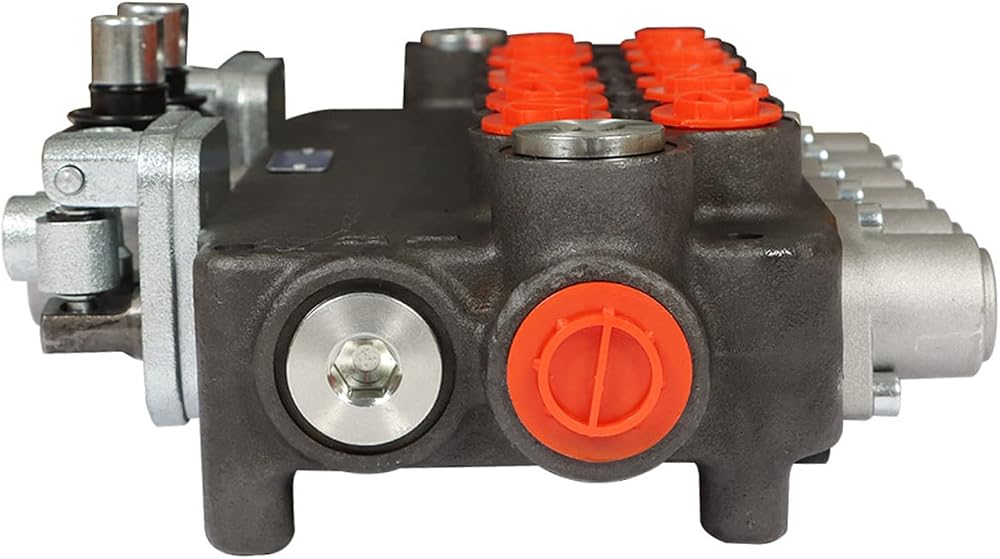

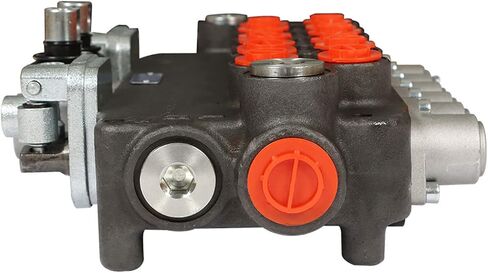

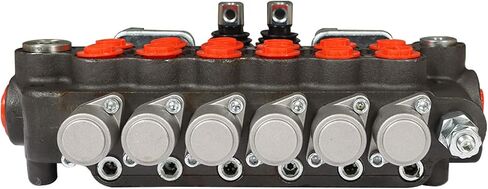

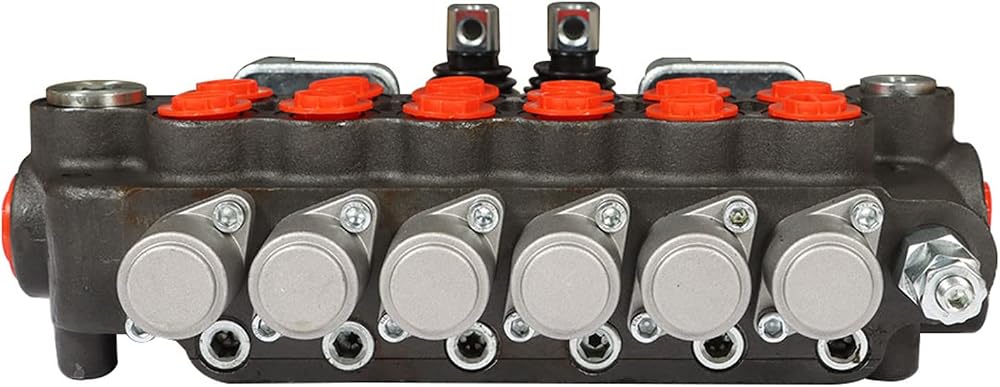

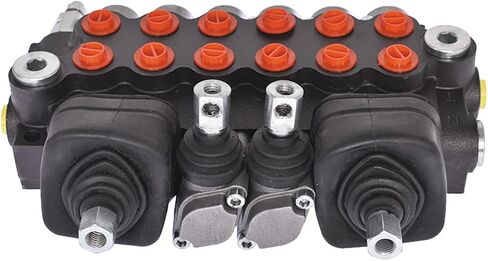

6 Spool Hydraulic Monoblock Double Acting Control Valve

Specification:

Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Preset Pressure Relief: 2610 PSI
Flow Rating: 21 GPM (80 l/min)
A & B Work Ports: 10 SAE O-Ring (7/8"-14) Thread
Inlet Port: 10 SAE O-Ring (7/8"-14) Thread
Outlet Port: 12 SAE O-Ring (1-1/16"-12) Thread
3 - 5/16" Mounting Holes

Feature:

- 6 Spool valve with compact design allows for installations in tight areas
- All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
- Used for open center systems (Pump to Tank Flow) - closed center option available
- Anti-drop load checks on each spool
- Precision ground and hard chrome-plated spools assure a long life
- High-tensile strength cast iron monoblock construction
- SAE O-Ring ports ensure solid seal and prevent blockages
- Capable of Closed Center or Power Beyond (conversion plug required)
- Vertical or horizontal handle mount
- Adjustable Relief Valve Range: 1500 to 3625 PSI
- Used as motor or single-acting spool possible (10 SAE port plug required)

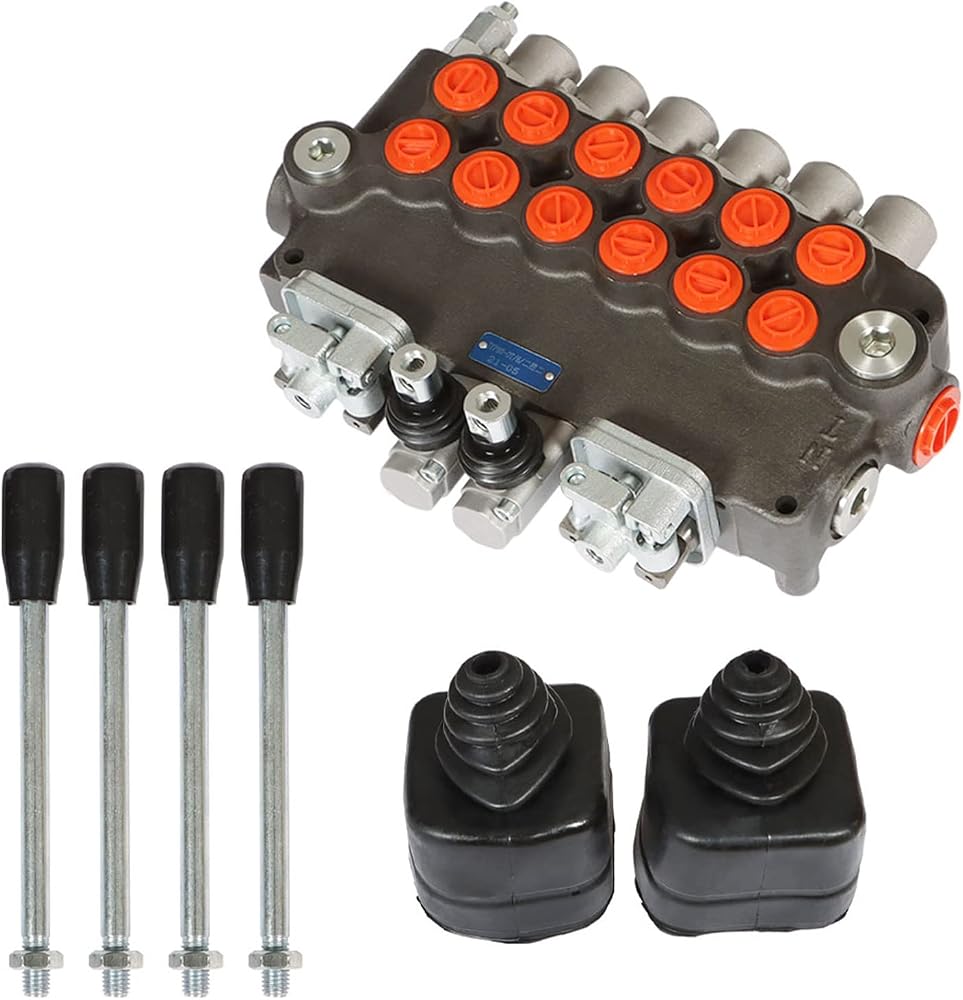

Package includes:

1 x Hydraulic Directional Control Valve
