103-1004-012 | 103-1004 Hydraulic Motor | Direct Replacement for Eaton Char-Lynn S Series | Cast Iron High Torque | Displacement 160cc/r | Maximum Pressure 138BAR | 4-Hole Flange |

KWD 57.500
Brand
Zachager
Weight
4 kg
– 1 +

Special Features

  • 【Precise Matching · Upgraded and Reinforced】 Original Part Number: 103-1004-012 | 103-1004. This motor is a direct replacement for the Eaton Char-Lynn S series. ⚠️Note: Unlike the original motor, we have added an extra reinforcing bolt in the middle to improve structural strength. This unique optimized design enhances overall stability during high-speed, heavy-load operation, effectively reduces vibration, improves operational safety, and does not affect the original motor's mounting dimensions, assembly compatibility, or daily use.
  • 【Stable Output Performance】Suitable for various applications:Displacement (m³): 160; Maximum working pressure (BAR): 138; Recommended flow rate (LPM): 53; Maximum speed (RPM): 374; Maximum torque (N.m): 297; Output shaft: Straight shaft; Mounting flange: 4-hole flange; Rotation direction: Clockwise.Utilizing an advanced gear design, it achieves stable high torque output at low speeds, effectively avoiding power decay and stalling during heavy-load operation.
  • 【High Volumetric Efficiency & Anti-Heat Degradation Design】Equipped with an advanced gear ring structure, it boasts a volumetric efficiency of up to 96%, resulting in extremely low energy loss. Even under continuous high-load conditions (such as zero-turn lawnmowers and snowplows), it maintains stable torque and controllable temperature rise, preventing power decay or seal failure due to overheating, significantly reducing equipment downtime.
  • 【Leak-Free Design & All-Weather Durability】 The housing is made of precision cast iron in one piece, with a black anti-rust paint coating for corrosion resistance and impact resistance. SAE O-ring seals with dust caps are standard at the inlet and outlet, completely eliminating external leakage. Each motor undergoes 100% pressure testing before leaving the factory to ensure leak-free operation under harsh conditions.
  • 【Professional Installation Guide (Must Read)】⚠️ Before installation, please verify that your equipment part number matches this motor. If in doubt, please send us your model number or original factory code, and we will confirm it for you. Before connecting the new motor, thoroughly flush the hydraulic lines to remove impurities or water from the old oil. Apply clean hydraulic oil to the O-rings; tighten the connections and then lock them to the manufacturer's specified torque. It is strongly recommended to replace the hydraulic oil filter and fluid simultaneously, which can extend motor life by more than 30%.

Description

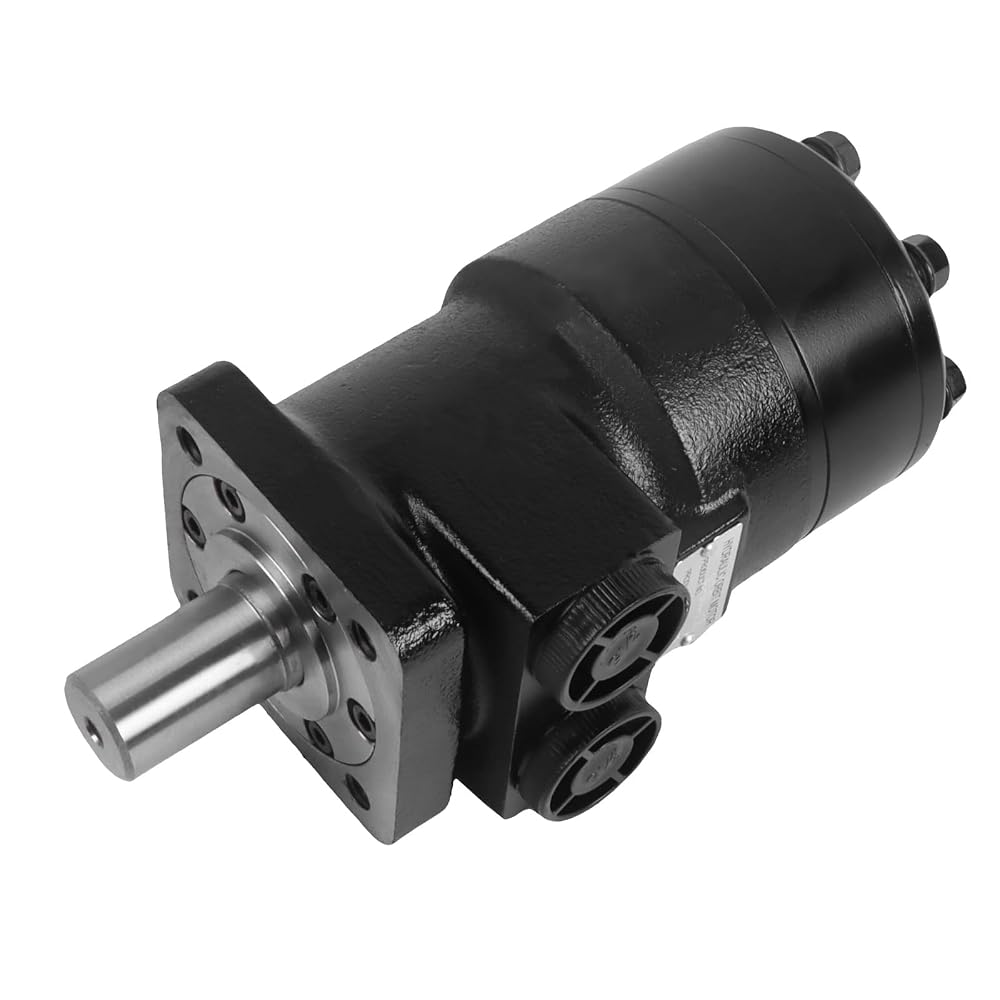

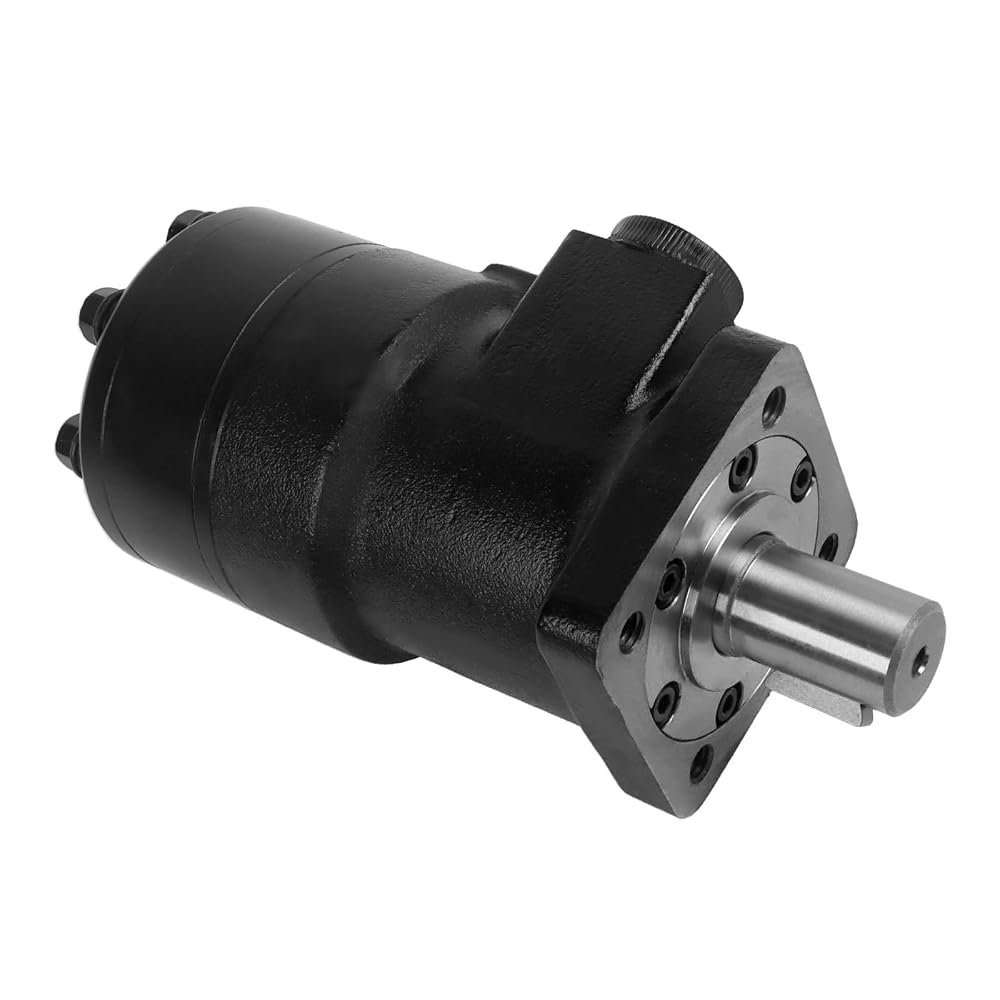

Product Name:Hydraulic Motor

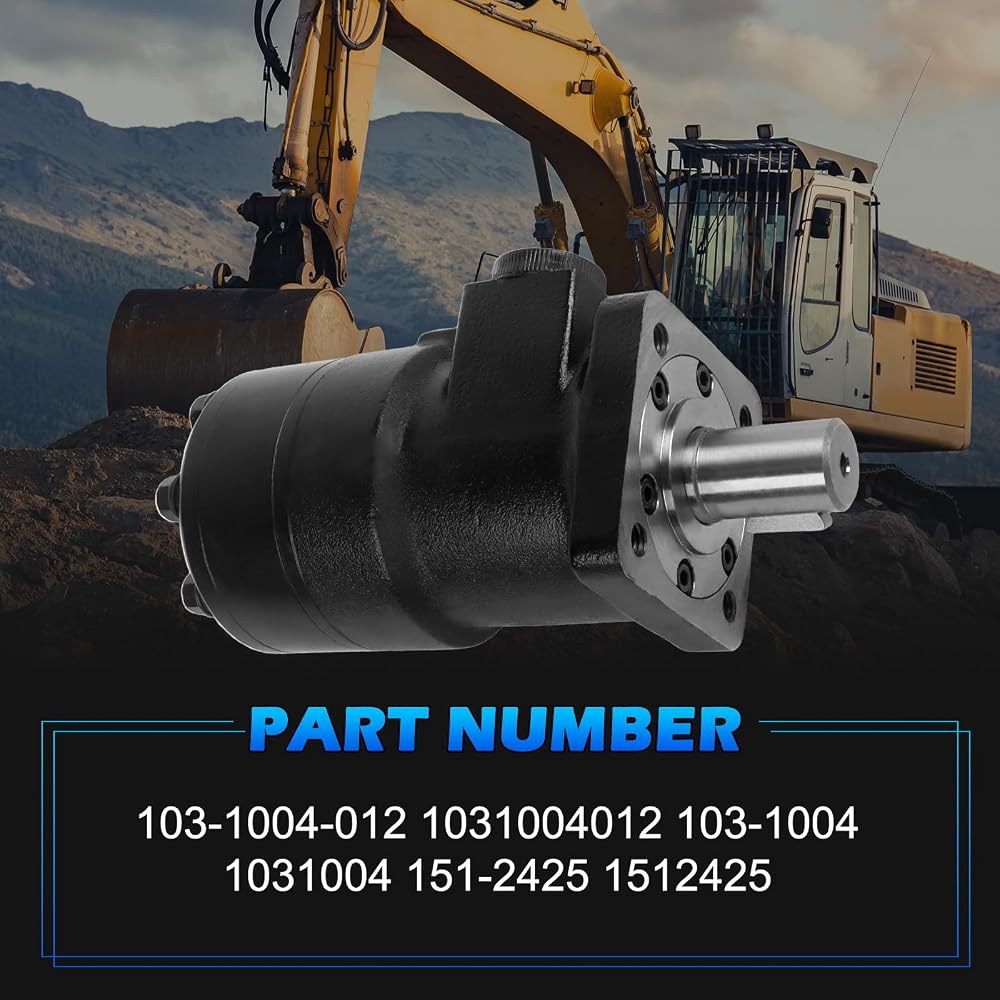

Part Number: 103-1004-012 1031004012 103-1004 1031004 151-2425 1512425
Actual Mounting Flange: 4-Bolt Standard: 44.4 [1.75] dia x 3.0 [.12] pilot, .375-16 mount
Actual Output Shaft: 25.4 [1.00] dia straight with Woodruff key and 1/4-20 threaded hole
Actual Port Type: 500-14 Nptf Dryseal pipe threads accept Dryseal fittings per SAE J476A
Case Drain: No Case Drain
Continuous Flow Rate: 15 gpm
Continuous Pressure: 1900 psi
Continuous Torque: 2662 in
Displacement: 10.10 cu in/l
Inlet and Outlet Port Sizes: 1/2-14 NPTF Port Size 8MP
Intermittent Flow Rate: 20 gpm
Intermittent Pressure: 2300 psi
Intermittent Torque: 3191 in
Maximum Continuous Oil Viscosity: 70 Saybold Universal Second Hand
Maximum Operating Temperature: 180°F
Maximum RPM - Continuous: 253 RPM
Motor Port Size: 1/2–14 NPTF
Motor Port Type: National Pipe Tapered Fuel
Mounting Type: 4-Bolt Flange - 1.75 in Pilot
Output Shaft Size: 1 in Straight - Woodruff Key
Overall Height: 4.24 in.
Overall Length: 6.98 in.
Overall Width: 3.38 in.
Port Configuration: 500-14 NPTF Dryseal Pipe Thread Ports
Repair Parts Drawing #: 6-125
Replacement Bearing Race: 008, 009 & 010 Designs - 7462-000
Replacement Buna-N Seal Kit: 008 Design - 60533-000, 009 & 010 Designs - 60539-000
Replacement Driver - Sold Separately: 010 Design - 8664-000
Replacement Geroler - Sold Separately: 010 Design - 8632-004
Replacement Long Cap Nut End: 010 Design - 16294-200 - Requires 7
Replacement Mounting Flange: 010 & 009 Designs 22000-002, 008 Design 7464-000
Replacement Needle Roller Thrust Bearing: 008, 009 & 010 Designs - 7537-000
Replacement Output Shaft: 008, 009 & 010 Designs - 7360-001
Replacement Back Housing: 008, 009 & 010 Designs - 8631-002
Replacement Short Head Screw Mnt End: 008, 009 & 010 Designs - 16292-088 - Requires 4
Replacement Viton Seal Kit: 008 Design - 60534-000, 009 & 010 Design - 60546-000
Seal Type: Standard
Series: S Series
Shaft Type: Straight
Weight: 16, 14.00 lbs
