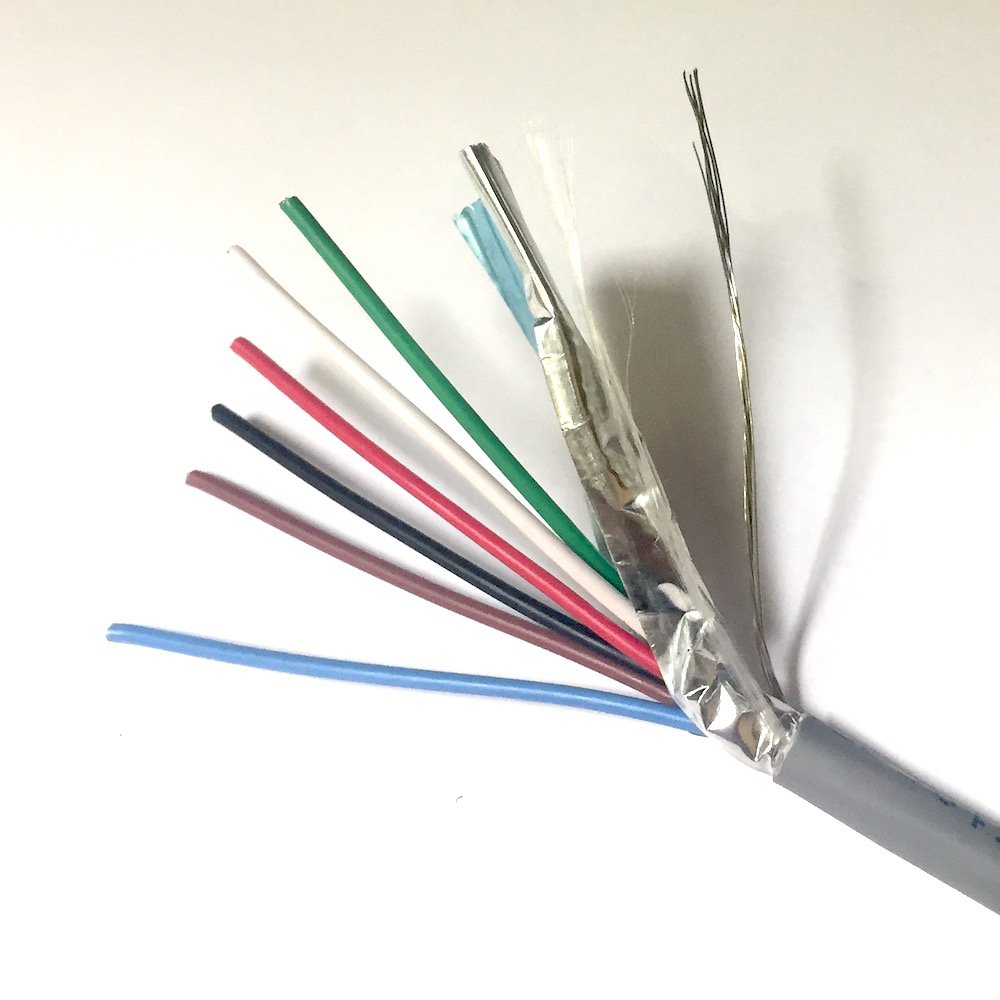

Product Overview The 5304FE 008500 is a 500ft 6-conductor shielded Security and Alarm Cable with 18AWG (7 x 26) bare copper conductors, polypropylene insulation, Beldfoil aluminum foil-polyester tape
Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves,
27pF/ft Conductor to conductor nominal capacitance 48
5pF/ft Conductor to other conductor and shield nominal capacitance 6
5/1000ft at 20°C Nominal conductor DC resistance 15
وصف
Product Overview The 5304FE 008500 is a 500ft 6-conductor shielded Security and Alarm Cable with 18AWG (7 x 26) bare copper conductors, polypropylene insulation, Beldfoil aluminum foil-polyester tape with shorting fold shield (100% coverage), 24AWG tinned copper drain wire and grey PVC jacket with ripcord. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. 27pF/ft Conductor to conductor nominal capacitance 48.5pF/ft Conductor to other conductor and shield nominal capacitance 6.5/1000ft at 20°C Nominal conductor DC resistance 15.250/1000ft at 20°C Nominal outer shield DC resistance UL1666 Riser, CSA FT4 flammability rated -20 to 75C Operating temperature range Applications Security, Audio, Industrial, Commercial
