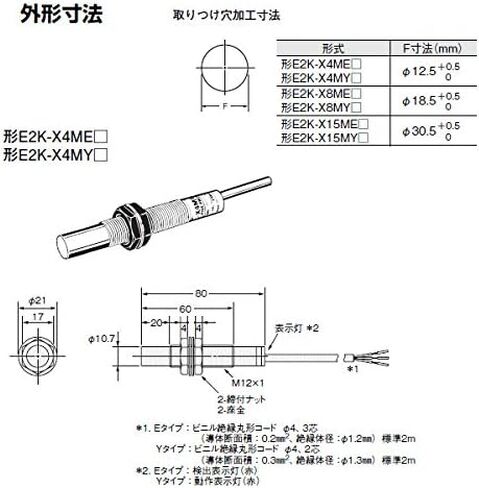

[Cylinder type sensing head size] M12
[Type] Unshielded
[Sensing method] Capacitive type
[Sensing distance] 4mm -10% to +10%
[Setting distance] 0 to 2.8 mm
[Differential distance] 4% to 20% of sensing distance
[Sensing object] Conductor and dielectrics
[Standard sensing object] With grounded metal 50*50*1mm
[Response frequency] DC: 100 Hz (average)
[Power supply voltage] 12 to 24 VDC
[Operating voltage range] 10 to 30 VDC
[Current consumption] 15 mA Max.
[Control output (Output type)] NPN voltage-current output
[Control output (Switching capacity)] 0 to 200mA
[Indicator] Detection indicator(red)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
[Ambient temperature] -25 to 70 CEL(with no icing or condensation)
[Ambient humidity] Operating: 35 to 95 %RH(with no condensation)
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP66
Company standard: Oil-proof

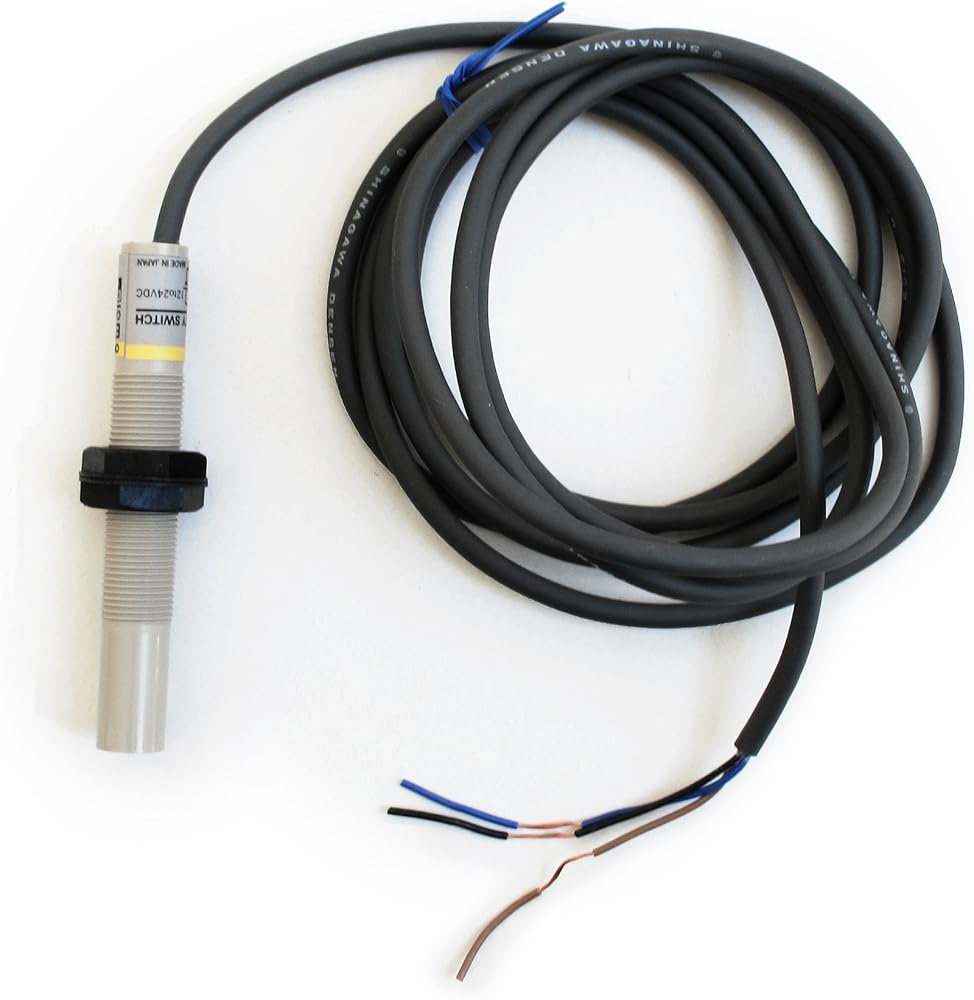

[Connection method] Pre-wired models (Cable length: 2 m)
[Weight (Packed state)] approx. 65 g
