Specifications:
Module type: MC-901
Input voltage: 3.7V-6V
Input current: 0.5A-2.5A
Input wire length: 9cm(3.54in)
High voltage type: pulse DC type
Output voltage: 800KV-1000KV (please pay attention to safety when using)
Output current: 0.5A-1A
Output length: approximately 15 cm(5.91 in)
High voltage bipolar discharge distance: 0.5 cm(0.20 in) -1.5 cm(0.59 in)
Size: 88.5 x 26mm(3.48 x 1.02in)(LxD)
Product usage method:

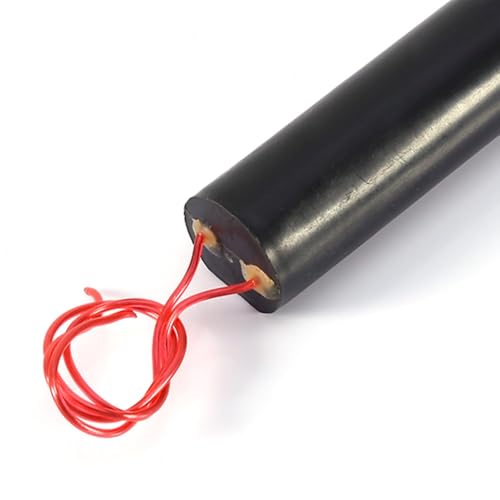

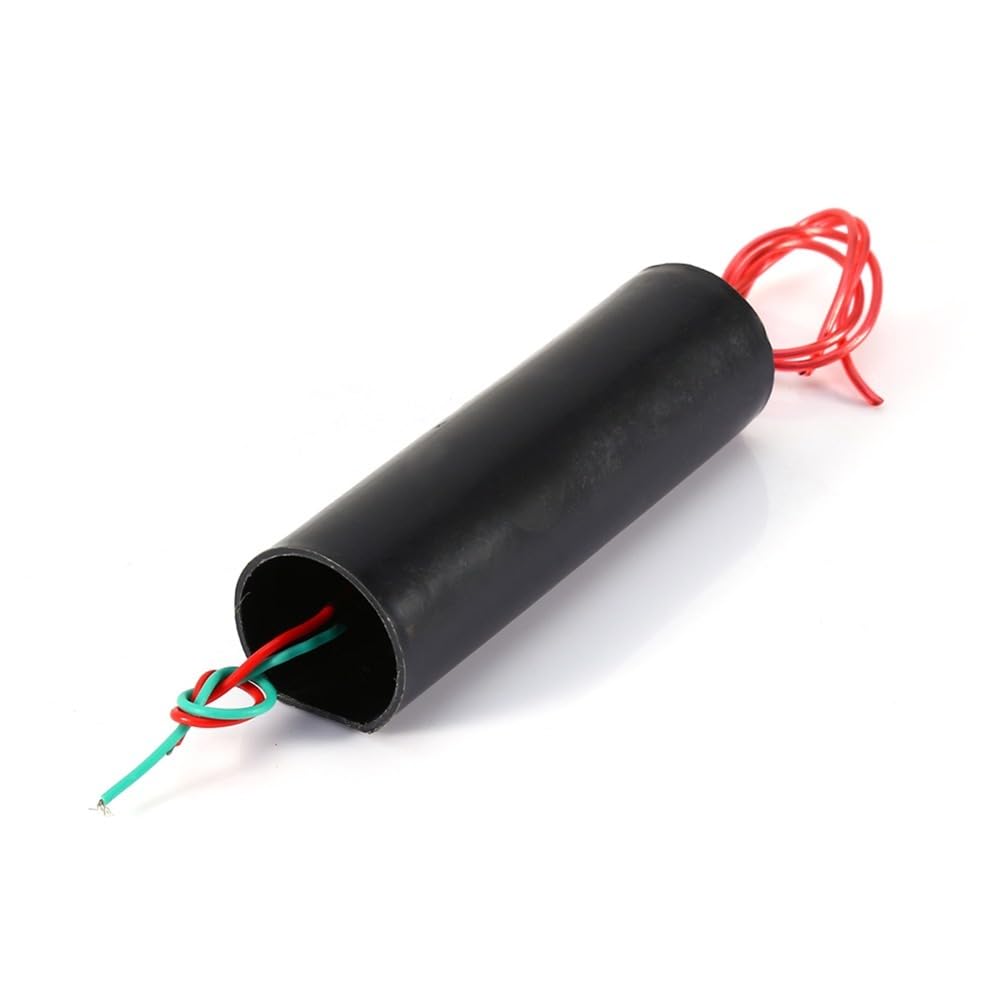

Module input terminal and the output terminal, red and green line is Input terminal, red"-" green"+",two thick line which has same color is the high voltage output, fixed output end of the proper arc distance and input end is connected with a battery can generate high-voltage electric arc.
Module use note:
1. high voltage module should avoid the use of high voltage no-load, power must be adjusted before the high voltage line end of the right distance, high voltage wire drawing distance and the use of battery voltage and capacity is proportional to.
2.When testing the arc distance, start with a short distance and gradually increase it. It is strictly forbidden to exceed the maximum arc distance when the module is powered on; otherwise, the high-voltage energy cannot be released, which may easily damage the module.
3.The module has high power and poor internal heat dissipation, so it cannot work for a long time. Generally, continuous use within 10 seconds is safe.
Package include:
1Pcs x High voltage inverter
