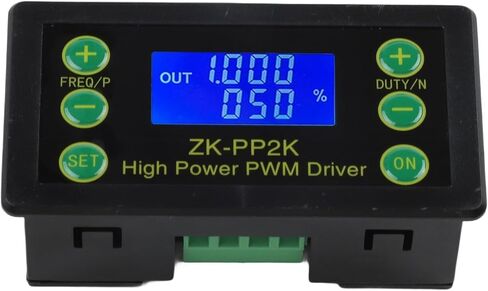

feature:

Can directly drive loads such as LEDs, motors, solenoid valves, .

Two modes can be:
for PWM mode- for frequency(continuous), duty cycle. Note that the number of switching times cannot be set in this mode, and it has been cycled on and off;
for pulse for pulse mode-positive for pulse width time, negative for pulse width time, power-on delay start time, switch times are adjustable.

With start and stop button, can control start and stop
Wide voltage input 3.3-30V, 5.08mm terminal wiring

parameter:

Working voltage: 3.3~30V(note that the positive and negative poles are not reversed, otherwise it may be burnt)
for frequency range: 1Hz~150KHz, accuracy is about 2%. Motor control generally choose 20KHZ
Duty cycle range: 0-, 1% step
Number of pulses: 1-9999, or infinite(display‘----' means infinite)
Delay output time: 0.000s-9999s, the minimum can be set to 1ms
Positive and negative for pulse width length: 0.000s-9999s, the minimum can be set to 1ms
Output load capacity: less than 8A(MOS switch tube)
Output amplitude: The amplitude is equal to the power supply voltage(OUT+ and V+ are directly connected inside the module)
Product size: 79mm*43mm*30mm

Package list:

1* for PWM dimming motor
