The SCT023R series split core current transformers are equipped with built-in transient voltage suppressors, used for current measurement, monitoring, and protection of AC motors, lighting equipment, air compressors, and more.

Parameters:
Mode: SCT023R
Core Type: Split-Core
Hole Diameter: Φ23mm
Input Current: 100A
Output Current: 50mA
Turns: 1:2000
Accuracy: 0.5%
Sampling Resistanc e: 50Ω
Mounting Type: Free Hanging (In-Line)
Connection Type: Cable

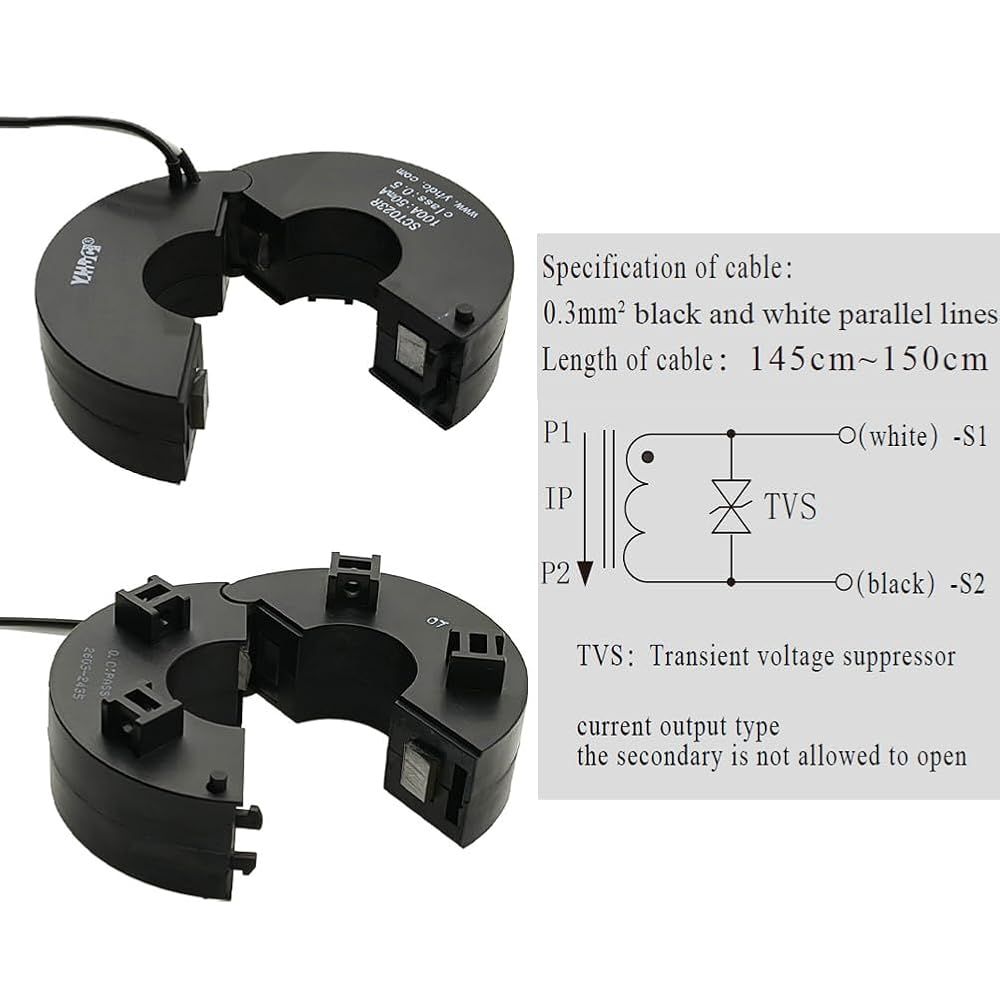

Cable Specification: 0.3mm² black and white parallel lines
Cable Length: 145cm~150cm

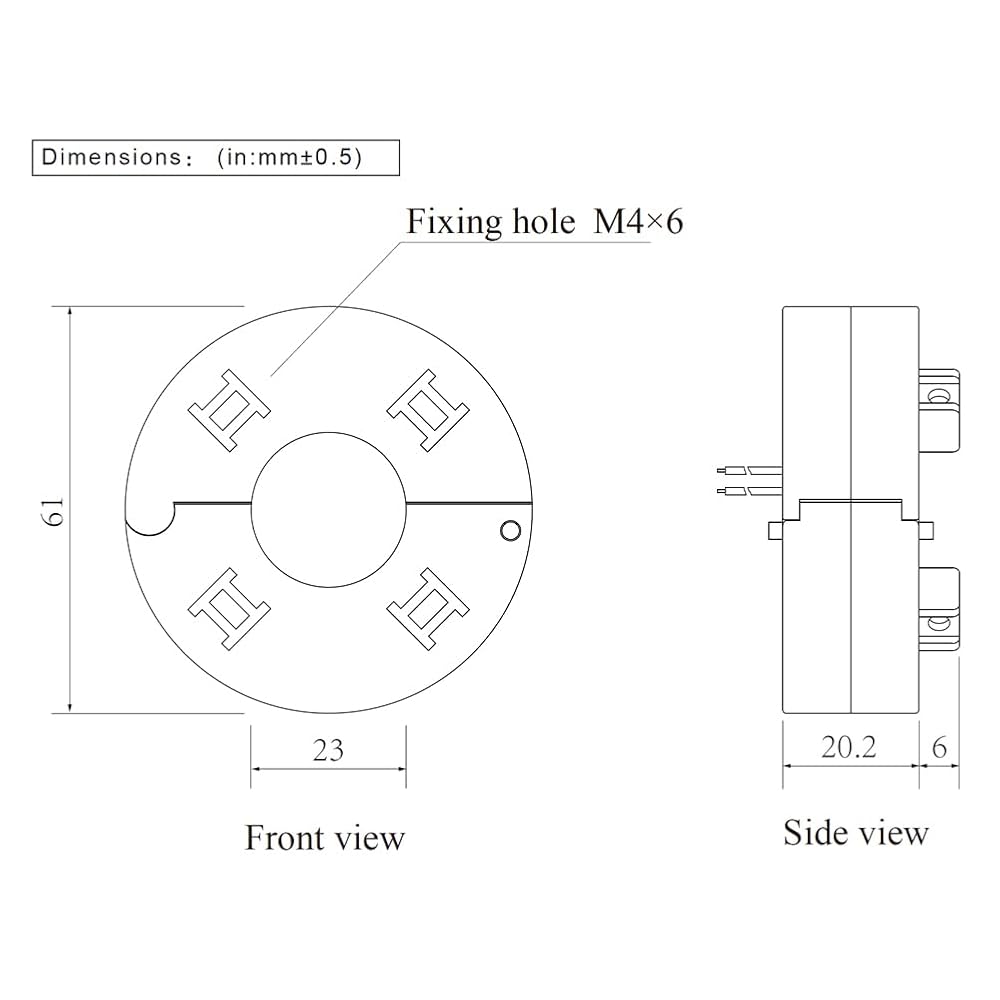

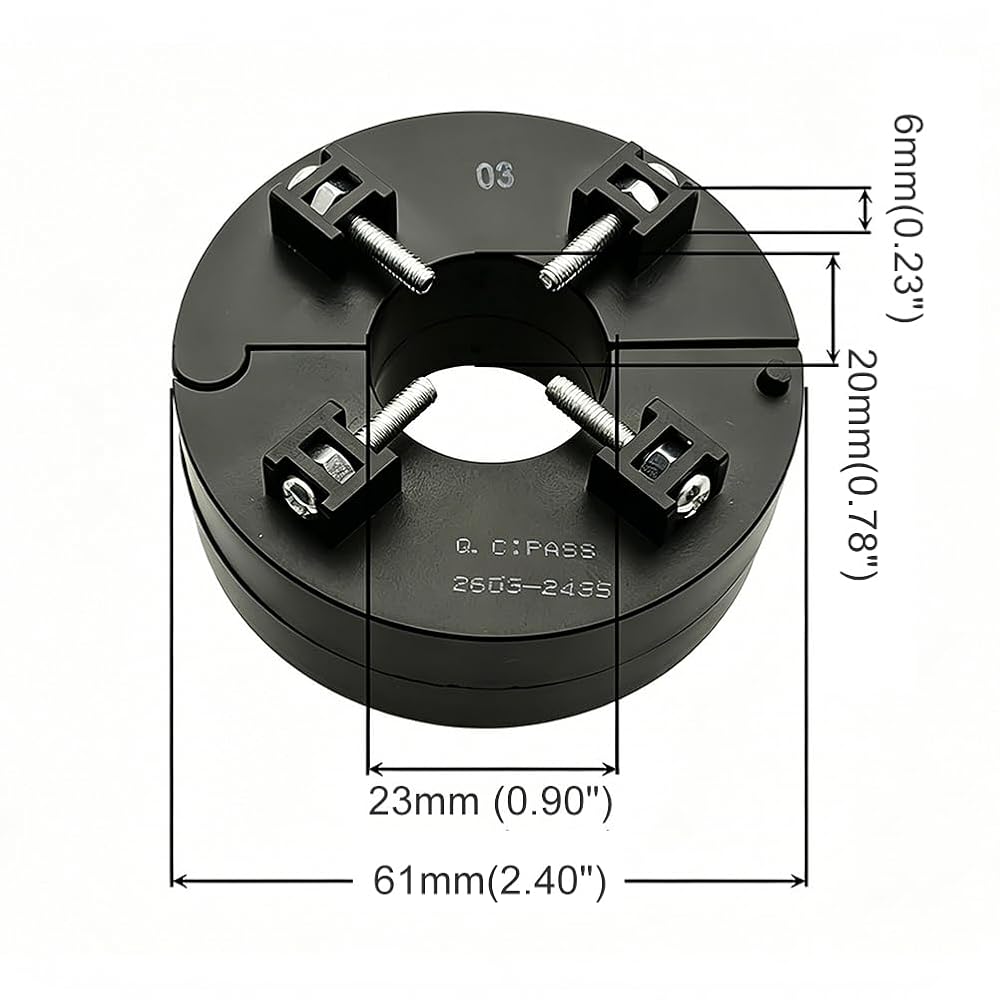

Size: 61*26mm
Weight: 106g
Product Color: black
Working Voltage: Phase voltage ≤720V
Operating Temperature: -30℃ ~ +65℃
Storage Temperature: -40℃ ~ +85℃
Frequency Range: 50Hz-60Hz
Dielectric Strength: Input (bare conductor) / output AC 800V/1min 5mA 50Hz
output / outer shell AC 3.5KV/1min 5mA 50Hz

Characteristics:
Safety lock buckle

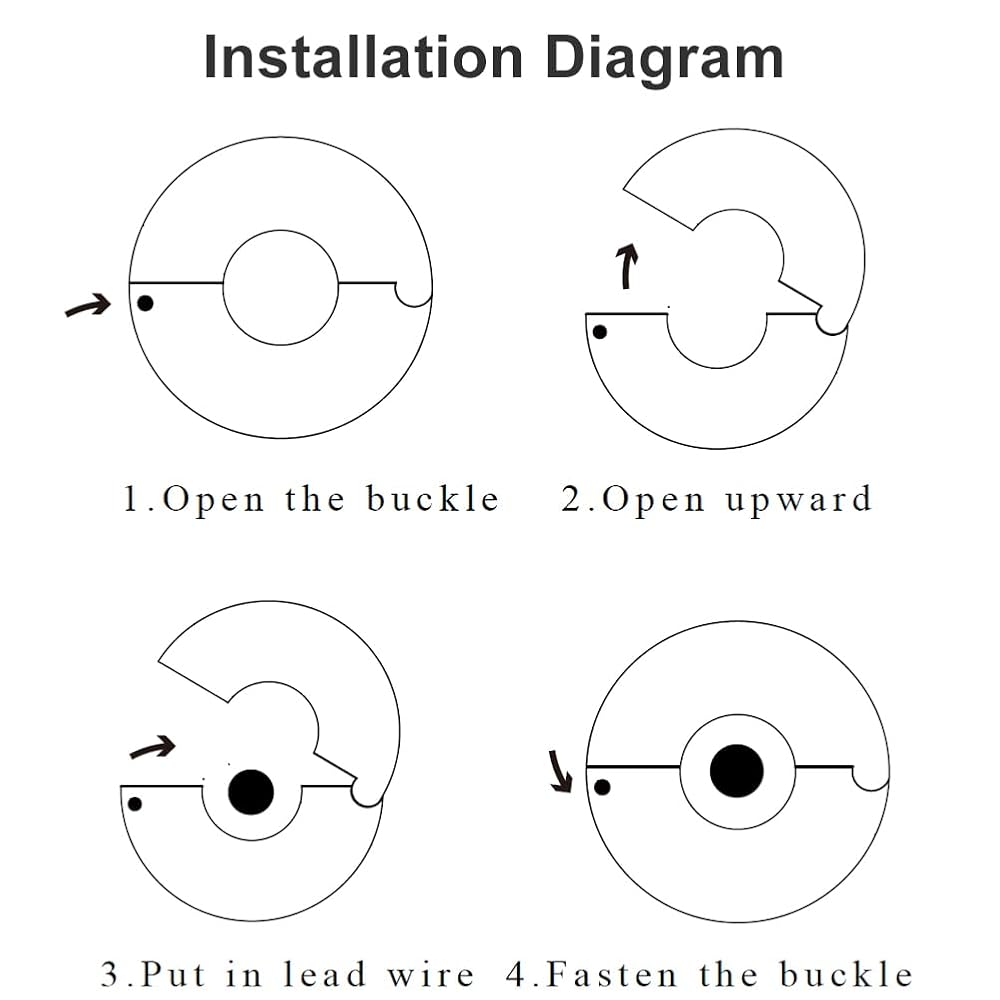

Easy installation
Cable output
Free hanging (In-Line) mounting

Product advantage:
Small volume
Light weight
Low cost
High turns
High precision

Product application: Portable instrument, Household metering, Monitor motor load
