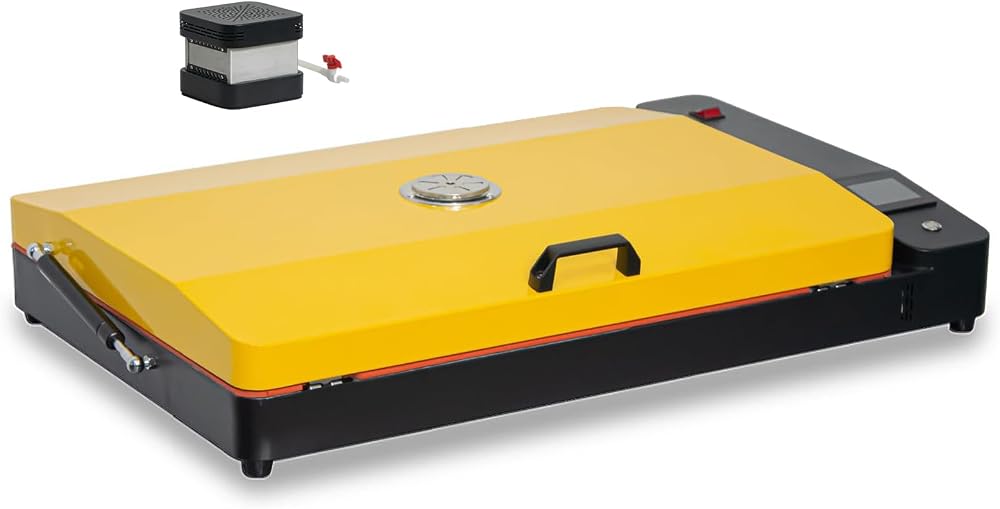

VORTRIDINO New Upgrade DTF Transfer Oven 17in x 23.6in DTF Oven Dryer With Bottom Aluminum Alloy Heating Pro DTF Oven Curing Transfer Film DTF Sheet, With Small Filter

Features:
1) Bottom aluminum alloy heating for more stable internal temperature;
2) Anti scalding, breathable mesh added, anti adhesion;
3) Smoke exhaust port, adjustable smoke exhaust size;
4) The latest design, more scientific structure, more precise temperature control of the product, rapid heating, and the ability to achieve full width drying and curing without dead corners,making it perfectSolidification and fusion effect.
5) Automatic timing, counter, buzzer alarm.
6) Suitable for 60CM film white ink printingink & powder fuse curing.

Specifications:
Maximum curing size:17in x 23.6in(430mm x 600mm)
Control:temperature&time setup,PID control
Supply:110V,1600W,14.6A/220V,1600W,7.3A

Drying temperature setting:311℉-347℉(155℃ - 175 ℃) (the specific temperature is set according to the melting point of the powder)

The time countdown setting is 210 seconds - 300 seconds. (the specific time is set according to the melting condition of the powder)

Dimension: 32.3in x 21.2in x 6.6in (820mm x 538mm x 167mm)
Net weight:48.5lbs(22kg)
Packing Size:42.4in x 23.6in x 8.7in(1076mm x 600mm x 220mm)
Gross Weight: 52.9lbs(24kg)

The oven has a smoke filter and needs to be fitted by the purchaser.

DTF curing oven for baking transfer sheets that are freshly powdered. Fit sheets up to 17in x 23.6in.
Settings are Preset! Tested with CALCA DTF Supplies.Small footprints and easy to operate.
