مميزات خاصة

Advanced Double-Layer (Jacketed) Design for Precise Temperature Control: Engineered with a high borosilicate glass inner vessel and a separate outer jacket, this reactor allows you to circulate chilling or heating fluids (from -80°C to 250°C) for exact management. The transparent design provides real-time observation of the reaction, making it ideal for sensitive chemical synthesis, distillation, and reflux processes where temperature stability is critical
PTFE Sealed & High Vacuum Performance, Ensures Leak-Proof Operation: Featuring industrial-grade PTFE mechanical seals and discharge valves, this reaction kettle achieves and maintains a high vacuum up to -0.098MPa. This leak-proof sealing system prevents solvent loss, ensuring experiment integrity and safety. It is excellent for distillation, separation, and purification operations

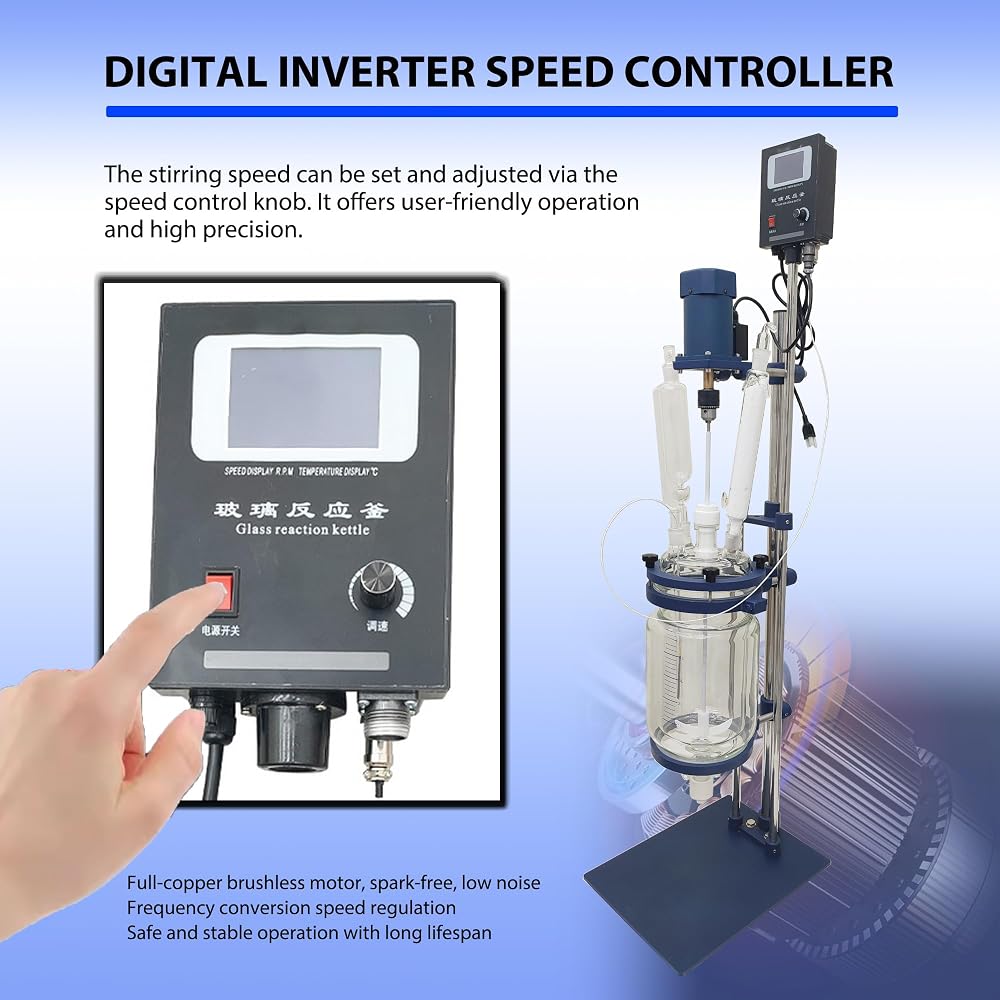

Digital Display & Variable Speed Stirring with Overload Protection: Equipped with a clear digital display for real-time monitoring of speed and temperature, and a powerful 90W variable frequency motor offering stepless speed adjustment from 0-600 RPM. The system includes overload protection to prevent motor damage from high-viscosity materials. This provides precise control, smooth operation, and quiet performance for mixing, reaction, and crystallization tasks.

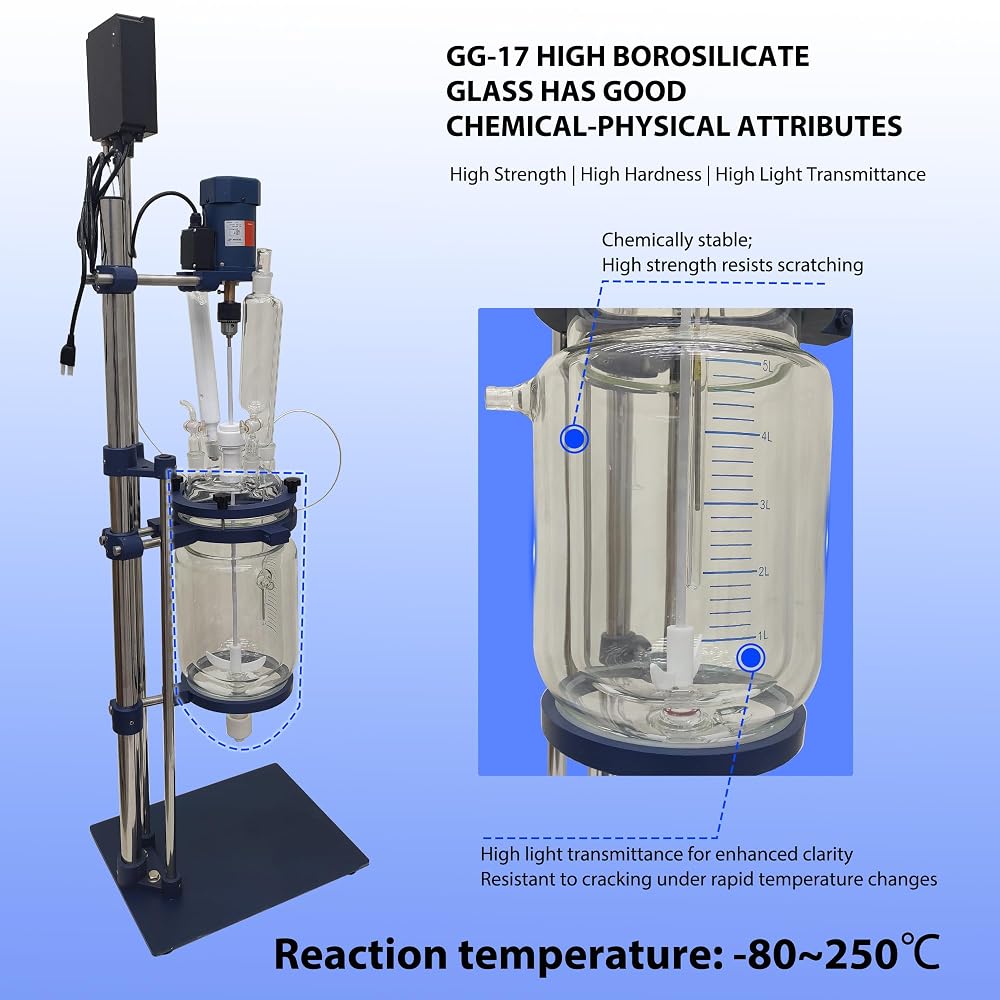

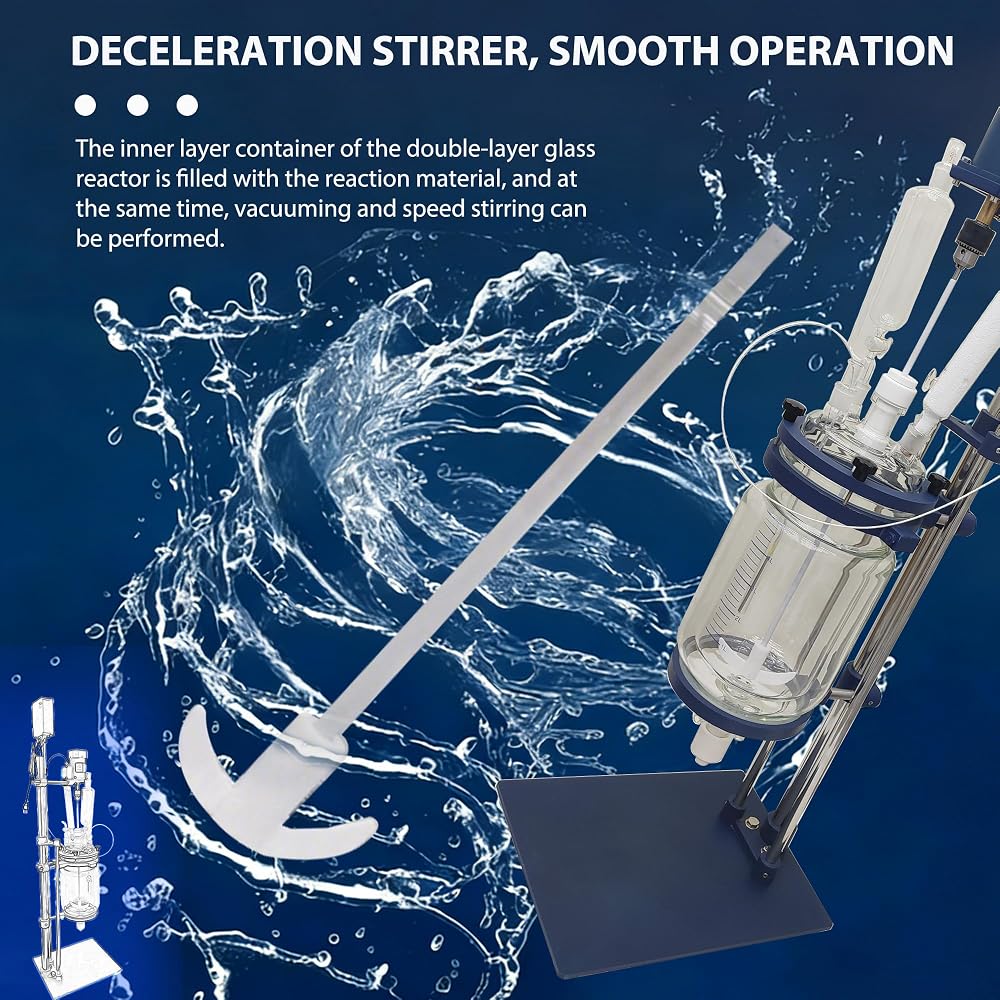

Deceleration Stirrer, Smooth Operation: Built with GG-17 high borosilicate glass resistant to thermal shock and chemical, and a deceleration stirrer for smooth Operation. This combination ensures compatibility with a wide range of acids, alkalis, and solvents. The high-torque, spark-free deceleration motor handles even high-viscosity materials effectively, ensuring fine chemical applications

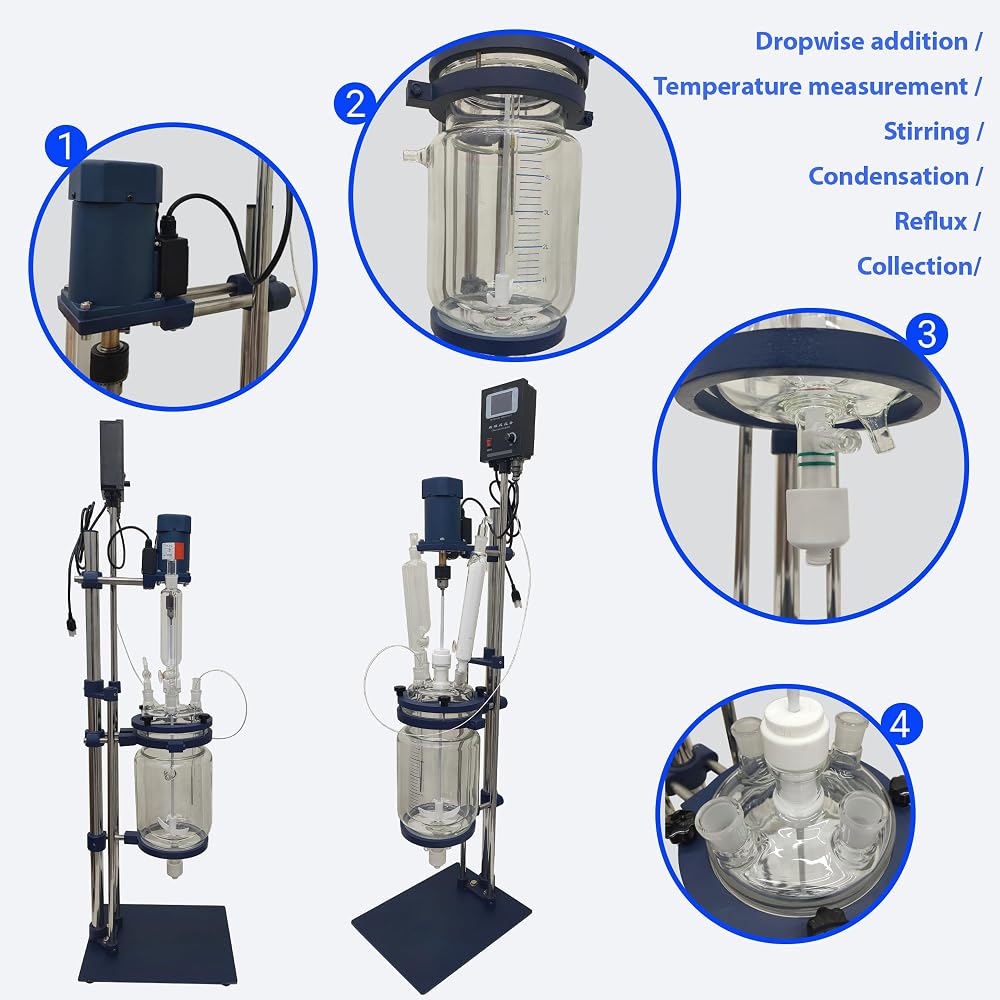

Versatile & Compatible System for Integrated Lab Setups: This 5L glass reactor is designed for seamless integration with external lab equipment like circulating chillers, constant temperature circulators, and vacuum pumps. Its jacketed design supports complex processes requiring simultaneous heating/cooling, stirring, and vacuum. Ready for experiments, pilot tests, and production in chemistry, and new material synthesis, it's a comprehensive solution for your reaction vessel needs

وصف

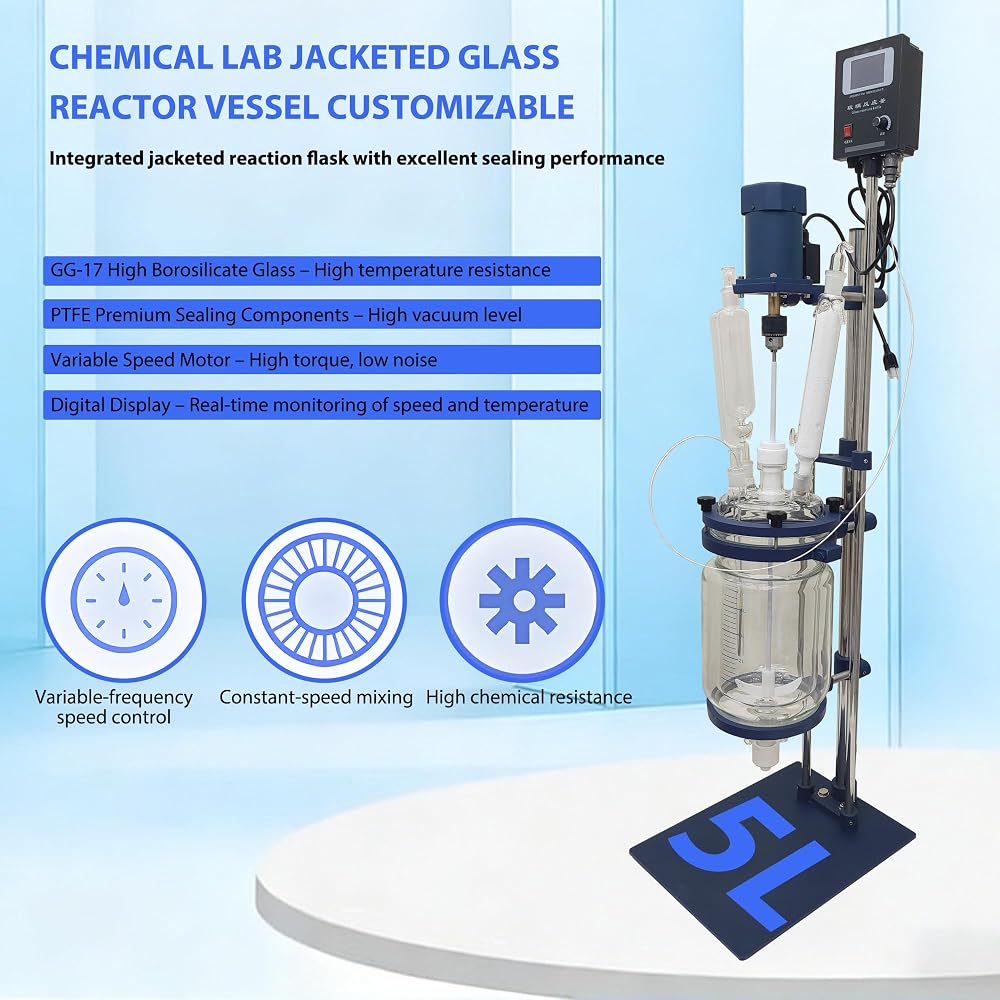

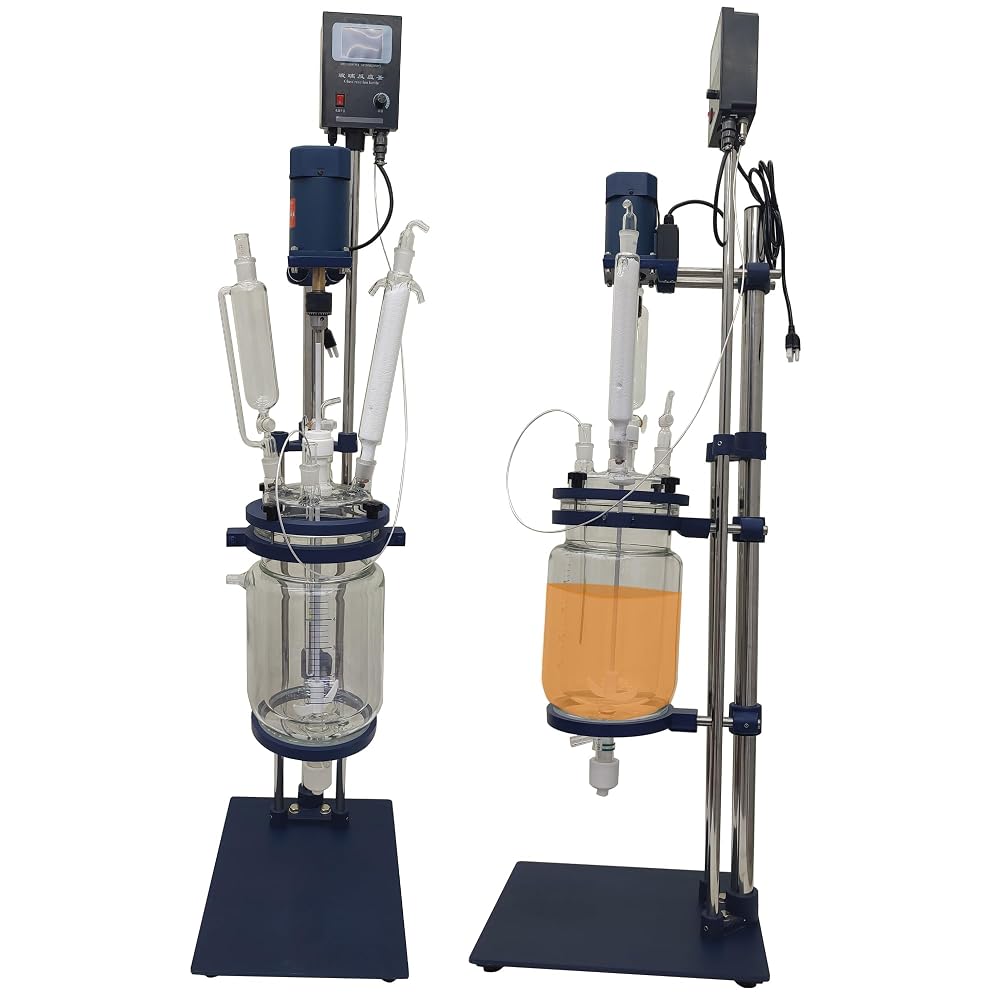

Chemical lab Jacketed Glass Reactor Vessel Customizable

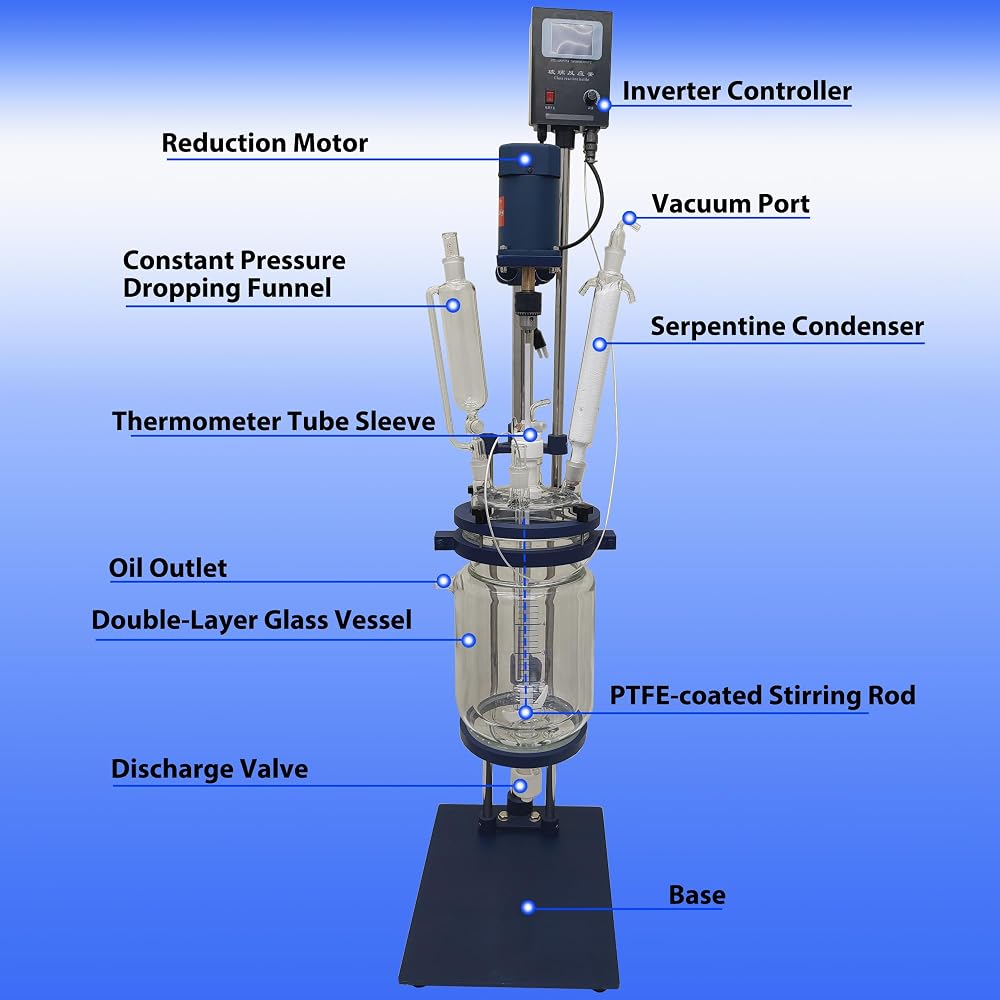

The inner layer container of the double-layer glass reactor is filled with the reaction material, and at the same time, vacuuming and speed stirring can be performed. The chilled liquid, water

and high temperature liquid is poured into the interlayer to heat and cool the material, it is used in experiments, pilot tests and production of chemical, fine chemical, new material

synthesis. The product can be combined with a circulating water multi-purpose vacuum pump, a circulating cooler, a constant temperature circulator, a low temperature coolant

circulation pump and a closed refrigeration heating cycle device (also known as a high and low temperature circulation device).

Parameter:

Material capacity (L): 5

Power (W): 90

speed (rpm): 0-600

Reaction temperature(℃): -80~250

Vacuum(Mpa): -0.098

Voltage: 110V

NOTE:

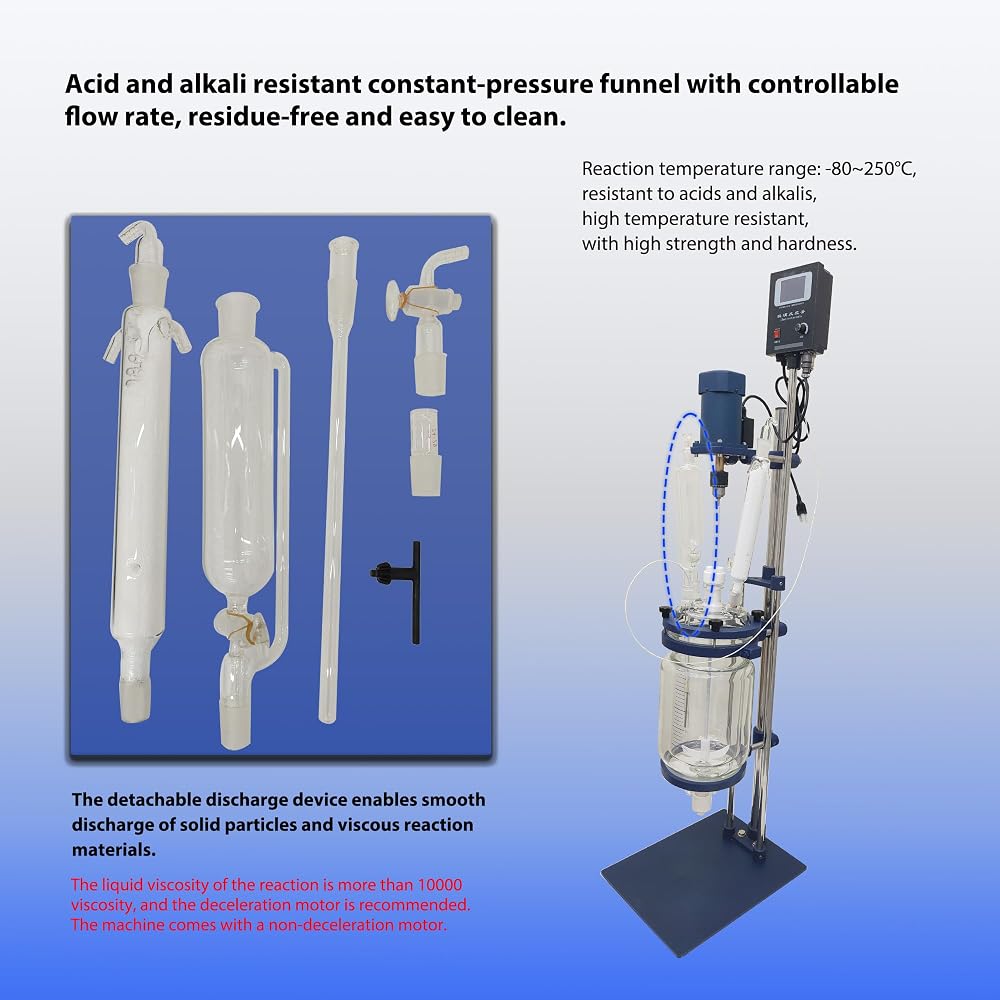

1.The liquid viscosity of the reaction is more than 10000 viscosity, and the deceleration motor is recommended. The machine comes with a non-deceleration motor.

2.This equipment is a fragile product, please handle it carefully when using it.

3.When using vacuum grease on rotatable parts such as glass cock or feeding tube, please choose a smooth and viscous brand.

4.Please apply the soft vacuum grease evenly and thinly on the valve core, so that the grinding port is fully matched.

5.Do not touch the transmission device during equipment operation to prevent danger.

Item Included(220636): 1 Set of Jacketed Glass Reactor Lab 5L
