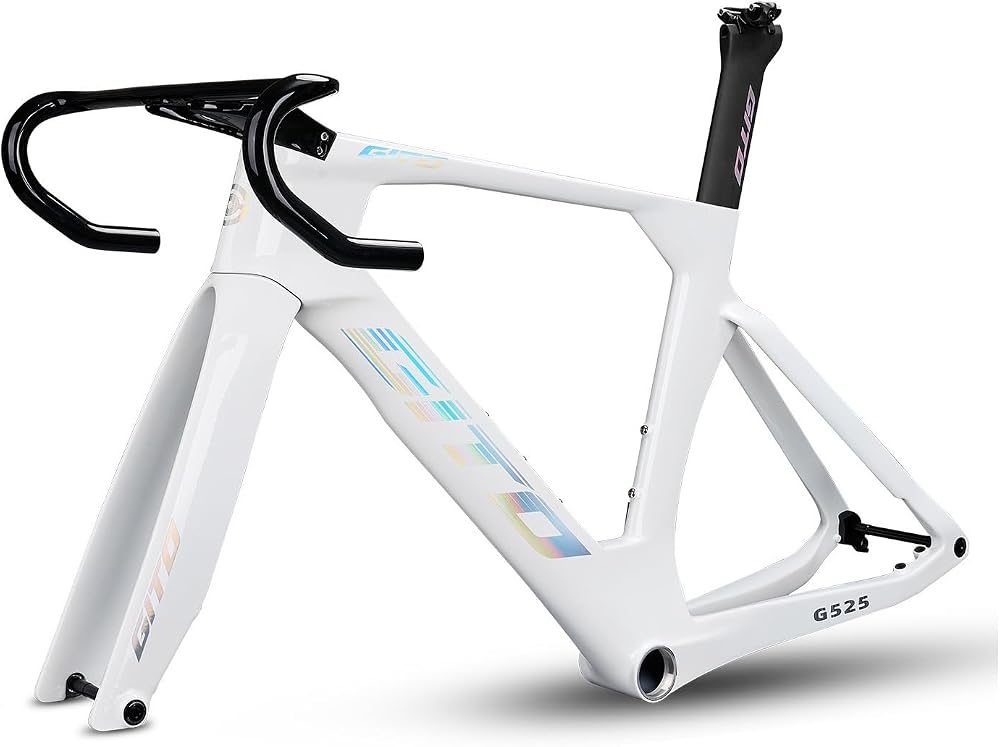

Name: 700C Full Carbon Fiber Frameset 46/49/52CM Aero Road Bike Frame Set Disc Brake Thru Axle F12×100mm R12×142mm
Brand: BSFHQS
Availability: InStock

Special Features

700C Aero Racing Road Bike Frameset: 46/49/52CM Wind-Cheater Aero Frameset, Max Tire Clearance: 700×28C. Recommended Rider Height: 160-170cm, 170-180cm, 180-190cm.
Disc Brake Frame：For 52*47mm headset, 400mm Carbon handlebar, 110mm bike stem, Carbon Seatpost(Hidden screw adjustment). T47mm Threaded bottom bracket(O.D 24*24), Thru Axle F12×100mm R12×142mm, Flat mounted disc brakes. Disc brake bolt pattern: Front 70mm, Rear 34mm; Disc brake rotors: Front 160mm, Rear 140/160mm (160mm requires an adapter).
Full Carbon Fiber Frameset: corrosion resistance, high strength, good rigidity and impact absorption, lightweight. Direct mount front derailleur. Fully Internal Cable Routing.
Versatile Performance: Whether you're tackling smooth asphalt, pushing through a long-distance cruise, powering up climbs, sprinting for the finish line, or descending at high speed, this frameset delivers stable and responsive handling across all conditions.
Package：Includes bsfhqs Frame(1150±50g) + Fork(510g) + Seatpost(120g) + handlebar(330g) + stem + front and rear thru axle lever + Seatpost Clamp + headset + Derailleur Hanger.

Description

700C Carbon Fiber Road Bike Frameset, 46/49/52CM bsfhqs Disc brake bike frame, F12×100mm R12×142mm thru axle frame, Perfect gift for bike lovers, can be assembled with your friends.

Product name: Carbon Fibre Disc Brake Frameset
Frame higth： 46/49/52CM
Recommended Rider Height: 160-170cm, 170-180cm, 180-190cm.
Wheel：700C
Maximum tire width: 700*28C
Cable: Internal Routing
Material: T800 Carbon Fibre
Suitable Terrain: Asphalt Road Surface; Long-Distance Cruising; Climbing & Sprinting; High-Speed Downhill

Frame Specifications:
Headset: 52*47mm
Bottom Brackets: T47mm Threaded bottom bracket
Brake: F70 R34mm Flat mounted disc brakes
Rotor: F 160MM; R 140/160MM (160mm requires an adapter)
Derailleur: Direct mount front derailleur.
Front Axle: 12×100mm Thru Axle
Rear Axle: 12×142mm Thru Axle
Seatpost: carbon fiber seatpost(Hidden screw adjustment)
Handlebar: 400mm carbon fiber handlebar
Stem: 110mm

Weight: Frame≈1150±50g, fork≈510g, seatpost≈120g, handlebar≈330g
Color: Black , White , Blue Orange , Orange Pink , Blue Purple , Green Yellow

Package:
Frame + Fork + Seatpost + handlebar + stem + front and rear thru axle lever + Seatpost Clamp + headset + Derailleur Hanger.
