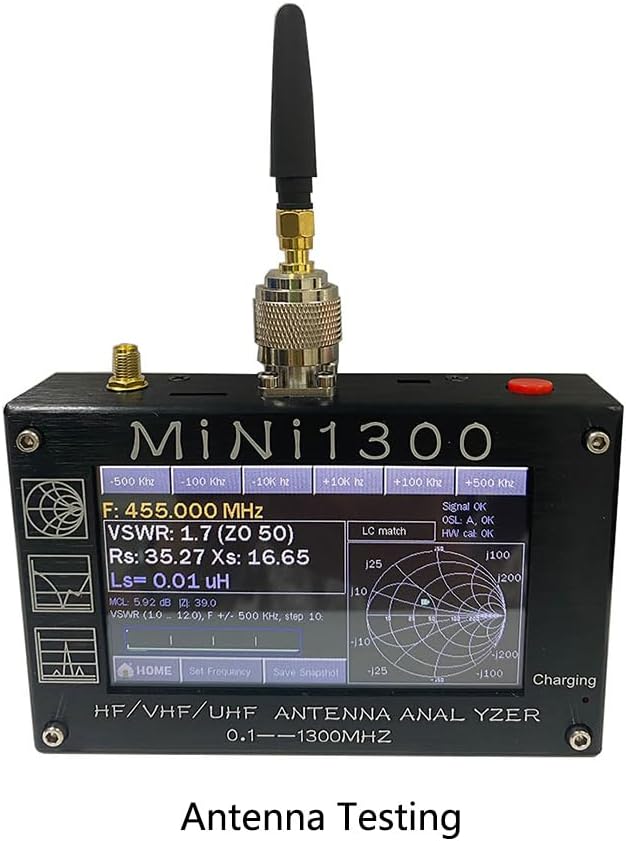

The Mini1300 Antenna Analyzer is a compact yet powerful vector network analyzer designed for RF engineers, amateur radio operators, and electronics enthusiasts. With a wide frequency range and advanced measurement capabilities, it delivers reliable performance for antenna tuning, impedance analysis, and signal testing.
Key Features
· Broad Frequency Coverage: 0.1–1300MHz continuous range for HF, VHF, and UHF applications
· Multi Measurement Functions: Analyze SWR, impedance (R, reactance), return loss, and more

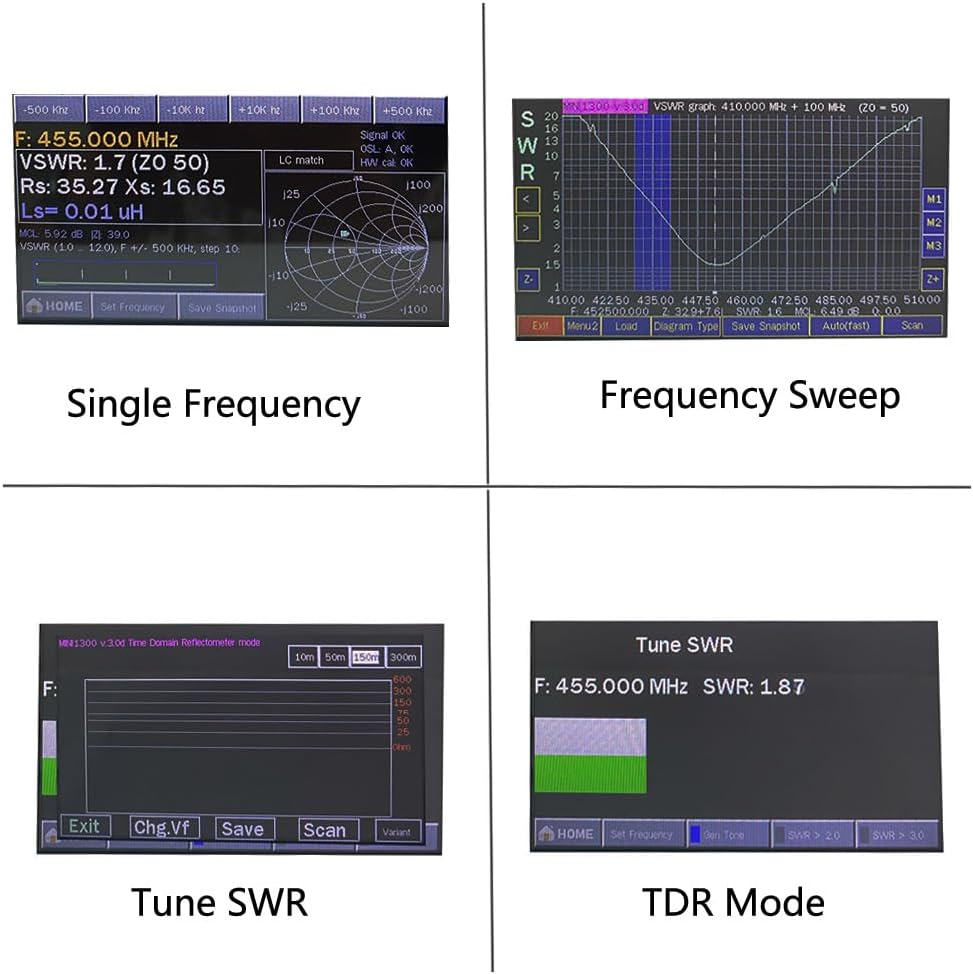

· Three Measurement Modes: Single-point, frequency sweep, and TDR (Time Domain Reflectometry)
· Advanced Display Options: Numerical data, curve graphs, and Smith chart visualization
· Built-in RF Tools: Supports signal generation, L/C measurement, feeder length testing, and DSP analysis
User-Friendly Design
Equipped with a 4.3-inch TFT capacitive touch screen, the Mini1300 offers a smooth and intuitive interface. All functions are easily accessible without physical buttons, improving efficiency during operation.

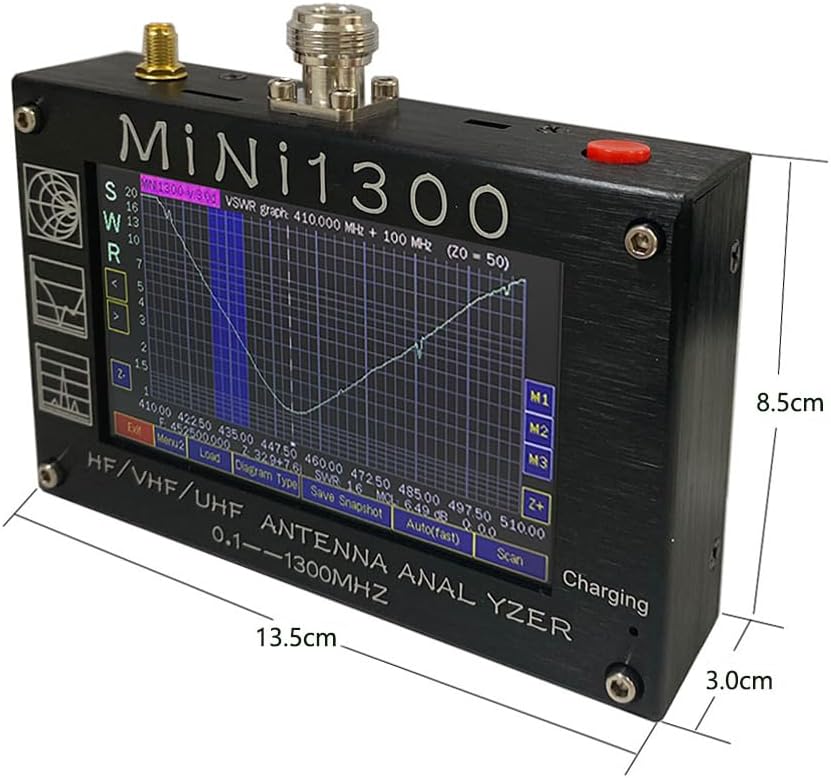

Durable & Portable
The device features a rugged aluminum alloy shell for enhanced durability, better RF shielding, and efficient heat dissipation. Its compact size makes it easy to carry for both fieldwork and lab environments.
Rechargeable & Expandable

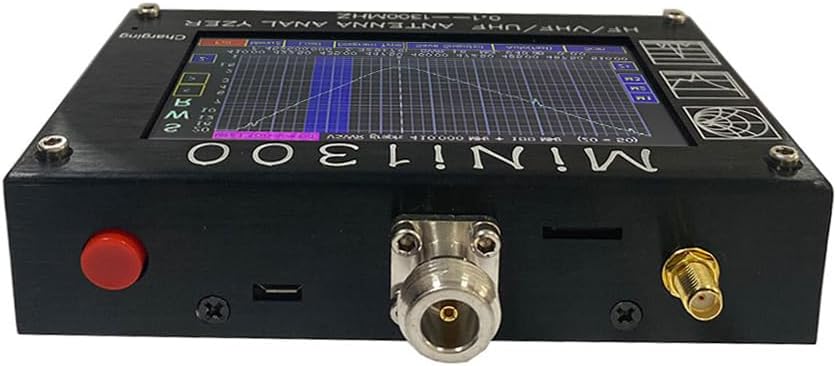

Powered by a built-in 3200mAh rechargeable battery, it supports hours of continuous operation. The USB charging port ensures convenient recharging, while the TF card slot allows data storage and easy sharing.

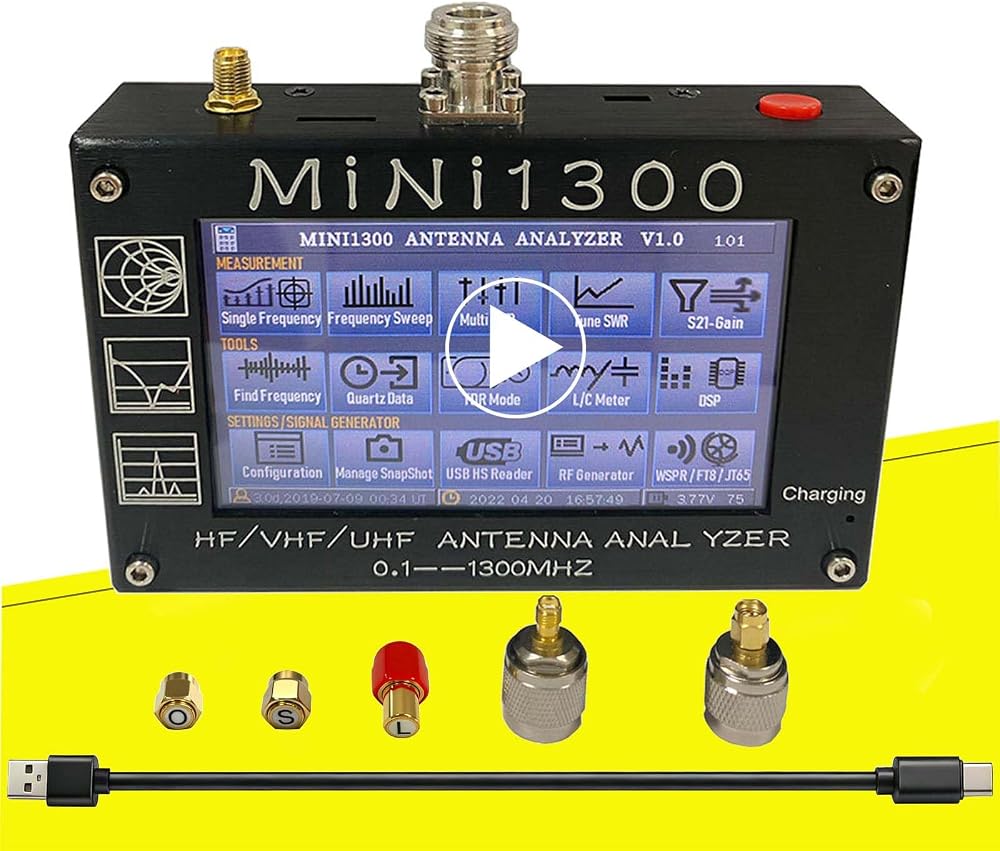

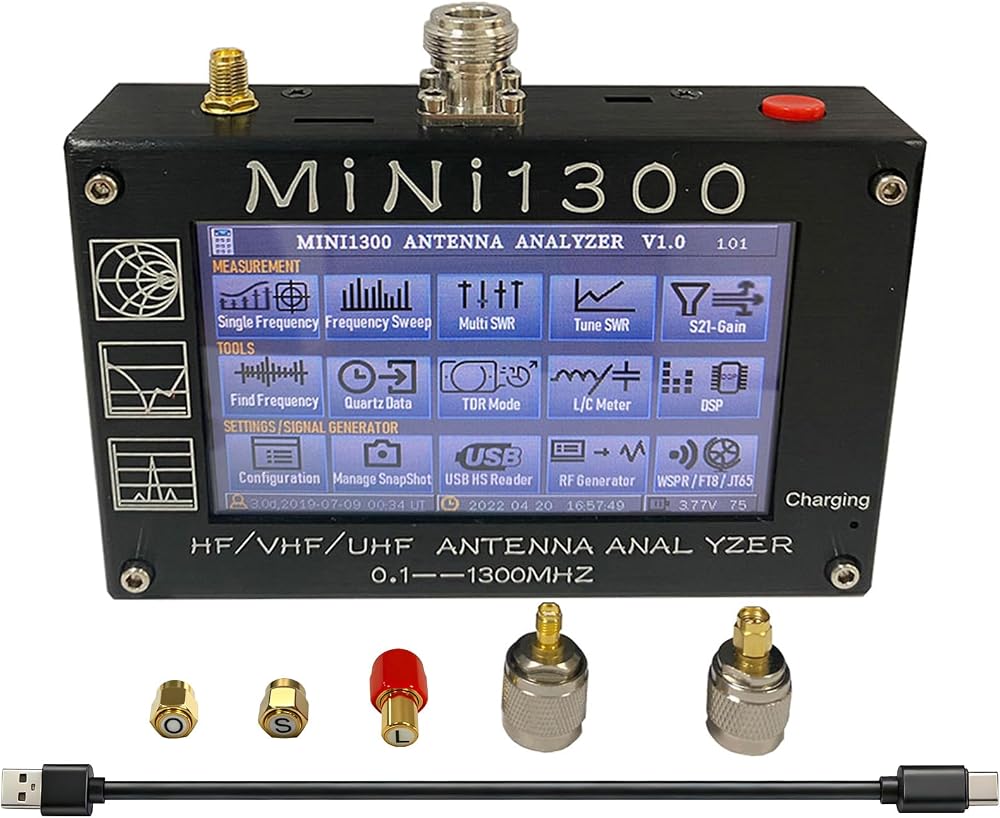

Package Includes
· 1 × Mini1300 Antenna Analyzer
· 1 × SMA Open Kit
· 1 × SMA Short Kit
· 1 × SMA Load Kit
· 1 × USB Charging Cable
