1. Yellow LED indication, clear port
2. The width is only 6.2mm,which saves 60% of installation space
3. Plug-in bridging type.Convenient DIN rail installation
4. Internal input/output polarity protection circuit.The electrical isolation is 2.5kVrms
5. Operational frequency can to 300Hz.No-abrasion switch output :3-48V DC/100mA

Specification:
Features:
Yellow LED indication, clear port
The width is only 6.2mm, which saves 60% of installation space
Plug-in bridging type.Convenient DIN rail installation
Operational frequency can to 300Hz.No-abrasion switch output :3-48V DC/100mA
Internal input/output polarity protection circuit.The electrical isolation is 2.5kVrms
Specification:
Model:MRI-230A48
Input Voltage Range:3.3VDC±10%
Input Current: 6mA
Output Voltage Range: 3-48VDC
Transfer Frequency:300Hz
Switch Electrical Level: 1 signal (H) ≥80,0 signal (L) ≤40%
.Sustained current: 100mA
. Voltage Drop: ≤0.9V
Input/Output Isolation Voltage: 2.5kV(50Hz,1min)
Ambient Temperature: -20℃~60℃
Operative Standard: IEC60664,EN50178, IEC62103
Applicable Wire: (Rigidity)0.2-2.5mm2,(Flexibility)0.2-2.5mm2,(AWG)24-14
Weight: Approx.31g/1.1oz
Package list:

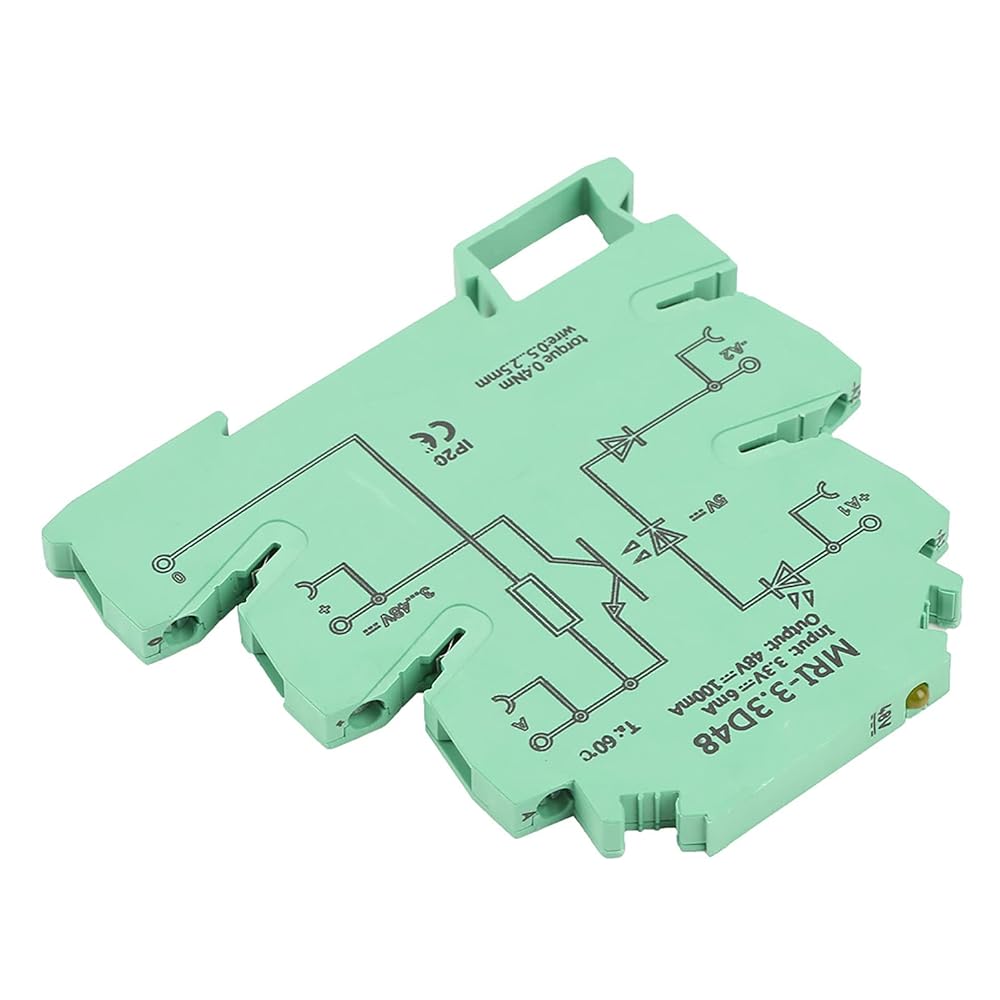

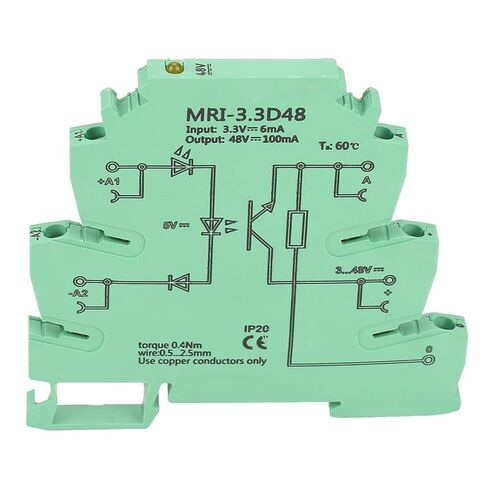

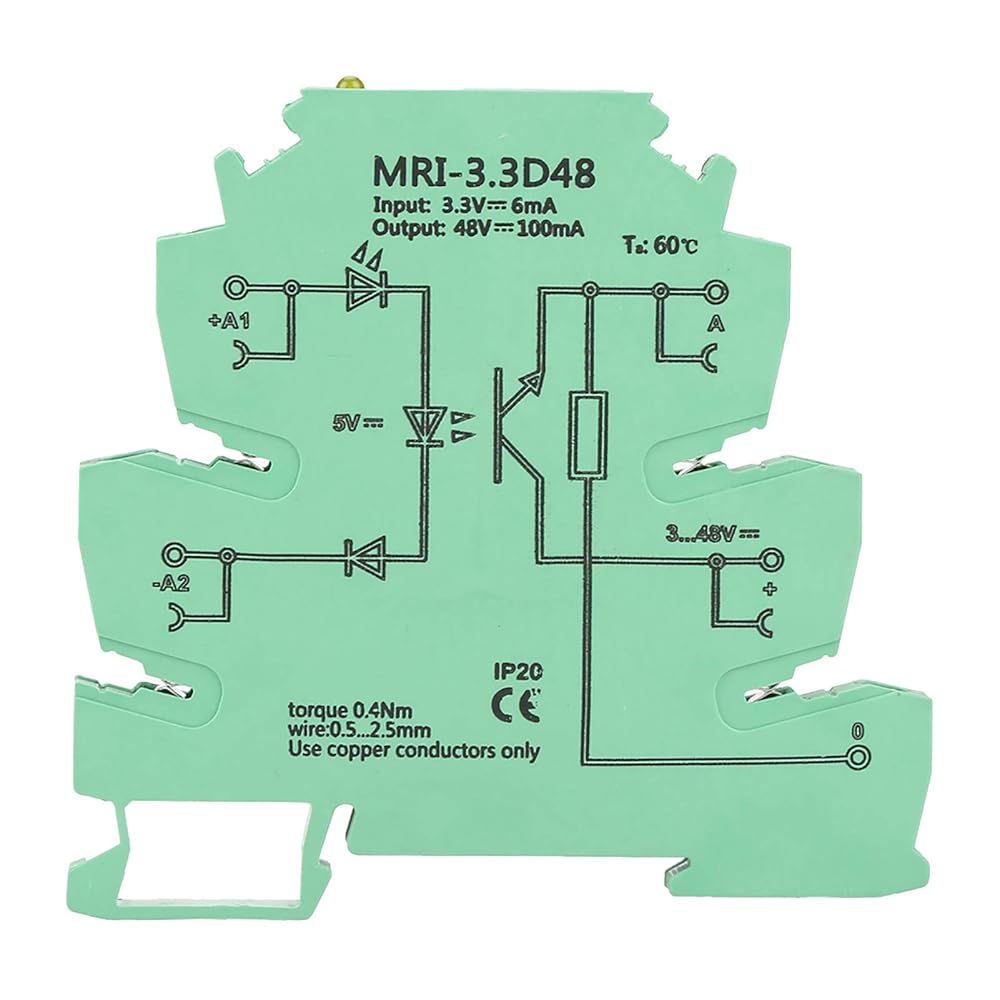

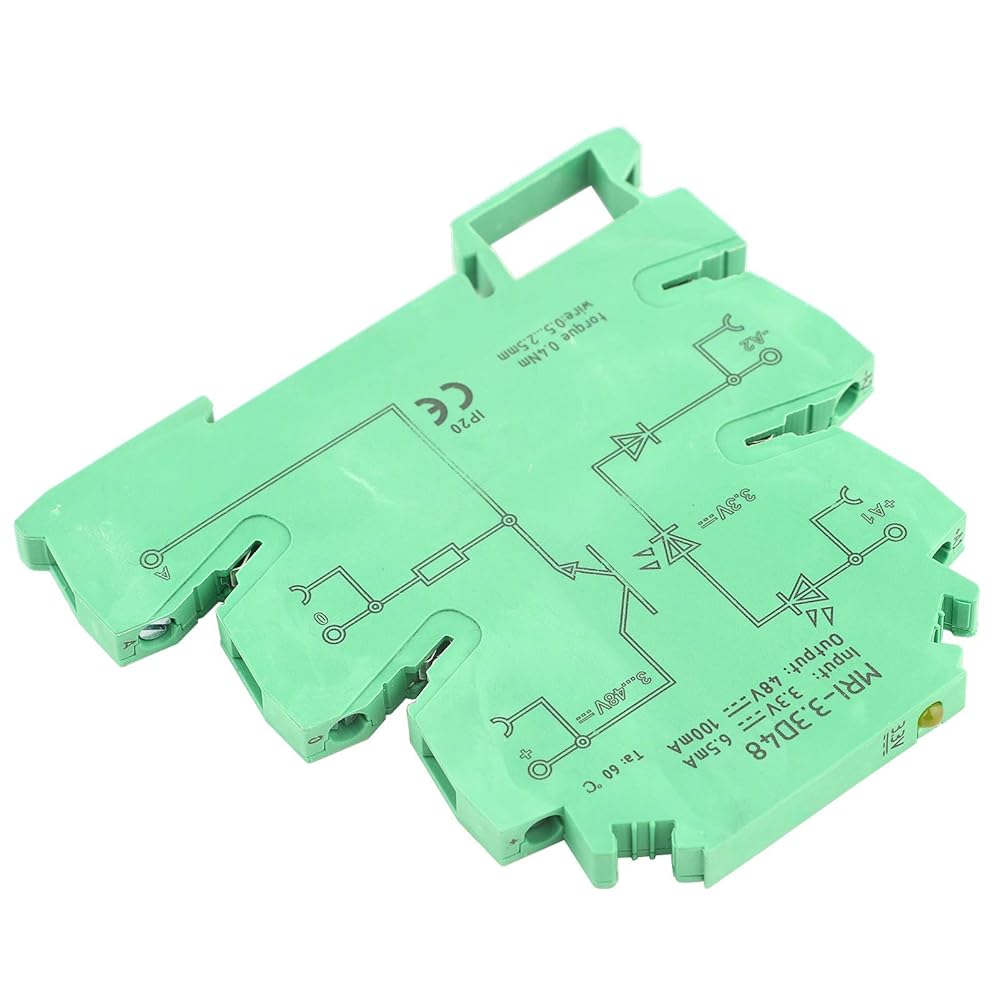

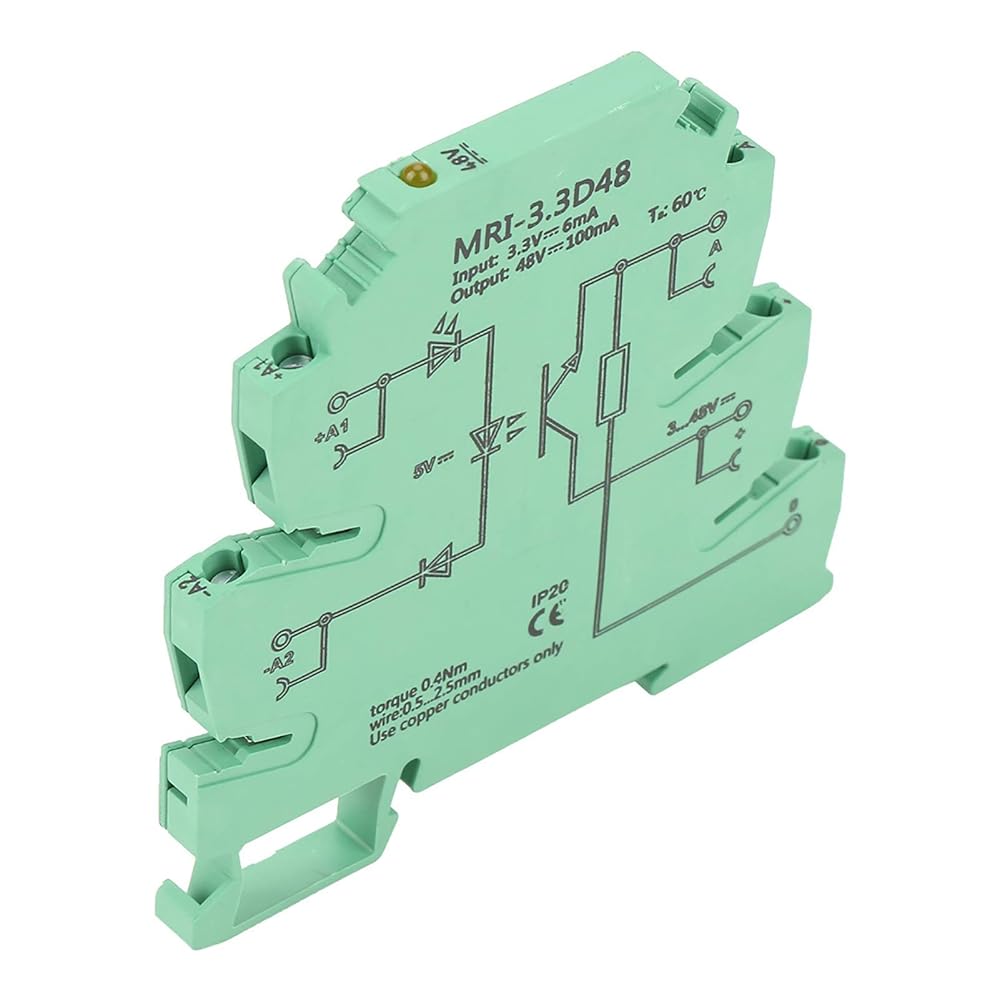

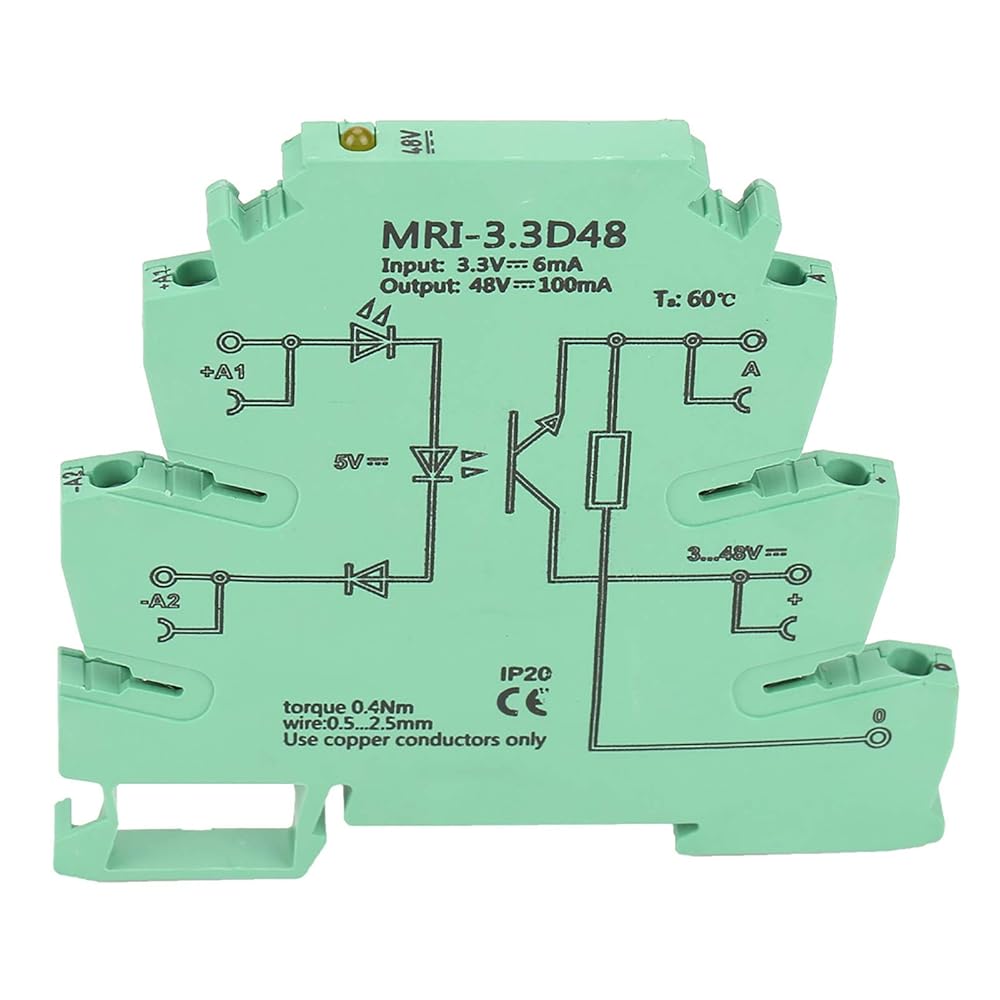

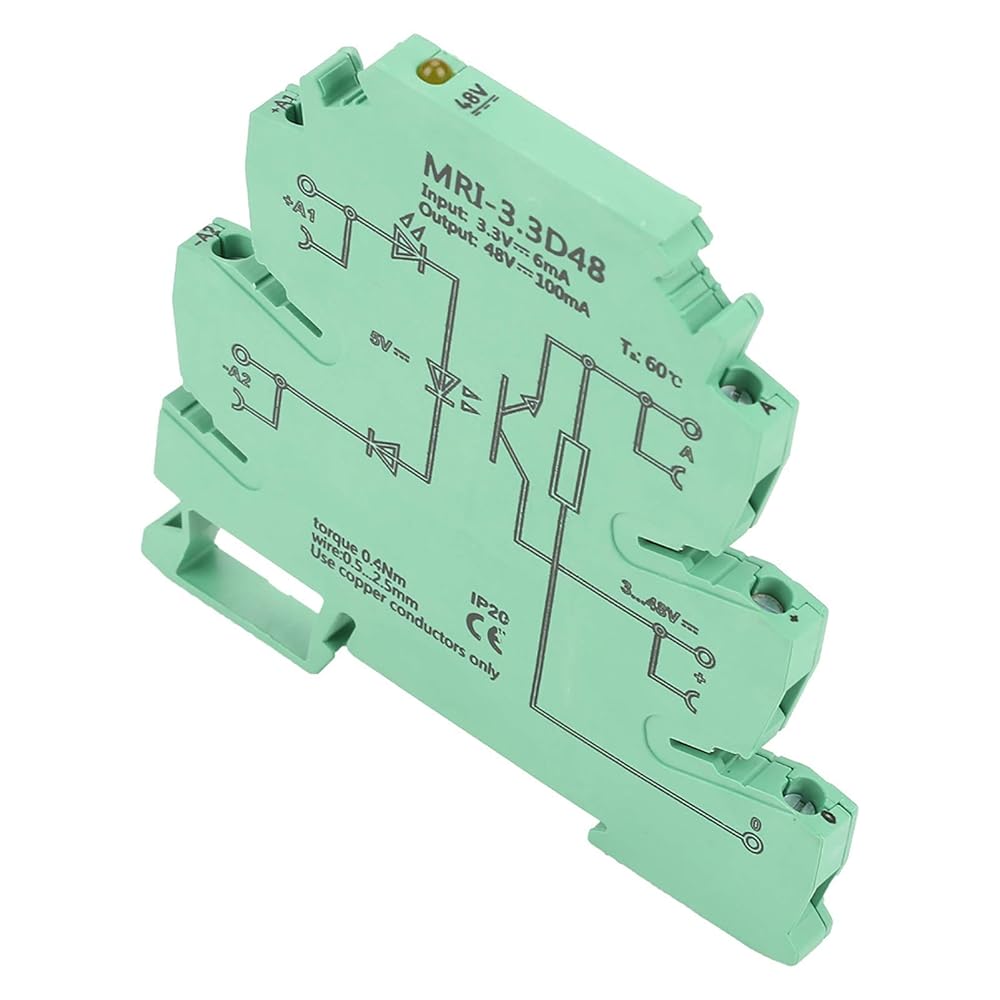

1 x Optocoupler Isolating PLC Relay
