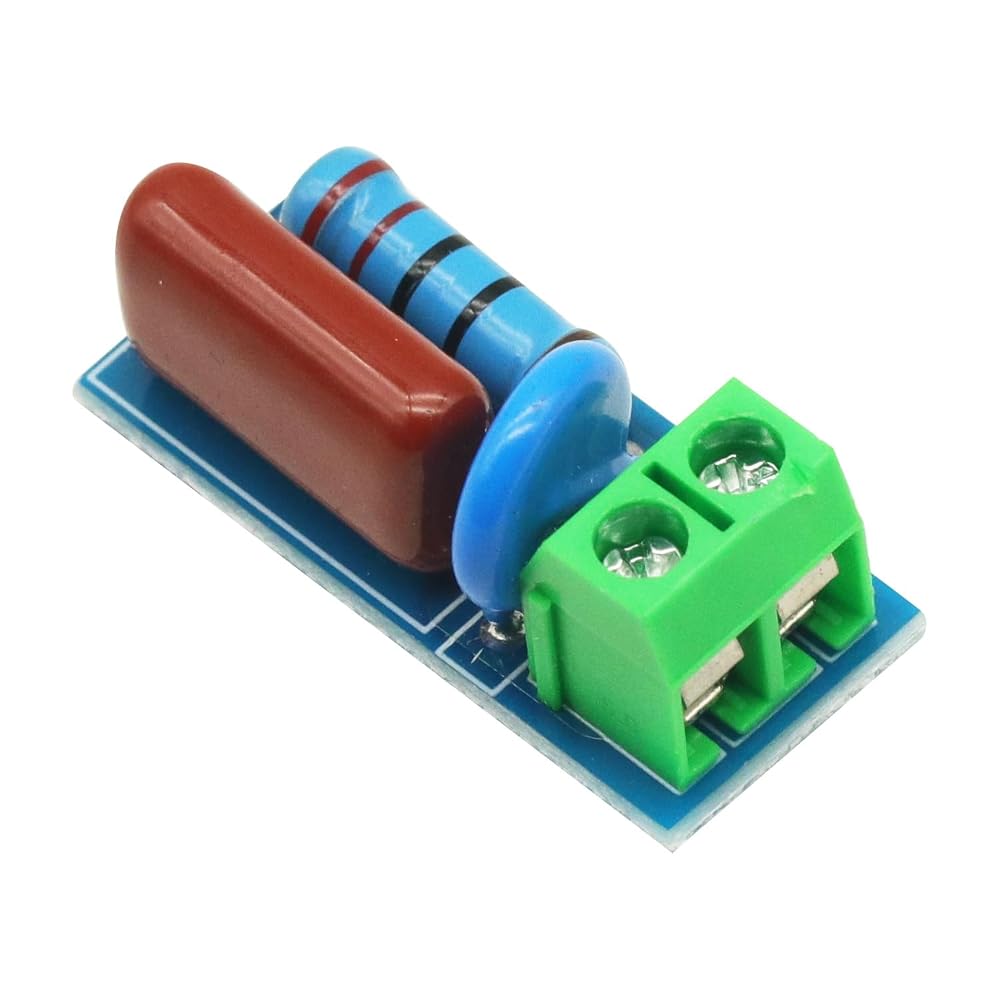

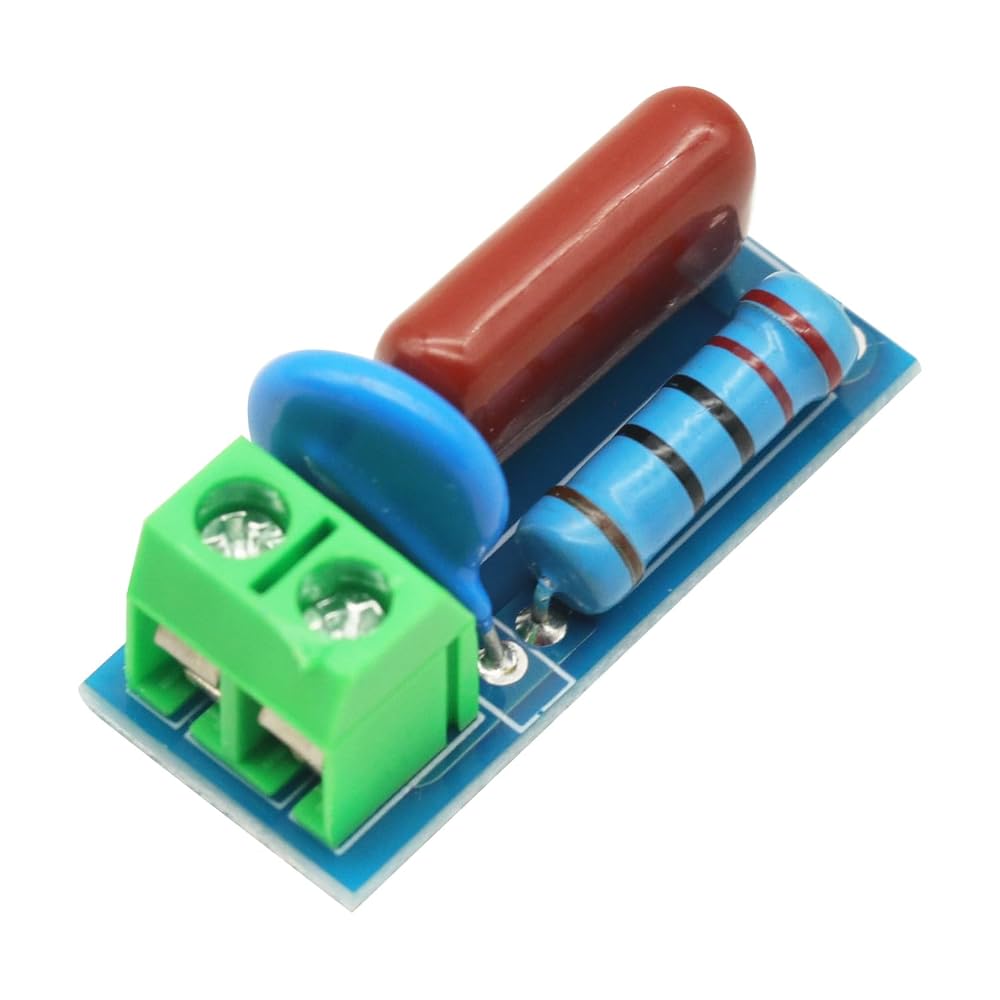

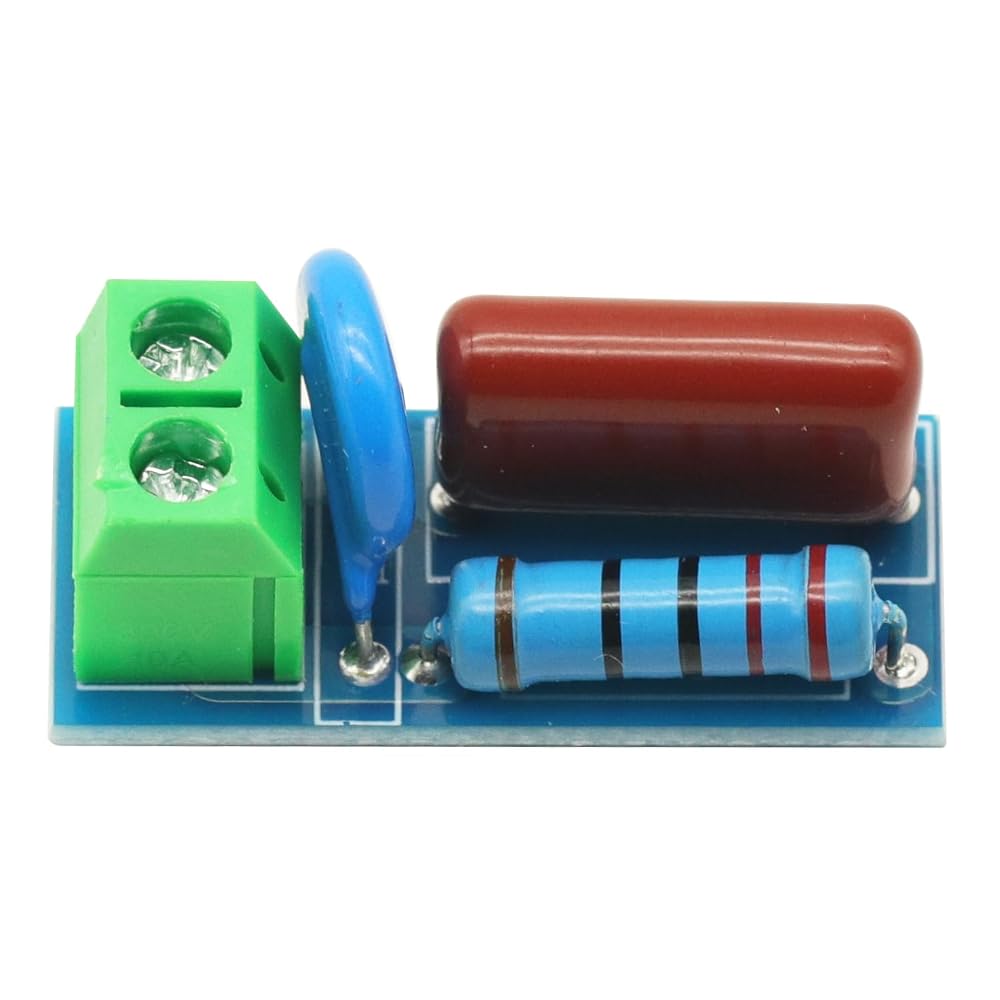

Product Overview: RC Absorption/Snubber Circuit Module
This module is designed to protect relays, thyristors, and other switching devices in circuits with inductive loads, while enhancing the anti-interference capability of microcontrollers.
Key Features
Protective Function: Absorbs inductive electromotive force generated by inductive loads during switching (on/off), preventing damage to relays or thyristors.
Anti-Interference: Reduces electromagnetic interference, improving the stability of microcontrollers.
Voltage/Current Protection: Equipped with a varistor to prevent excessive voltage/current fluctuations that may cause relay contact adhesion.
Wide Compatibility: Suitable for AC or DC 5~400V inductive loads (≤1000W).
Easy Wiring: Uses crimp terminals for convenient installation.
Usage Instructions
The module is intended for circuits with inductive loads and switching devices (e.g., relays, thyristors). To use:
Connect the module's two terminals in parallel with the relay contacts or thyristor. This setup absorbs induced electromotive force, protecting the components.
Package Contents

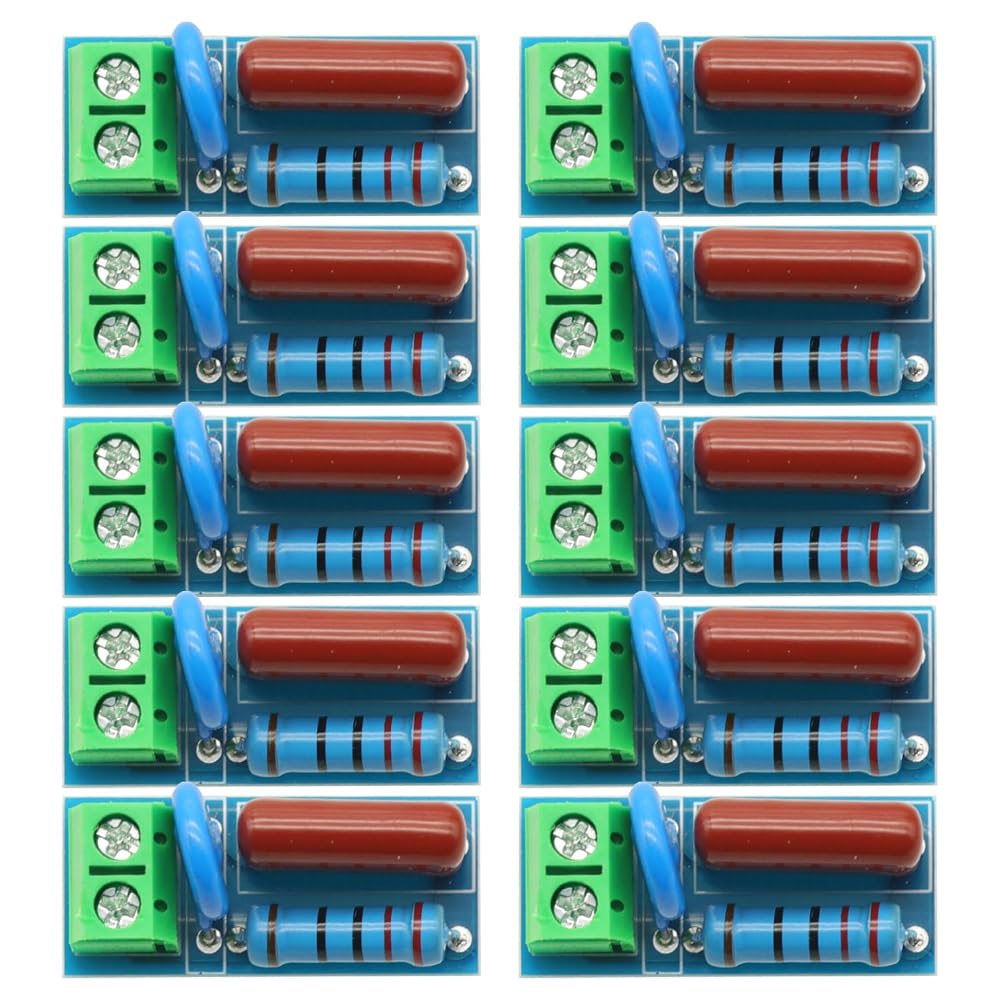

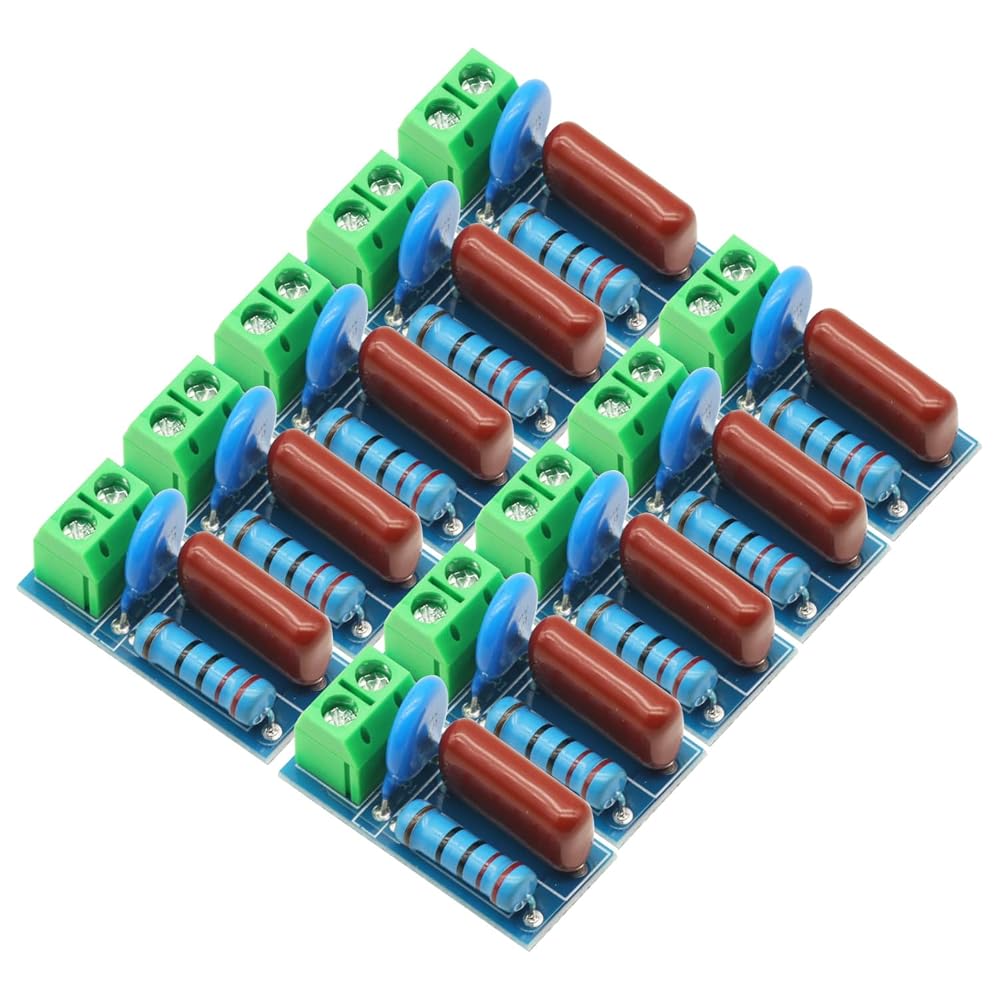

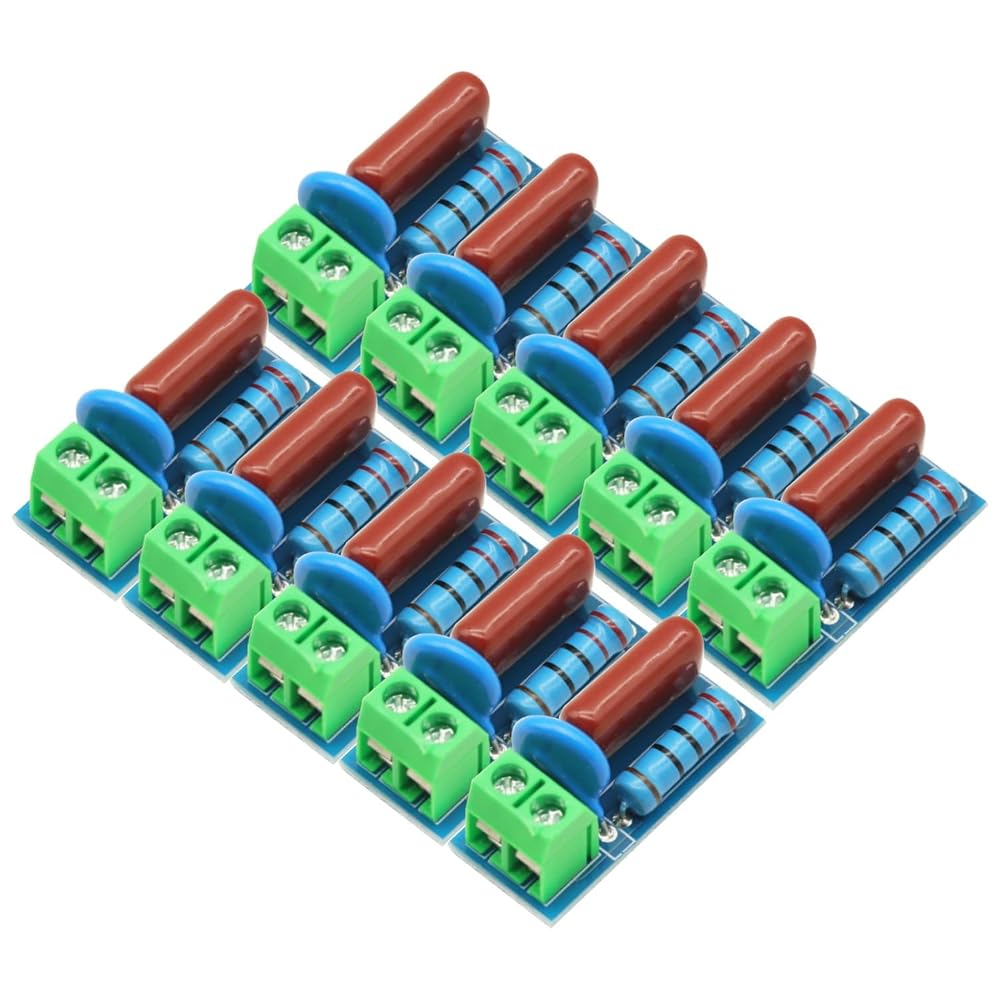

10 x RC Absorption/Snubber Circuit Modules
