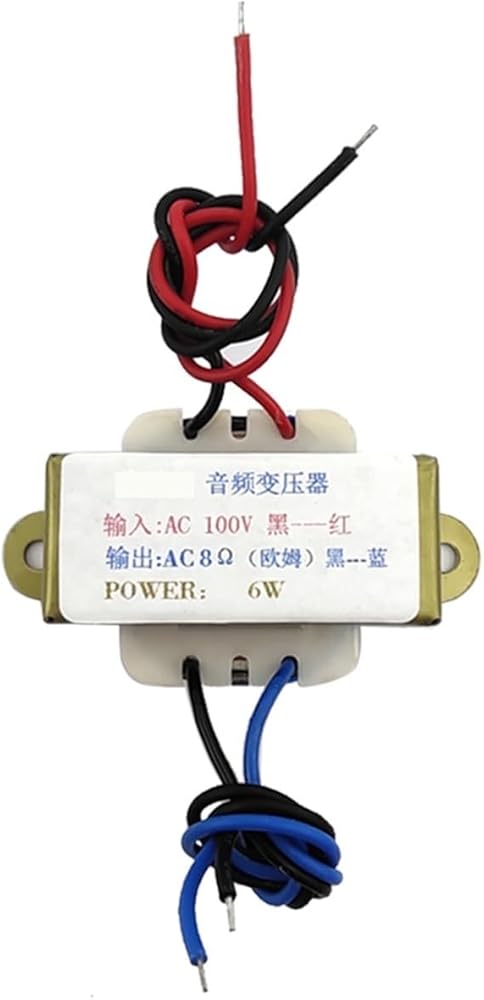

Input 100V black-red, 2 lines, output 8 ohms, black-blue, 2 lines, mainly for public broadcasting accessories, indoor and outdoor sound columns, wall-mounted audio, can also be used as a constant-voltage amplifier audio output transformer, also Is the fixed resistance to constant pressure.
Note: This transformer has a variety of power, please be sure to pay attention to the power you want when placing a buyer's order, the correct choice of the same power color classification orders. Thank you for your cooperation!
The 6W core size is EI41×16, the weight is about 0.18 kg/only, the mounting hole distance is 50-53mm, and the length, width and height of the iron sheet are: 42×17×34mm.
The10Wcore size is EI41×20, the weight is about 0.23 kg/only, the mounting hole distance is 50-53mm, and the length, width and height of the iron sheet are: 42×21×34mm.
The20Wcore sizeis EI48×28, the weight is about 0.45 kg/only, the mounting hole distance is 60-63mm, and the length, width and height of the iron sheet are: 49×29×38mm.
The 25W core size is EI48×30, the weight is about 0.5 kg/only, the mounting hole distance is 60-63mm, and the length, width and height of the iron sheet are: 49×31×38mm.
The 30W core size is EI57×25, the weight is about 0.55 kg/only, the mounting hole distance is 70-73mm, and the length, width and height of the iron sheet are: 59×27×49mm.
Below is a detailed dimensional drawing of 30W:
Tips: 30W audio transformer, used for all ceiling speakers / wall speaker / hanging ball audio / indoor and outdoor sound column need to change the pressure, 4 inch speaker connected to 3.
As long as you are a fixed-resistance (4-8) speaker, you must use this transformer to set the 70-100V variable resistance (4-8) to the speaker.
==========
