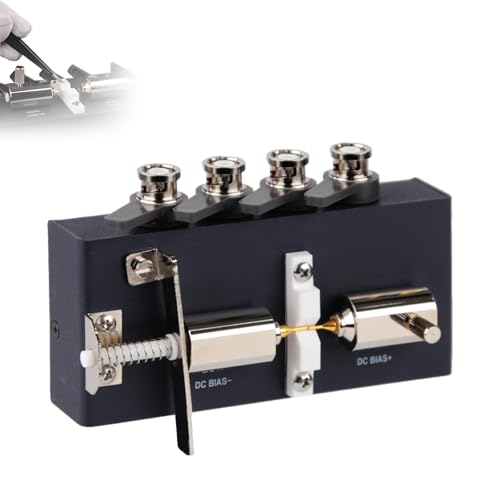

The SMD/Surface Mount Test Fixture, specifically engineered for precise testing of surface mount devices. This fixture operates within a frequency range of DC to 30MHz and accommodates a maximum DC bias of ±42V.

Features:

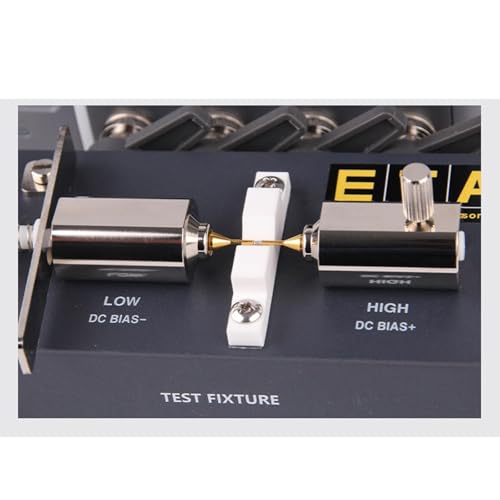

1.The gold-plated pin design makes the contact more accurate and the measurement more accurate.
2.The user-friendly adjustable design enables a fixture to meet the measurement of chiip capacitance, inductance, and resistance of different specifications.

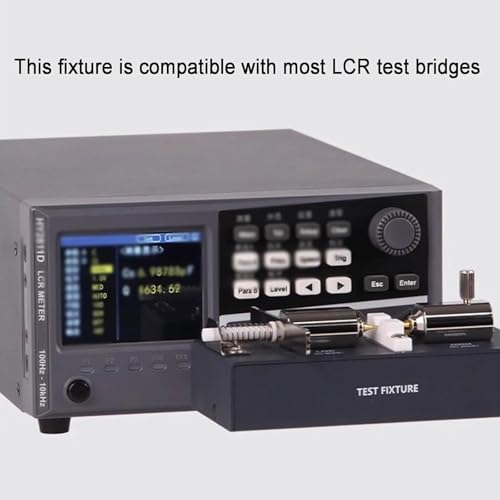

3.Application: LCR digital bridge, precision LCR digital bridge, capacitance tester, precision capacitance tester, inductance tester and precision inductance tester.

Specifications:
Product Name: SMD Digital Bridge Test Fixture
Frequency Range: DC-30MHz
Maximum DC Bias: DC ±24V

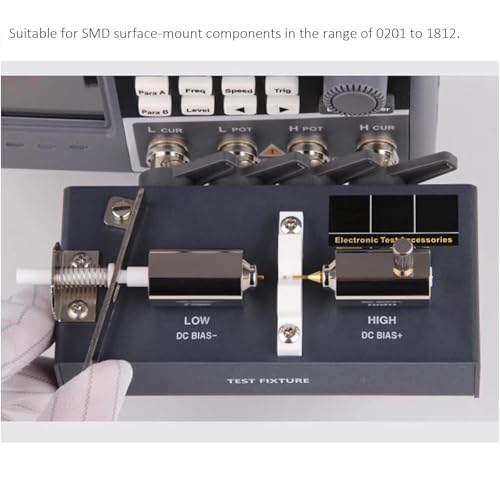

Applicable SMD Component Range: 0201-1812

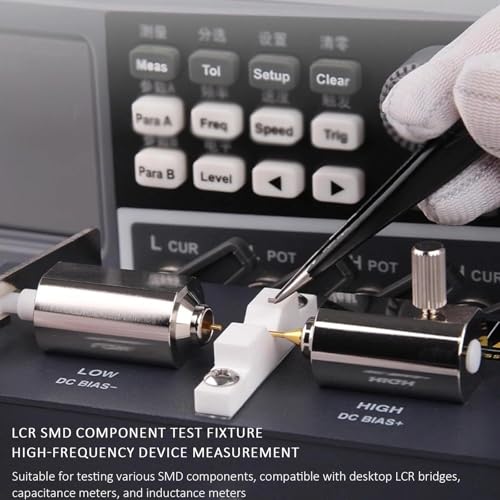

Product Use: SMD component test fixture, especially for high-frequency small capacitors or inductors. This type of SMD fixture is suitable when the test frequency is ≥100kHz, capacitance ≤3pF, or inductance ≤1uH.

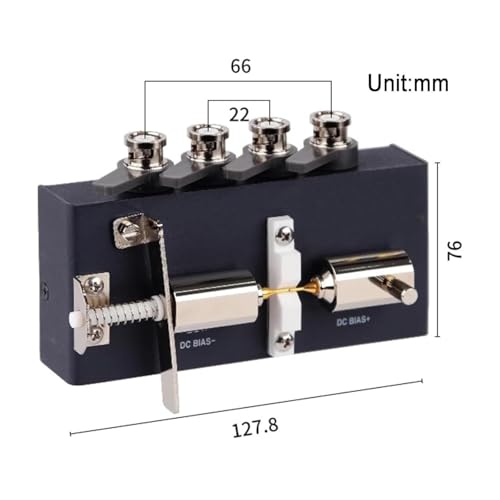

Product Dimensions: 127.8×76mm/5×3in
Package Dimensions: 22×12×5.8cm/8.7×4.7×2.3in
Gross Weight: 500g

Package List:
1 × SMD Digital Bridge Test Fixture

Notes:
1. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement.
2. If you have any questions please contact me and I will reply you within 24 hours.
