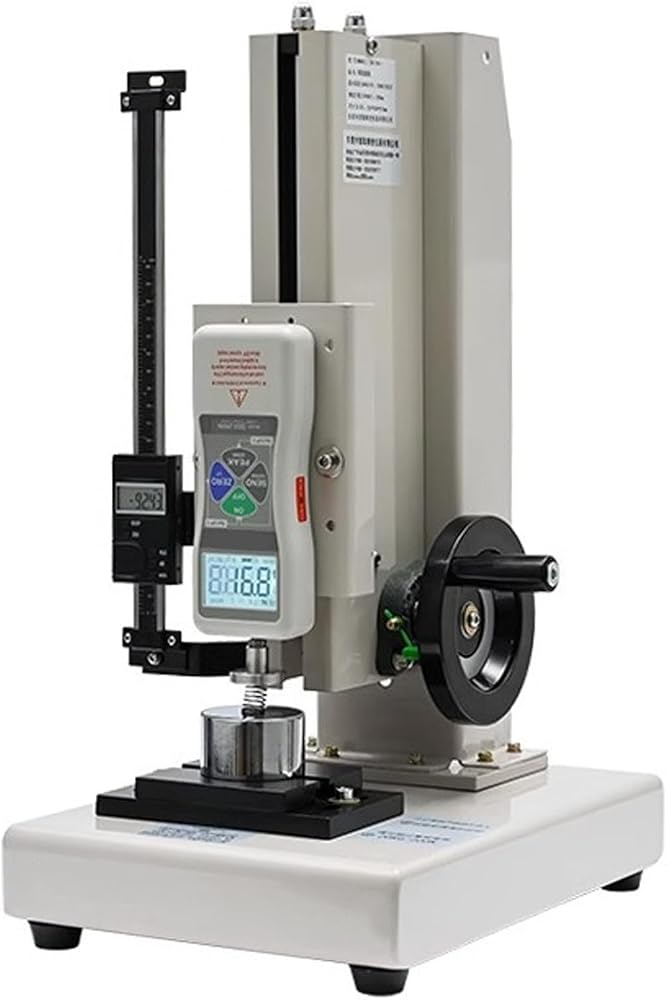

This high-precision push-pull dynamometer is engineered to deliver exceptional measurement accuracy for a variety of applications. With a load capacity ranging from 2N to 1000N (optional), it ensures versatility in testing. The device features a generous test stroke of 200mm and measures 250*350*510mm, with a total weight of 15kg, making it robust yet portable. The product includes a digital dynamometer bracket and a push-pull dynamometer. Standard components include a high-precision ball bearing rack equipped with a 200MM scale and a DS2 series high-precision dynamometer. The pressure test head comes with an upper probe sized at 30MM and a lower probe at 58MM, while the tension testing features both an upper and lower probe. Key highlights of this dynamometer include its bespoke high-precision ball screws designed for minimal rotation gaps, ensuring optimal movement accuracy. The trapezoidal screw drive allows for easy handwheel operation. The device integrates the STDZQCWY-DS2 high-precision force gauge with a 0.01MM precision scale, enabling real-time force and displacement monitoring. Users can select between three units of measurement (KG/N/Lbf) and benefit from high-resolution outputs with precision better than 0.2% F.S. It also offers a peak hold function for maximum value identification during tests. The unit includes a user-friendly comparison function, enabling customizable upper and lower limit deviation settings with visual alerts. With optional high-speed sampling rates up to 1000 samples per second, the LCD display easily flips 180 degrees and utilizes wide-angle LCM technology for enhanced visibility. Enjoy extended standby capabilities with this versatile dynamometer.
