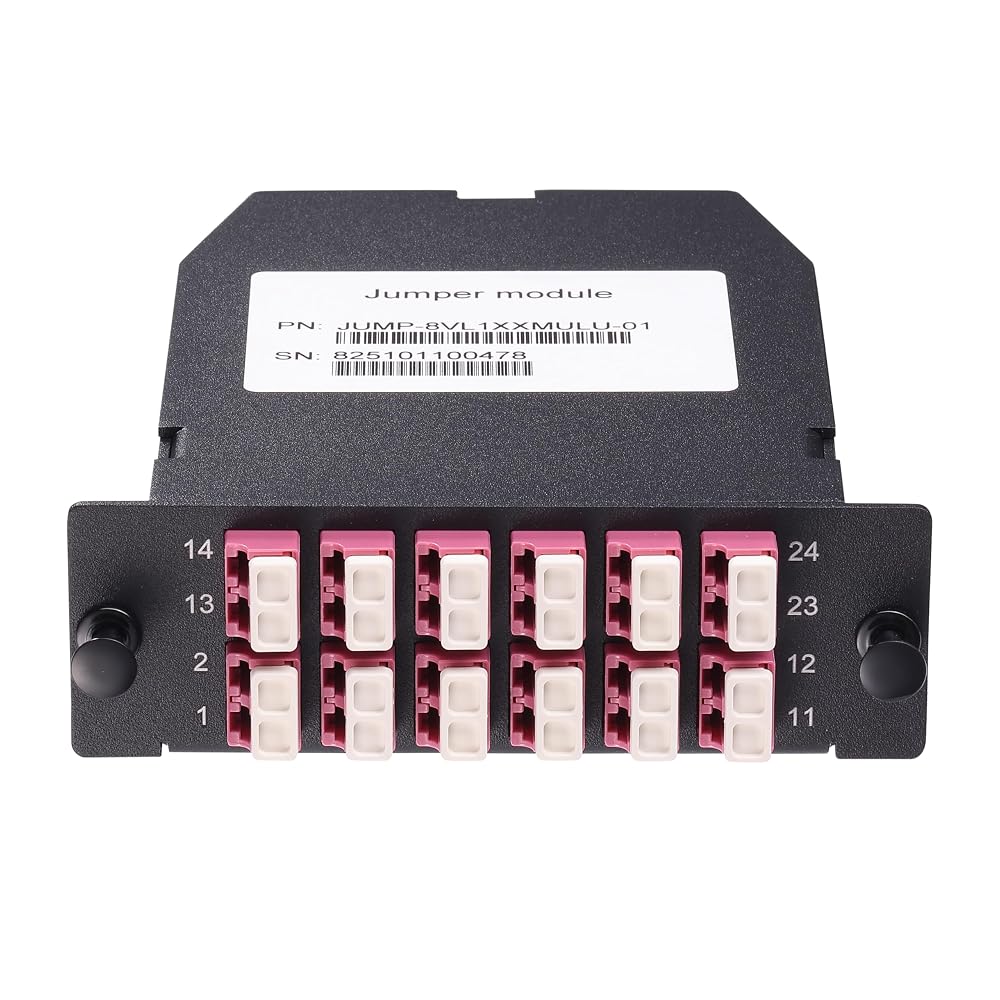

FHD MPO-LC Cassette, OM4 Multimode, Type A, 24 Fibers, 2 x MPO-12 (Male) to 12 x LC Duplex (Aqua), 0.35dB Max

KWD 21
Brand
OFCN
– 1 +

Special Features

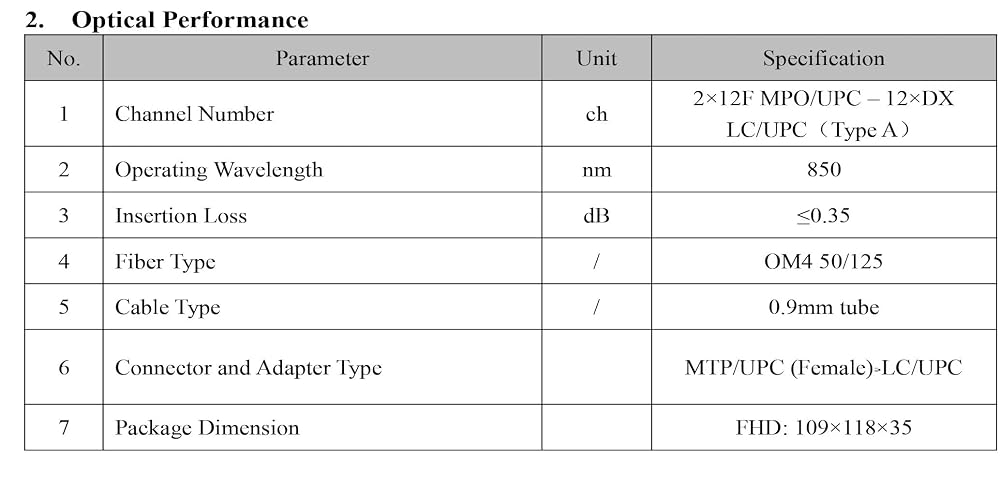

  • Specifications Fiber Count 24 Fibers Fiber Mode OM4 50/125μm Front Connector Type LC UPC Duplex Number of LC Port 12 Ports Rear Connector Type MPO UPC Number of MTP Port 2 Ports MPO Adapter Key Up to Key Down Housing Type Cassette Material of Sleeve Zirconia Ceramic

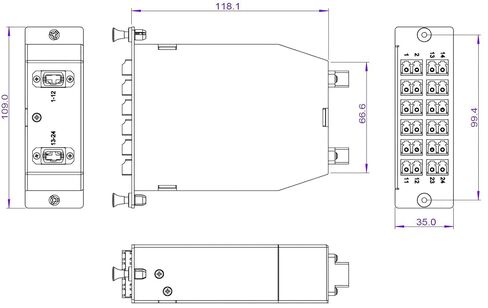

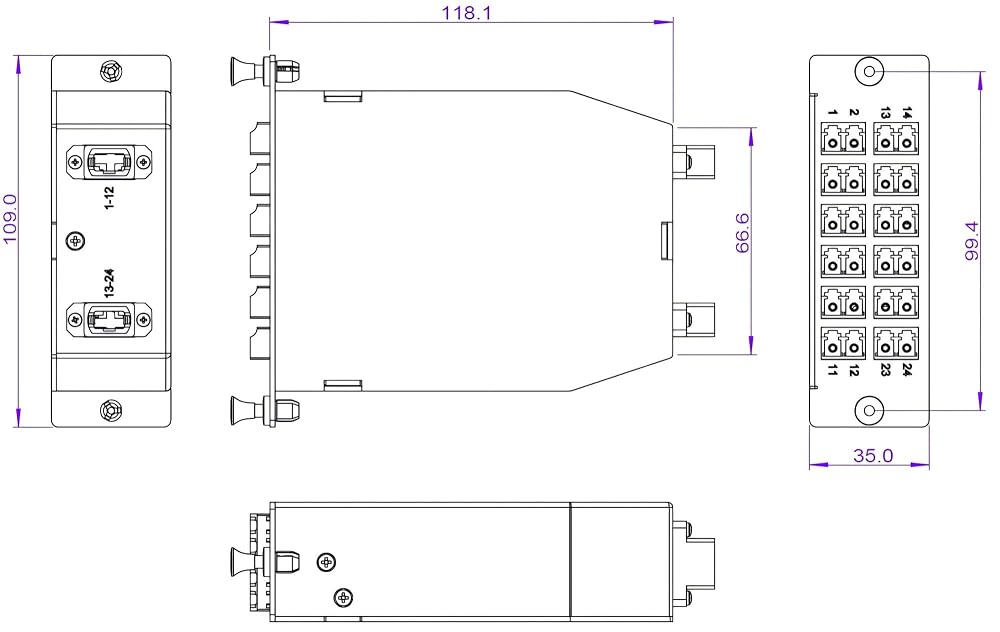

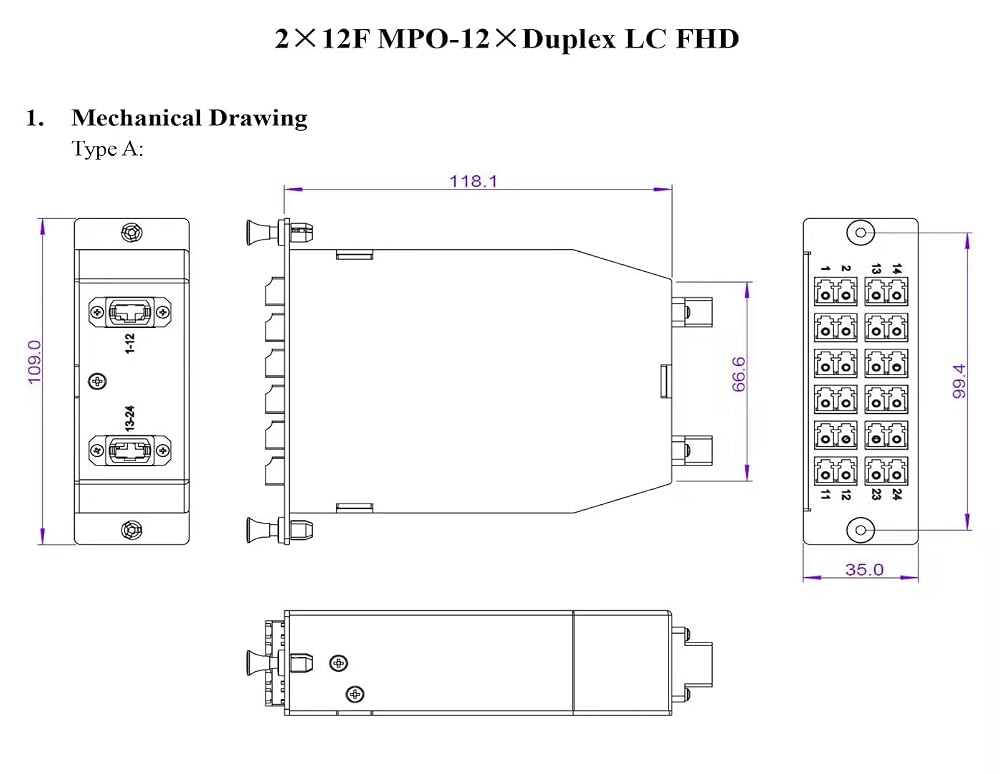

  • Material of Cassette Body Aluminium (AL5052) Polarity Type A Dimensions (HxWxD) 1.38''x4.29''x4.64'' (35x109x118mm) Insertion Loss MPO≤0.35dB, LC≤0.2dB
  • Return Loss MPO≥20dB, LC≥20dB Standard RoHS Compliant Application Matching for FHD Series Enclosures

Description

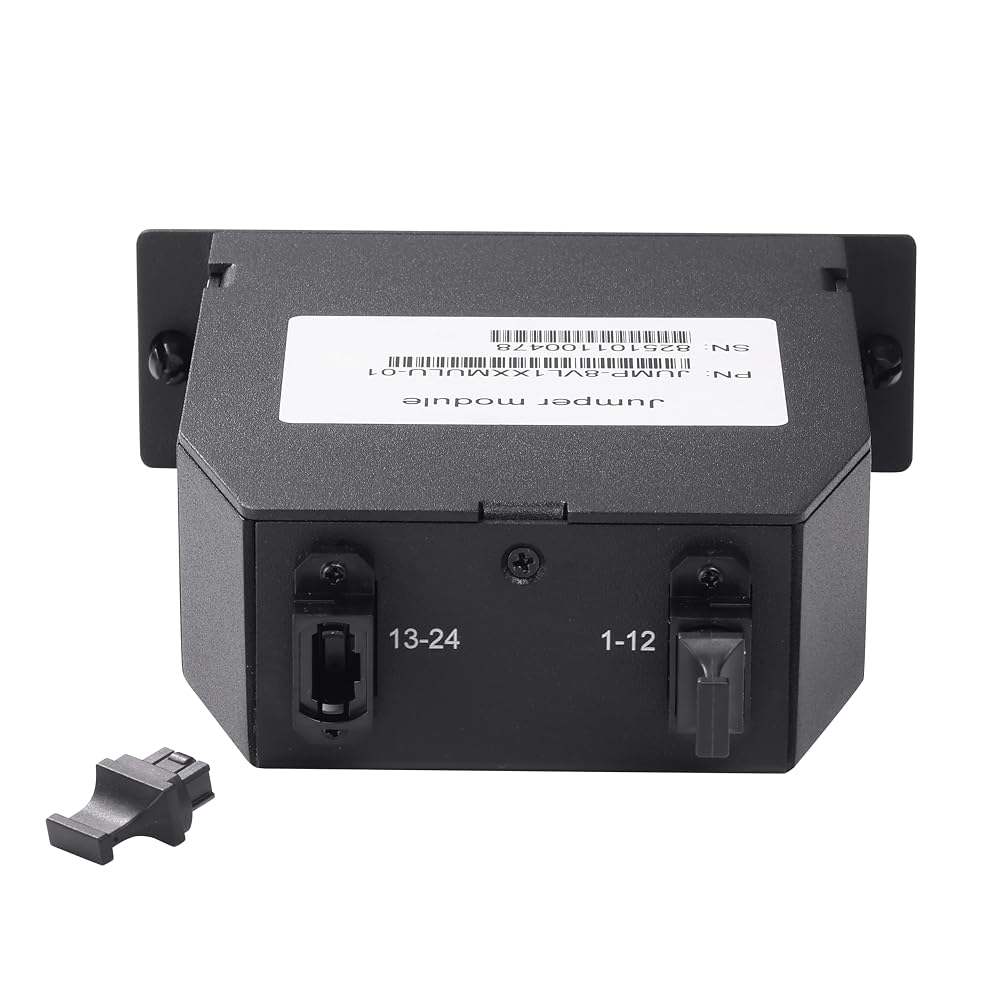

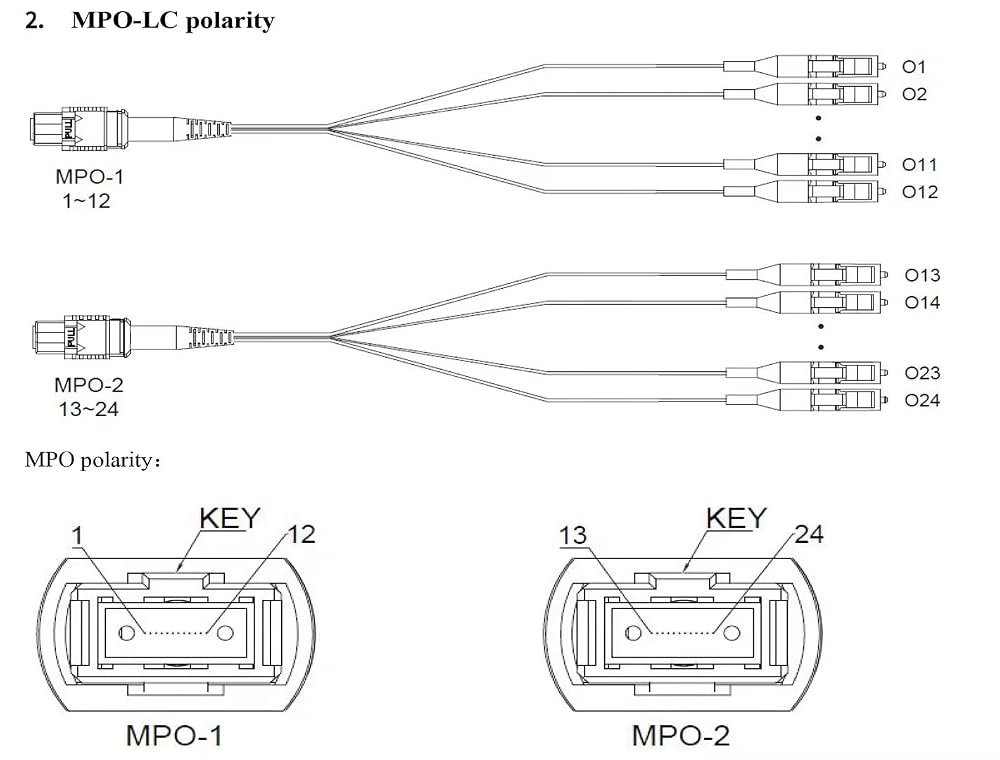

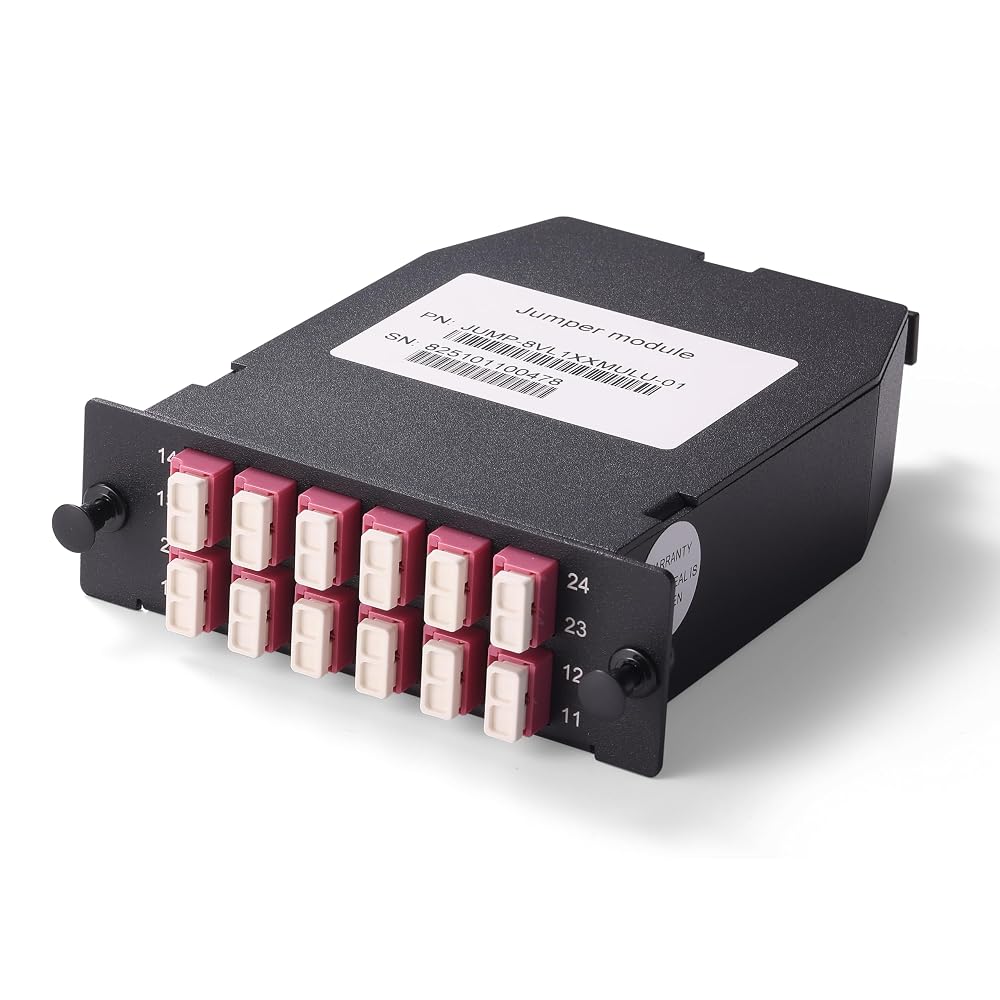

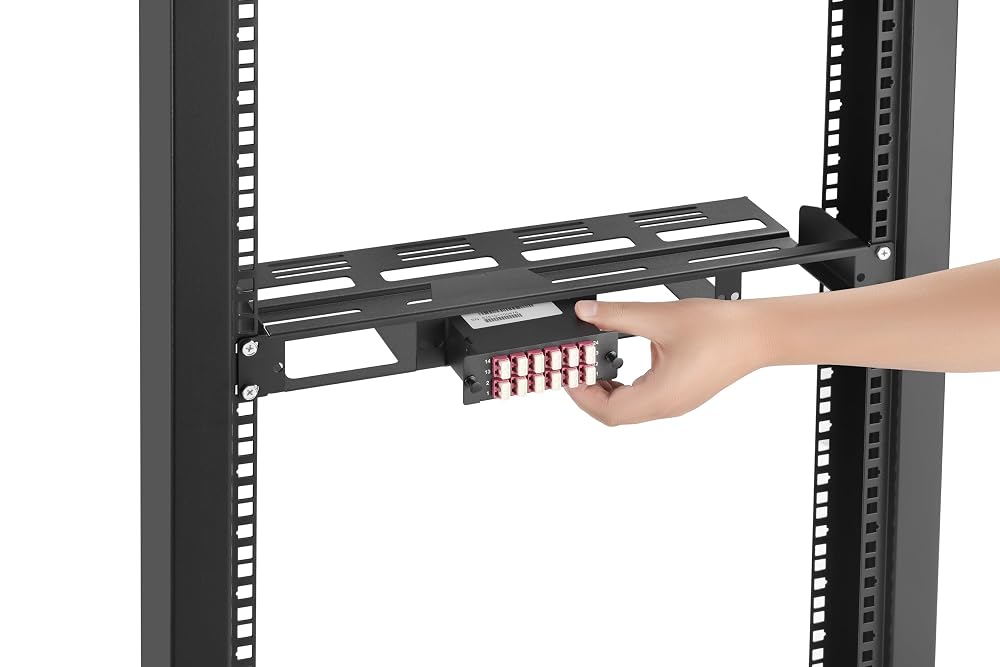

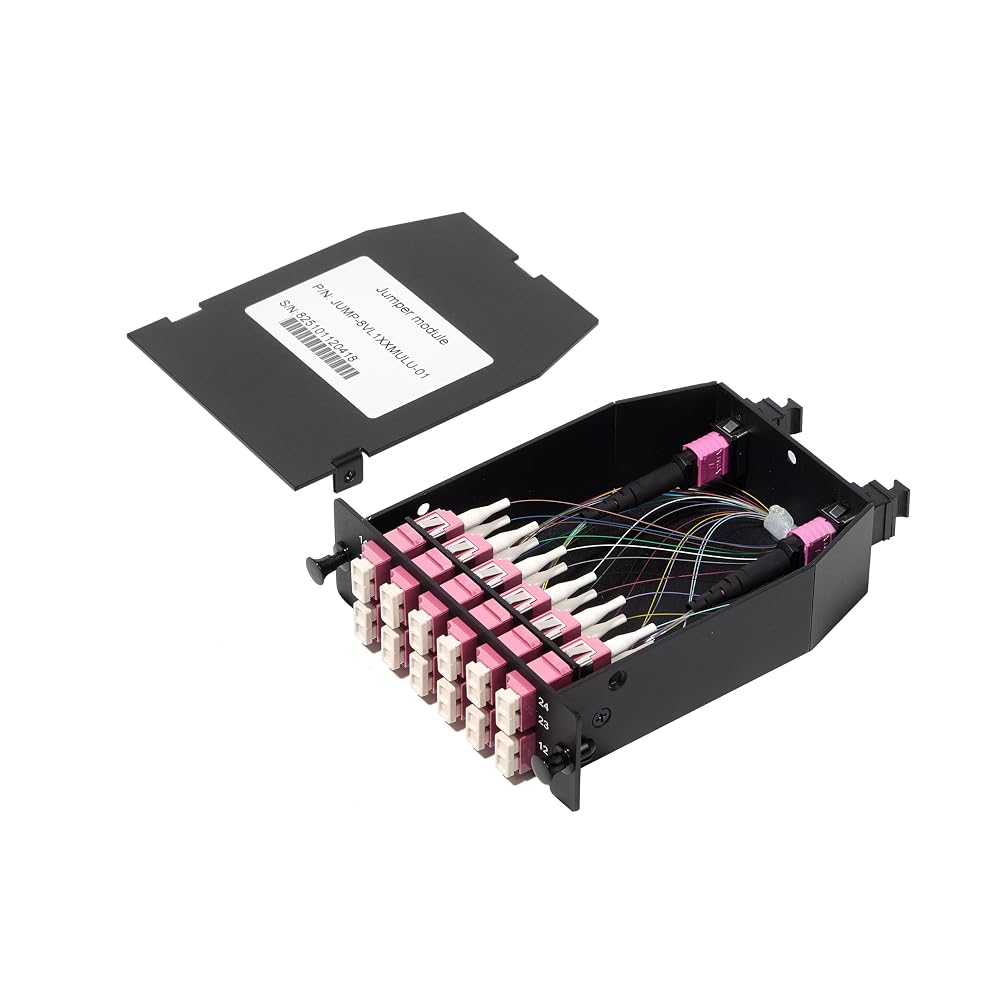

MPO Adapter and Bend Insensitive Fiber Fully Compatible with All FHD Enclosures Plug-N-Play and Tool-less Installation for Quick Deployment Method A Link Using Type A and AF Cassettes Paired Together Support Migration from 10G to 40G/100G Ethernet and Beyond FHD 2 x MPO-12 to 12 x LC Duplex Fiber Optic Cassette, OM4 50/125μm, Type A, 24 Fibers, Plug-N-Play MPO fiber cassette modules are pre-terminated, pre-tested, and come with 12-fiber MPO adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high density fiber cable assemblies for multiple applications. The MPO-12 cassette enables high-density, cost-effective 10G deployments and the simplest migration to 40G, 100G, and even 400G. The cassette allows 96 fiber connections to be deployed in the FHD series rack unit (1 RU).
