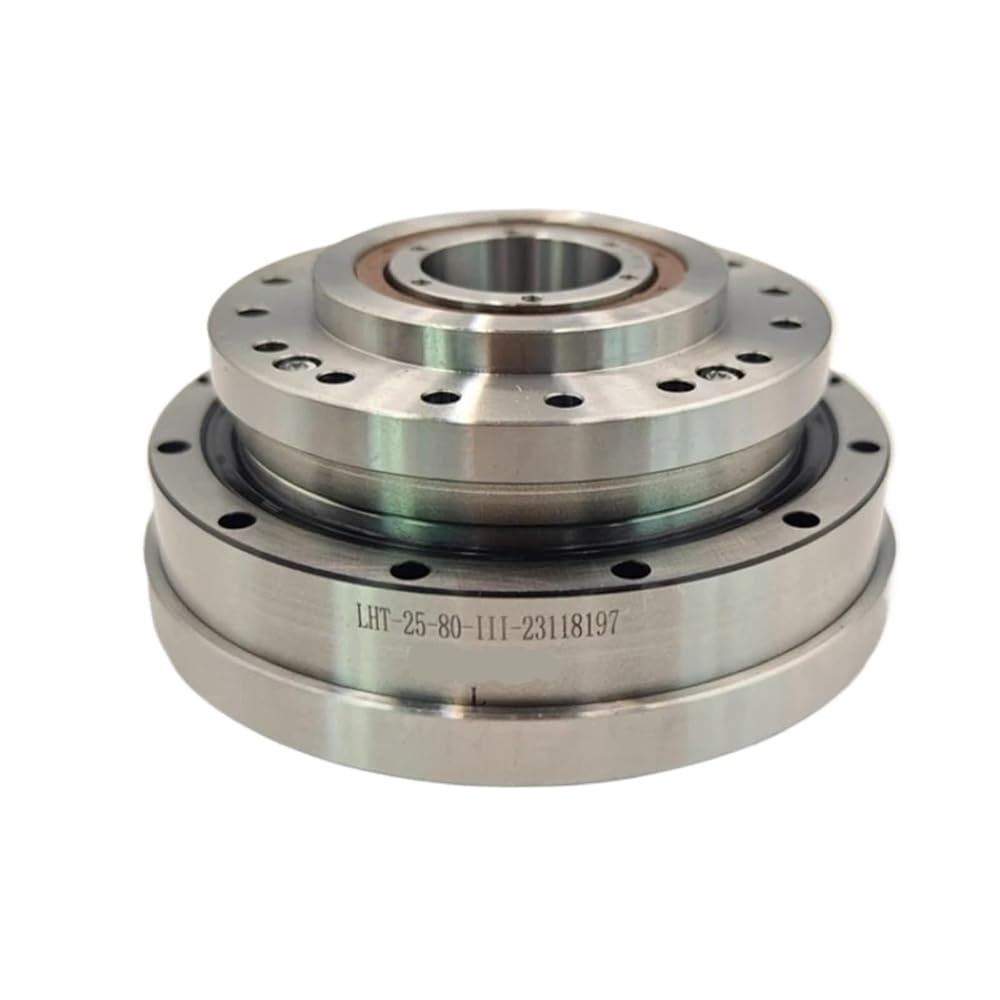

Note The actual pictures vary depending on the product model Actual product has been received accurate.
You can contact customer service staff to obtain 3D files and size pictures.LHT-40-50-III
Reduction ratio: 50
Rated Tq at input 2000r/min: 137Nm 14kgfm
Allowable peak Tq when starting and stopping: 402Nm 41kgfm
Allowable maximum average load Tq: 196Nm 20kgfm
Instantaneous maximum allowable Tq: 686Nm 70kgfm
Allowable maximum input speed: 4000r/min
Allowable average input speed: 3000r/min
Backlash: 20AS
LHT-40-80-III
Reduction ratio: 80
Rated Tq at input 2000r/min: 206Nm 21kgfm
Allowable peak Tq when starting and stopping: 519Nm 53kgfm
Allowable maximum average load Tq: 284Nm 29kgfm
Instantaneous maximum allowable Tq: 980Nm 100kgfm
Allowable maximum input speed: 4000r/min
Allowable average input speed: 3000r/min
Backlash: 20AS
LHT-40-100-III
Reduction ratio: 100
Rated Tq at input 2000r/min: 265Nm 27kgfm
Allowable peak Tq when starting and stopping: 568Nm 58kgfm
Allowable maximum average load Tq: 372Nm 38kgfm
Instantaneous maximum allowable Tq: 1080Nm 110kgfm
Allowable maximum input speed: 4000r/min
Allowable average input speed: 3000r/min
Backlash: 20AS
LHT-40-120-III
Reduction ratio: 120
Rated Tq at input 2000r/min: 294Nm 30kgfm
Allowable peak Tq when starting and stopping: 617Nm 63kgfm
Allowable maximum average load Tq: 451Nm 46kgfm
Instantaneous maximum allowable Tq: 1180Nm 120kgfm
Allowable maximum input speed: 4000r/min
Allowable average input speed: 3000r/min
Backlash: 20AS
