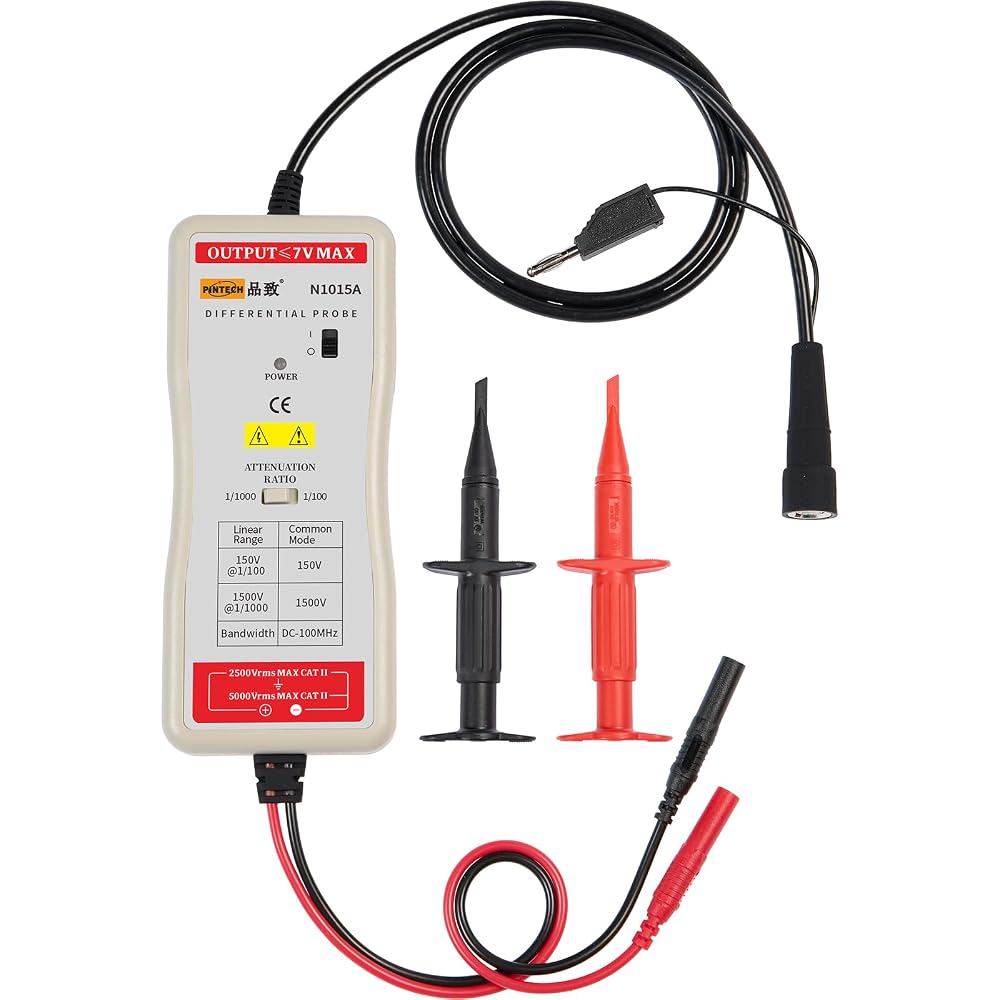

Maximum differential test voltage: 1500Vp-p, the N1015A probe provides ample capacity for a wide range of high voltage's applications.
Accuracy (Typical)：±1%, Bandwidth DC-100MHz (-3dB), Attenuation Ratio: 1000X/100X, Rise Time: 3.5ns. Featured with built-in auto-zero and overload protection for voltage.
Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.
Widely Used: The oscilloscope probe features BNC interface, compatible with all oscilloscopes.
Package Included: N1015A differential probe x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!

MODEL: N1015A

Bandwidth (-3dB): 100X: DC-50MHz; 1000X: DC-100MHz

Output(into 50kΩ load):＜7V

Testing Voltage(Vp-p):100X: 150V; 1000X: 1500V

Input DC Voltage: 100X: 75V; 1000X: 750V

Differential-mode voltage(Vp-p):100X: 75V; 1000X: 750V

RMS Value: 530V

Common-mode voltage RMS: 530V

Noise RMS: 100X: ＜50mV; 1000X: ＜400mV

Offset(typical):＜±5mV

Attenuation Rate: 1000X/100X

Rising Time: ≥3.5ns

Accuracy: ±1%

Input Impedance: Between the two ends: 8MΩ//0.59pF, Single-ended to ground: 4MΩ//1.18pF

Oscilloscope Input Impedance: 1MΩ

BNC Cabe Length: 90cm/65.43in

Weight: 284g/0.63lb

Dimension(LxWxH): 166.5x70.7x30 mm
