Rigol RP1025D Digital Oscilloscope Passive Probe,High Voltage Differential Probe 25MHz,1.3KV in Kuwait

Rigol RP1025D Digital Oscilloscope Passive Probe,High Voltage Differential Probe 25MHz,1.3KV

KWD 179.500
Brand
Rigol
Weight
281 g
– 1 +

Special Features

  • Bandwidth：DC-25MHz (-3dB)；Attenuation Ratio:X20, X50, X200
  • Accuracy:±2%
  • Input Voltage Range (DC+AC peak-peak value):X20 attenuation ratio: ≤ 140Vpp, about 50Vrms or DC
  • Input Voltage Range (DC+AC peak-peak value):X50 attenuation ratio: ≤ 350Vpp, about 125Vrms or DC
  • Input Voltage Range (DC+AC peak-peak value):X200 attenuation ratio: ≤ 1400Vpp, about 500Vrms or DC
  • Maximum Input Voltage:Maximum differential voltage: 1400V(DC+AC peak-peak value) or 500Vrms Voltage to ground at the input terminal:600Vrms
  • Input Impedance:Differential: 4MΩ/1.2pF;Single-ended and to ground: 2MΩ/2.3pF
  • Output Impedance:50Ω
  • Rise Time:14ns

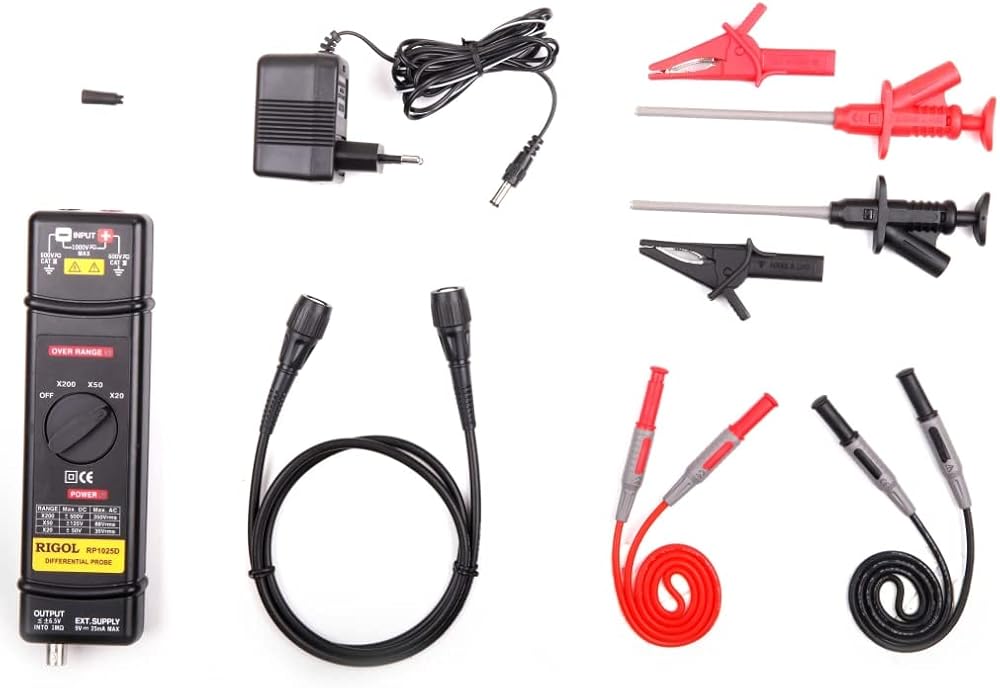

  • Accessories:1 User's Guide；1 dual-BNC coaxial cable；1 Dual-banana plug silicon cable；1 AC power adapter;1 Safety IC clip;1 Safety alligator clip

Description

RP1000D series high voltage differential probe can convert high differential input voltage to low voltage and display the waveforms on the oscilloscope. Its working frequency is up to 25MHz(RP1025D), 50MHz (RP1050D) and 100MHz (RP1100D) and it is rather suitable for large electricity test and R&D.
