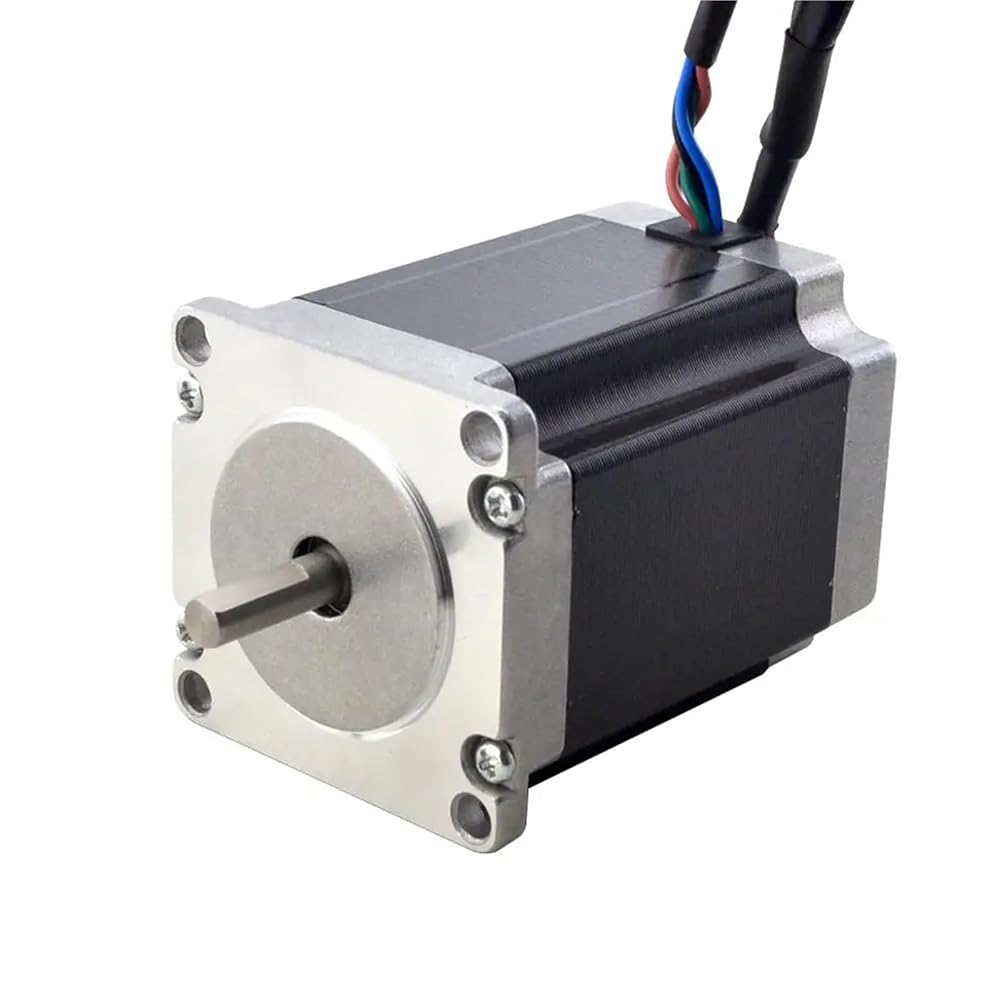

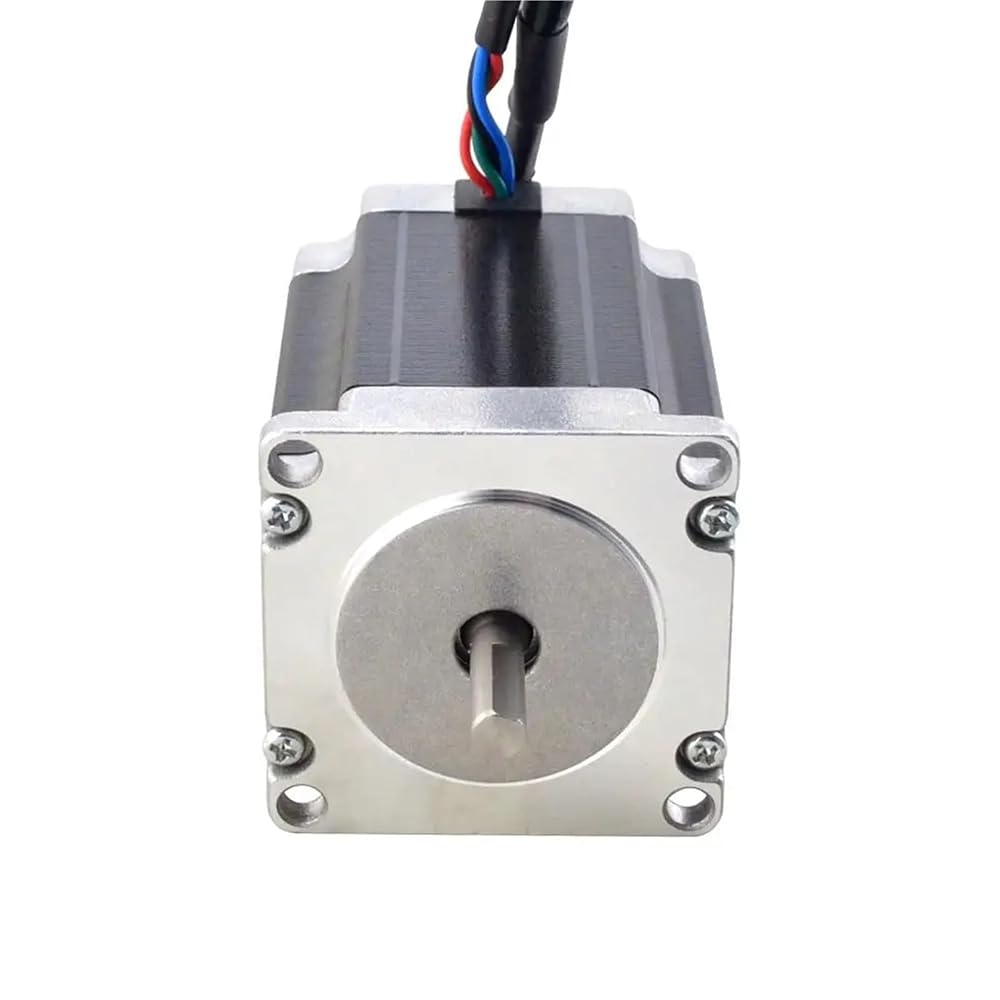

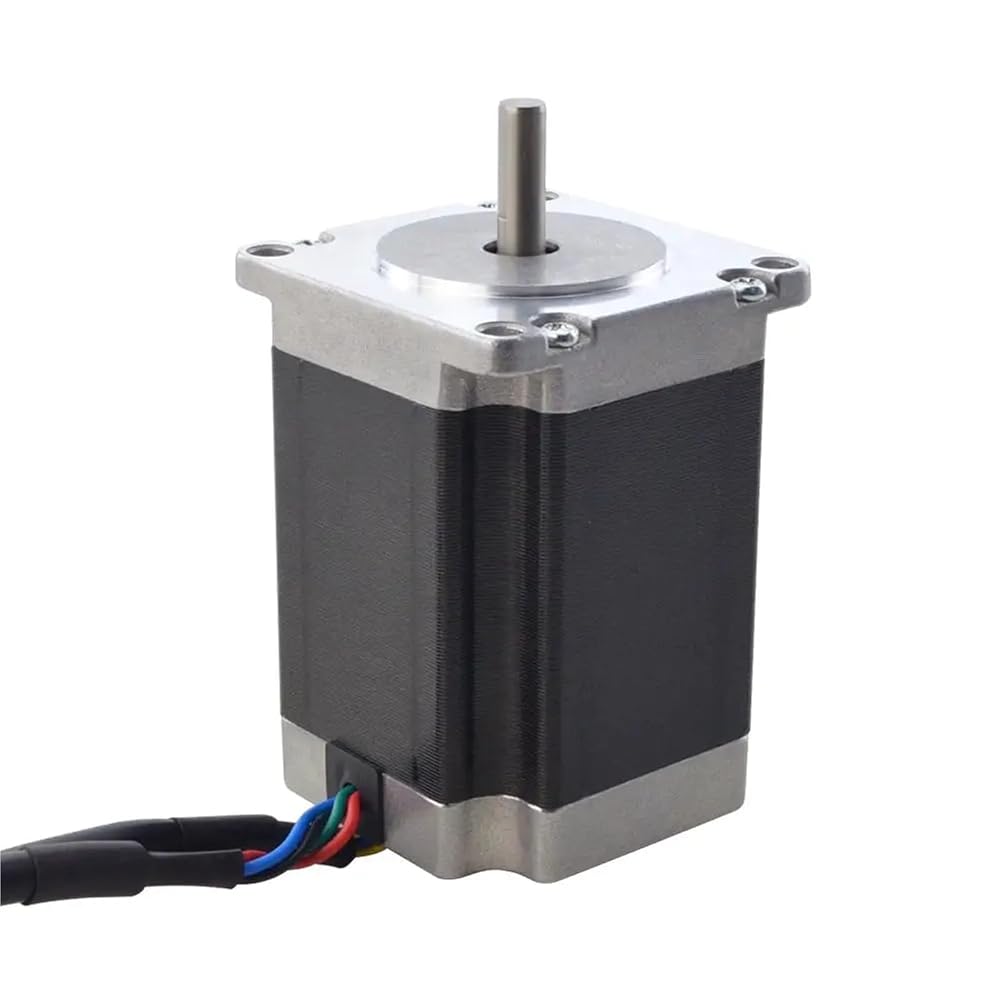

Manufacturer Part Number: 23HS30-2804-ME1K
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 1.85Nm(256.9oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 1.13ohms± 10%
Inductance: 4.8mH ± 20%(1KHz)
Frame Size: 57 x 57mm
Body Length: 80mm
Shaft Diameter: 6.35mm
Shaft Length: 21mm
D-CUT Shaft Length: 15mm
Lead Length: 500mm
Weight: 1.0kg
Output Circuit Type: Differential

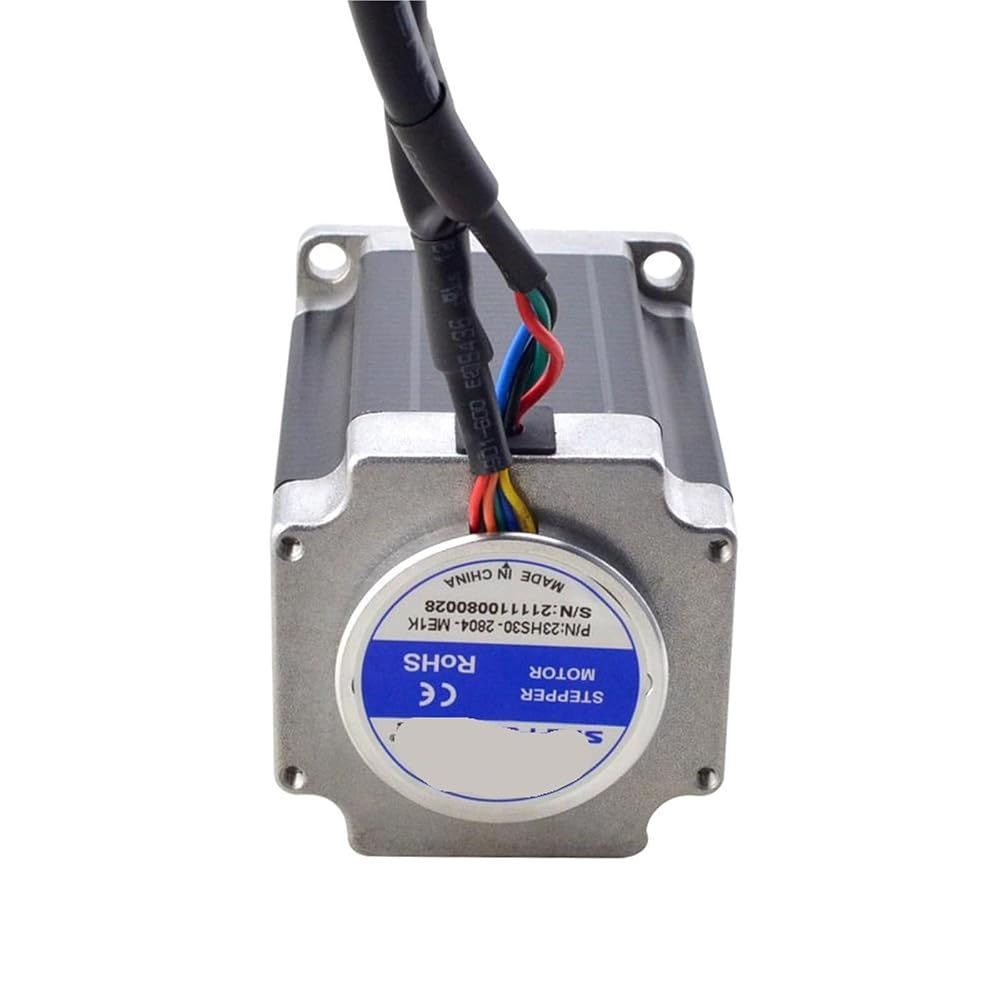

Encoder Type: Magnetic Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3 channels
Supply Voltage Min: 3.3V
Supply Voltage Max: 5.5V
Output Current: 20mA
Output High Voltage: 5V
Output Low Voltage: 0.2V
Output Frequency Max: 400kHZ
Motor
A+
A-
B+
B-
Wire
GRN
BLK
RED
BLU
Encoder
VCC
EGND
EA+
EA-
EB+
EB-
EZ+
EZ-
Wire
RED
BLK
BRN
ORG
BLU
GRN
YEL
WHT
Current / Phase : 2.8A
Holding Torque : 1.85Nm (256.9oz.in)
Step Angle(degrees) : 1.8deg
Phase : 2
Model Number : 23HS30-2804-ME1K
Type : HYBRID
Phase Resistance : 1.13ohms± 10%
Body Length : 80mm
Shaft Diameter : 6.35mm
Shaft Length : 21mm
Lead Length : 500mm
Warranty : 1 Year
