Specification:
Model:PLJ-8LED-H

Type: Backlight font red, Backlight font blue(Optional)

1. Gate time:
0.01 S
0.10 S
1.0 S

2. Measurement channels (channels are low impedance):
low channel
Measuring range: 0.1 MHz ~ 60 MHz
Accuracy: ± 100Hz (0.01 1s gate time)
± 10Hz (0.1 seconds gate)
± 1Hz (1.0 seconds when the gate)
Low channel sensitivity:
0.1 MHz ~ 10 MHz: better than 60mVPP
10 MHz ~ 60 MHz: better than 60mVPP
60 MHz ~ 75 MHz: Not tested
high channel (divided by 64)
Measuring range: 20 MHz ~ 2.4 GHz
Accuracy: ± 6400Hz (0.01 seconds gate)
± 640Hz (0.1 1s gate time)
± 64Hz (1.0 1s gate time)
High channel sensitivity:
20 MHz ~ 30 MHz: better than 100mVPP
30 MHz ~ 60 MHz: better than 50mVPP
60 MHz ~ 2.4GHz: not tested
Auto Channel
Automatically selected according to the input signally frequency high or low channel channel, identifying the frequency of 60 MHz. Such as when the input signally amplitude is greater than 60 MHz shortage can not automatically select high channel, the channel should manually select high frequency measurement.
3,IF settings

DC Input: DC 9V ~ 15V (with reverse polarity protections)
6. Current
Maximum 160 mA (test conditions: 1) DC12V power supply; 2) red LED; 3) eight brightness)
7. Eight LED display, the highest display eight digits.
8. Eight LED brightness is adjustable, factory set to maximum brightness.
9. Physical Dimensions,Length x width x height: 125.5 mm x 25.5 mm x 21.5 mm
10. Component quality 46 g (NW)
11. Onboard Interface
12.DC IN (Power Interface): HX2.54-2P socket
13.RF IN (signaily input): HX2.54-2P socket
14.ICSP (programming interface): 2.54-6P Pin
15.Weight: Approx.47g/1.7oz

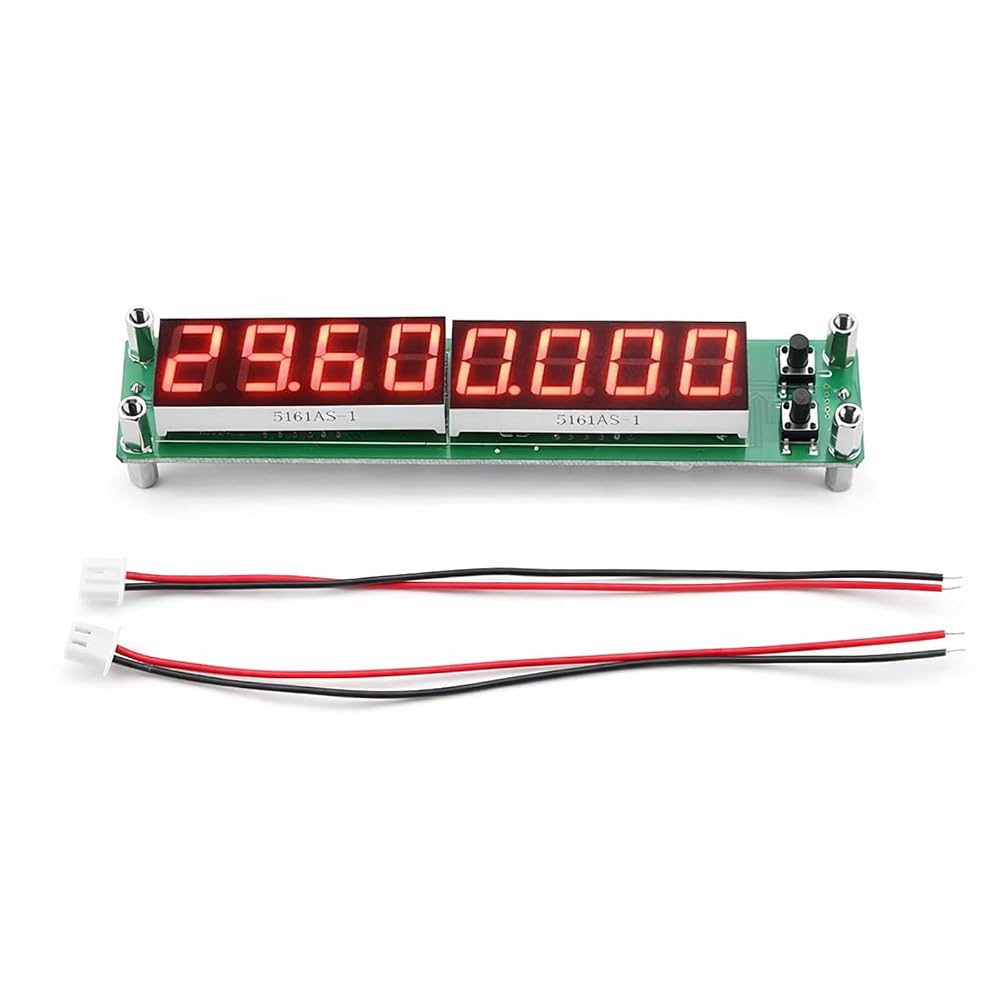

Package list:
1 x Frequency Counter
2 x cable
