Heavy Duty Side Clamp Vise Lateral Fixation Clamping Kit for Milling Machine

KWD 27
Brand
RHKING
Category
Cutting Tools
Weight
1 kg
SizeM8 Side Clamps
– 1 +

Special Features

  • Using: Side Clamping vise can clamp workpieces laterally, making it suitable for workpieces that require machining on the entire surface, but are difficult to clamp with a standard vise.
  • Parameters: The side clamp is made of alloy steel, providing strong clamping force , with a clamping force of up to 95KN and a stroke of 10mm.

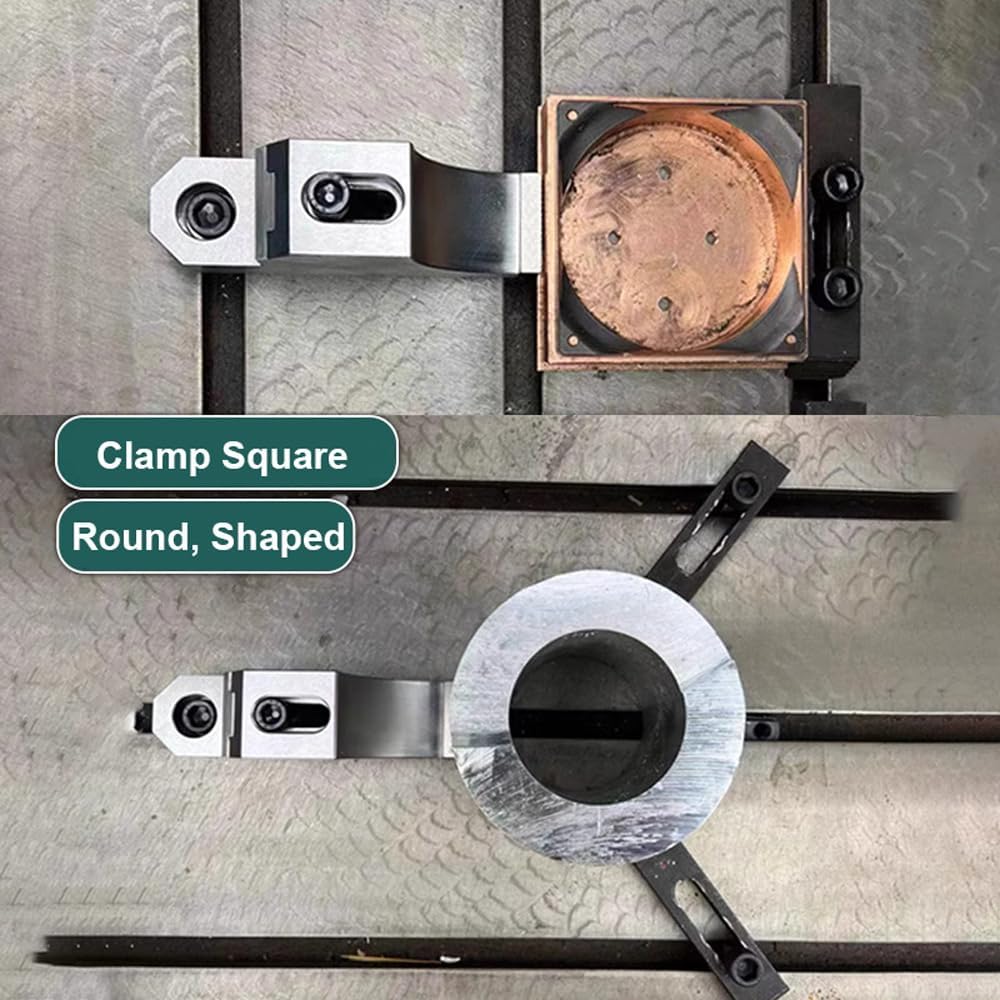

  • Operation: The side clamping vise has strong versatility. It can be placed arbitrarily on the machine tool table according to the shape of the product, and its position can also be freely adjusted. It is suitable for clamping large workpieces.
  • Features: The jaw treated tooth surface is more durable.The surface is ground, and the design of the dovetail slot is smoother and more stable.
  • Application: Milling machines, CNC machines, machining centers, grinding machines, drilling machines, etc.

Description

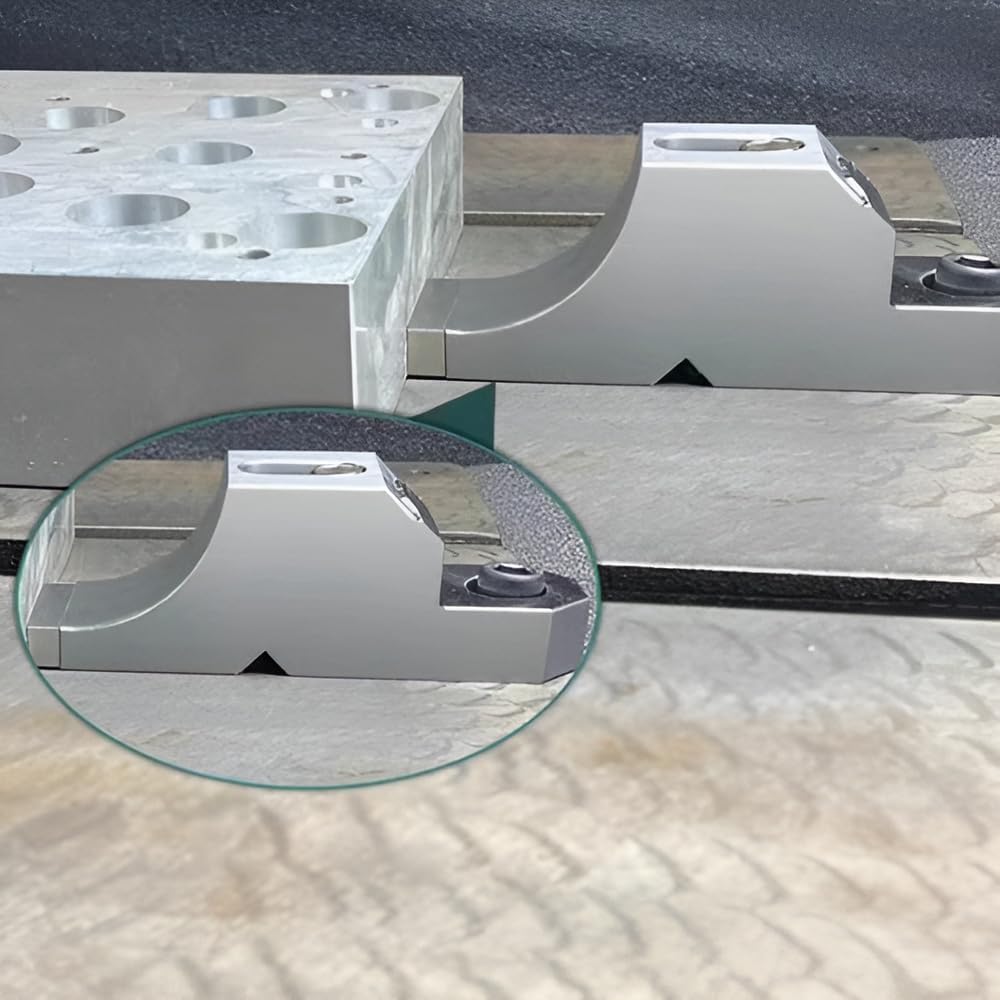

The side clamp can clamp workpieces laterally, providing strong clamping force suitable for heavy cutting, especially for larger workpieces that require machining on the entire surface. It allows for free position adjustment, can hold large workpieces.
Parameters

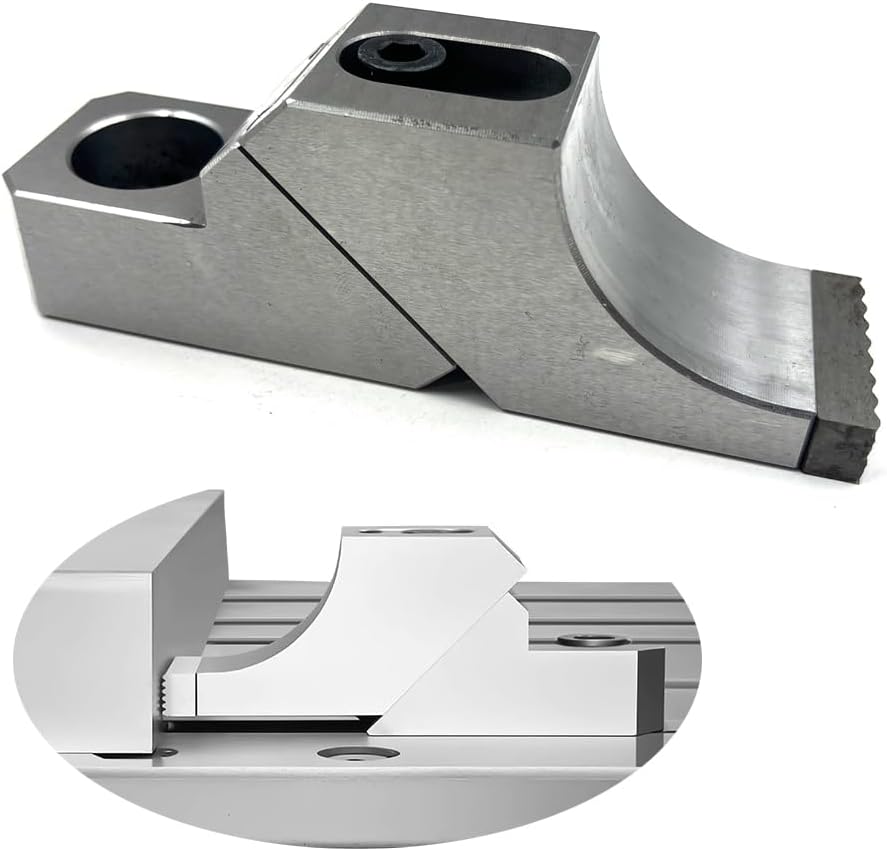

Name:Heavy duty machining Side Clamp

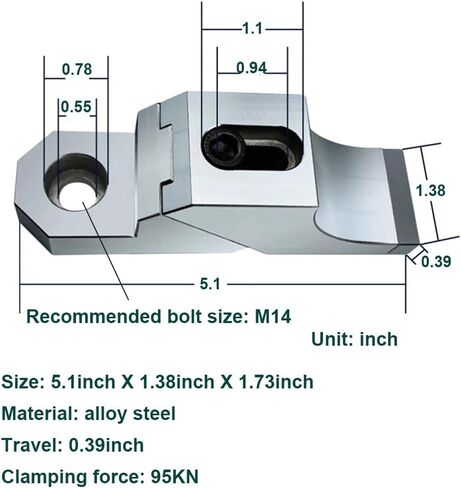

Size: long 130mm (5.1inch) ,wide 35mm(1.38inch) ,high 44mm(1.73inch)
Material: alloy steel
Travel: 10mm
Clamping force: 95KN
Bolt size: M14
Advantage

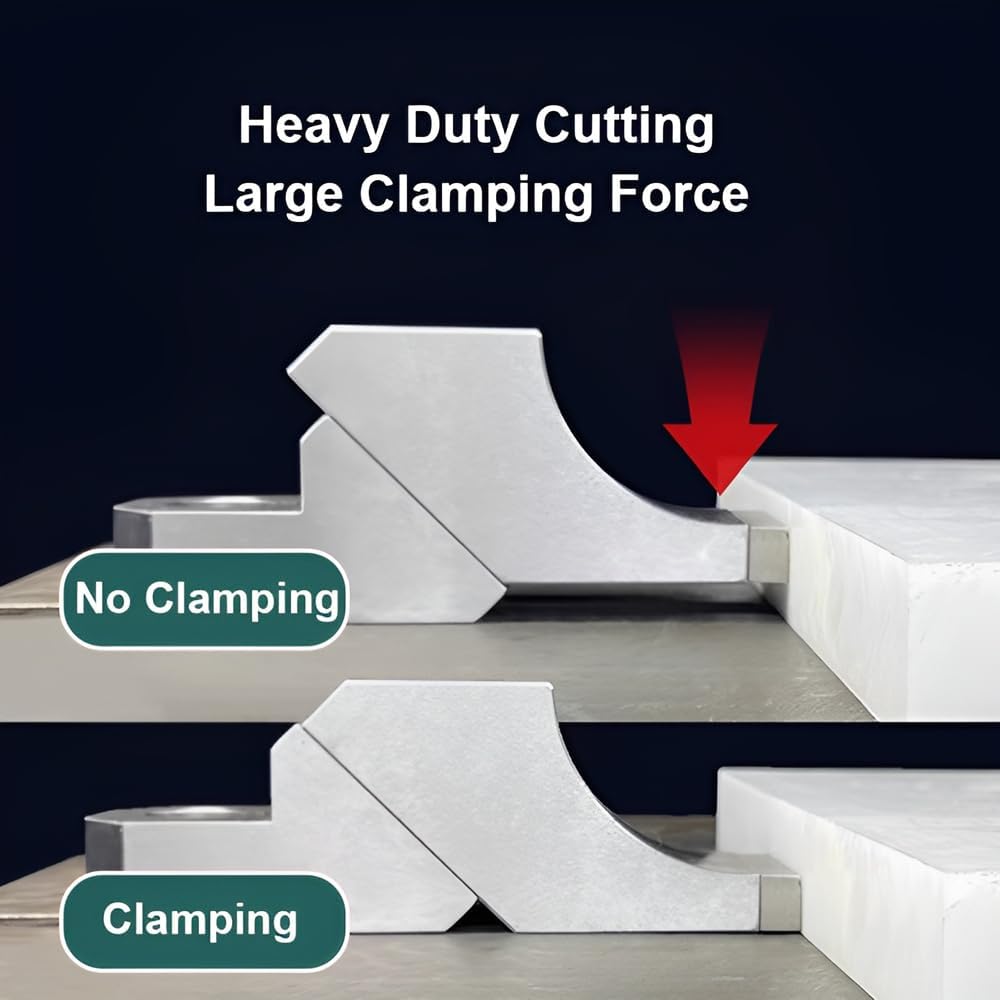

The clamping is firm and stable. suitable for heavy cutting. When the side clamping vise clamps the workpiece, there is a downward force, which will not cause the workpiece to float during the clamping process.
The surface is precisely ground and can be used as a support iron.

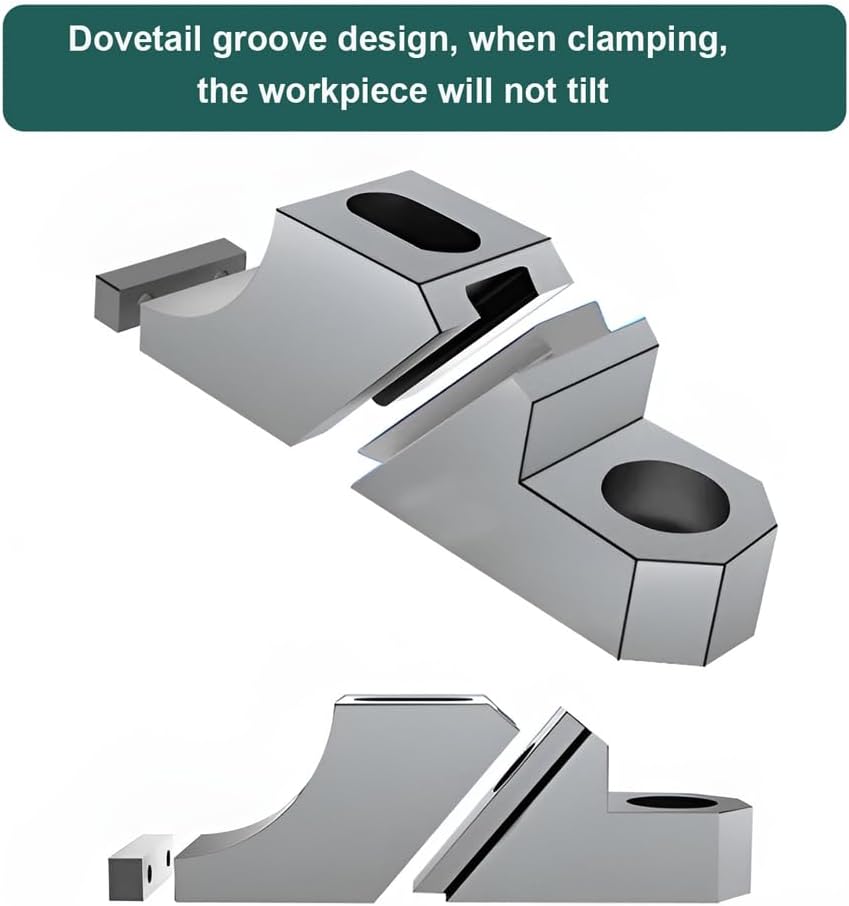

The dovetail groove design makes the operation of the side clamping vise more smooth and stable.

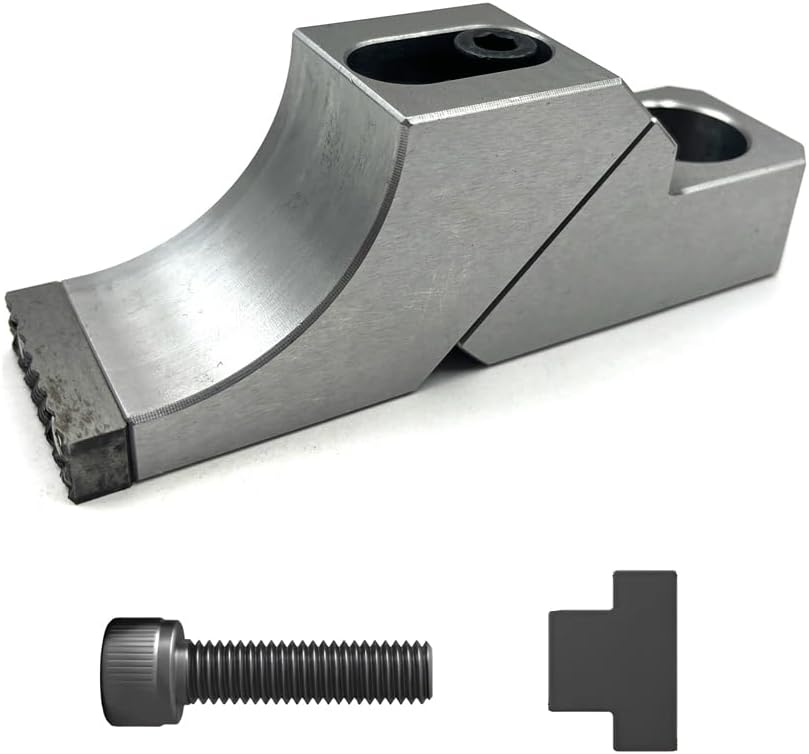

Package included
1pcs x Side Clamp
1pcs x T-Slots Nut
M14 x bolt
