2SA1943 is a high-frequency power transistor with a characteristic frequency of 30MHz.
The collector-emitter breakdown voltage of this device reaches 250V, the maximum collector current is 17A, and it supports 150W power consumption.

Limit parameters: collector-emitter breakdown voltage 230V
Collector continuous current 15A
Maximum power dissipation 150W
Frequency characteristics: Characteristic frequency (fT) 30MHz
Electrical performance: VCE saturation voltage drop 3V

Under different test conditions, 2SC5200 showed very good stability.
When the test conditions VCE = 5 V, IC = 1 A, the transition frequency is 30 MHz
When the test conditions VCB=10 V, IE=0, the transition frequency is 1MHz and the maximum electrode output capacitance reaches 200 pF
When the test conditions VCE=5 V, IC = 7 A, the maximum base-emitter voltage reaches 1.5V
When the test conditions IC=8 A, IB=0.8 A, the collector-emitter saturation voltage is 3.0 V

Minimum DC current gain (hFE): 80 @ 1A, 5V
Vce saturation (maximum) under Ib, Ic conditions: 3V @ 800mA, 8A
Conversion frequency: 30MHz
Voltage - Collector-Emitter Breakdown (Max): 230V
Collector current: 15A
Power characteristics: medium power
Frequency characteristics: intermediate frequency
Polarity: NPN type
Structure: point contact type

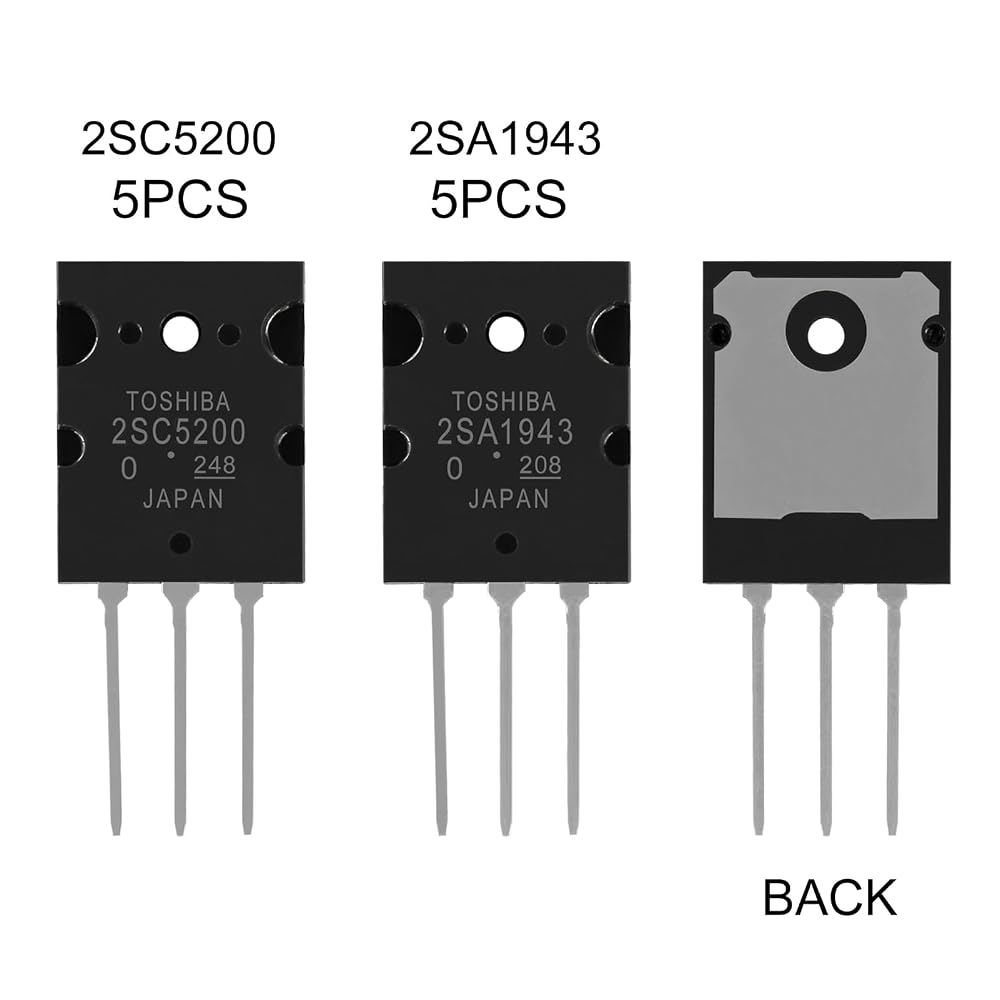

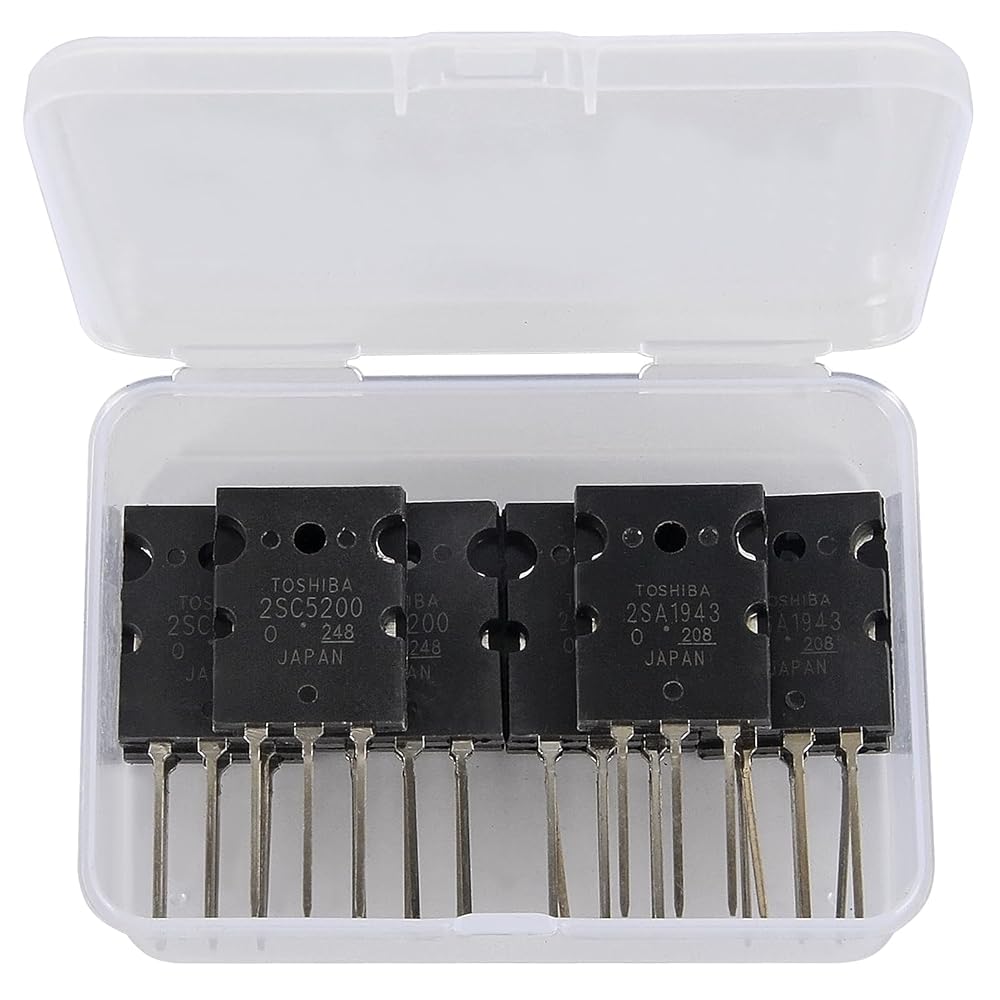

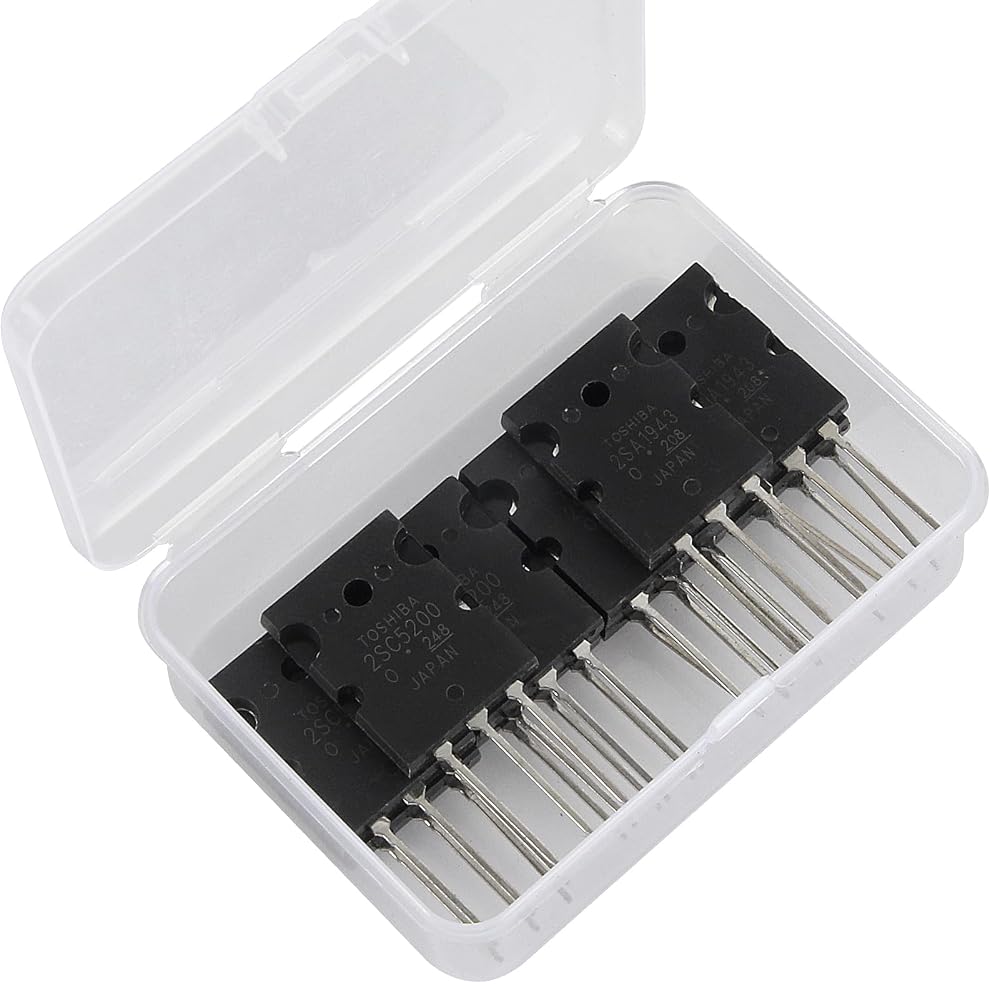

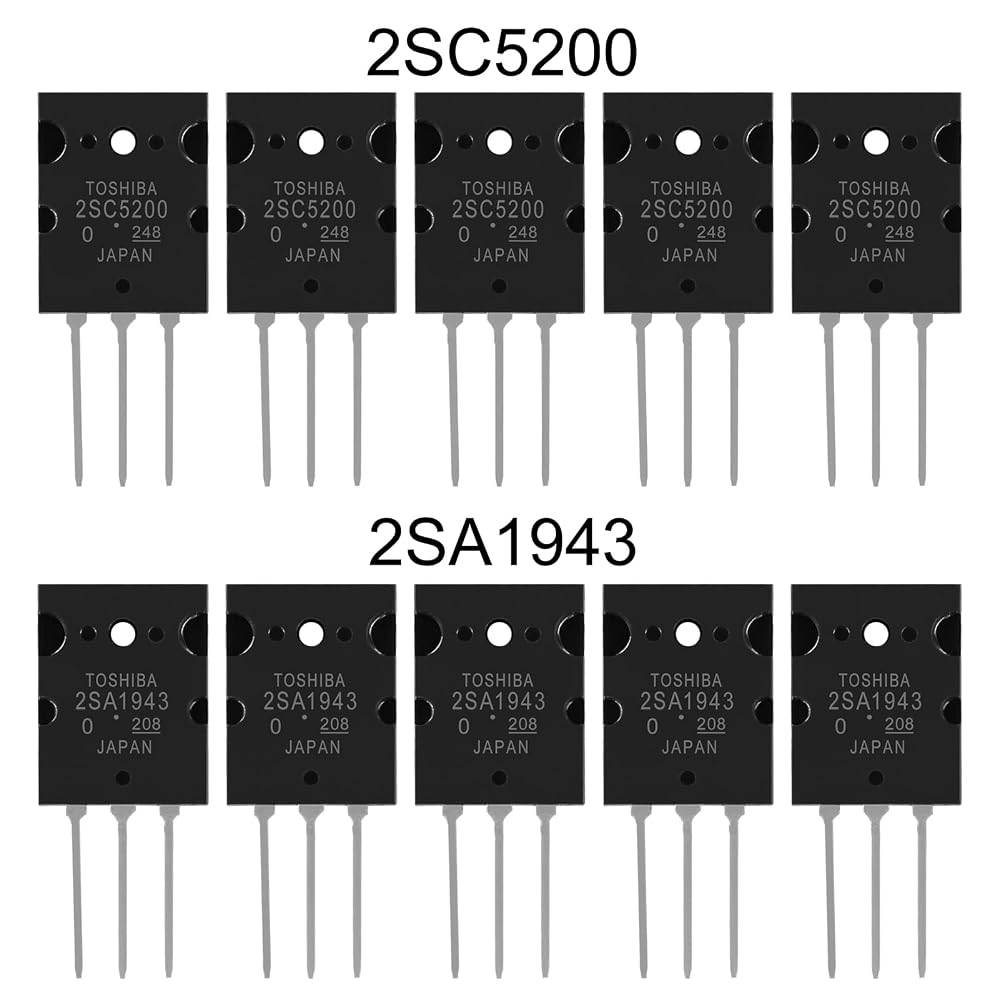

Package include:
5 x 2SA1943 transistor
5 x 2SC5200 transistor
