مميزات خاصة

Dual-Channel Technology: Featuring advanced VI curve testing capability with dual-channel signal inputs for simultaneous analysis of two different signals, allowing electronics technicians to efficiently diagnose multiple points without switching connections - saving valuable troubleshooting time.
Circuit Safety Protection: Test circuit without powering them using ASA (Analog Signature Analysis) methodology, protecting sensitive components from potential damage while accurately identifying faults in digital, analog, and mixed-signal components - the safer approach to for professional electronics diagnosis.
Customizable Testing Parameters: Equipped with 4 adjustable for frequency settings (40Hz, 350Hz, 2kHz, 14Hz) and 4 selectable resistance levels (56R, 220R, 1K, 20K), enabling precise configuration for testing various component types from microprocessors to passive for ELEMENTS on complex PCBs.
Compact for professional Design: Housed in a ABS casing measuring 140x80x40MM, this portable circuit analyzer fits comfortably in toolkits and workbenches, featuring clearly labeled controls and an intuitive interface for both experienced technicians and electronics students.
Complete Testing Solution: Ready for immediate implementation in electronics repair shops, for educational labs, and manufacturing quality control departments - simply connect to a standard DC 24V 1A power adapter (via 5.5*2.1 interface) to begin comprehensive circuit board fault detection and component verification.

وصف

Features:
*High Safety Standards: The 210S VI-Curve Tester allows for ASA testing without the need to power the circuit board, Assure that the testing process is safe and does not interfere with the circuit's operational state.
*Versatile Testing Capabilities: This device can test various types of circuits, including digital, analog, and mixed-signal components, as it does not rely on the functionality of the components on the circuit board.
*Dual-Channel Signal Input: The tester supports dual-channel signal inputs, enabling simultaneous analysis of two different signals for comprehensive performance evaluation.
*Adjustable for frequency and Resistance: Users can select from four adjustable for frequency settings and four resistance levels, providing flexibility to tailor the testing parameters according to specific circuit requirements.

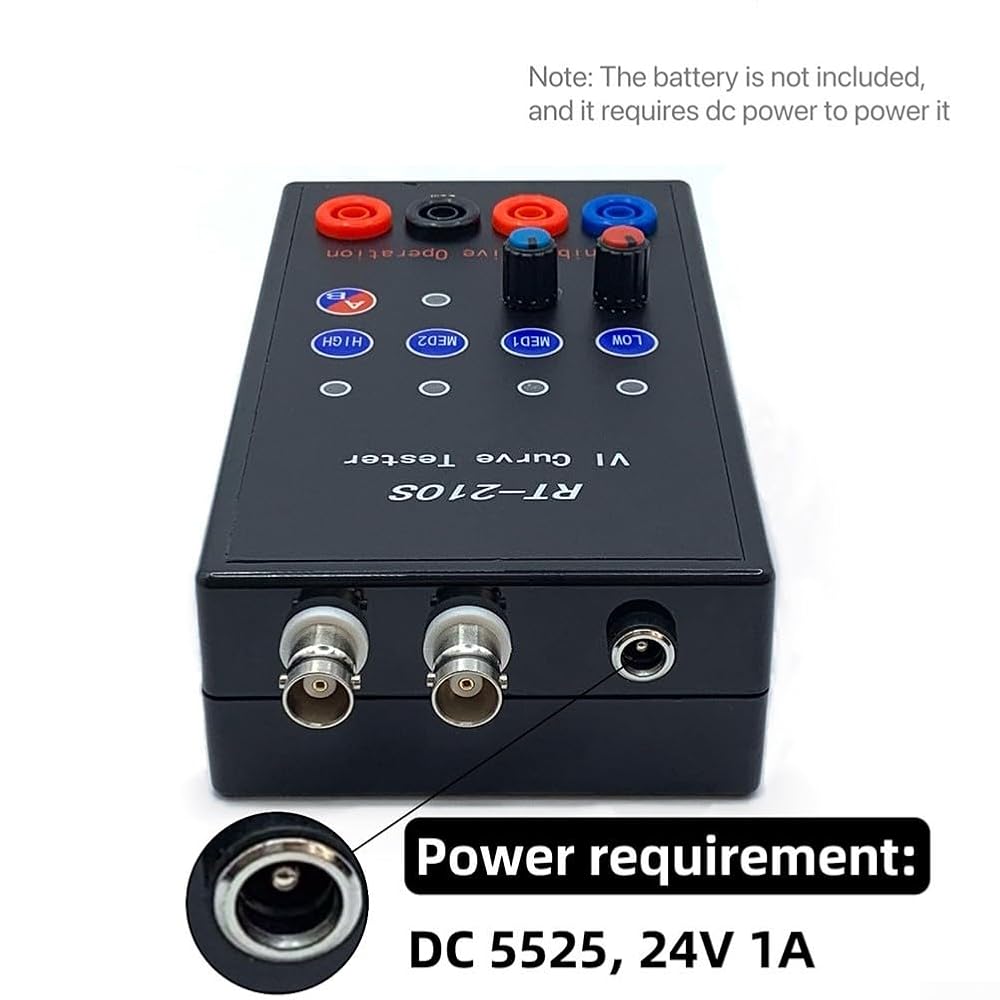

*Convenient Power Supply: The 210S VI-Curve Tester operates on a DC 5.5*2.1 interface and requires a DC 24V 1A power adapter (not included), Assure compatibility with standard power supplies while promoting ease of use.
[SAFE AND RELIABLE TESTING] The 210S VI-Curve Tester allows for circuit board testing without powering it up, a safe environment while maintaining circuit integrity.
[TESTING OPTIONS] This device effectively tests various circuits including digital and analog, making it suitable for diverse applications in electronics.
[SIMULTANEOUS SIGNAL ANALYSIS] With dual channel input capabilities, users can analyze two signals at once, optimizing the performance assessment process.
[CUSTOMIZABLE TEST PARAMETERS] Choose from four for frequency settings and adjustable resistance levels to customize tests according to specific needs.
[EASY POWER CONNECTION] Designed to work with a DC 5 2.1 interface, compatibility with standard power supplies for hassle-free use.

Specifications:

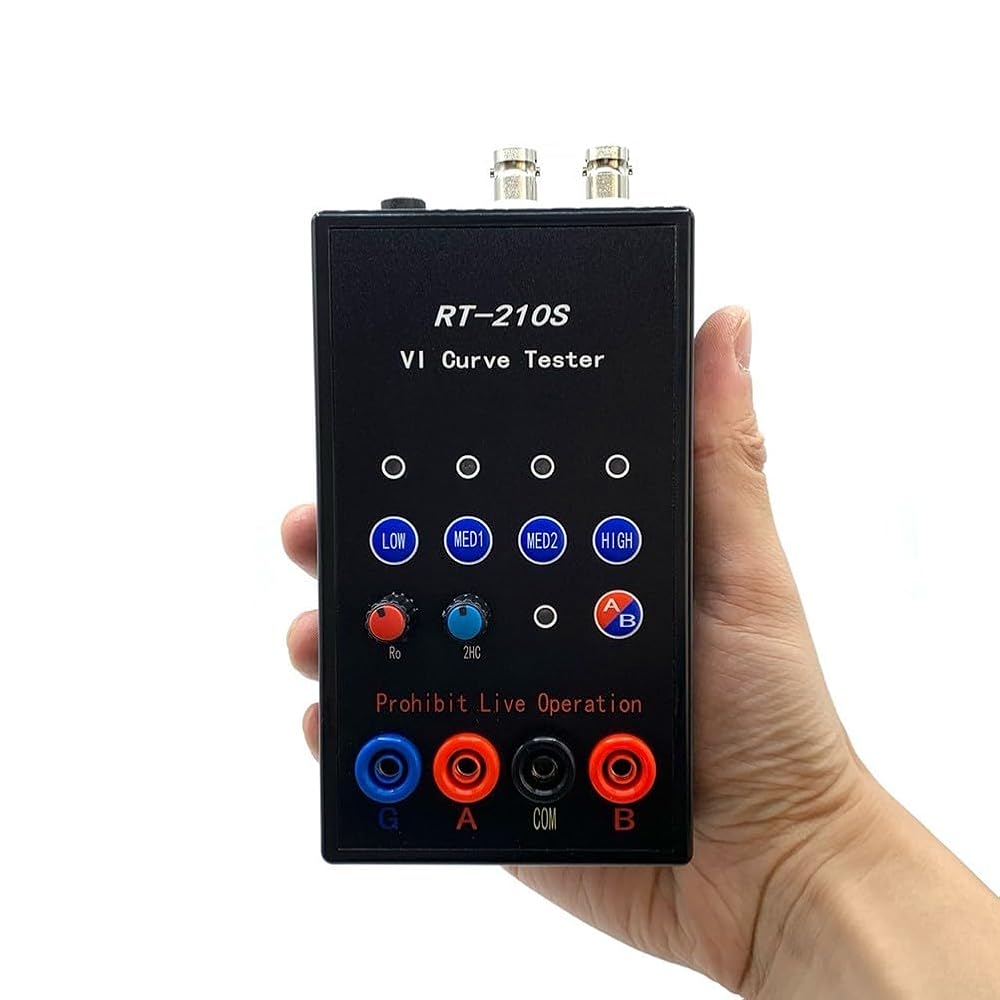

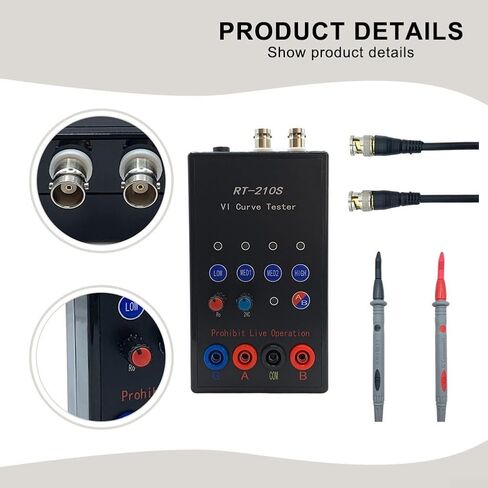

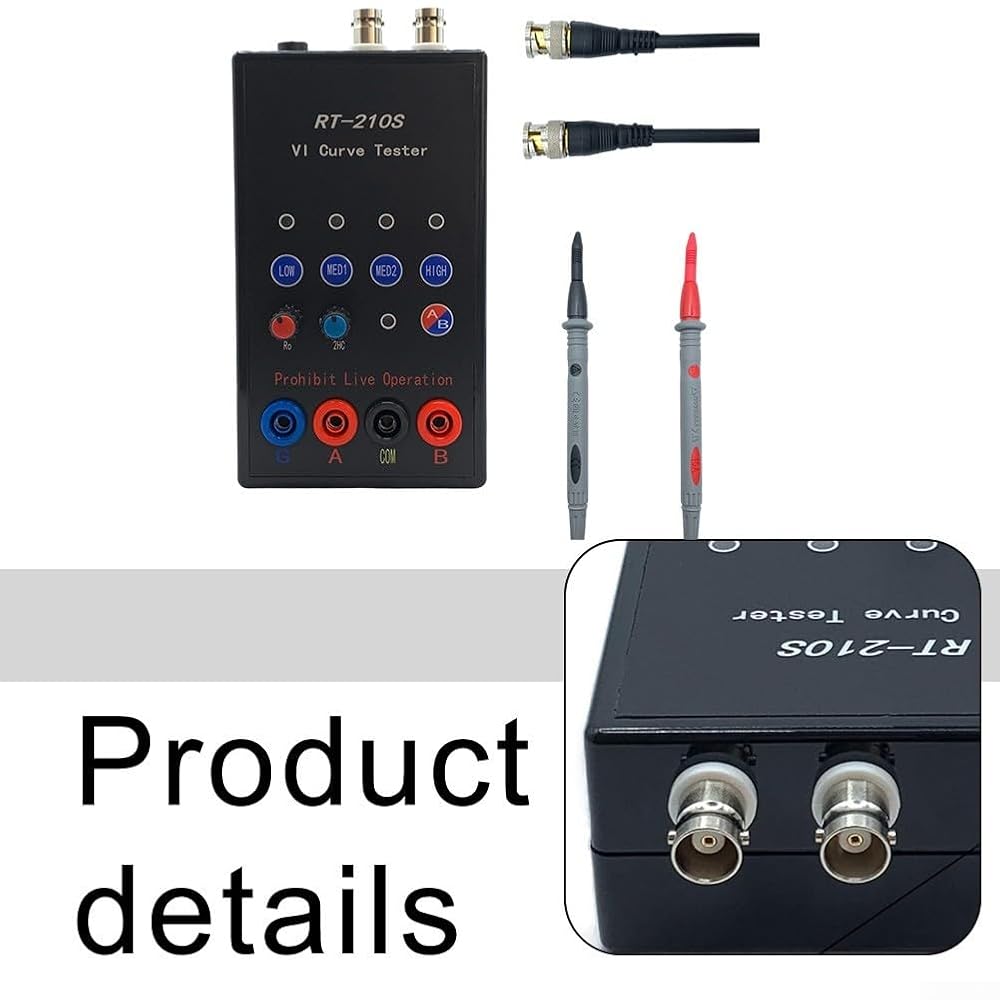

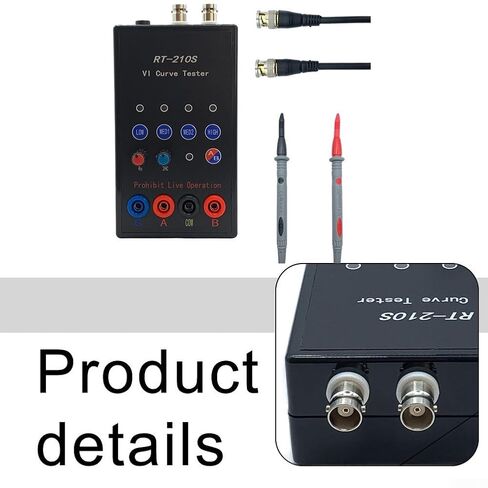

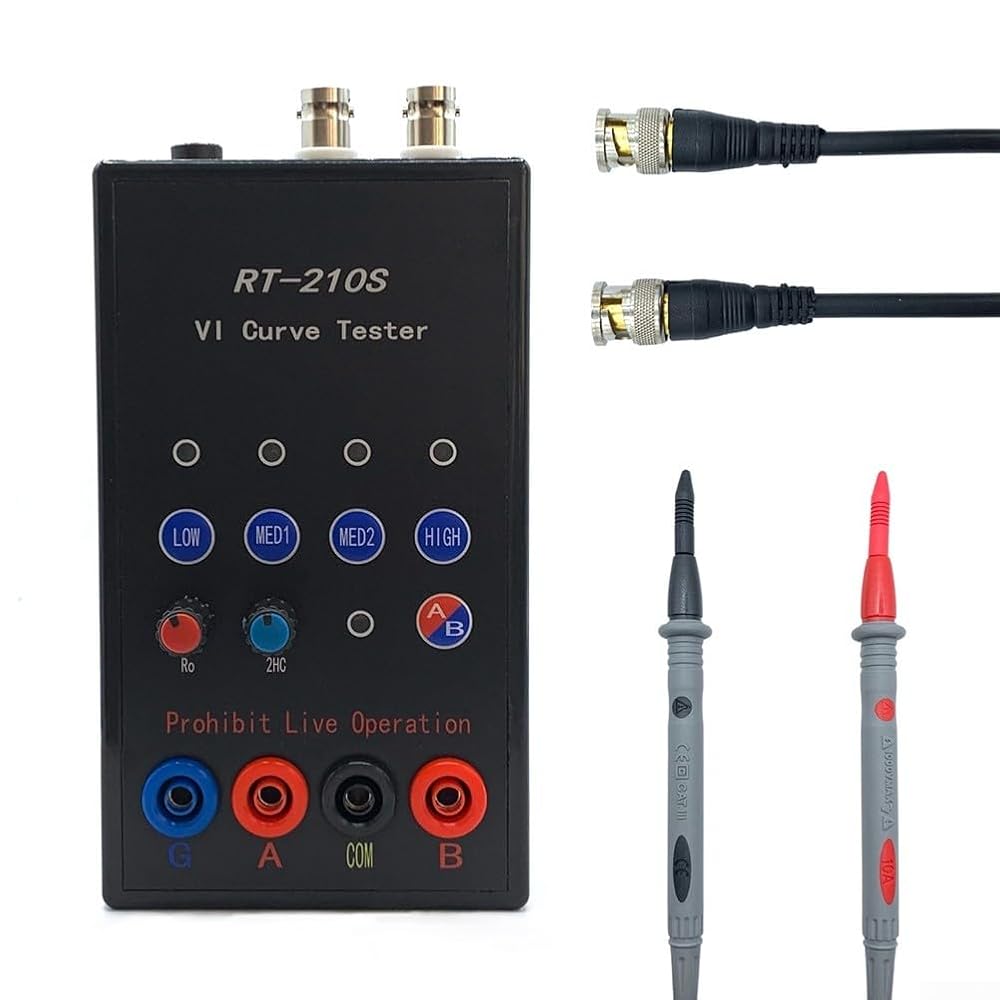

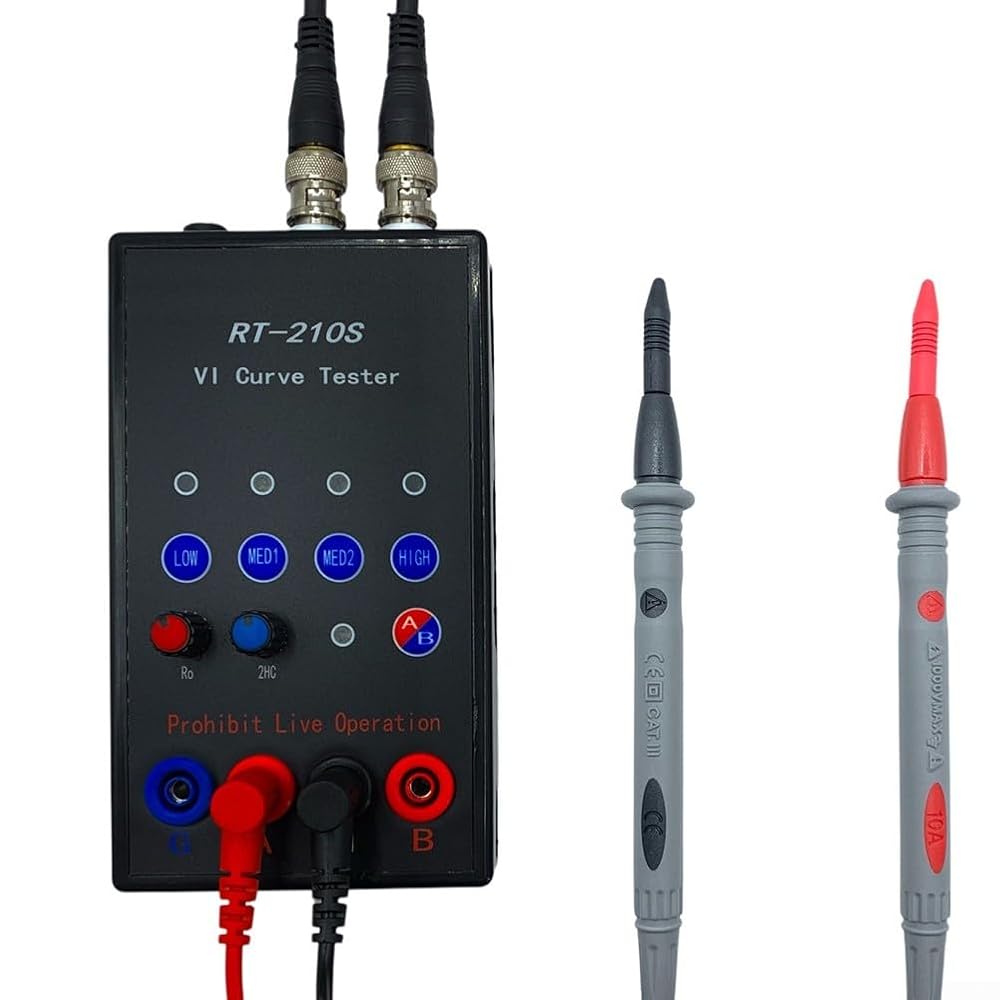

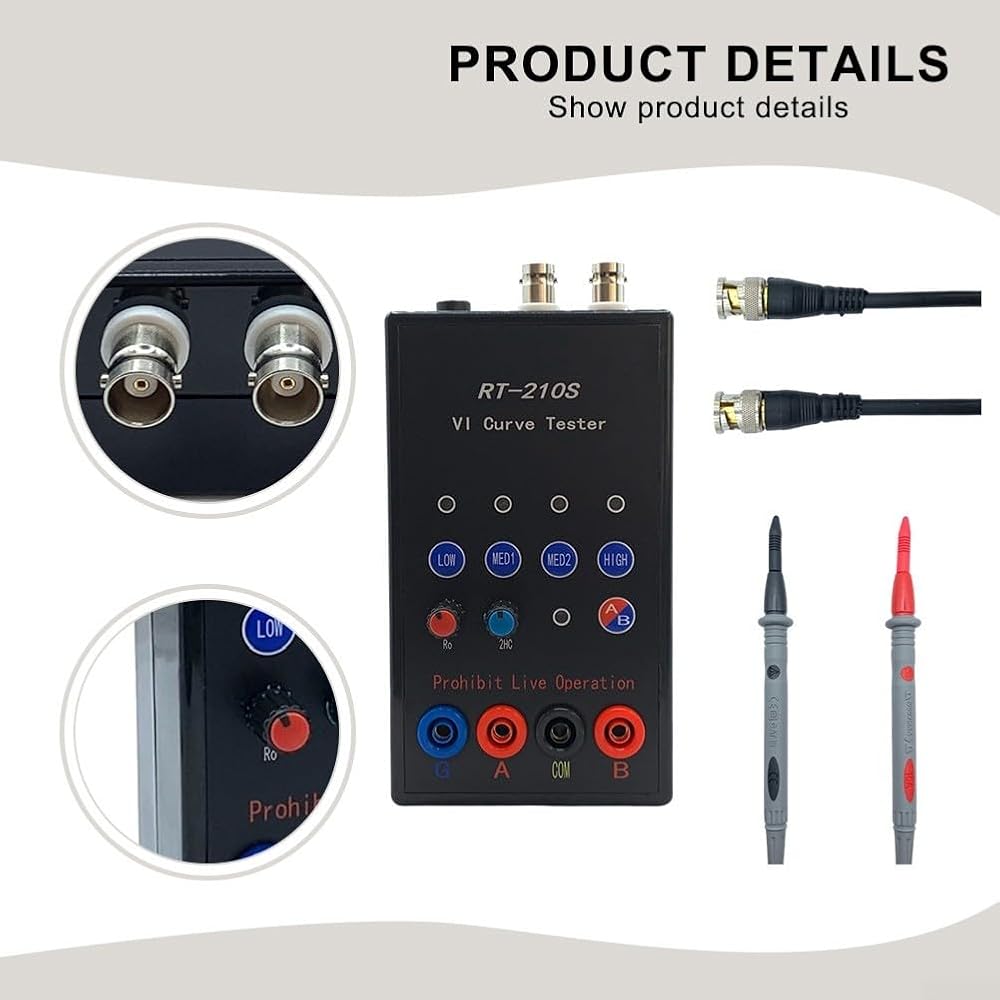

Part Name:210S VI-Curve Tester
Material:ABS
Size:140x80x40MM
Color:black

Voltage: AC2.7V
Internal resistance: 56R, 220R 1K 20K adjustable
for frequency: 40Hz, 350Hz, 2kHz, 14Hz adjustable

Package Content:
1*210S VI Curve Tester
