Features:
* A disposable fuse prevents instrument damage due to operational errors.
* In addition to standard signal input and output functions, it also supports resistance, Pt100, Cu50 for RTD, eight types of thermocouples, and frequency signal input and output, and can output and measure negative temperatures, making it a powerful instrument.
* The for RTD and resistance outputs have reduced sensitivity to external excitation current. This improves output and measurement accuracy, and supports both constant current and non-constant current resistance measurements, expanding the instrument's applications.
* All functions are switched using an internal electronic switch.
* Keys for input and output in V, mV, mA, Ω, and Hz provide easy operation.

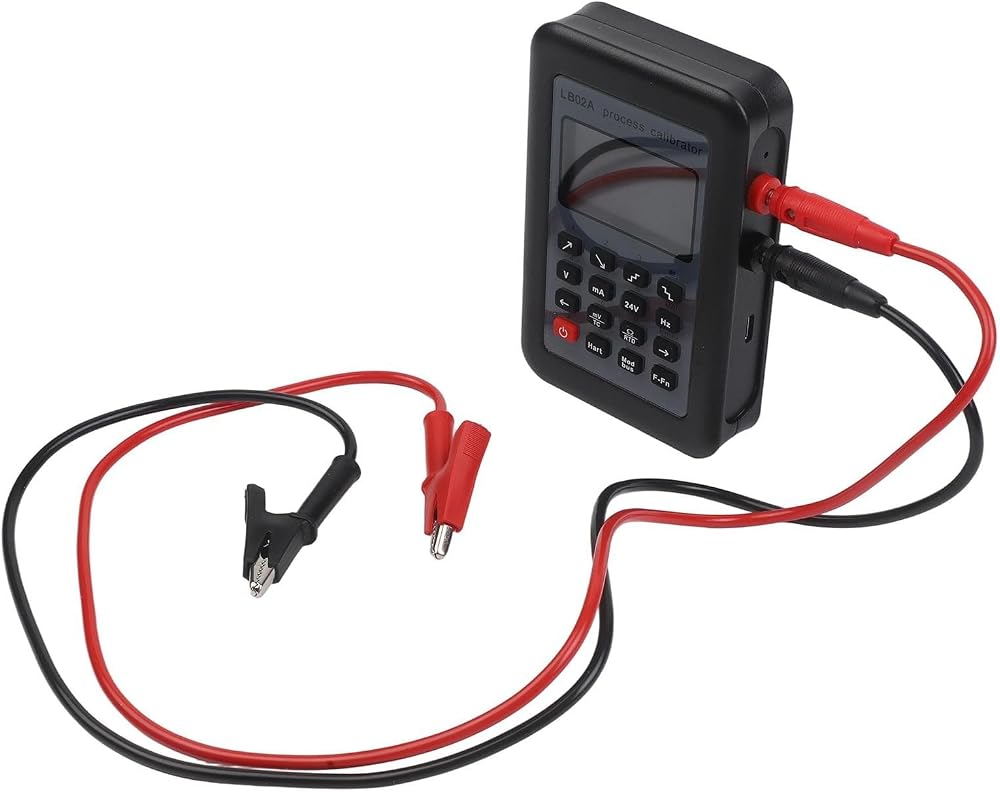

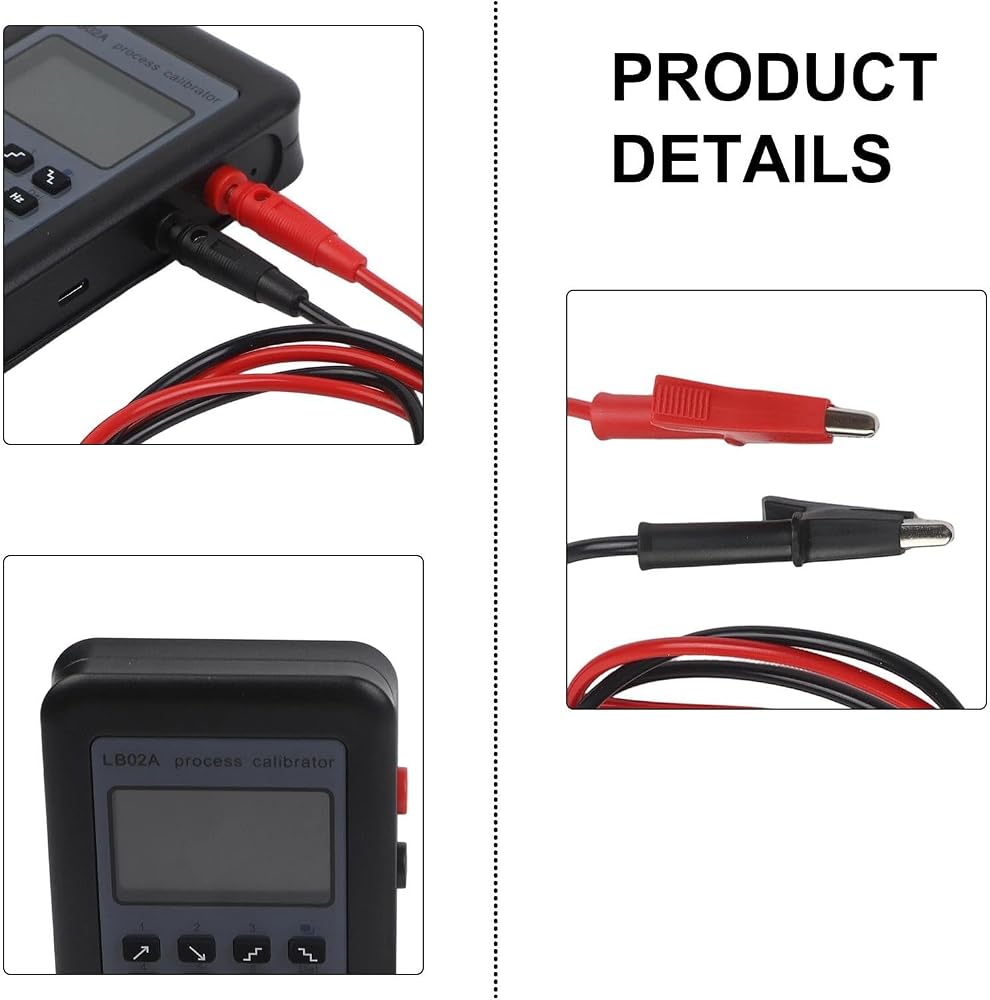

* Two plug-in terminals and a clear, large segment LCD display.
* Built-in high-capacity lithium polymer battery for enhanced safety.
Specifications:
Part Name: Signal Generator
Material: ABS, Metal
Color: As shown
Size: 122 * 80 * 27mm
Output Signals: (see below)
1. Voltage (0-11V)
2. mV (0-100mV)
3. Current (0-24mA)
4. Resistance (20-400Ω)
5. Frequency (100-10kHz)
6. Thermocouple (EKBRSTTJN)
7. Thermistor (Pt100Cu50)
Measurement Signals: (see below)
1. Voltage (0-±30V)
2. mV (0-±150mV)
3. Current (0-±30mA)
4. Resistance (0-999Ω)
5. Frequency (0-10kHz)
6. Thermocouple (EKBRSTTJN) S T J N)
7. Thermistor (Pt100 Cu50)

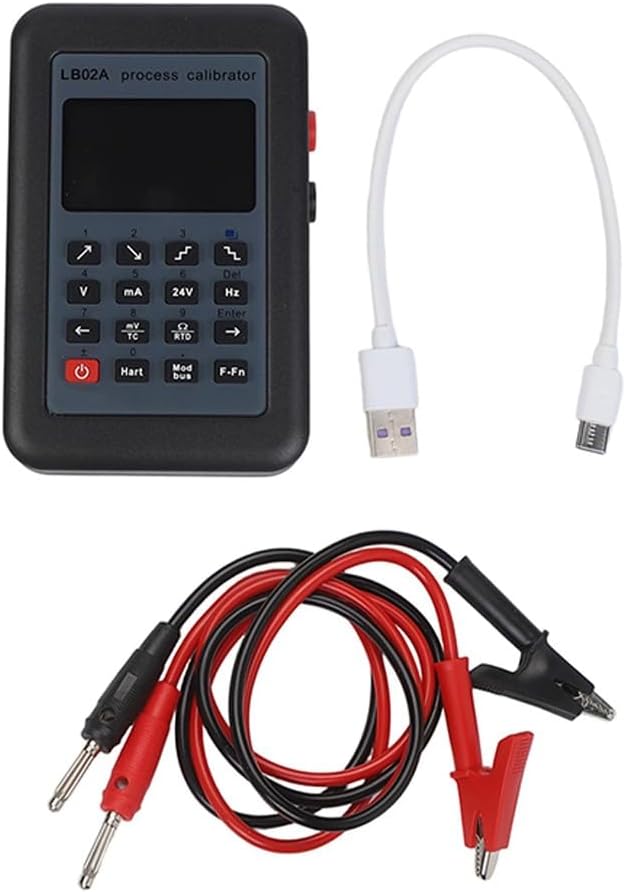

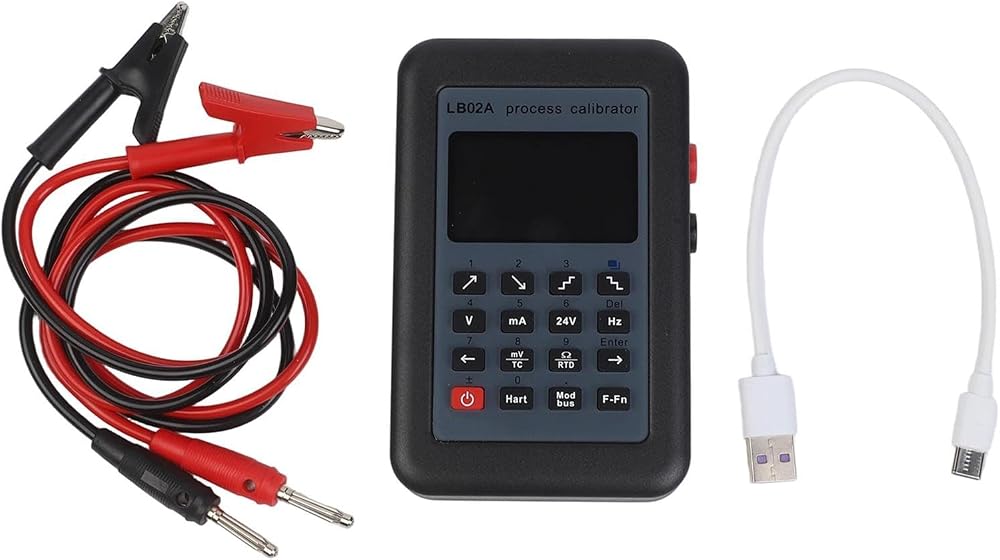

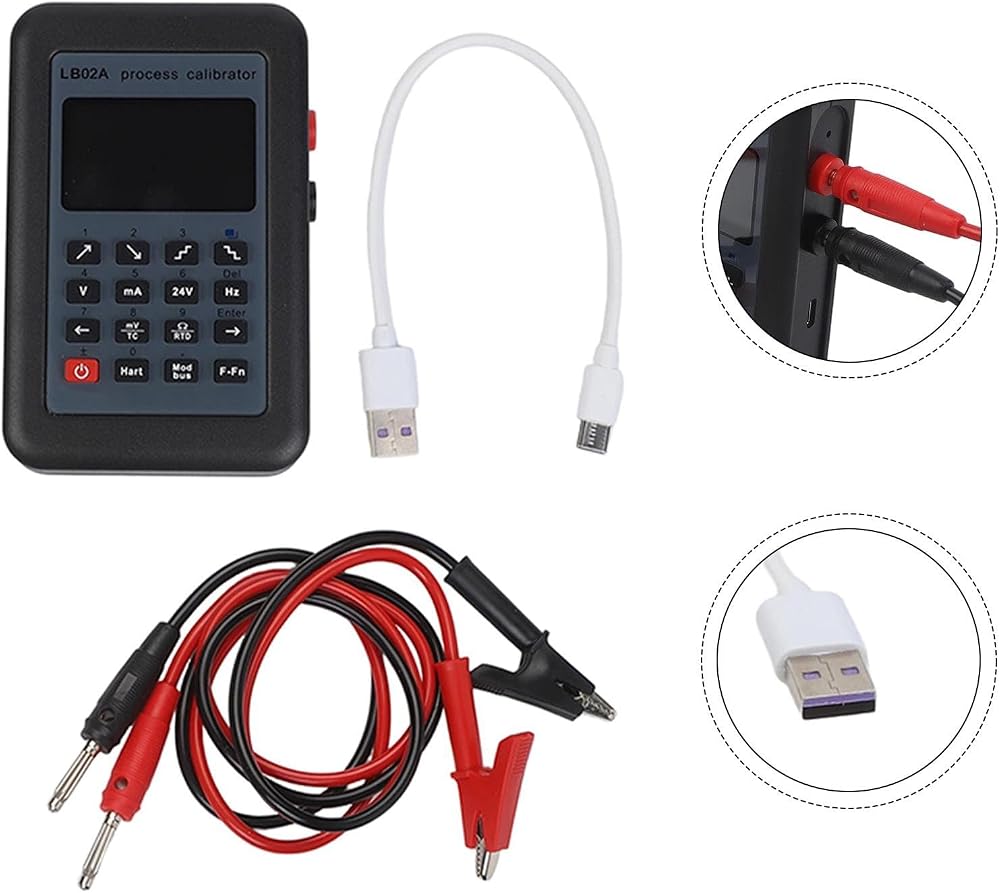

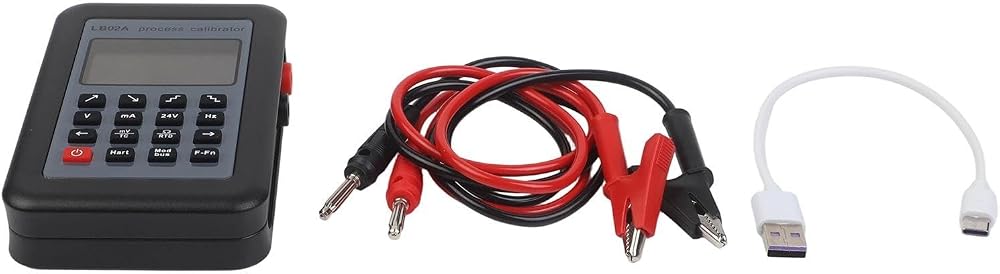

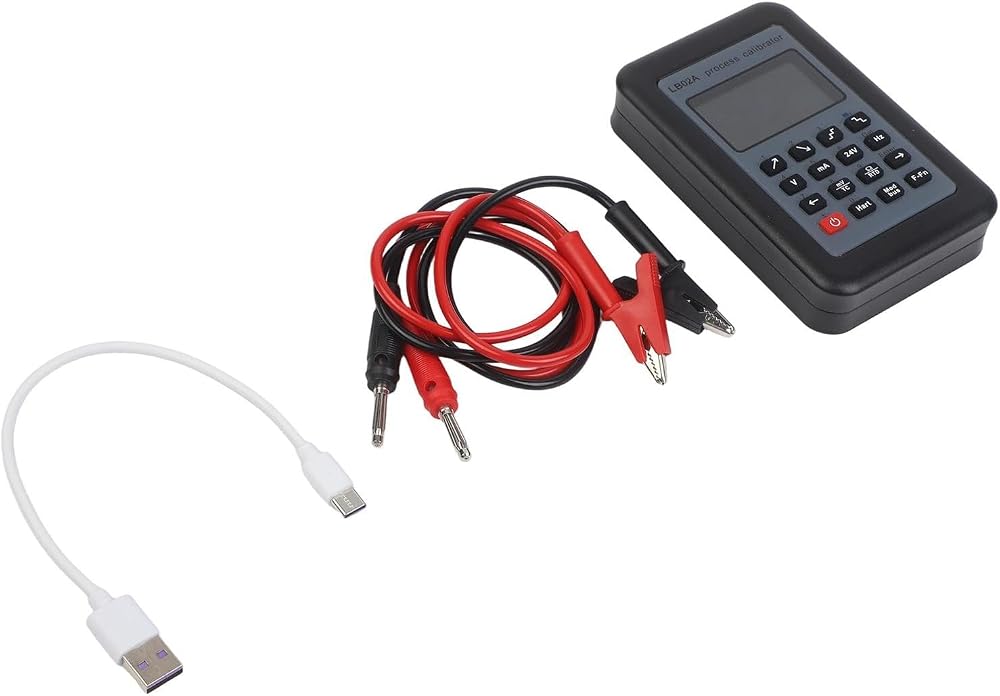

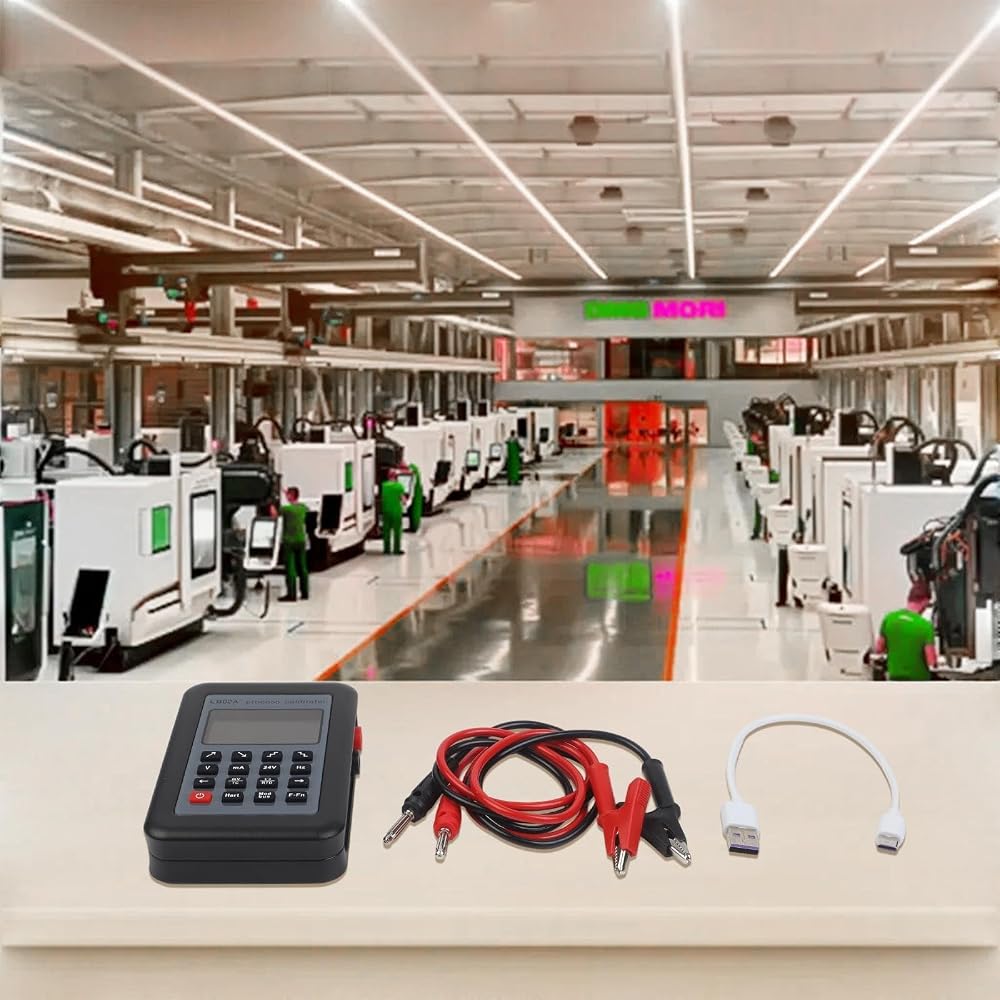

Package Contents:
1 x Signal Generator
1 x Test
1 x USB Data Cable
1 x Storage Bag
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
