Home / Yunir / Semiconductor Products
PIC kit 3 Programmer, PIC Debugger and Emulator with Low Voltage 2.0-6.0V Support, Firmware Upgradeable for Flash Microcontroller Development in Kuwait PIC kit 3 Programmer, PIC Debugger and Emulator with Low Voltage 2.0-6.0V Support, Firmware Upgradeable for Flash Microcontroller Development in Kuwait PIC kit 3 Programmer, PIC Debugger and Emulator with Low Voltage 2.0-6.0V Support, Firmware Upgradeable for Flash Microcontroller Development in Kuwait PIC kit 3 Programmer, PIC Debugger and Emulator with Low Voltage 2.0-6.0V Support, Firmware Upgradeable for Flash Microcontroller Development in Kuwait PIC kit 3 Programmer, PIC Debugger and Emulator with Low Voltage 2.0-6.0V Support, Firmware Upgradeable for Flash Microcontroller Development in Kuwait PIC kit 3 Programmer, PIC Debugger and Emulator with Low Voltage 2.0-6.0V Support, Firmware Upgradeable for Flash Microcontroller Development in Kuwait PIC kit 3 Programmer, PIC Debugger and Emulator with Low Voltage 2.0-6.0V Support, Firmware Upgradeable for Flash Microcontroller Development in Kuwait

PIC kit 3 Programmer, PIC Debugger and Emulator with Low Voltage 2.0-6.0V Support, Firmware Upgradeable for Flash Microcontroller Development

KWD 16.500
Brand
Yunir
Weight
74 g
– 1 +

Special Features

  • USB INTERFACE & REAL-TIME EXECUTION: Features a full-speed 12 Mbits/s USB interface to the host PC for real-time execution. Fully compatible with MPLAB IDE (software via download) for seamless flash microcontroller development.
  • BROAD CHIP COMPATIBILITY: Supports a wide range of microcontroller families including 10F, 12F, 16F, 18F, 24F/H, and 32 (future) series. Operates efficiently with low voltage support ranging from 2.0V to 6.0V.
  • BUILT-IN SAFETY MONITORS: Equipped with an internal over-voltage and short circuit monitor to protect your equipment. Includes diagnostic LEDs (power, busy, error) for clear, at-a-glance status updates during operation.
  • ADVANCED MEMORY CONTROL: Allows reading and writing of program and data memory of the microcontroller. Features erasure of program memory space with verification and the ability to freeze peripherals at breakpoints.
  • PROGRAMMER-TO-GO & UPGRADEABLE: Program up to 512K byte flash using the Programmer-to-Go feature. The totally enclosed device is firmware upgradeable via PC/web download. Package includes the programmer and an A to mini-B USB cable.

Description

Spec:
Description
The 3 allows debugging and programming of PIC(R) and ​(R) Flash microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), and it does this all at a most affordable price point. It can program a large range of PIC chips, including the PIC10F, 12F, 16F, PIC18F, 24F/H, ​ and PIC32 (future) families. Additionally it is firmware upgradeable, and Microchip regularly releases new firmware to support new PIC chips.

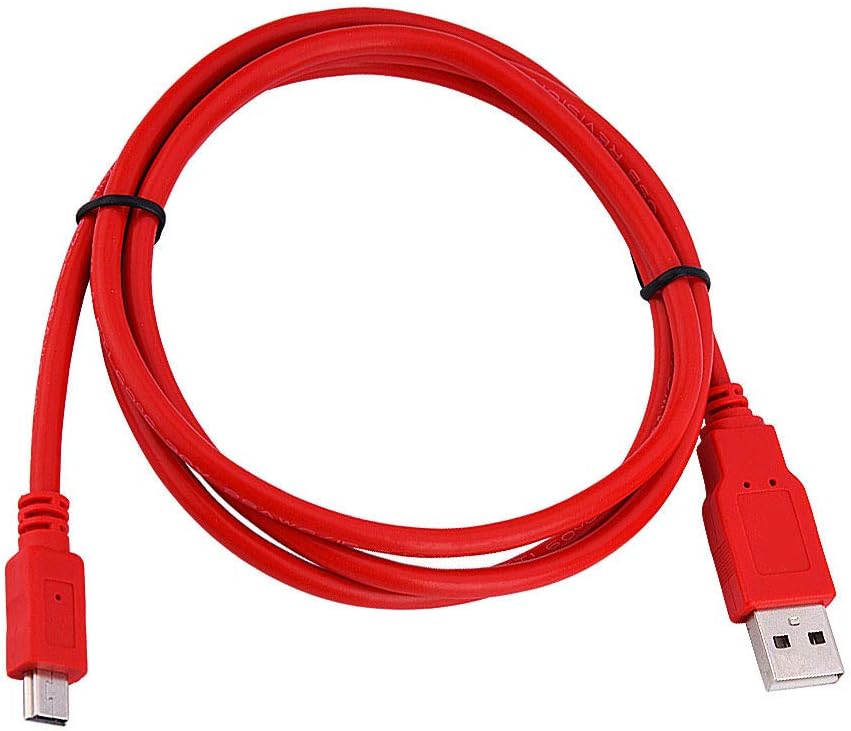

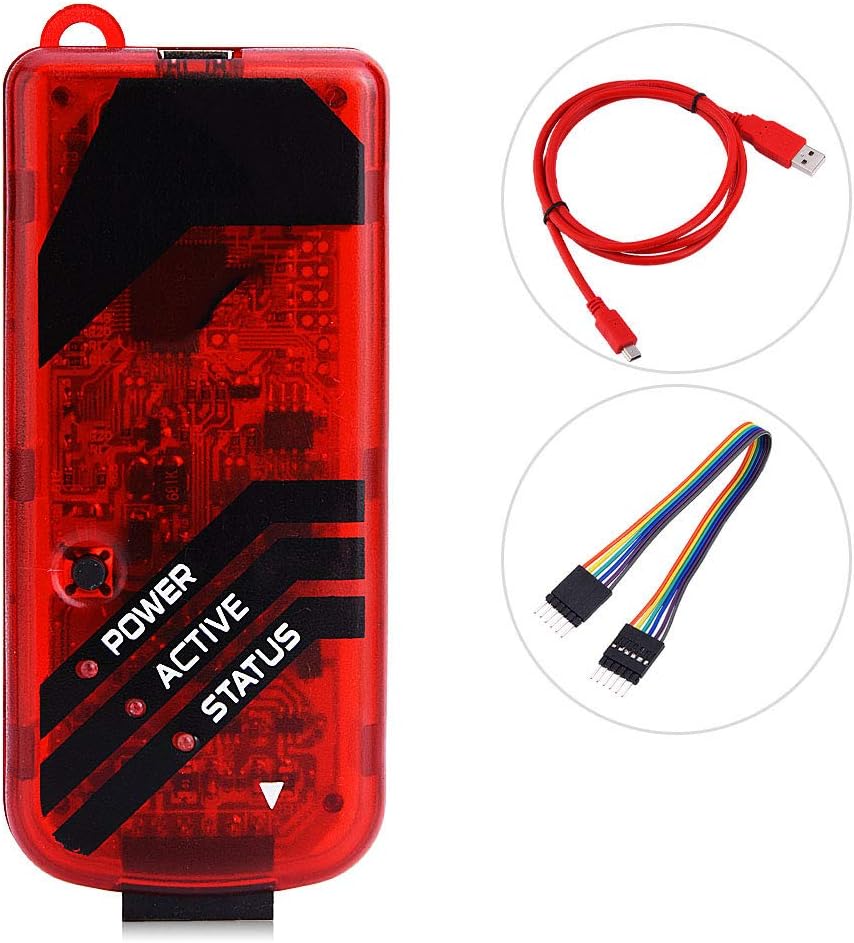

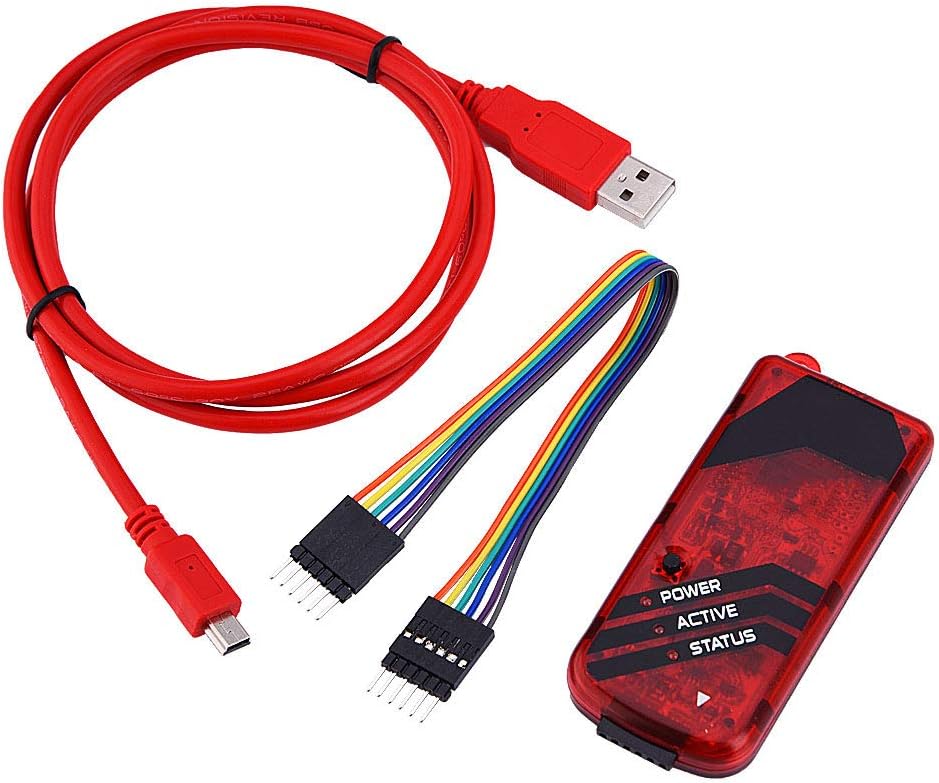

Included in this package is the 3 Programmer/Debugger, 3 Programming Software(via download), the MPLAB IDE Software(via download), and an A to mini-B USB cable. Please note that this is the 3 programmer only (Microchip part number PG164130), and does not include any demo boards!
Microchip part number PG164130. For details, see product page on Microchip's site.
Features:

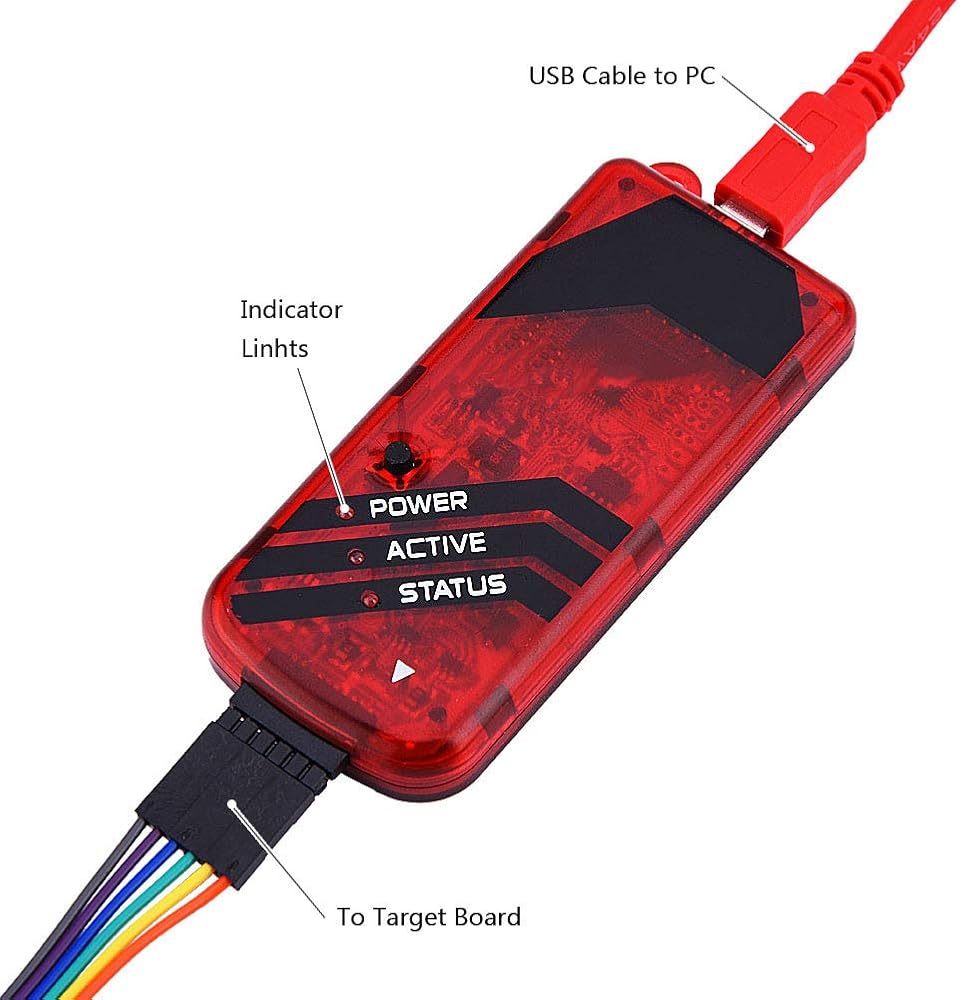

USB (Full speed 12 Mbits/s interface to host PC)
Real-time execution
MPLAB IDE compatible ( copy included)
Built-in over-voltage/short circuit monitor
Firmware upgradeable from PC/web download
Totally enclosed
Supports low voltage to 2.0 volts (2.0v to 6.0v range)

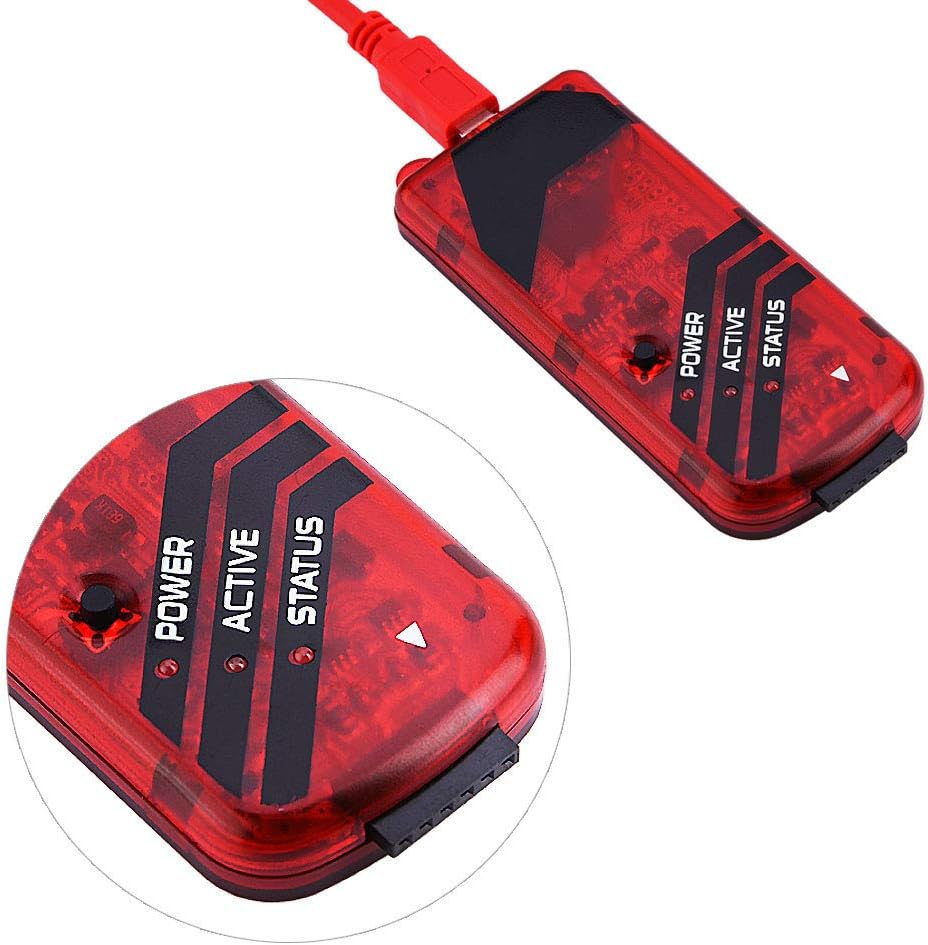

Diagnostic LEDs (power, busy, error)
Read/write program and data memory of microcontroller
Erase of program memory space with verification
Freeze-peripherals at breakpoint
Program up to 512K byte flash with the Programmer-to-Go
