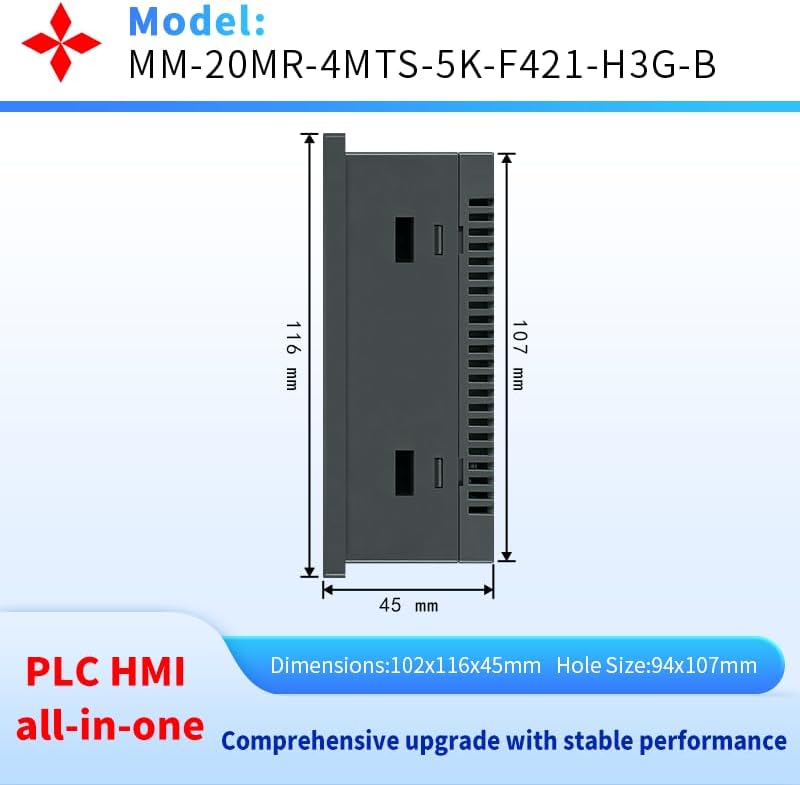

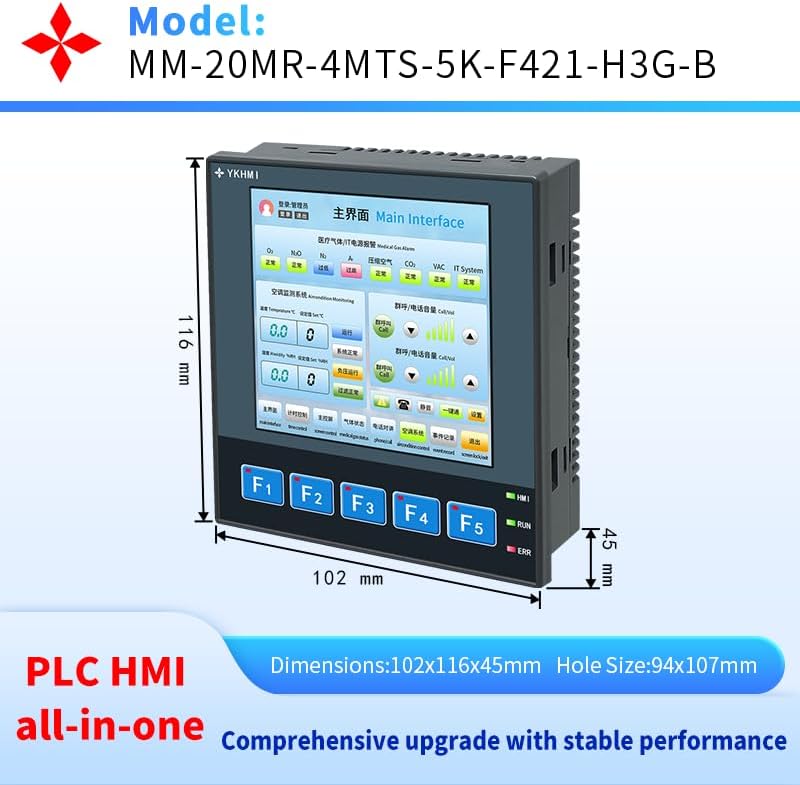

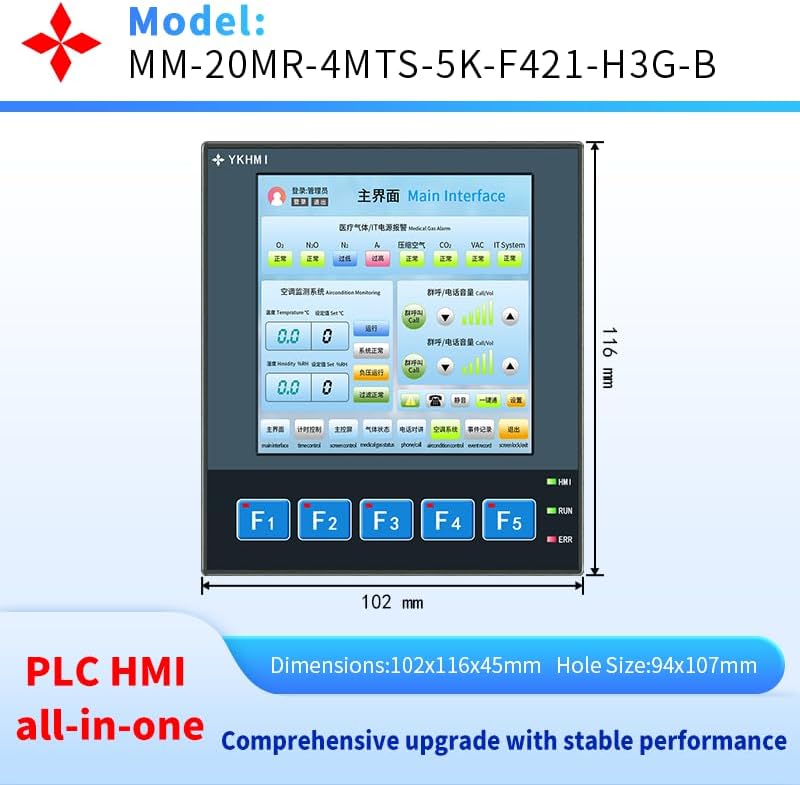

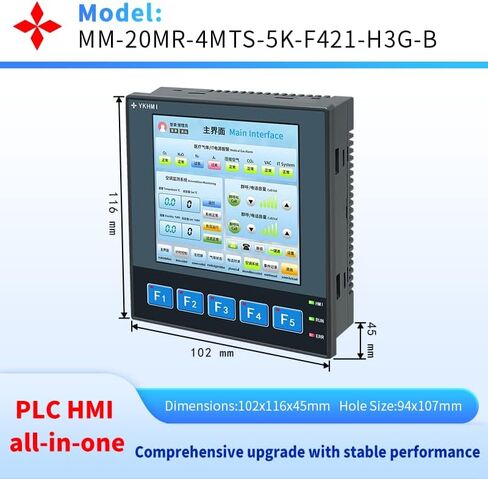

YKHMI PLC HMI Integrated Programmable Logic Controller MM-20MR-4MTS-5K-F421-H3G-B Description:

Please download the User manual / HMI Software / USB Driver / Tutorial / Diagram : https:// drive.google.com/drive/folders/1N4nXlDS_wumzx0K0zZJURaIR--garByl?usp=sharing

Attention:
1. pls disconnect the download USB cable when read the value of AD, DA and temparature NTC10K probe value
2. Temparature probe choose: NTC10K probe range is -50 -150 °， B3435 model.
3. HMI Choose F serials, model no. is 421, choose FXCUP in PlC type
4. Pls disconnect the download cable when read the AD DA and NTC10K value, or cannot read it.

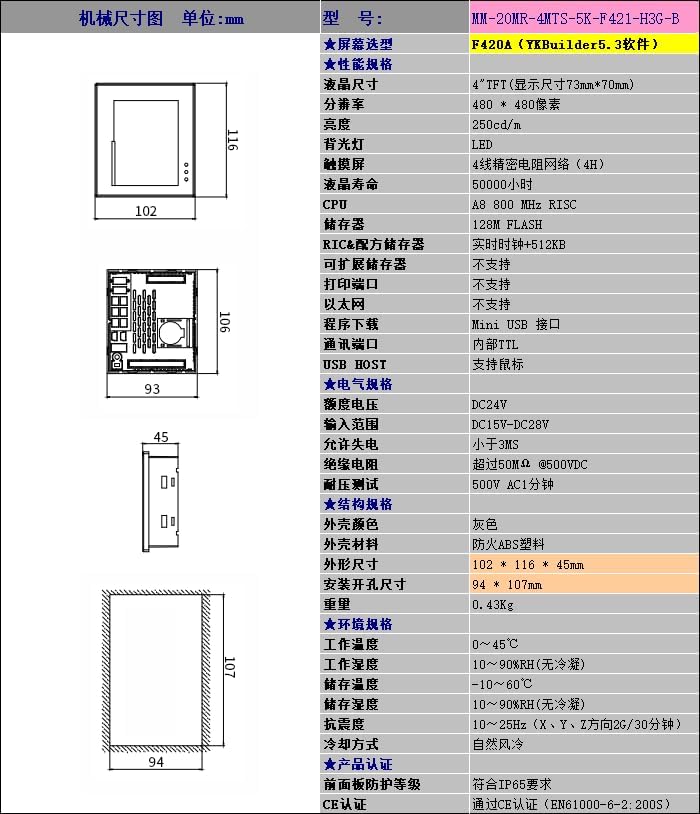

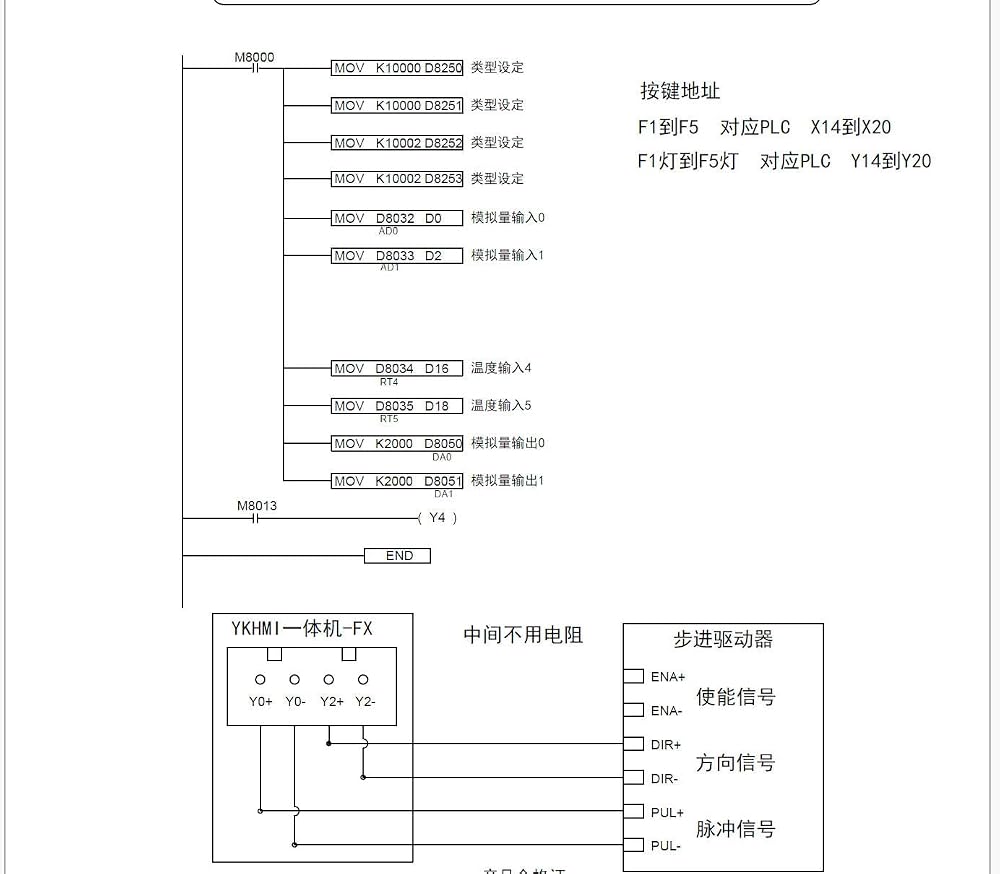

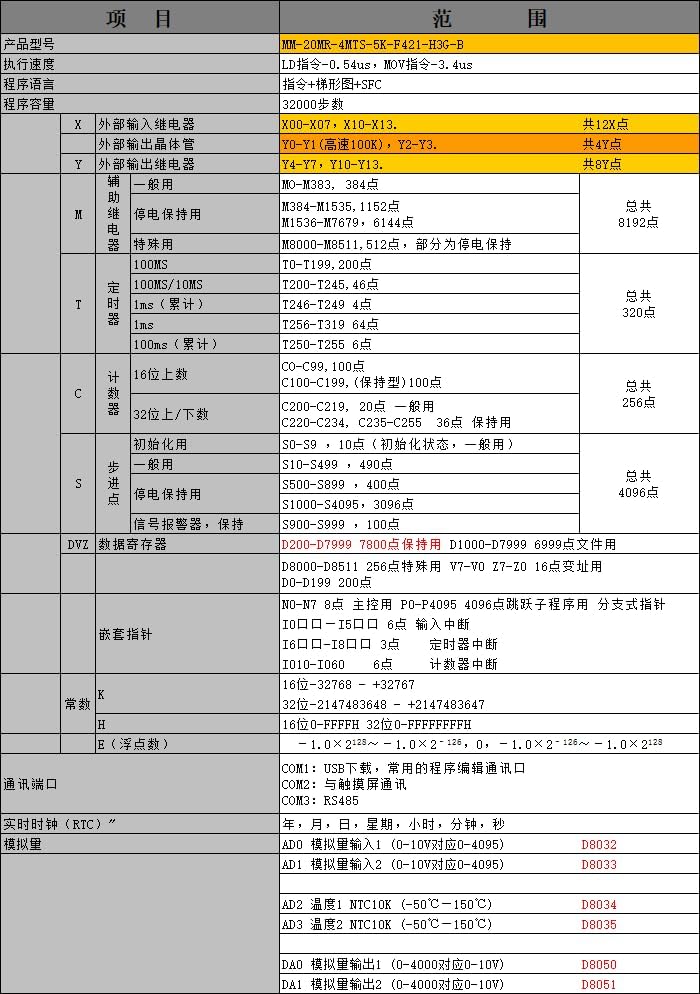

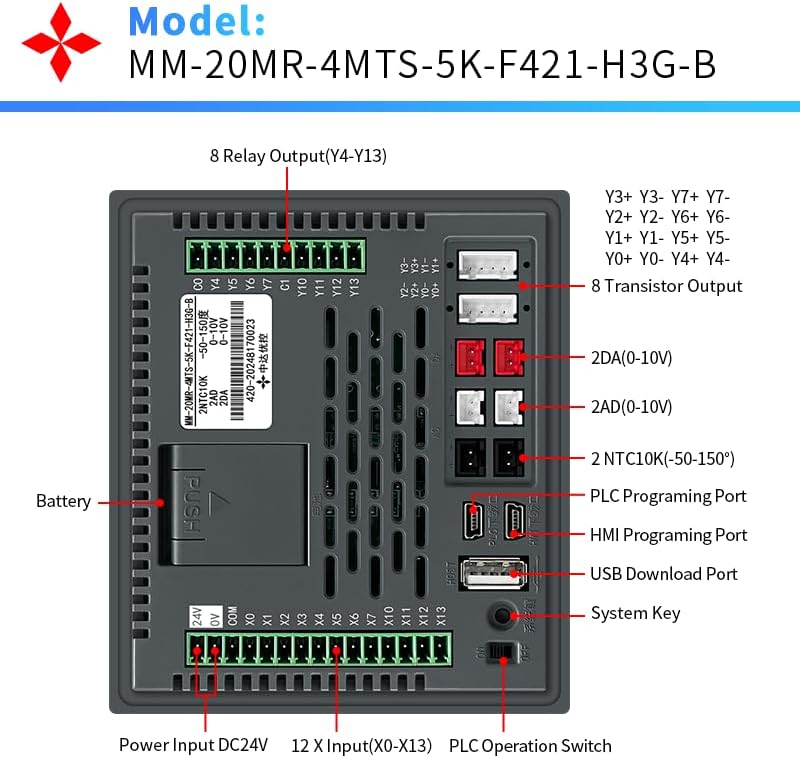

1. PLC Type: Compatible with FX3G, 12 Input (NPN Type), 8 Relay Output, built-in Analog 2AD, 2DA 0-10V single (0-4095 range), 2 NTC10K temperature with B3435 probe. Have additional 4 Transistor Output: 2 for high speed pulse 100KHz & 2 for direction, can drive 2 servos or 2 steppers with pulse, Pulse single is 5V single not 24V single

Attention:

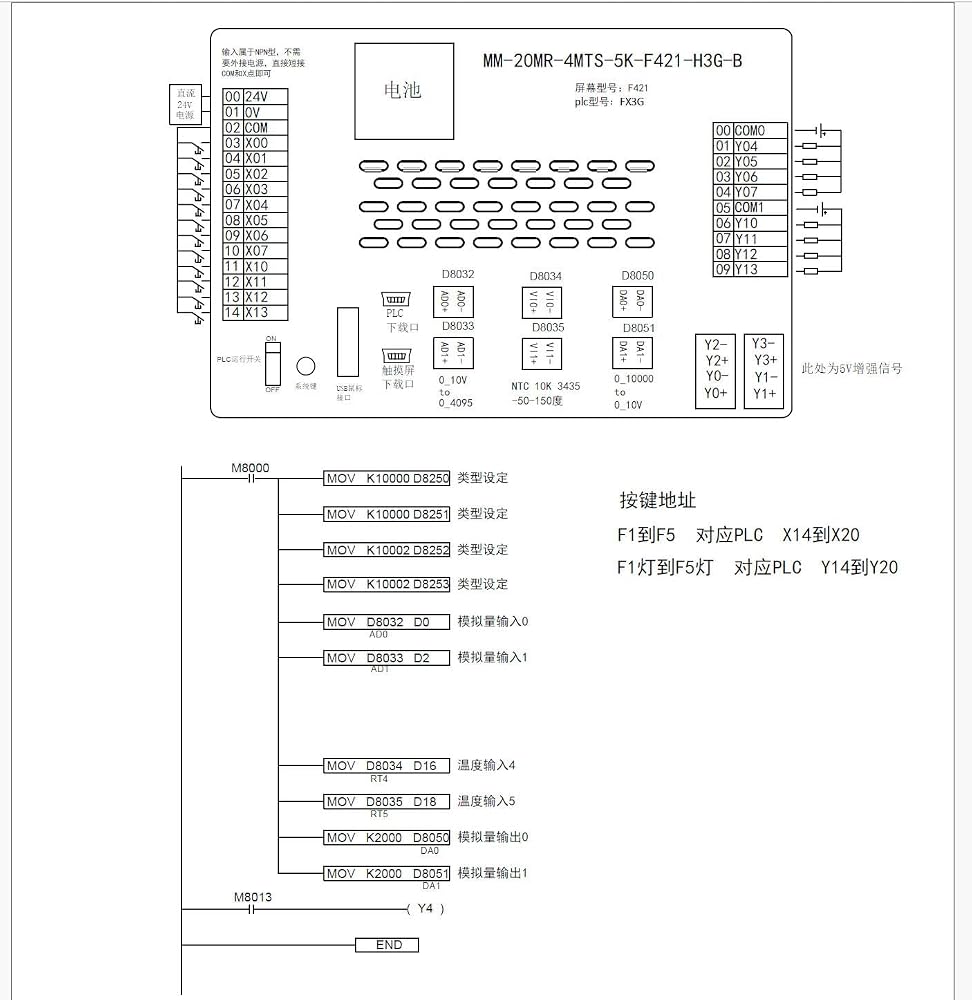

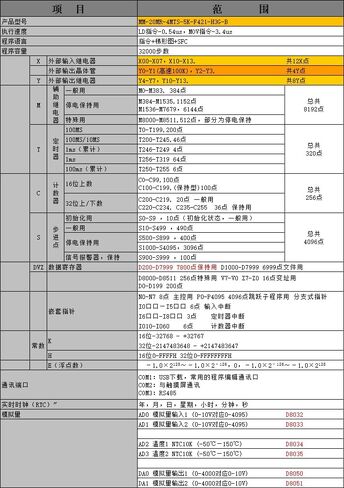

1. for AD, DA and NTC10K temperature, just need to read the register address, we will provide the sampling
2. Pls plug off the USB cable when read the AD DA and NTC10K value, or it cannot read the data

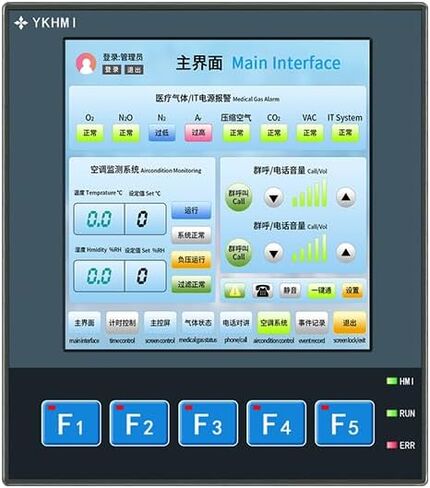

3. The 5 keys is for PLC X14 - X20

2. PLC software: Use GX Workers 2 or Developer (pls download from GX Workers 2 website, we only have Chinese version), support Command + T Ladder Diagram + SFC for programming

3. HMI Software: YKBuilder V5.3 / 7.0 (Pls contact us, we will share it and the video instruction and guidelines)

4. Cable for download program from PC to PLC/HMI: Use the: mini port – USB cable, pls install HMI & PLC's USB driver first, which we will share.

5. High Speed: 2 high speed counting, 2 high speed output pulse (100KHz) with 5v signal

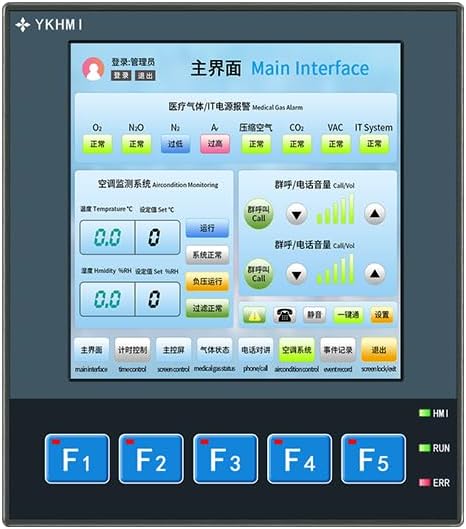

6. With 5 Keys for more functional control Packing List:
1 X HMI PLC All In One
1 X Cable for PLC and HMI program download
2 X Pulse cable to connect for PLC and Servo or Stepper
4 X Buckles

Attention：Pls contact us for HMI sofeware, USB driver, User mannual and instructions, thank you!
