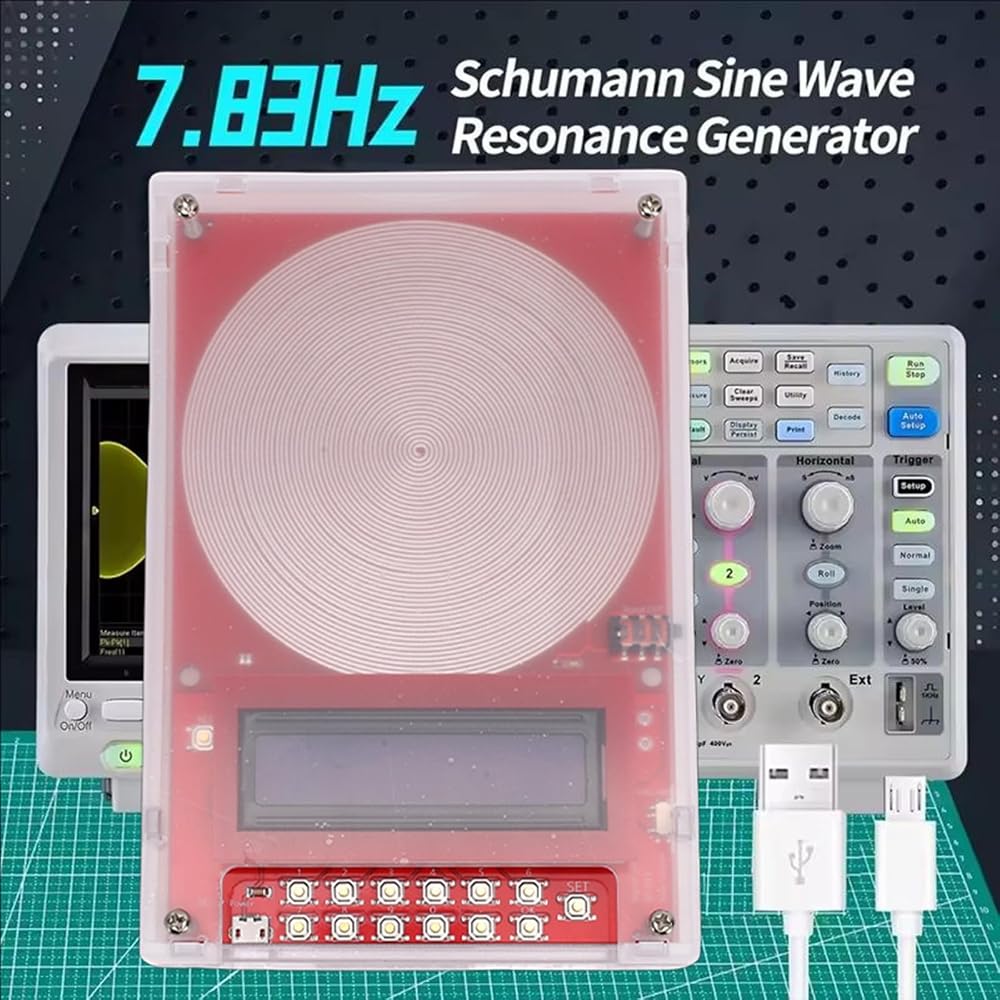

Frequency Generator 0.01Hz-100000Hz Adjustable LCD Display Screen 7.83Hz Ultra Low Frequency Pulse Generator

KWD 10.500
Brand
JAOCDOEN
– 1 +

Special Features

  • Upgrade Resonator Generator: The resonator generator adopts low temperature drift crystal and high precise special chip, accurately outputting frequency and sine wave.
  • Stable and Precise: The resonator generator defaults to a working frequency of 7.83Hz, with a stable sine wave amplitude of 3V and square wave amplitude set to 5V, ensuring output stability and accuracy. The frequency reference of digital circuit crystal oscillators is more stable and has strong anti interference ability.
  • Adjustable Frequency: This frequency generator not only outputs 7.83Hz, but also uses programmable frequency modulation technology to adjust the frequency within the range of 0.01Hz-100000Hz.
  • Portable and Lightweight: The sine wave sound frequency meter is compact in size, powered by USB DC 5.5x2.1 or Micro USB interface, easy to use and carry, suitable for home or travel.
  • Promote Pleasure: This frequency generator can emit sine waves, creating a relaxing environment, enhancing overall happiness. It does not directly affect audio and video products, but acts on the environment, relaxes the body and mind, improves the body perception of sound.

Description

Spec:
Item Type: Frequency Generator
Material: PCB
Black Standard Version:
Waveform: Sine wave

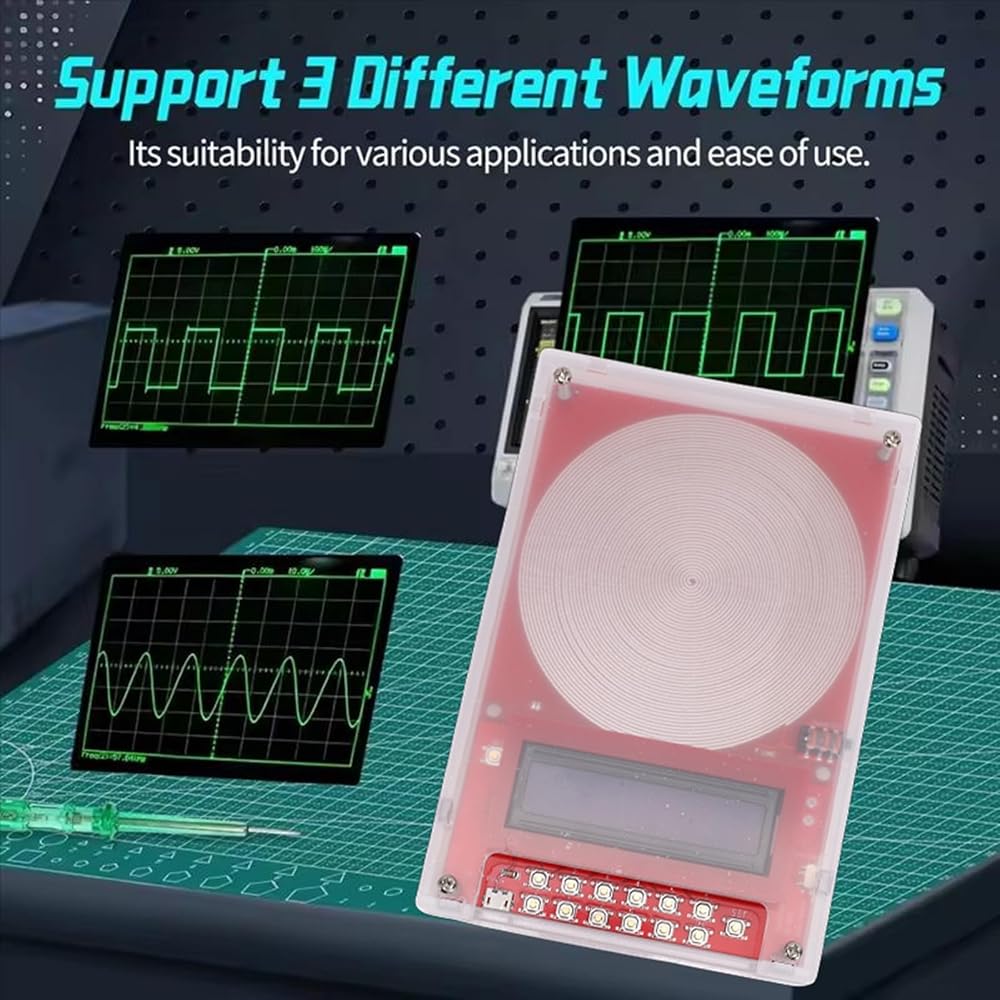

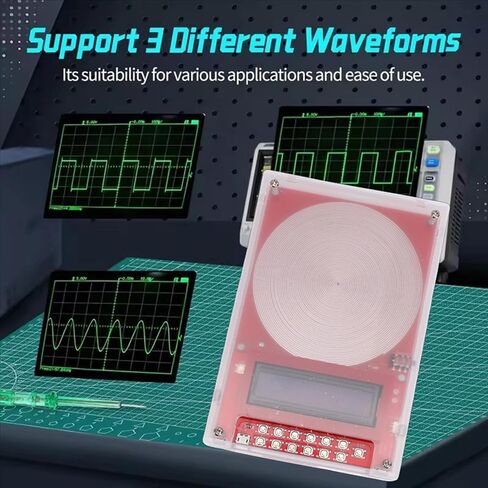

Interface Waveform: Sine wave + square wave + inverted square wave (the bottom left corner is the output interface, the waveform is output simultaneously)
Power Supply Interface: DC5.5x2.1
Rated Power Consumption: Default Frequency: 7.83Hz
Adjustment Range: 0.01Hz~100000Hz
Circuit Board Size: Approx. 15x14cm / 5.91x5.51in
Frequency Generator Size: Approx. 20x14cm / 7.87x5.51in

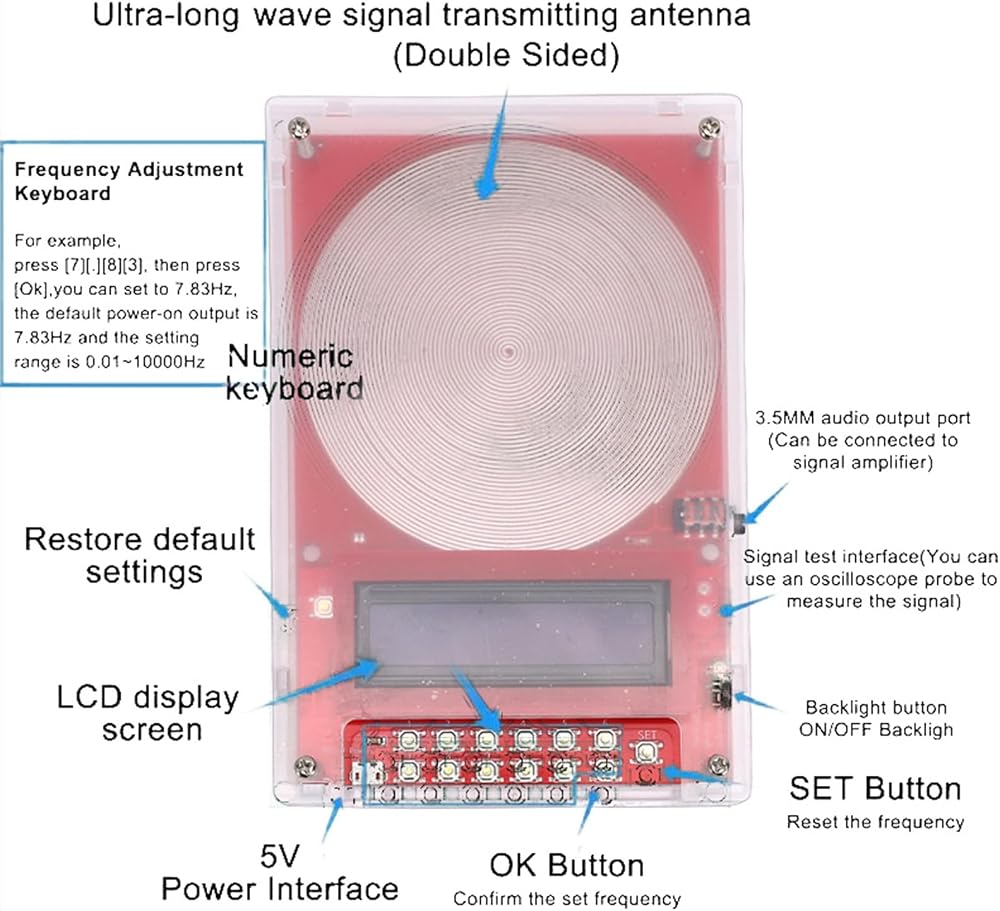

Change Frequency Method:

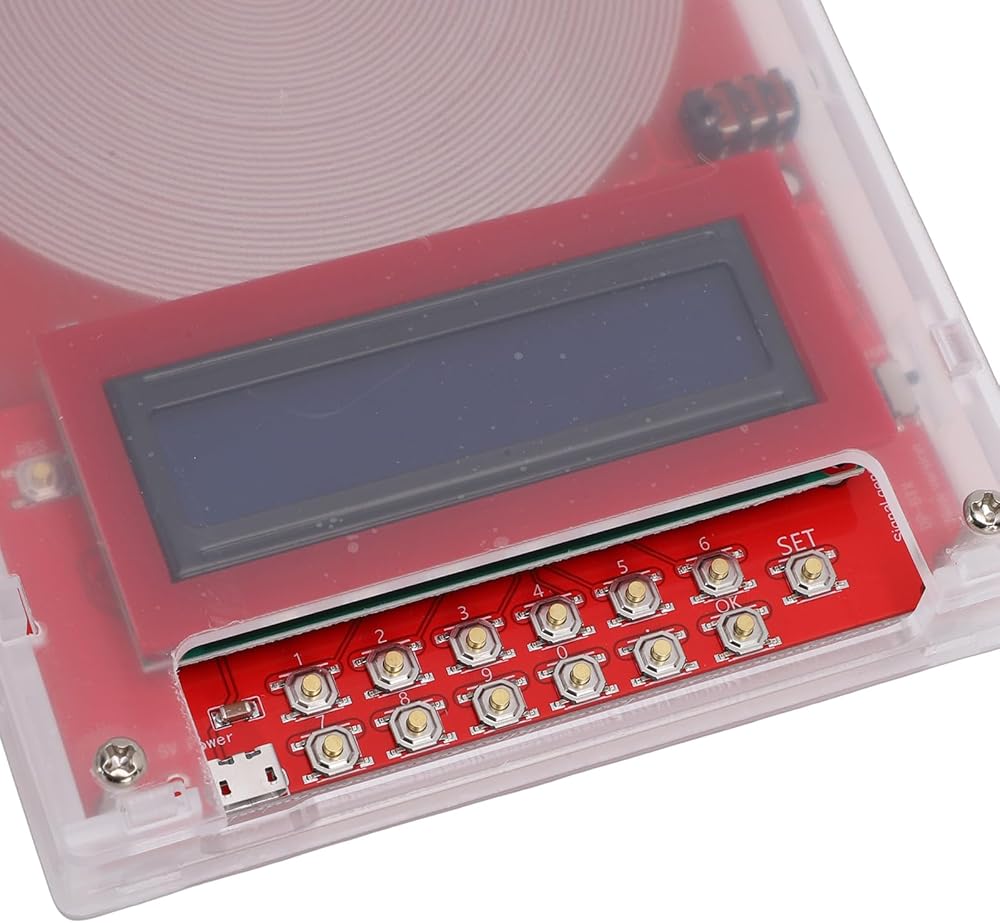

Simply enter the frequency and press the bottom left button to complete the setting
For example, press [7] [.] [8] [3], and then press [OK] to set it to 7.83Hz. The default power on output is 7.83Hz, with a setting range of 0.1-30KHz

How to Use:
1. Remove the USB cable that comes with the product, connect one end to the circuit board, and the USB end to a power bank, USB charger, or other USB power supply device to operate. 2. The frequency accuracy can achieve up to 99%, with less than 1% margin of error. To produce sound, connect the audio jack to an amplifier for audio output, or use headphone for listening. Make sure to fully insert the audio jack into the port.

PackageList:

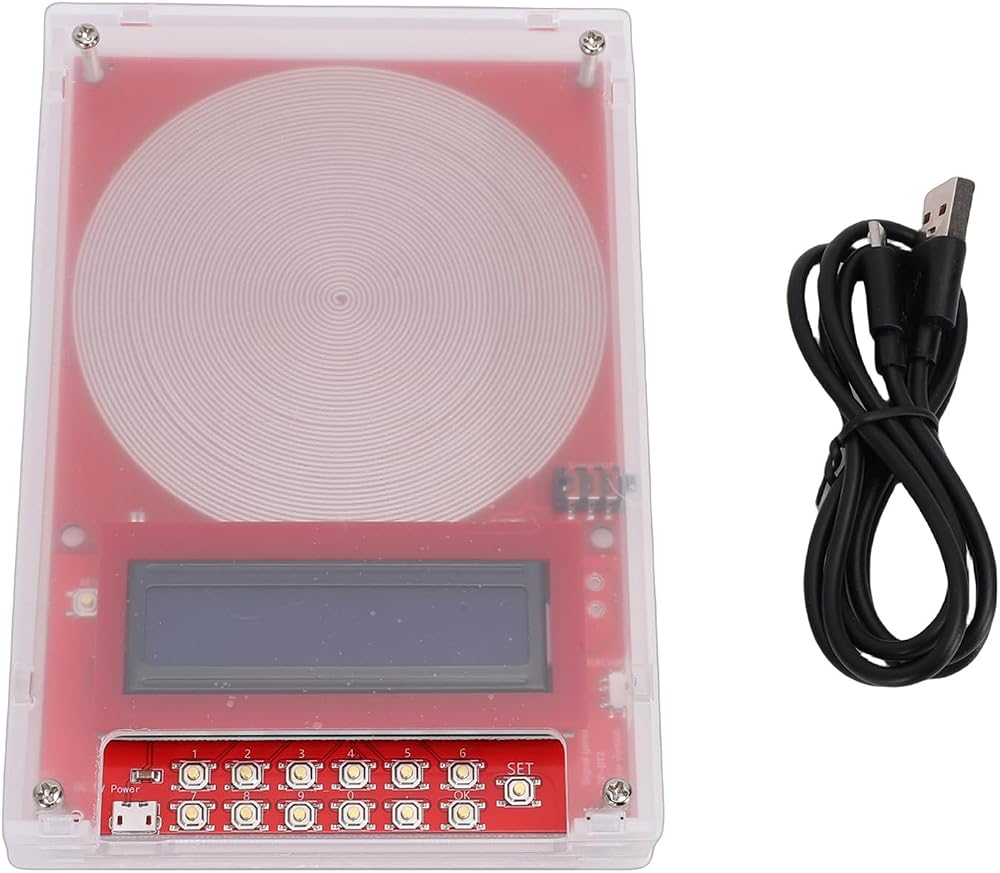

1 x Frequency Generator
1 x USB Cable
1 x User Manual
