مميزات خاصة

(SPECIFICATIONS & PIN DEFINITION): Precision-engineered 4-pin socketable Clock Integrated Circuit (RTC) timing component. Operating at a stable 2.8V, this module integrates a frequency-tuned 32.768kHz crystal oscillator to ensure nanosecond synchronization for high-density industrial logic boards
(INDUSTRY COMPATIBILITY): Designed as a direct functional replacement for models M4T32-BR12SH1 and M4T28-BR12SH1. Fully compatible with industry-standard detachable RTC interface architectures, providing seamless integration for legacy and modern embedded controllers without PCB modification
(DIAGNOSTIC SOLUTION): Specifically optimized to resolve "Clock Stoppage" and "Configuration Loss" in PLCs and industrial CNC machines. This component provides a reliable secondary energy reservoir to ensure persistent memory (NVRAM/SRAM) performance during primary system power cycles
(DUAL-MATERIAL CRAFTSMANSHIP): Features oxidation-resistant Tin-Plated Terminals (Silver-tone) for stable conductivity and secure mechanical seating. The heat-resistant outer housing protects internal AgSnO2 contacts, rated for extended operational life in high-temperature factory environments
(REPLACEMENT VALUE): : This professional 3-Piece bundle enables comprehensive batch maintenance. Ensures localized inventory of high-grade timing components to prevent unscheduled downtime across multiple workstations

وصف

Professional Industrial RTC Timing & Backup Component

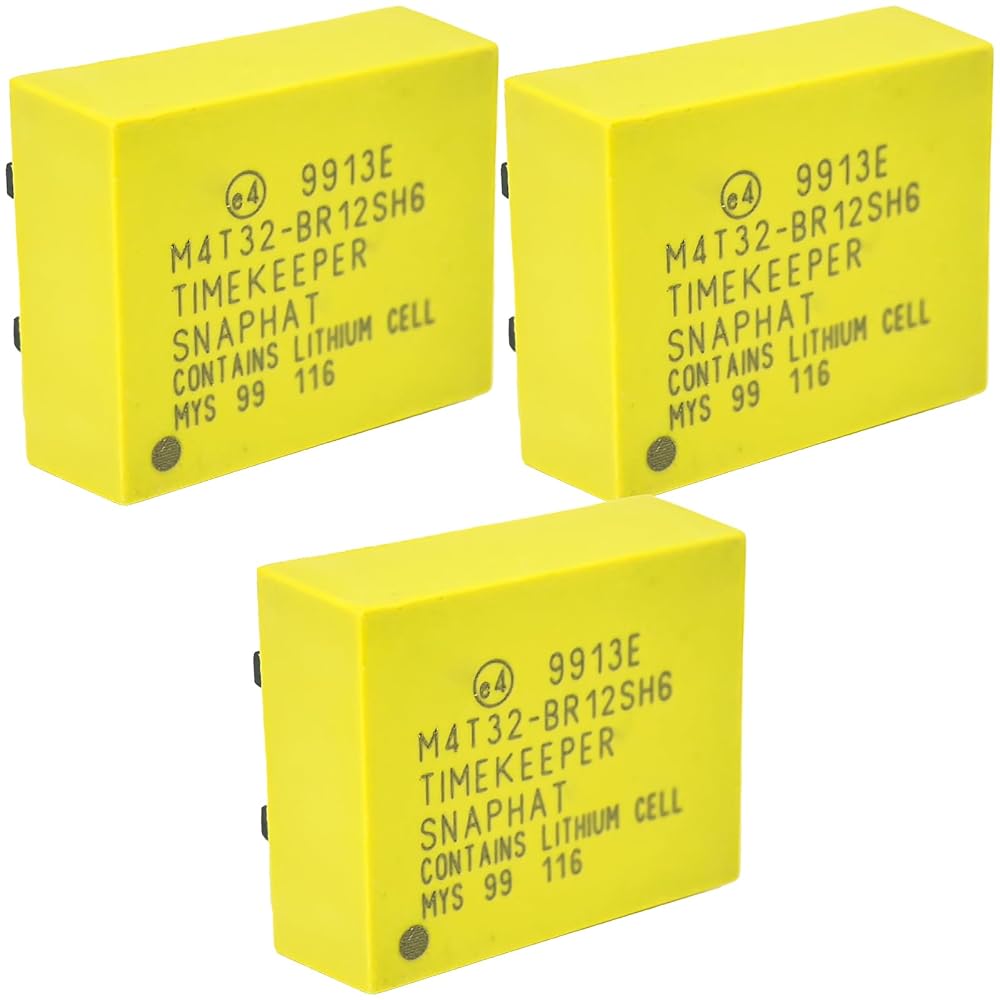

The M4T32-BR12SH6 is a specialized socketable component designed for critical timing applications and data retention in complex electronic systems. By combining a precision crystal and a high-reliability energy reservoir into a single detachable housing, it provides a robust solution for maintaining system configuration and internal clock settings.
Technical Specifications:
Component Type: Detachable RTC Top (Crystal + Energy Reservoir)

Operating Voltage: 2.8V

Interface: 4-Pin Socketed Terminal

Housing: Heat-Resistant Composite

Dimensions: 0.72" x 0.61" x 0.30" (18.3mm x 15.5mm x 7.6mm)

Interchange & Cross-Reference:
Functional Replacement for: M4T32-BR12SH1, M4T28-BR12SH1

Fits Base Sockets: 28-pin and 44-pin socketed SOIC architectures

Final Buyer Warning: IMPORTANT: To ensure 100% compatibility, please verify your original part number and terminal configuration (4-Pin) against our product images prior to purchase. This is a specialized industrial component; matching the model number and physical dimensions with your existing unit is essential for correct fitment. Model M4T32-BR12SH6 is a precision replacement component.

مرحبًا،

بحث

وحدة M4T32-BR12SH6 RTC (3 عبوات)، مكون دائرة متكاملة لساعة قابلة للفصل 4 دبابيس 2.8 فولت، خزان طاقة احتياطي للمقابس الصناعية القياسية، يستعيد توقيت النظام
