Delay Relay Module DC 6-30V 12V 24V Time Delay Relay Module 0.01s-9999min Digital Timer Cycle Delay Switch LCD Display XY-WJ01 Digital Timer with 26AWG Red and Black Cable, Pack of 2

KWD 7.500
Brand
DAOKAI
– 1 +

Special Features

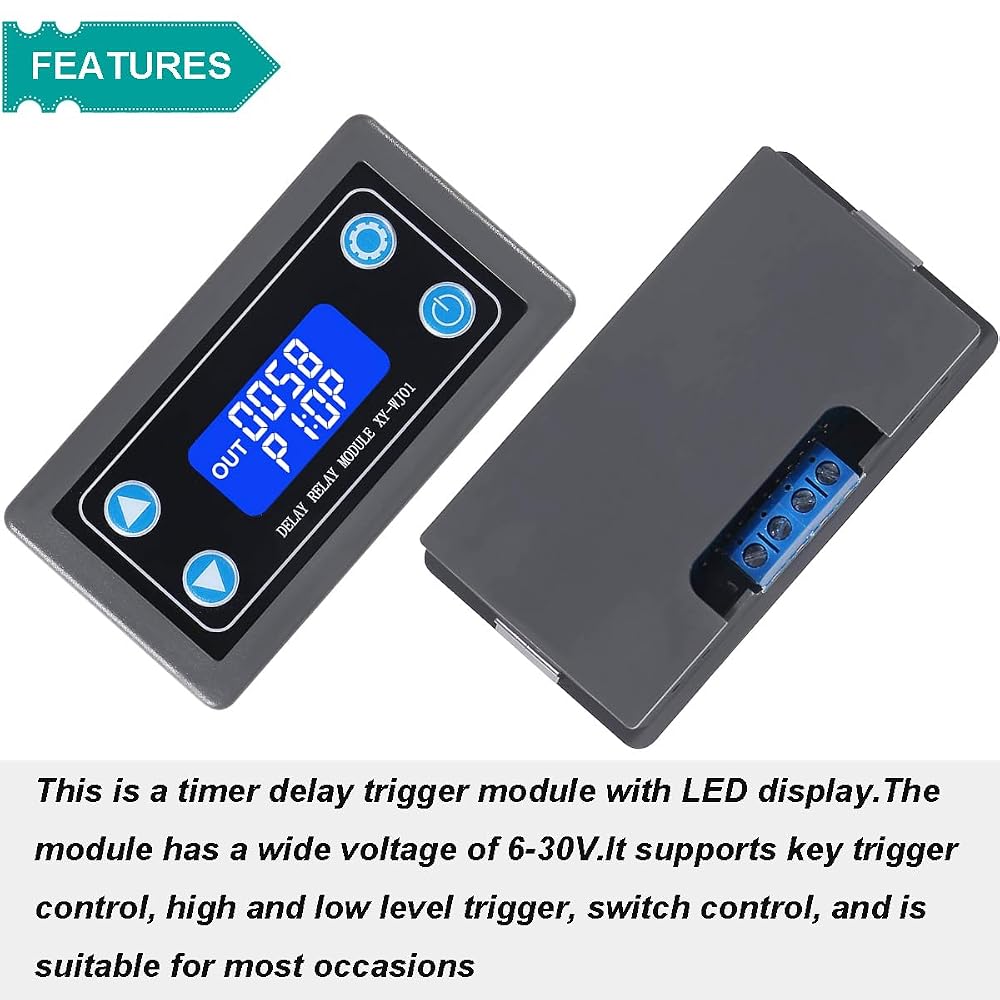

  • 【WHAT IT DOES】 : This is a timer delay trigger module with LED display.The module has a wide voltage of 6-30V.It supports key trigger control, high and low level trigger, switch control, and is suitable for most occasions
  • 【PARAMETER DESCRIPTION】 : Different OP, CL, and LOP parameters can be set, and each parameter is independent and saved separately; it supports viewing the currently set parameters without affecting system operation
  • 【SLEEP MODE】 : If there is no operation for 5 minutes, the screen will enter low power consumption state, the screen backlight will turn off automatically, and you can wake up by pressing any key

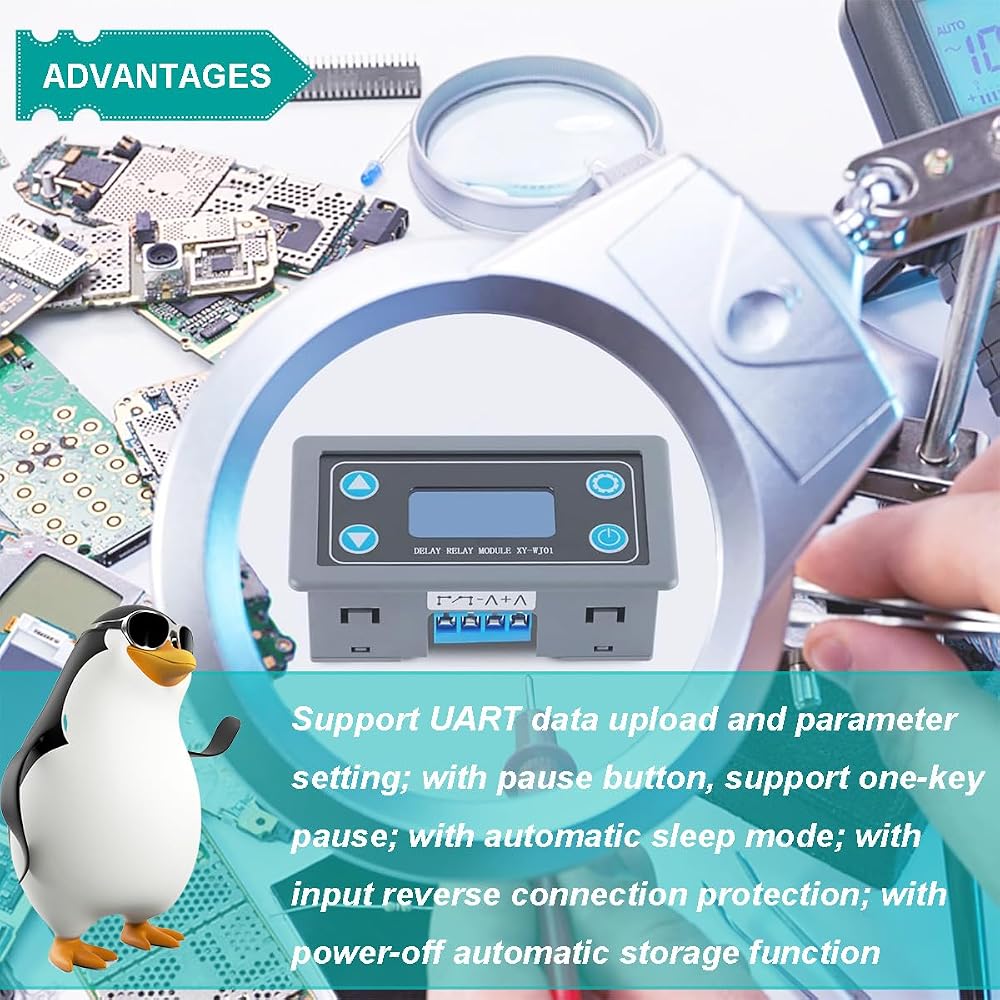

  • 【MORE FUNCTIONS】 : Support UART data upload and parameter setting;With pause button, support one-key pause;With automatic sleep mode;With input reverse connection protection;With power-off automatic storage function

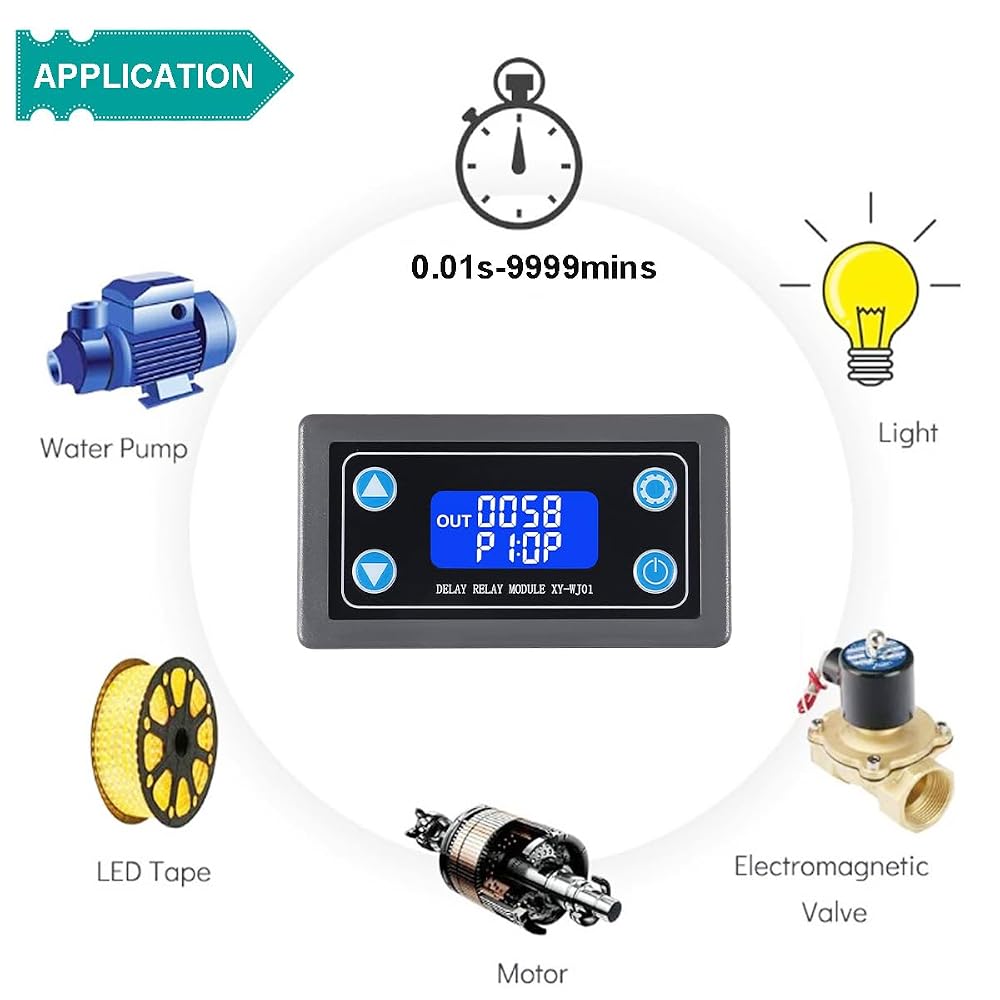

  • 【APPLICATION SCOPE】 : This multifunctional time delay relay module is widely used in smart home, industrial control, automatic irrigation, indoor ventilation.It is easy to use and powerful
  • 【NOTE】 : It is a relay output mode and cannot be used as a power module.It cannot output voltage.The load needs to be connected to a separate power supply
  • 【PRODUCTS INCLUDE】 : 2 x Delay Relay Module;1 x 26AWG red and black cable 50 cm each

Description

Features:

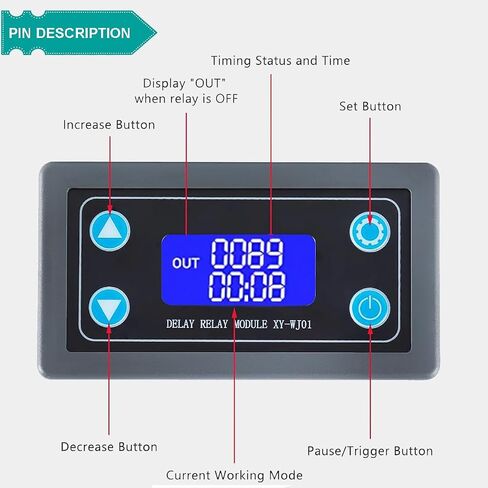

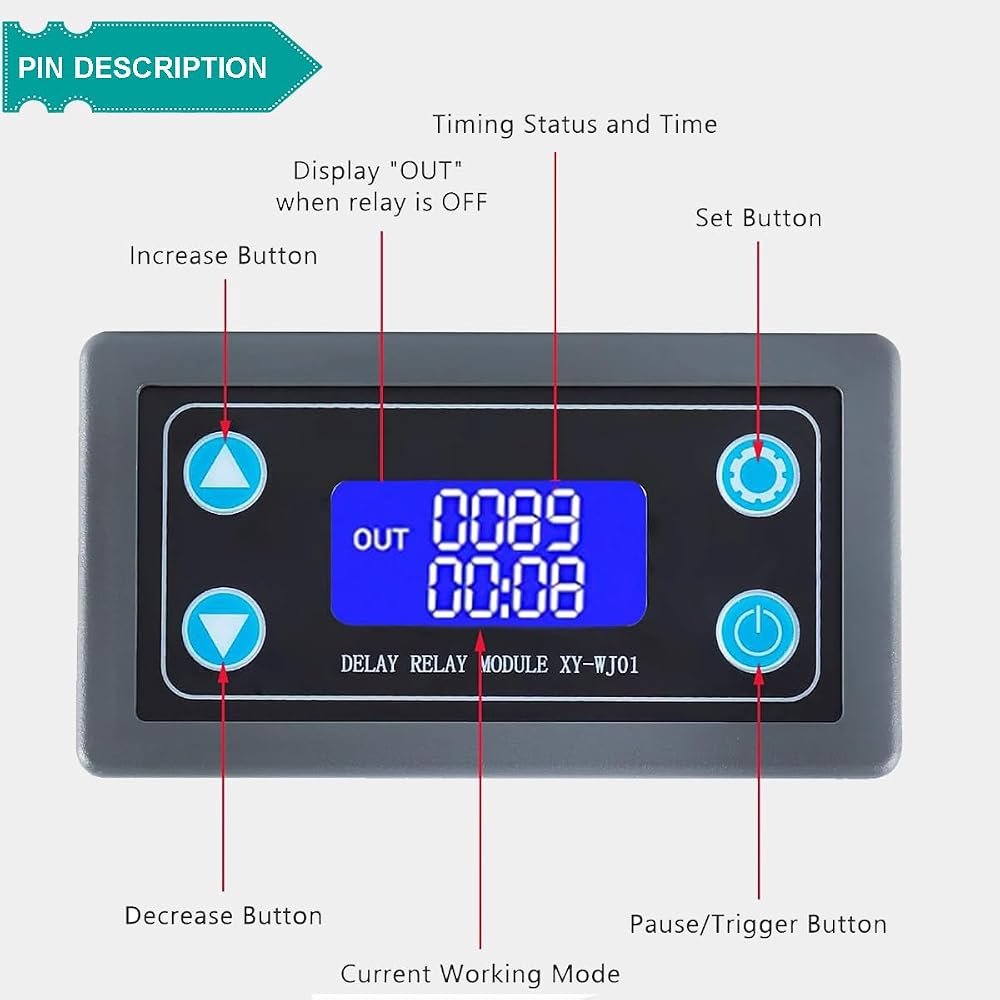

1. With clear LCD screen displays relay status, current working mode, timing status & time.
2. Support UART data uploading and parameter setting.
3. With pause button, support one-button pause.
4. With reverse connection protection, won't burn out if wire are connected reversely.
5. With sleep mode, 5 minutes without any operation into a low-power state and the screen backlight will be automatically turned off, press any key can wake it up.
6. OP/CL/LOP params can be modified individually and saved separately.
7. Support viewing currently set parameters without affecting system operation.
8. With power off storage function, all parameters will be automatically saved when power off.

Specification:
Working voltage: DC 6V-30V
Timing range: 0.01s-9999mins continuously adjustable

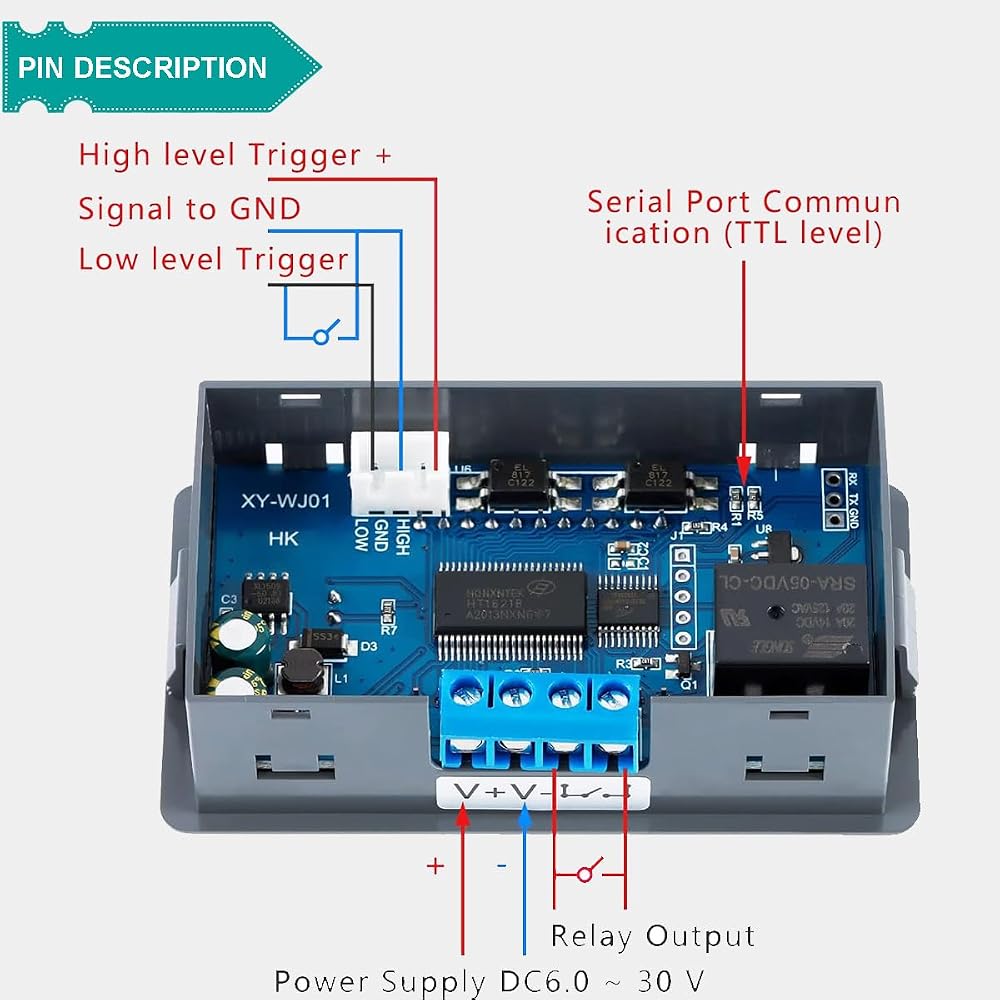

Trigger signal source: High level trigger (3.0V~24V), Low level trigger (0.0V~0.2V), switching control (passive switch)
Max output load: DC 30V 5A and AC 220V 5A
Static Current: 15mA
Operating current: 50mA
Service life: more than 100,000 times
Working temperature: -40~85℃
Optocoupler isolation, strong anti-interference ability, industrial grade circuit board, after power set parameters memory forever

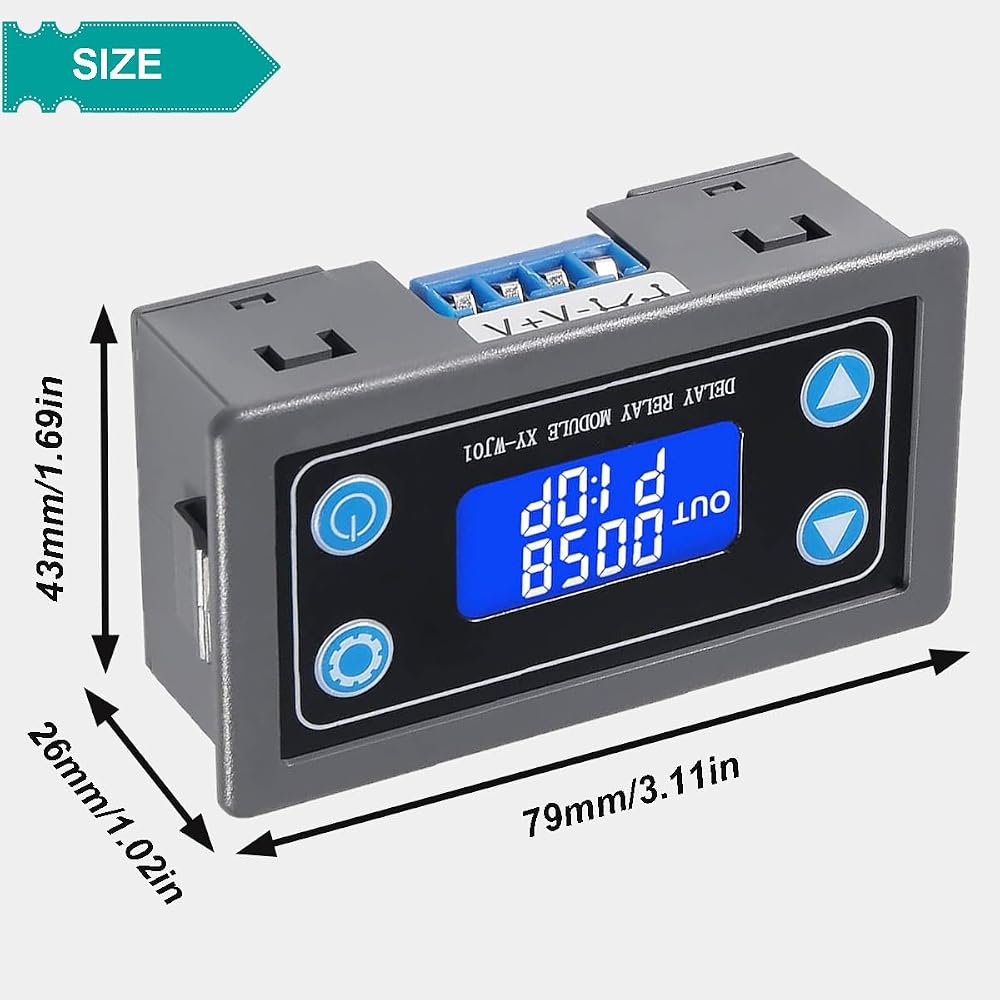

Timer relay size: 8x3.8x1.9cm/3.15x1.5x0.75inch

Note: It is a relay output mode and cannot be used as a power module. It cannot output voltage. The load needs to be connected to a separate power supply.

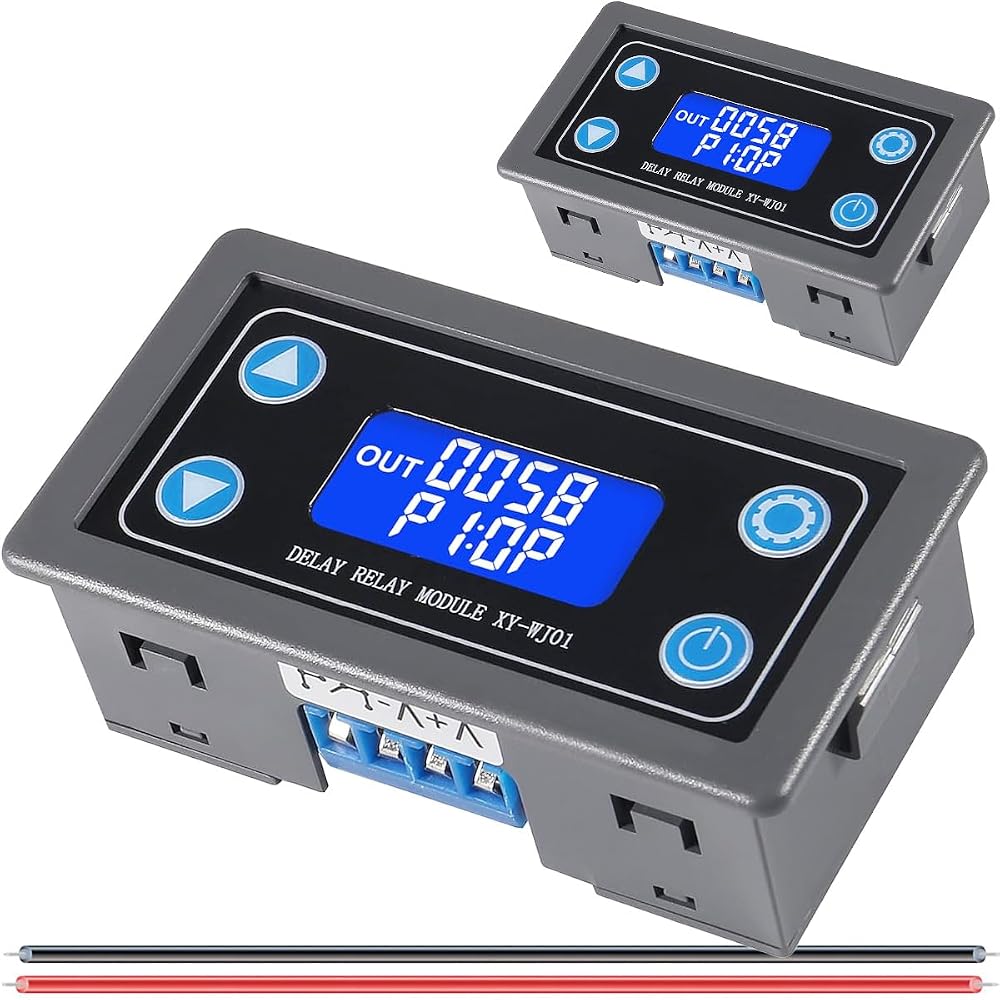

Package Includes:
2 x Delay Relay Module
1 x 26AWG red and black cable 50 cm each
