Mechanical Thermostat, KTS011 0-60°C Adjustable Compact Normally Open Temperature Controller Switch in Kuwait

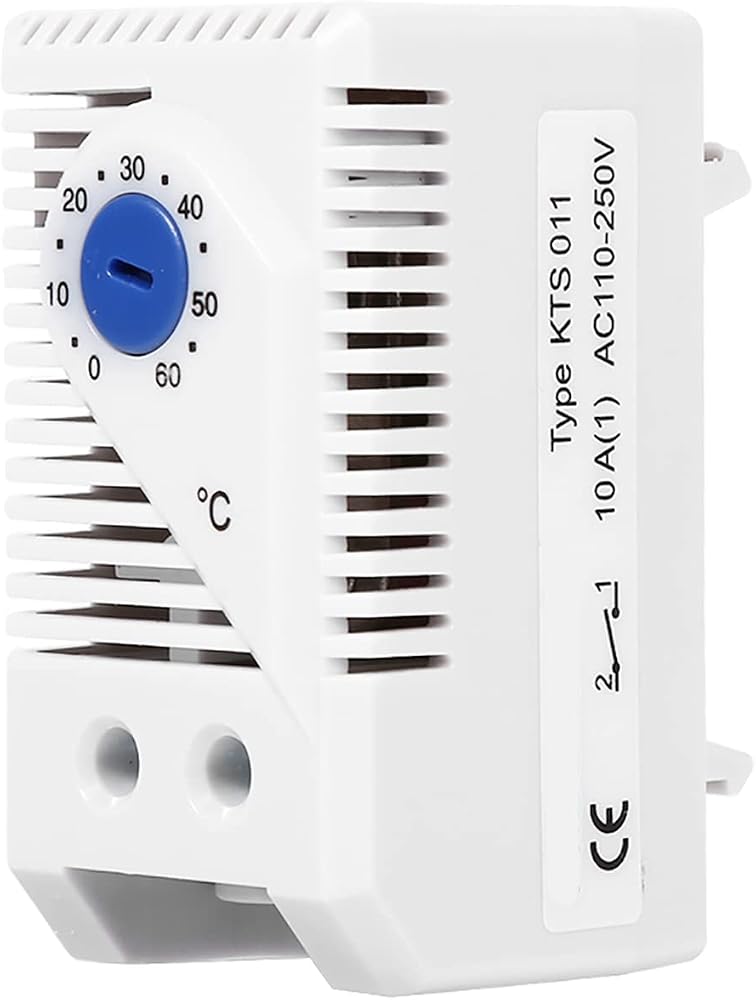

Mechanical Thermostat, KTS011 0-60°C Adjustable Compact Normally Open Temperature Controller Switch

KWD 4.500
Brand
OUKENS
Weight
50 g
ColorKts011（normally Open）
– 1 +

Special Features

  • 0-60 DEGREES CELSIUS: This mechanical thermostat has a temperature control range of 0℃ to 60℃, making it ideal for controlling filter fans and other electrical signal devices. The adjustable blue knob allows for quick and easy setting of the desired temperature.
  • NORMALLY OPEN(KTS011): When the room temperature is lower than the temperature set by the controller, the circuit is open and the equipment stops. When the room temperature is higher than the temperature set by the controller, the circuit is closed and the equipment starts.
  • HIGH-QUALITY HOUSING: The thermostat housing is constructed from premium-grade plastic with fine craftsmanship. It is environmentally friendly, safe, and highly durable for long-term use.
  • 2-WIRE CONNECTION TERMINALS: The bottom of the mechanical temperature controller features two wire terminals that ensure secure and stable electrical connections.
  • BACK MOUNTING BRACKET: The thermostat comes with an integrated rear mounting bracket that fits standard 35mm DIN rails. Its standard rail clamp design enables effortless installation and removal.

Description

Specifications:
Material: Plastic + Electronic component
Type: Blue Button
Adjustable Temperature: 0℃-60℃
Voltage: 110V-250V
Sensor Element: Temperature sensing material
Contact Type: Quick action contact
Contact Resistance: ＜10mΩ
Service Life: ＞100,000 cycles
Switch Maximum Capacity: 250VAC, 10(2)A / 110VAC, 15(2)A DC 30W
Wiring Mode: 2 pole terminal 2.5mm 2 wire
Installation Method: 35mm DIN orbit
Operating/Storage temperature: -20 to +80℃（-49 to +176℉）
Protection Level: IP20
Size(L x W x H): Approx. 60 x 43 x 33mm / 2.3 x 1.7 x 1.3inch
Weight: Approx. 52g

Package Included:
1 x Mechanical Thermostat

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
