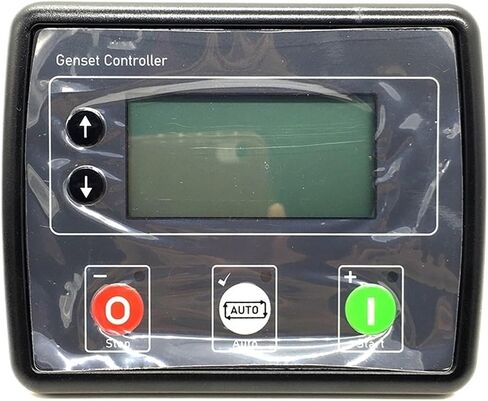

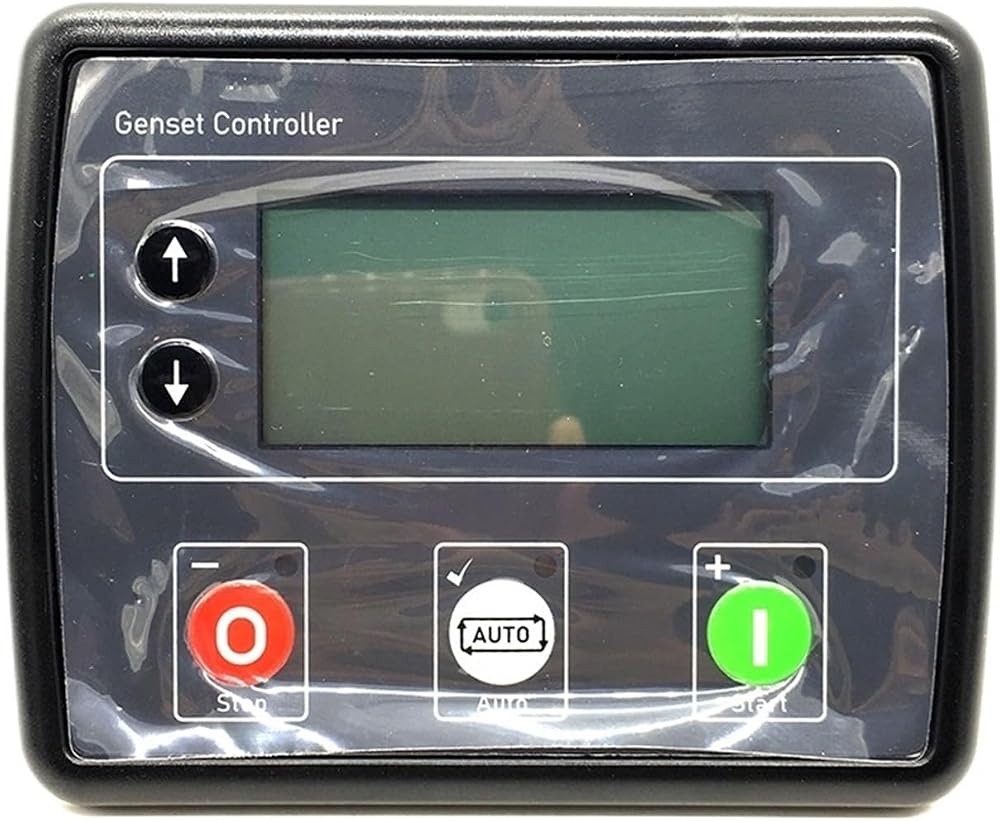

Original DSE4520 MKII Auto Mains (Utility) Failure Control Module DSE4520MKII AMF Deepsea Controller Genset Power Control Panel
Description

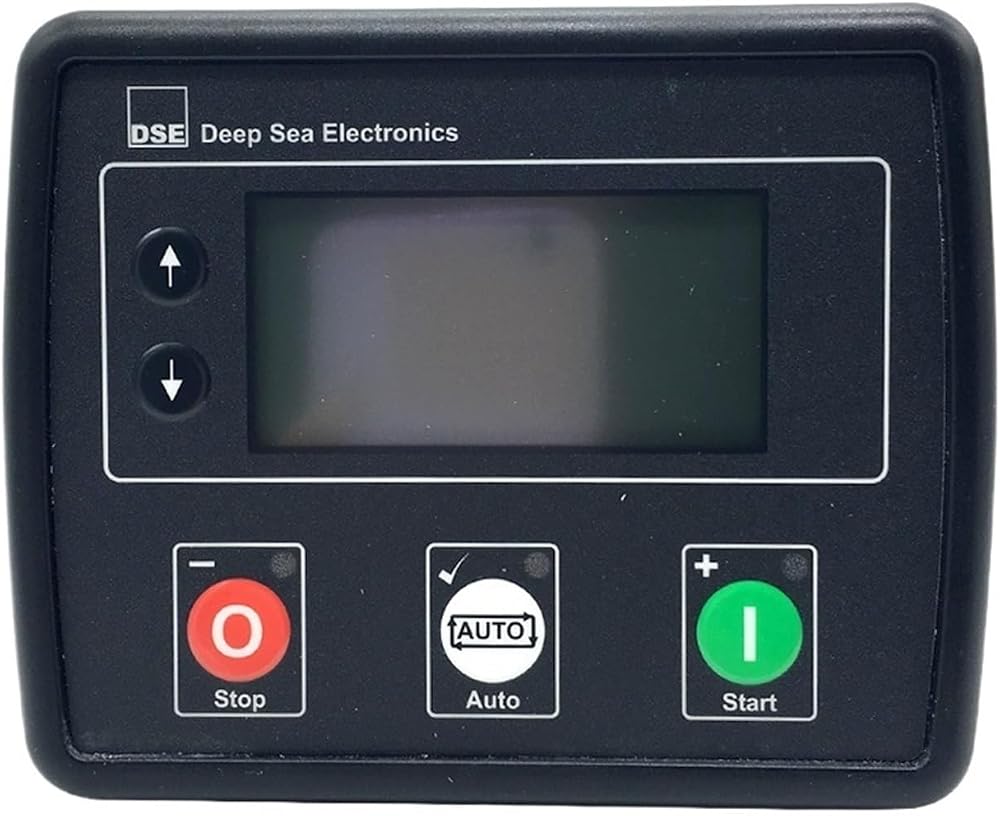

DSE4520 MKII Auto Mains (Utility) Failure Control Module
The DSE4520MKII is a compact Auto Mains (Utility) FailureControl Module that has been developed to provide an outstanding range of features within a compact enclosure.
THE MODULE CAN BE CONFIGURED FOR USE AS AN AUTO START CONTROL MODULE.
Specification
OVERALL SIZE
140 mm x 113 mm x 43 mm (5.5" x 4.4" x 1.5")
PANEL CUTOUT SIZE
118 mm x 92 mm (4.6" x 3.6")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
WEIGHT
0.26kg
PRODUCT VARIANTS
4520-05 - 4520 Auto Mains (Utility)FailureControl Module (Ct, Rtc)
KEY FEATURES
Load unbalanced alarm
Configurable for use as an auto start and AMF control module
J1939-75 support and CAN alarm ignore functon
Alternator frequency & CAN speed sensing in one variant
Largest backlit icon display in its class
Heated display option
Real time clock provides accurate event logging
Fully configurable via the fascia or PC using USB communication
Extremely efficient power save mode
3 phase generator sensing
3 phase mains utility) sensing
Compatible with 600 V ph to ph nominal systems
Generator/load power monitoring (kW, kV A, kV Ar, pf)
Accumulated power monitoring (kW h, kVA h, kVAr h)
Generator overload protection (kW)
Generator/load current monitoring and protection
Fuel and start outputs (configurable when using CAN)
4 configurable DC outputs
3 configurable analogue/digitalinputs
4 configurable digital inputs
Configurable staged loading outputs
3 engine maintenance alarms
Engine speed protection
Engine hours counter
Engine pre-heat
Engine run-time scheduler
Engine idle control for starting & stopping
Tier 4 engine instrum
