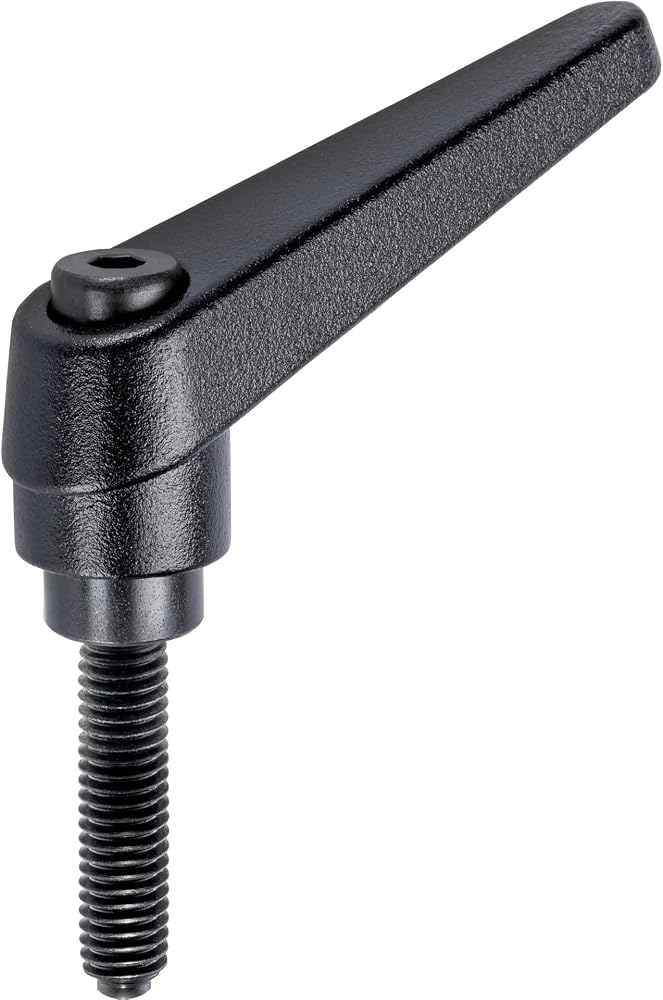

Adjustable clamping levers find versatile applications when the range of use is cramped or a specific lever position is required.
Material:
levers
Die-cast zinc, plastic-coated, black similar to RAL 9005, textured matt.
Interior parts.
Steel Burnished Grade 5.8
Screw.
Steel Burnished Grade 5.8
Operation
By lifting the lever, the teeth are released. The lever is positioned via the teeth. After releasing, the serration locks into place.
Notes:
The screw part can be replaced.
References
The design with ball pins (picture 3) can be used with the pressure piece, plastic (EH 22570.) combined.
