Home / KUAOXK / Gears & Accessories
Bevel Gear Pinion Hardware Mechanical 1pcs 1.5M 20T-50T Bore 14mm (Keyway 5mm) Spur Gear Model 1.5 Motor Gear with Step Keyway OD 33-93mm Carbon Steel(30 Teeth) in Kuwait Bevel Gear Pinion Hardware Mechanical 1pcs 1.5M 20T-50T Bore 14mm (Keyway 5mm) Spur Gear Model 1.5 Motor Gear with Step Keyway OD 33-93mm Carbon Steel(30 Teeth) in Kuwait Bevel Gear Pinion Hardware Mechanical 1pcs 1.5M 20T-50T Bore 14mm (Keyway 5mm) Spur Gear Model 1.5 Motor Gear with Step Keyway OD 33-93mm Carbon Steel(30 Teeth) in Kuwait Bevel Gear Pinion Hardware Mechanical 1pcs 1.5M 20T-50T Bore 14mm (Keyway 5mm) Spur Gear Model 1.5 Motor Gear with Step Keyway OD 33-93mm Carbon Steel(30 Teeth) in Kuwait

Bevel Gear Pinion Hardware Mechanical 1pcs 1.5M 20T-50T Bore 14mm (Keyway 5mm) Spur Gear Model 1.5 Motor Gear with Step Keyway OD 33-93mm Carbon Steel(20 Teeth)

KWD 0
Brand
KUAOXK
Size
– 1 +

Special Features

  • 1. High strength, high torque, good comprehensive mechanical properties
  • 2. Low vibration, low noise, easy to clean and maintain, easy to operate
  • 3. Smooth surface can withstand slight wear and tear, hardened to improve work efficiency.

Description

1. High strength, high torque, good comprehensive mechanical properties
2. Low vibration, low noise, easy to clean and maintain, easy to operate
3. Smooth surface can withstand slight wear and tear, hardened to improve work efficiency.

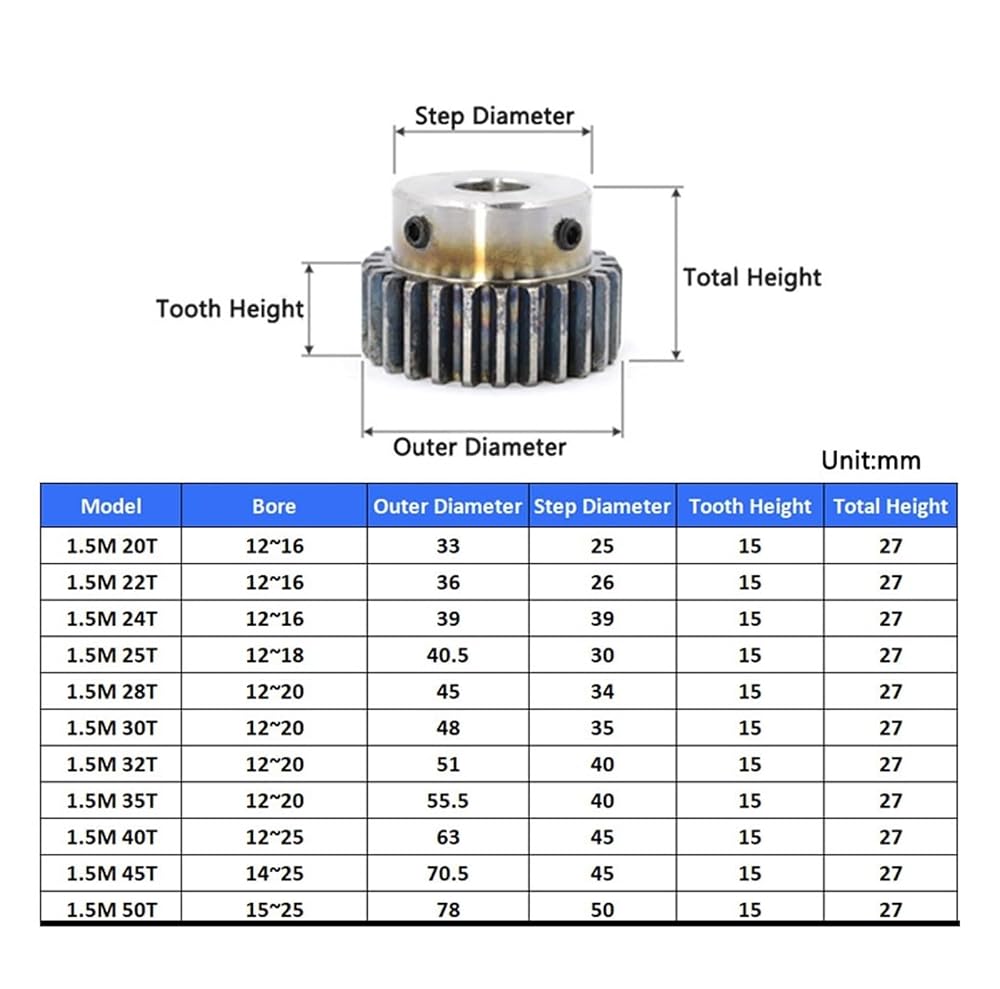

Specification:
Name: 1.5M Spur Gear With Step
Material: 45# Steel
Teeth: 20 Teeth ~ 50 Teeth
Teeth Pitch: 4.71mm
Keyway Bore: 14mm (keyway 5mm)
Teeth Height: 15mm
Total Height: 27mm
Surface Treatment: High frequency quenching of teeth
Shaft Hole: Machining completed
Tooth Surface Hardness: Hardened tooth surface
Screw: M5*2
