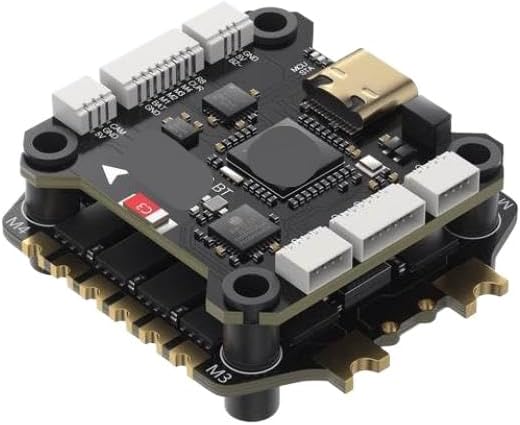

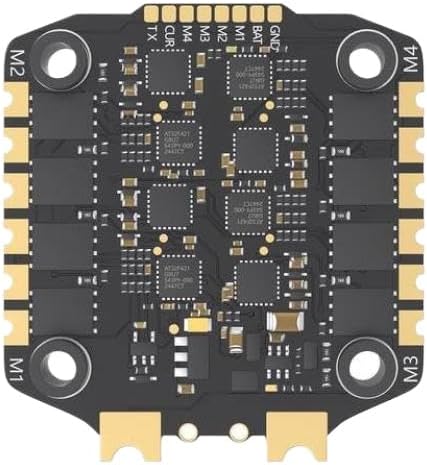

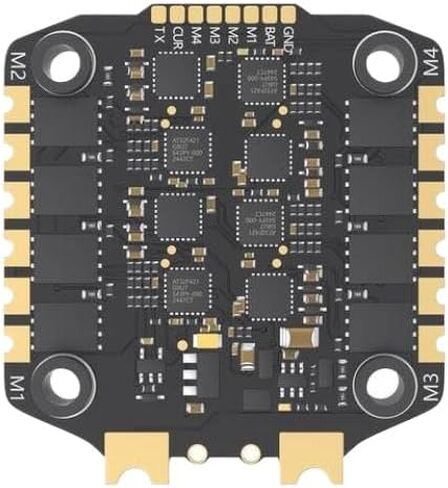

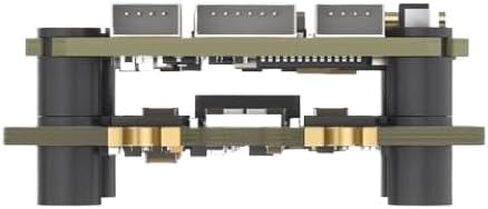

TAKER H743 BT 32Bit 65A 4IN1 ESC MPU6000 and 42688-P Dual Gyro Data Analyze Record Flight Barometer For RC Model The TAKER H743 BT 32Bit 65A STACK is built around the STM32H743VIH6 microcontroller featuring a Cortex-M7 core running at up to 480MHz, suitable for both racing and freestyle flight applications.It integrates dual gyroscopes using MPU6000 and ICM42688-P sensors for enhanced stability and precise sensing.The system includes onboard 512MB black box storage for flight data recording and analysis.It supports wireless parameter adjustments and features an integrated barometer for altitude measurement.Designed for plug-and-play setup with no soldering required, it offers eight motor output ports and compatibility with X8 configurations.The stack is compatible with Betaflight, INAV, and Ardupilot firmware options.It includes seven UART ports, a Type-C USB interface, and BetaFlight OSD via the AT7456E chip.The dual independent BEC provides 5V@3A and [email protected] outputs for stable power delivery to peripherals and video.Power filtering is integrated for clean performance.The included TAKER H65_8S_32Bit 65A 4IN1 ESC supports 3-8S LiPo input (STACK limited to 3-6S), delivers a continuous current of 65A and burst current of 70A for 5 seconds, and supports Dshot 150/300/600 protocols.The FC measures 38.5x38.5mm with a 30.5x30.5mm mounting hole pattern and weighs 8.4g.The ESC measures 42x45.7mm with the same 30.5x30.5mm mounting pattern and weighs 15.8g.The package includes one TAKER H743 BT Flight Controller, one TAKER H65_8S_32Bit 65A 4IN1 ESC, one 50V 1000uF electrolytic capacitor, one air unit connection (SH1.0 6pin 100mm), one FC adapter (SH1.0 8pin 30mm), one receiver (SH1.0 4pin 150mm), one camera connection (SH1.0-SH1.25 3pin 60mm), one VTX connection (SH1.0 4pin-6pin 100mm), one XT60 power (12AWG 110mm), four M3*30 screws, four M3*25 screws, eight M3 nylon nuts, and twelve M3 anti-shake pads.The flight controller comes pre-flashed with BL32 test firmware and is also compatible with AM32 firmware (requires user flashing, target: AM32_AT32DEV_F421).
