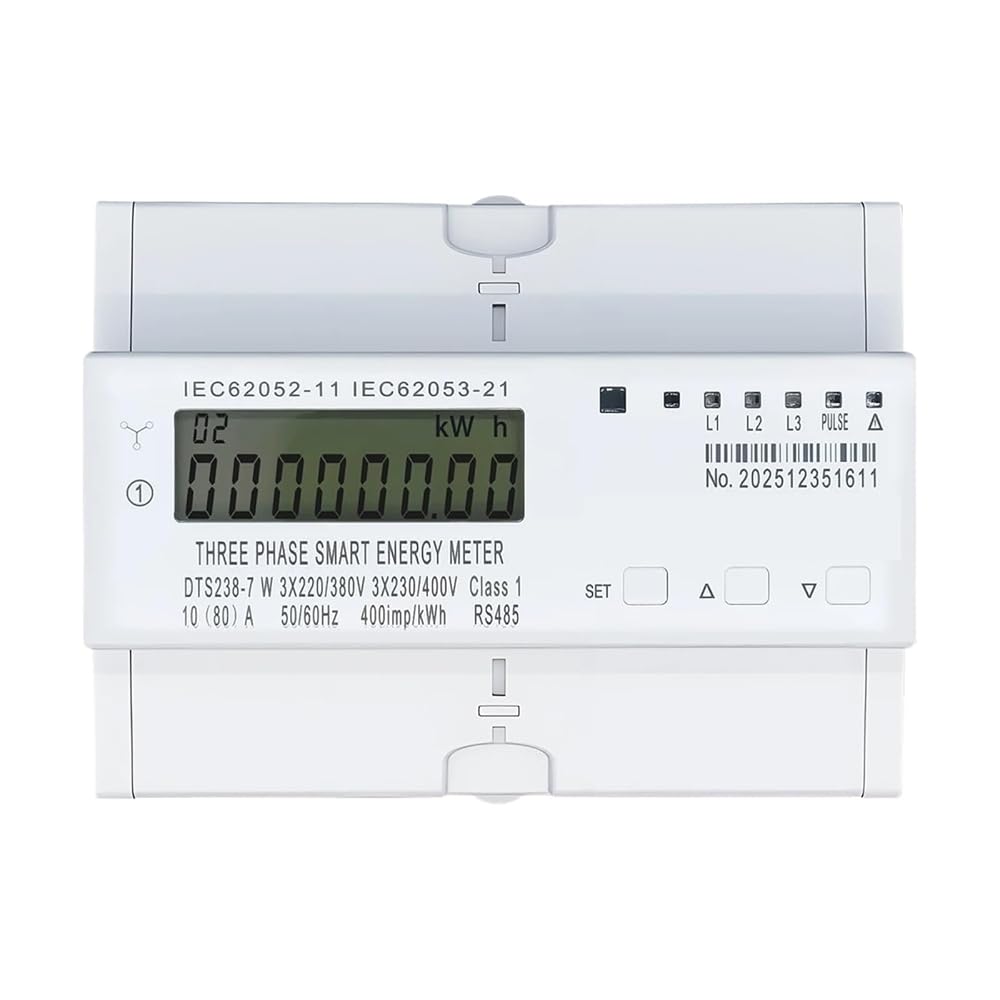

1.General Description
The meter is used in three phase four wire power grid. The meter is designed to measure AC active energy/reactive energy and variable parameter. It can remote read and control from RS485 communication port . It is a long life meter with the advantage of high stability, high over load capability, low power loss and small volume.
2.Basic Function

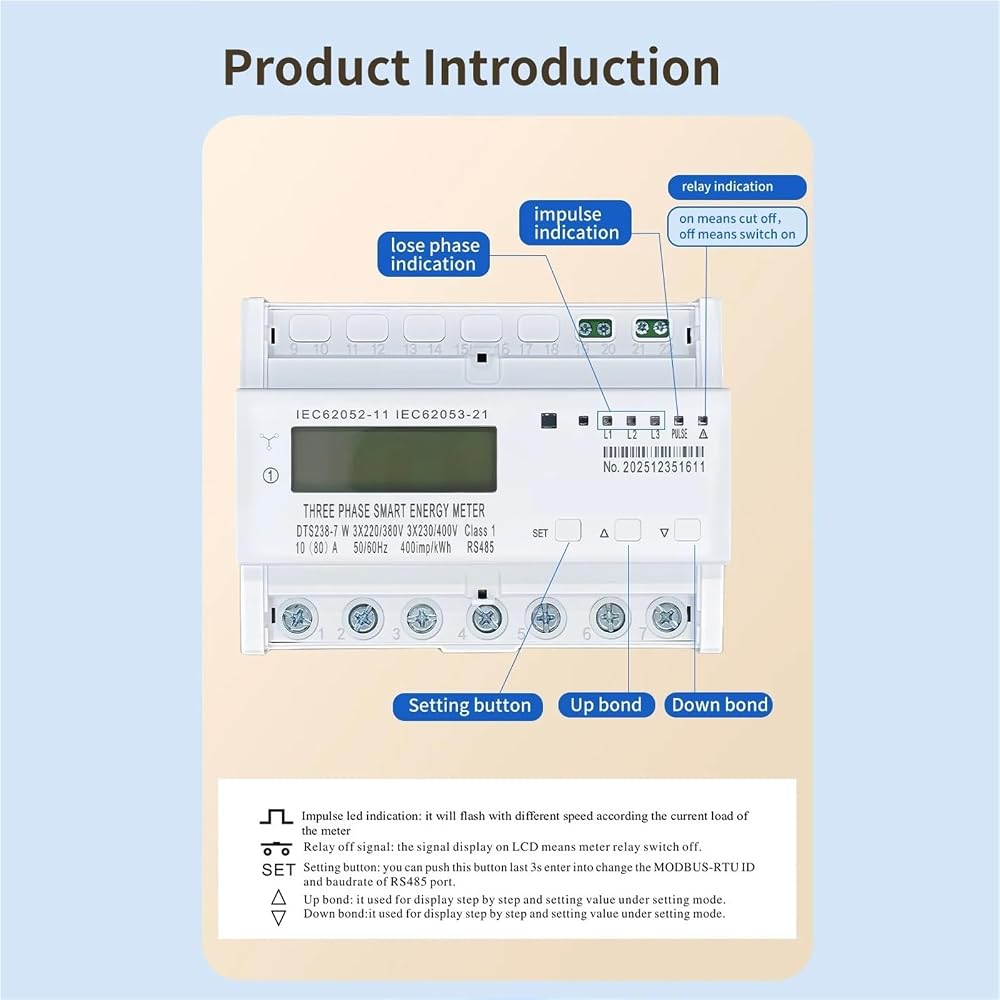

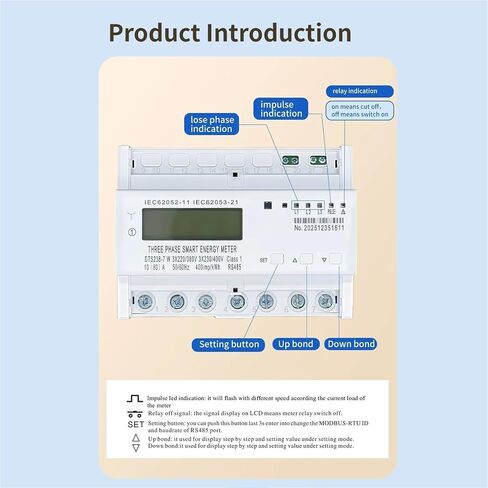

LCD display with backlight , keypad for LCD display step by step

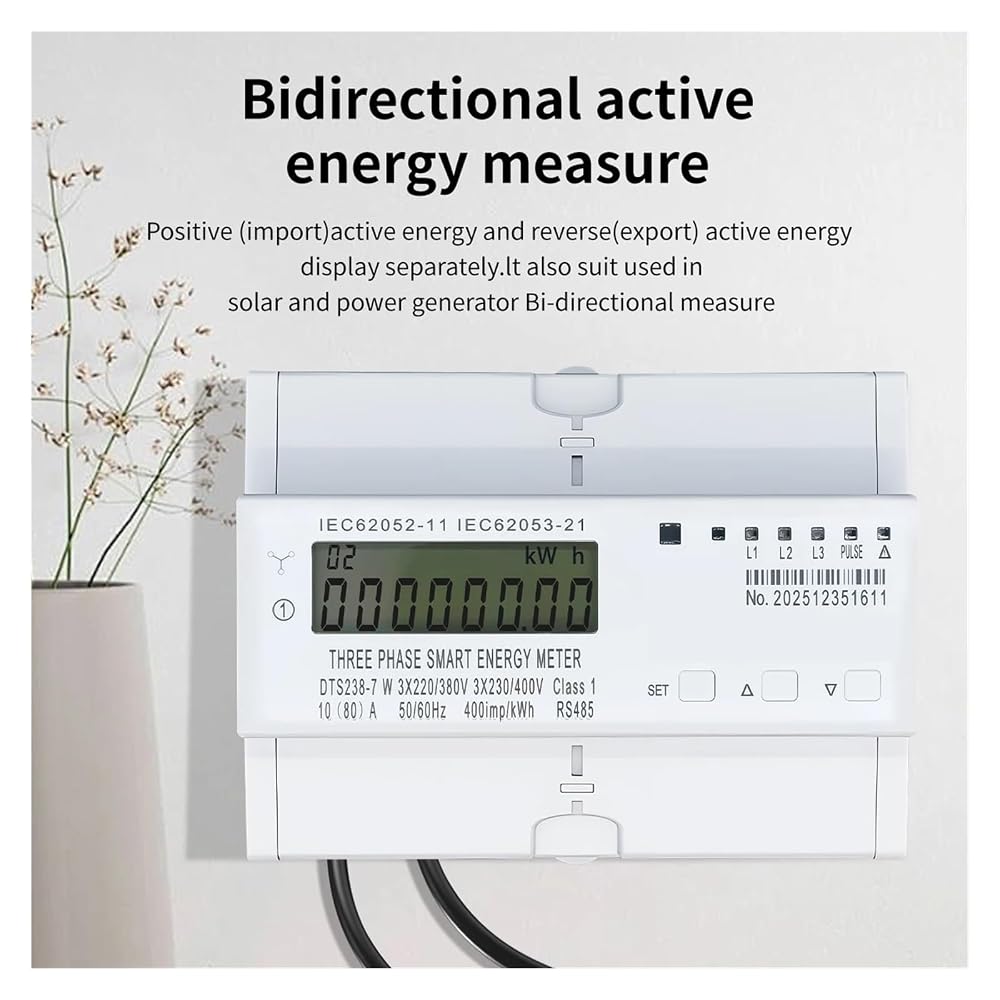

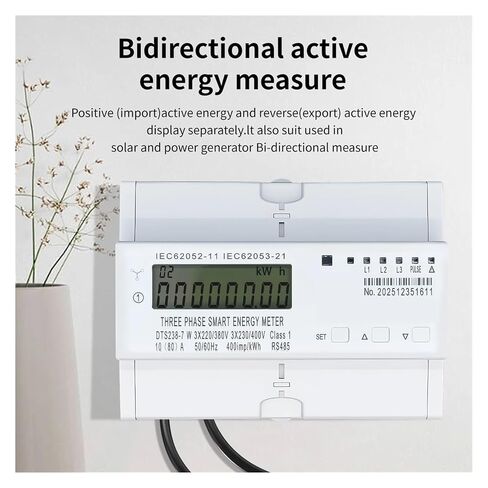

Bi-directional total active energy measurement , reverse active/ energy measure in the total active/reactive energy

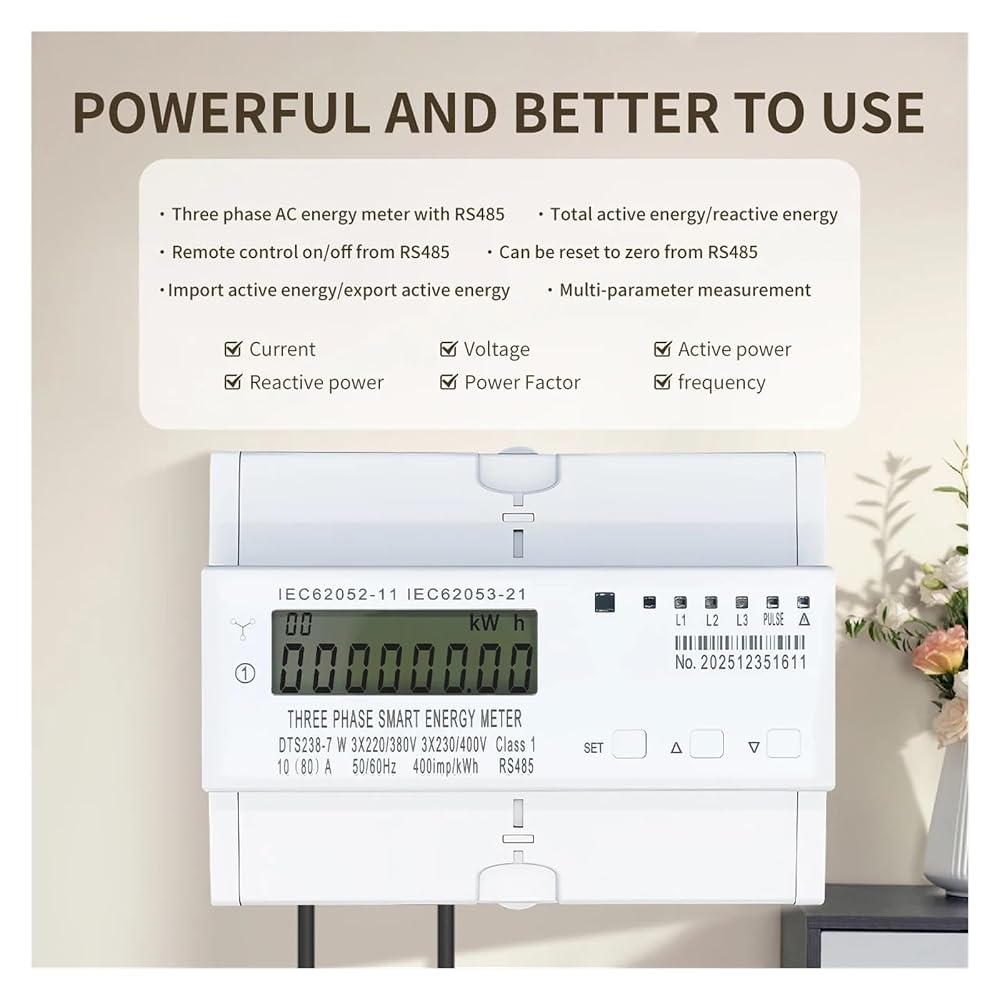

The meter also display real voltage, current, active power, reactive power , power factor, frequency, import active energy, export active energy, resettable interval energy
RS485 communication port , MODBUS-RTU protocol
Remote control on/off with RS485 communication port
Pulse LED indicates working of meter,Pulse output with optical coupling isolation
Loss phase LED indication
Energy data can store in memory chip more than 15 years after power off
35mm din rail installation , bottom type wire connection

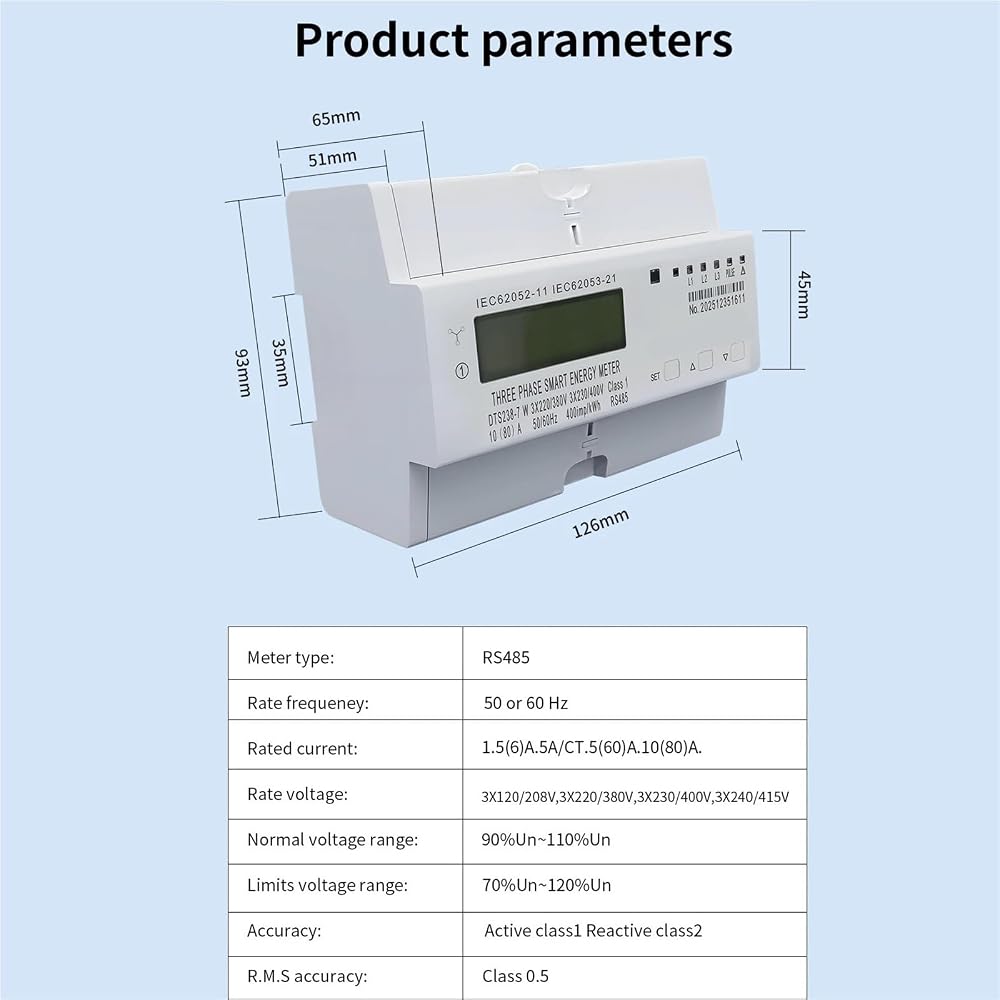

3.Specification and Technical Parameters
Rate voltageAC
3X220/2380V 3X230/400V 3X240/415V or 3X120/208V (Specical order)
Rate Current/Frequency
5A/CT ,1.5(6)A , 5(60)A, 10(100)A / 50Hz or 60Hz±10%
Communication port

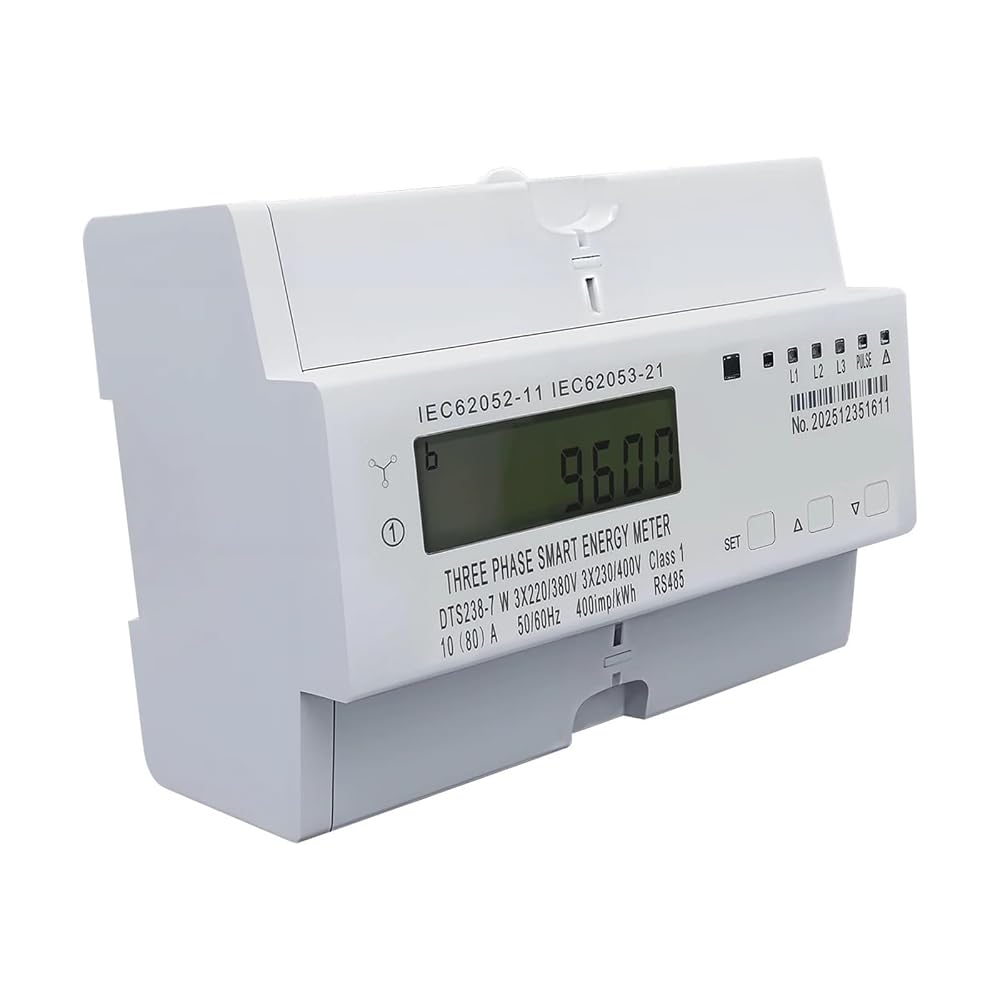

RS485 port, baud rate 1200-9600 bps, default is 9600bps, address 1-247, None parity, stop bits 1, data bits 8 .

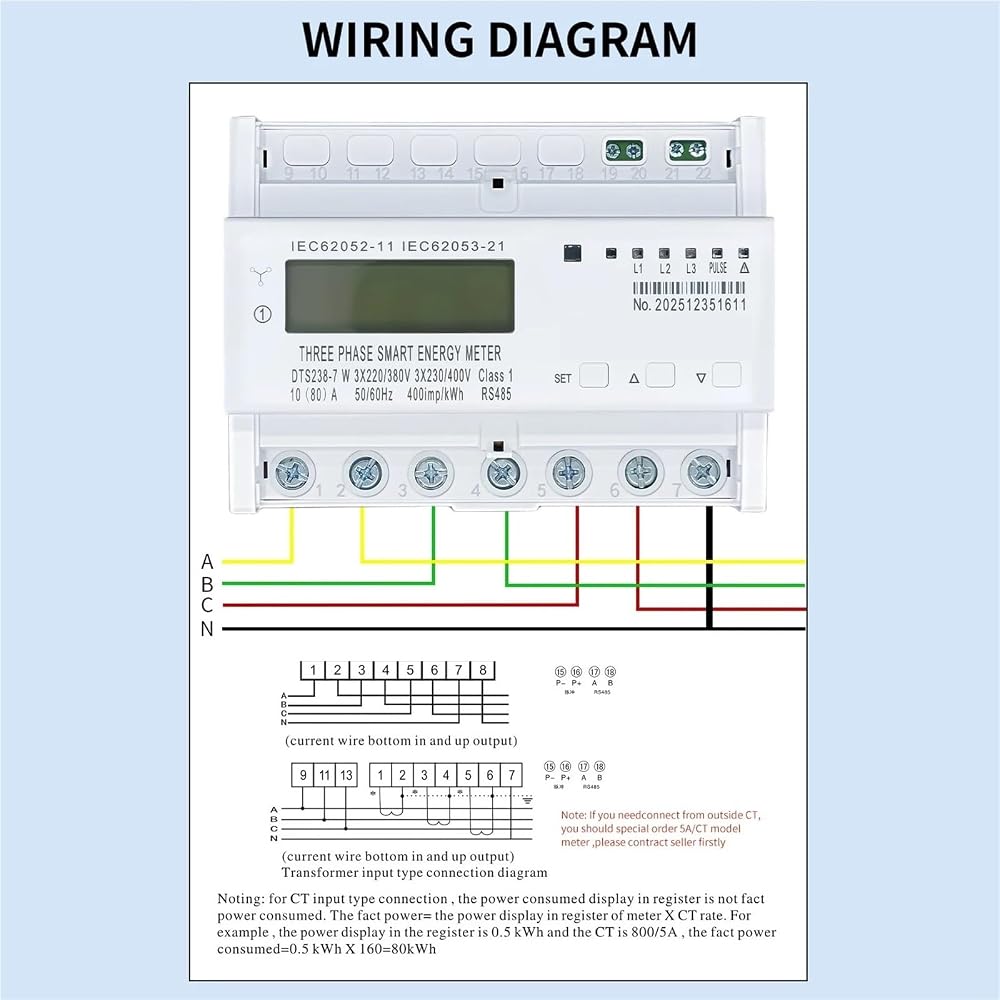

Connection mode
CT or Direct type
Accuracy class
1% or 0.5%
Power consumption
less than 1W/10VA
Start current
0.004Ib
AC voltage withstand
4000V/25mA for60s
Over current withstand
30Imax for 0.01s
IP grade
IP20
Executive standard
IEC62053-21 DIN 43880
Work temperature
-25-70
Pulse output
Passive pulse, 80±5 ms
