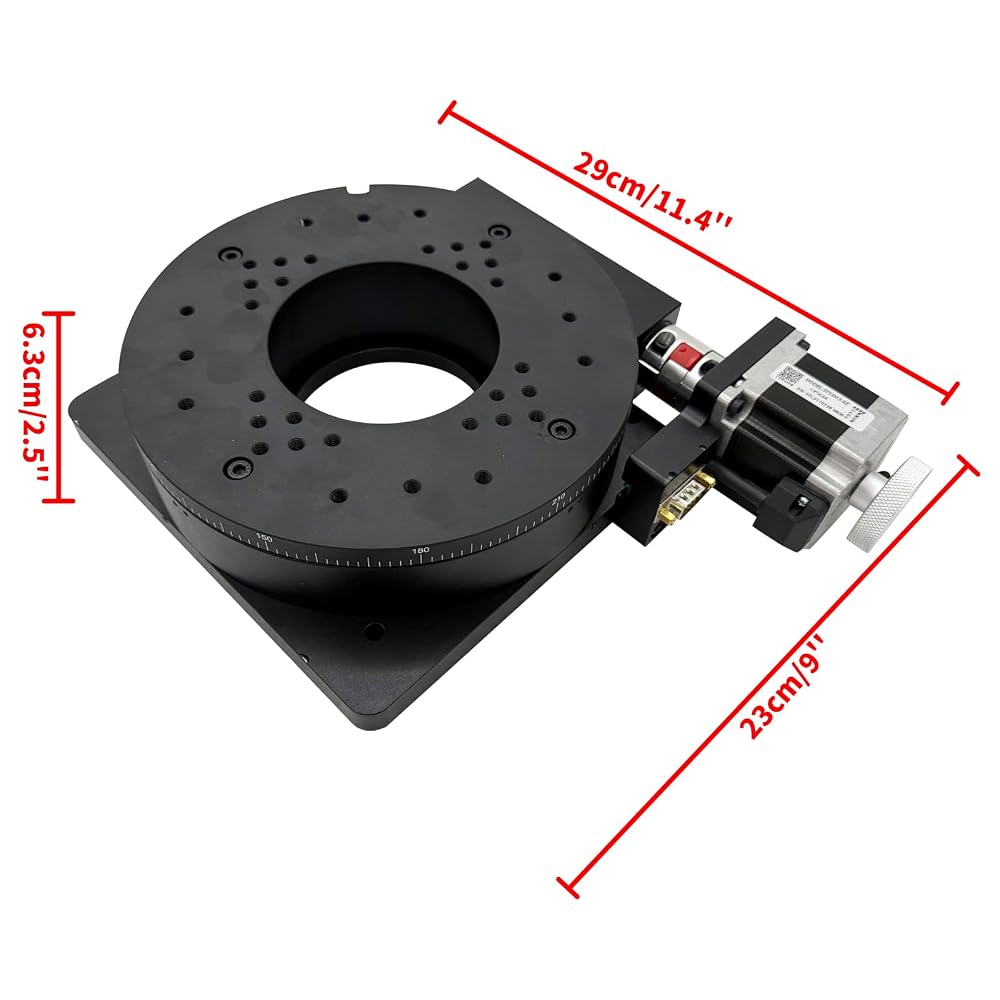

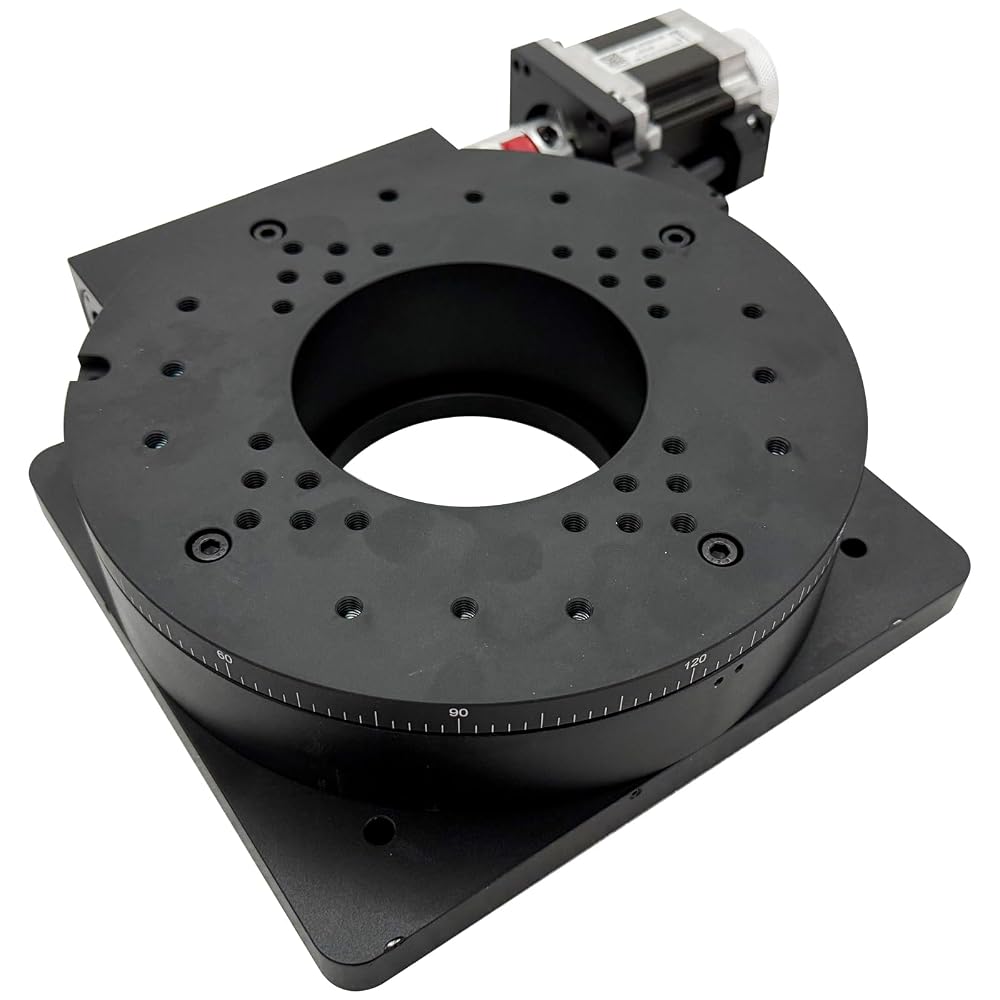

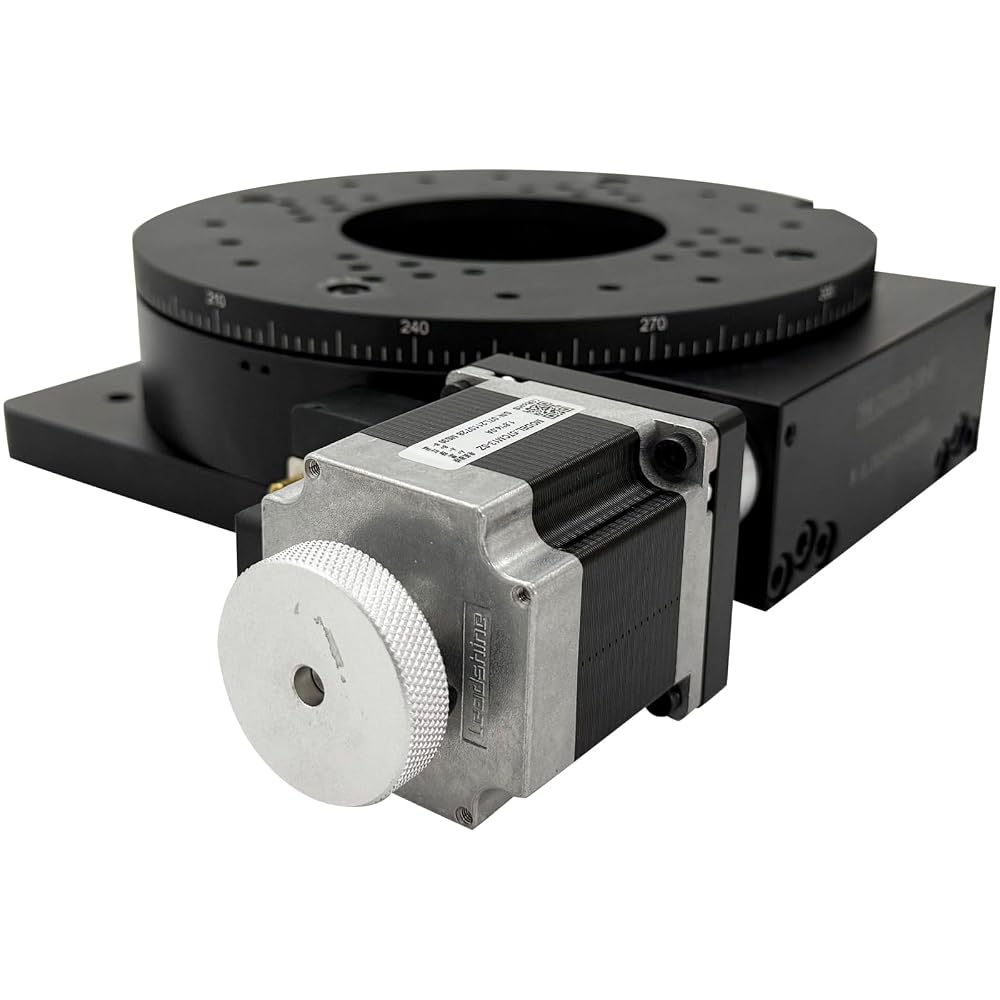

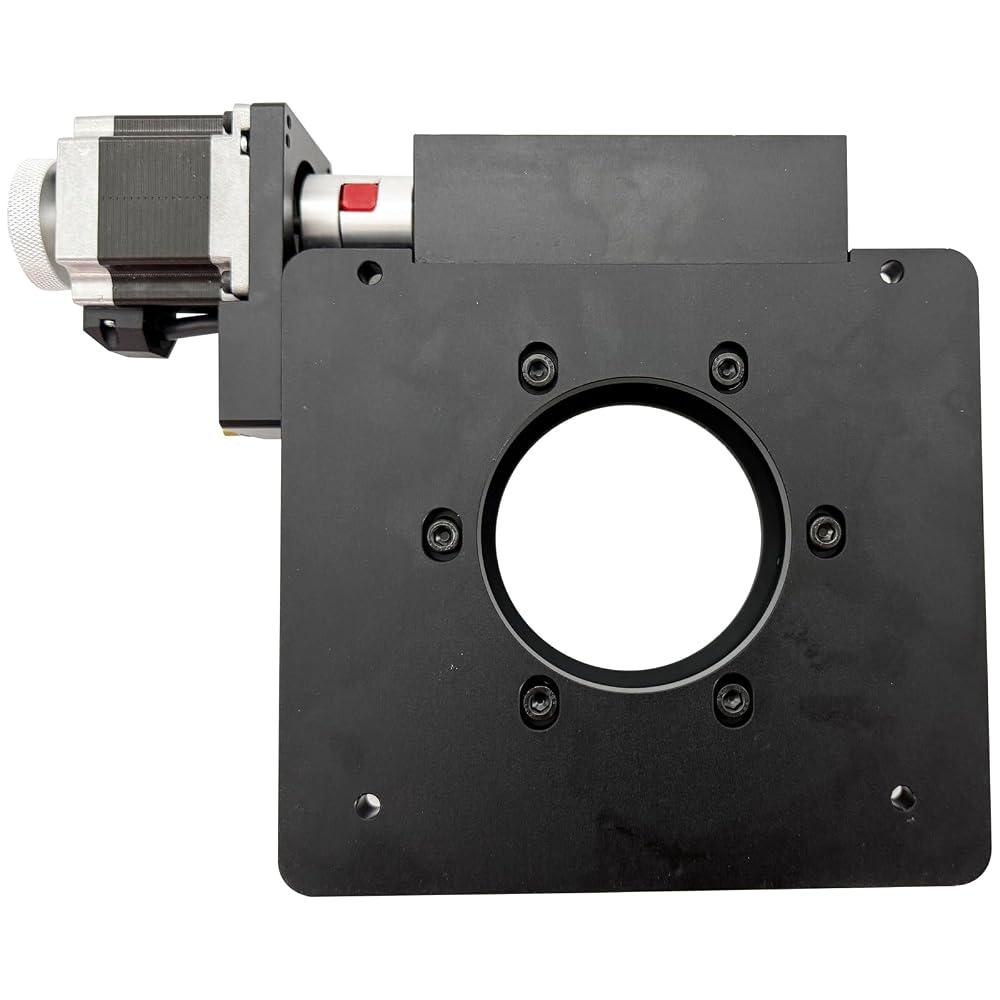

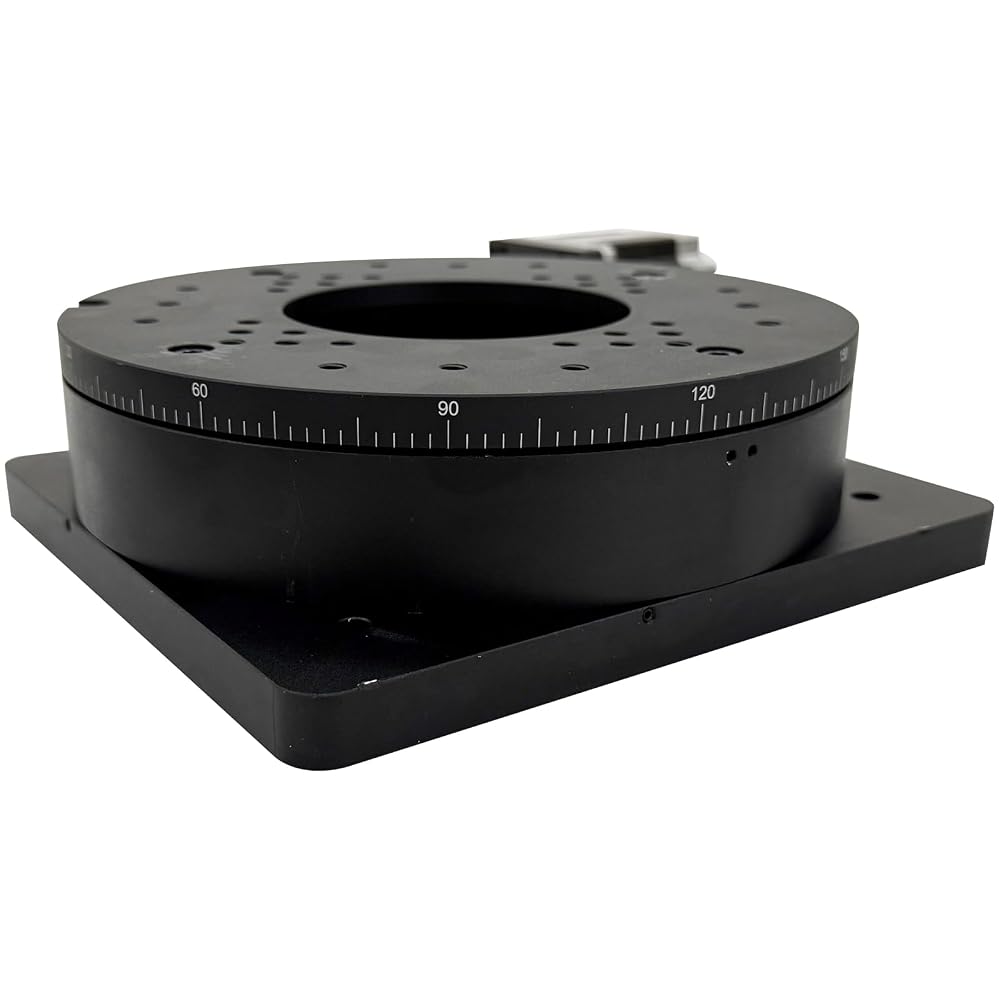

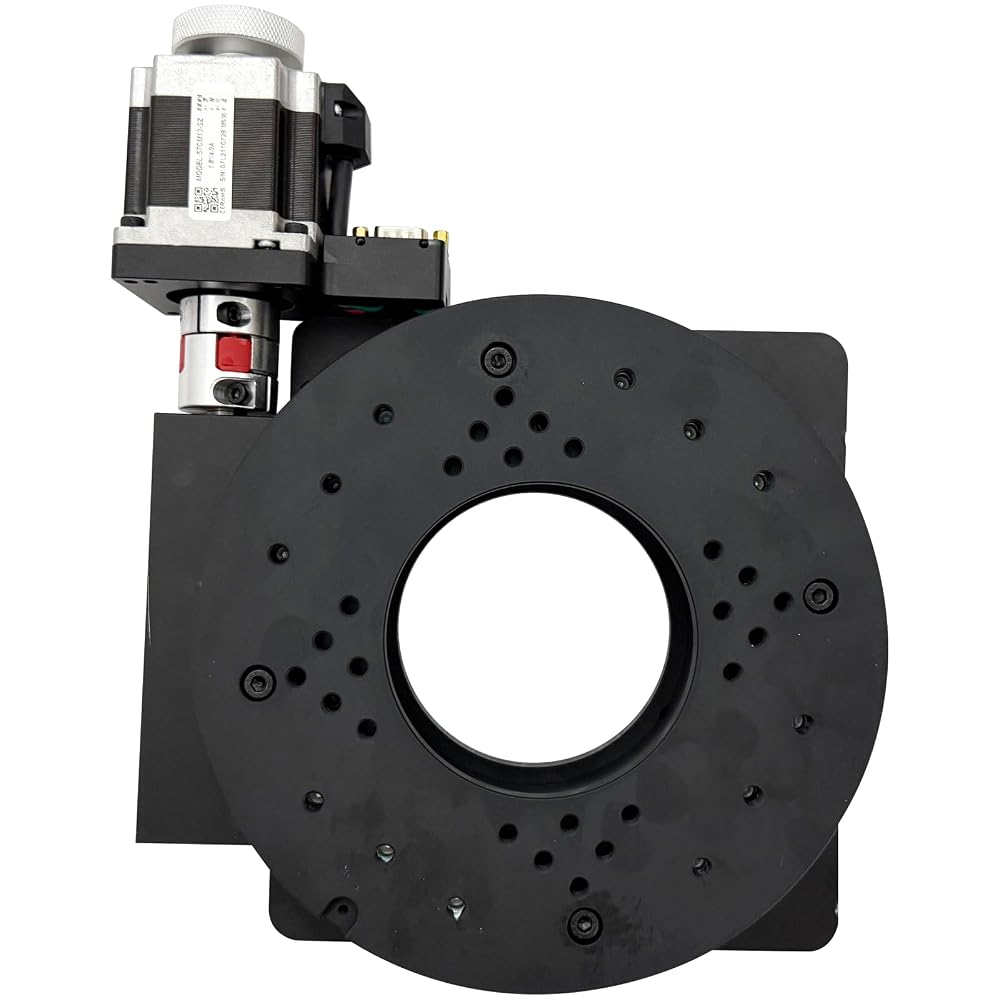

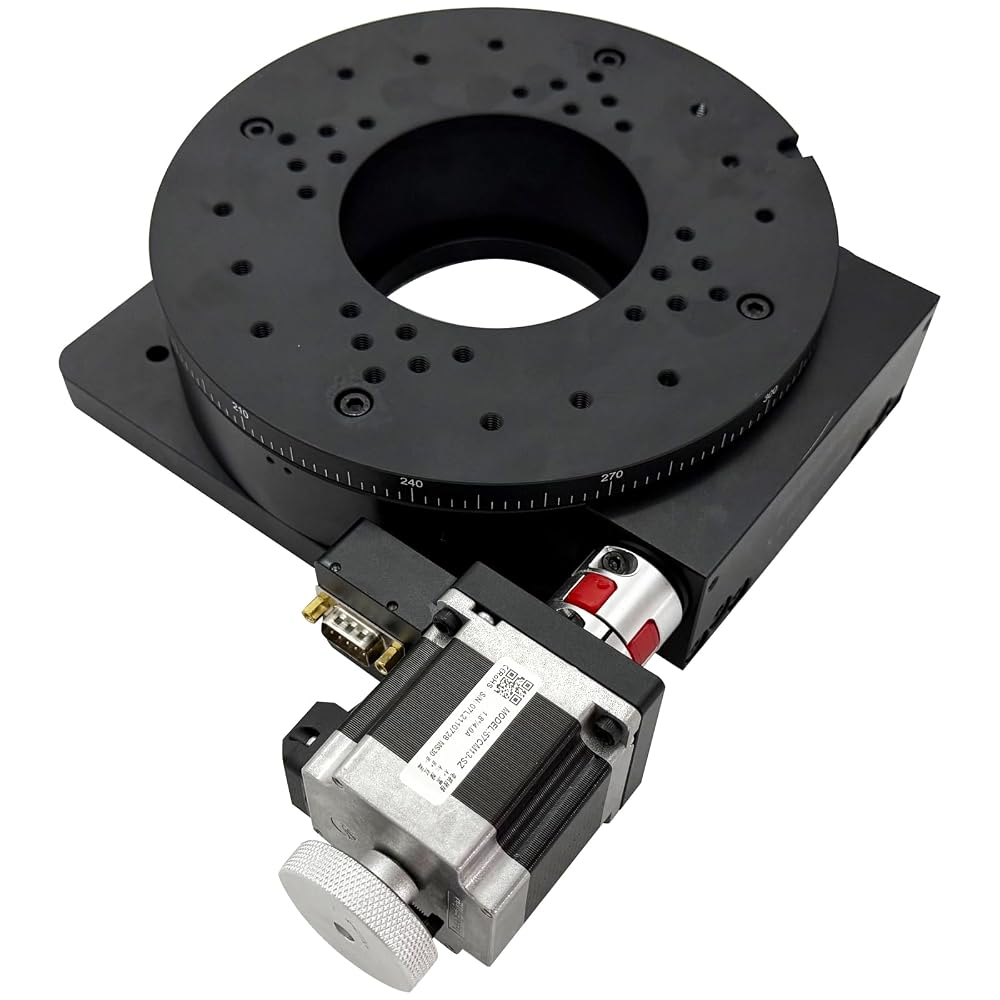

2-Phase Stepper Driver Rotary Stage 4.2A | 1-4.2A Output, 2-128 Microsteps, Worm Gear Drive, Overheat/Overcurrent Lockout, for CNC, Engraving, Marking

KWD 357.500
Brand
LGXEnzhuo
Category
Worm Wheels
Weight
7.3 kg
– 1 +

Special Features

  • Drives 4/6/8-Wire 2-Phase Stepper Motors up to 4.2A: Compatible with 42mm/57mm/86mm frame motors. Supports 57-series and 86-series motors up to 3Nm torque. Signal input via single-ended pulse/direction control mode
  • Offers 15 Optional Micro-Step Resolutions: Choose from 2/4/8/16/32/64/128/5/10/20/25/40/50/100/125 micro-steps. Provides smooth motion and high positioning accuracy. Ideal for precision automation equipment
  • Includes Multiple Protection Functions: Overheat lockout, overcurrent cutoff, under-voltage lockout, and input voltage reverse connection prevention. Opto-isolated signal input for anti-interference. Large cooling fins for heat dissipation
  • Features Worm Gear Drive for Self-Locking Position Retention: Maintains position even after power-off without additional brake. Various reduction ratios available (45:1, 90:1). Higher ratios increase torque and positioning accuracy
  • Accepts Universal External Signal 3.3-24V: No series resistors needed. DC input voltage range 20-50V (recommended 24-36V). Net weight 14.1 lbs (6.4 kg). Compatible with engraving, marking, cutting, and CNC machines

Description

Product Parameters:
Optional micro- step: 2/4/8/16/32/64/128/5/10/20/25/40/50/100/125 micro-steps
Output current: 1.0A-4.2A
Input voltage: DC 20-50V, recommended DC 24-36V
Net Weight: 14.1lbs (6.4kg)
Item Included:
Two-Phase Stepper Driver Motorized Precision Rotary Table Laboratory Rotary Stage *1
