Product Description
Features
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.
Compatible with PV cables with different insulation diameters.
Resistance of extra high & low temperature and fireproof.
Load capability with big current and high voltage.

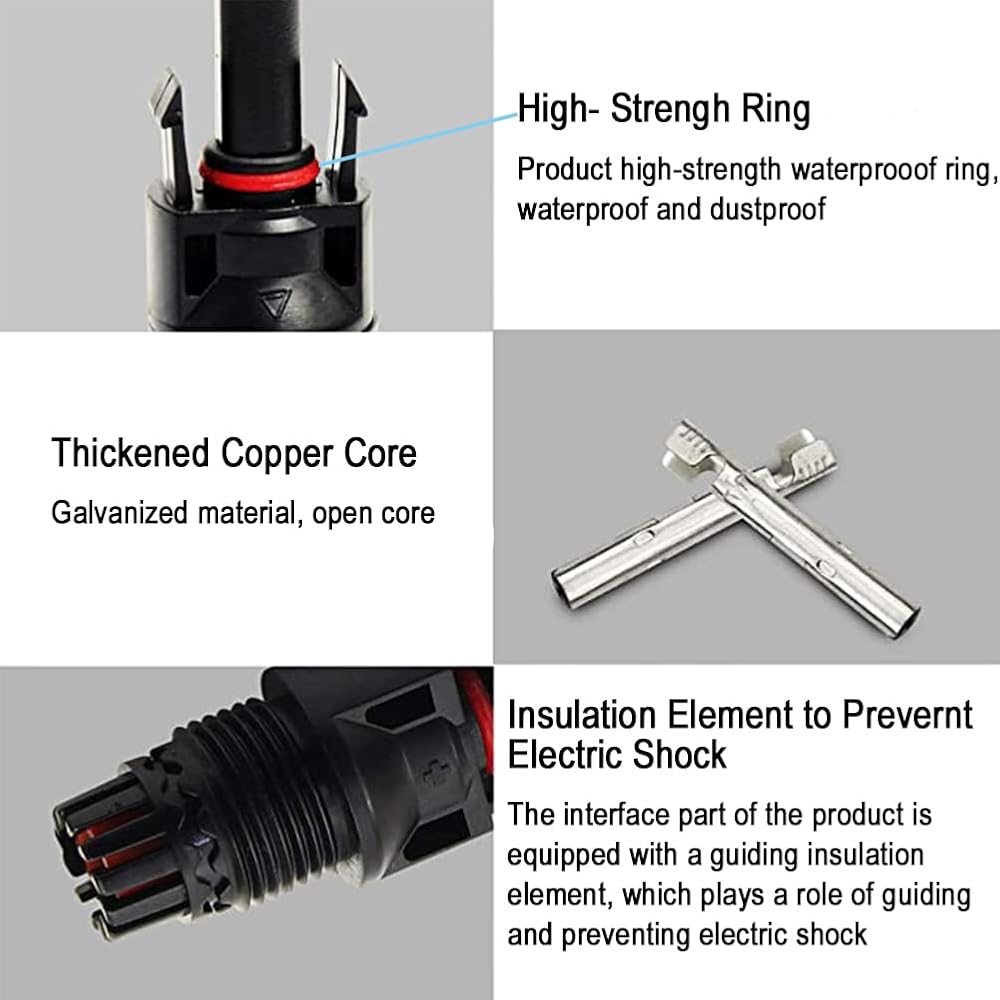

Double seal rings for better waterproof effect.

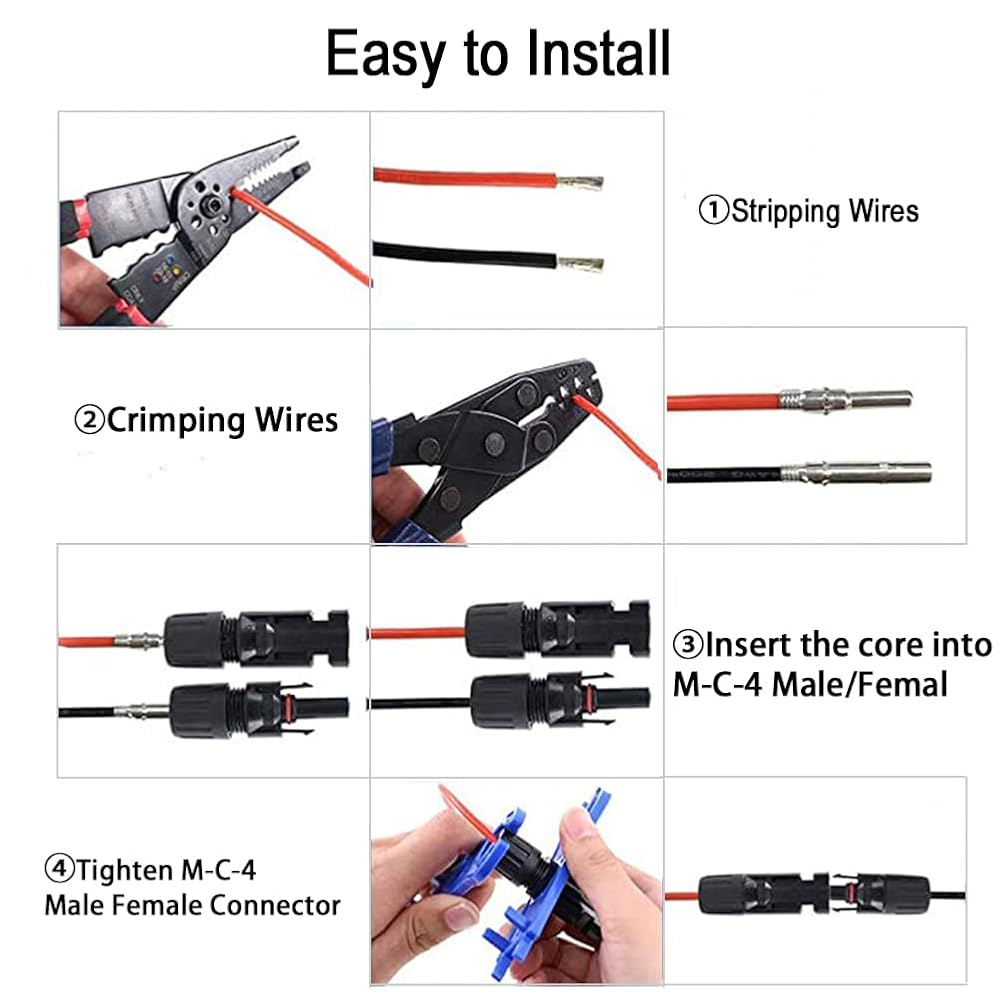

Connection by the crimping tool

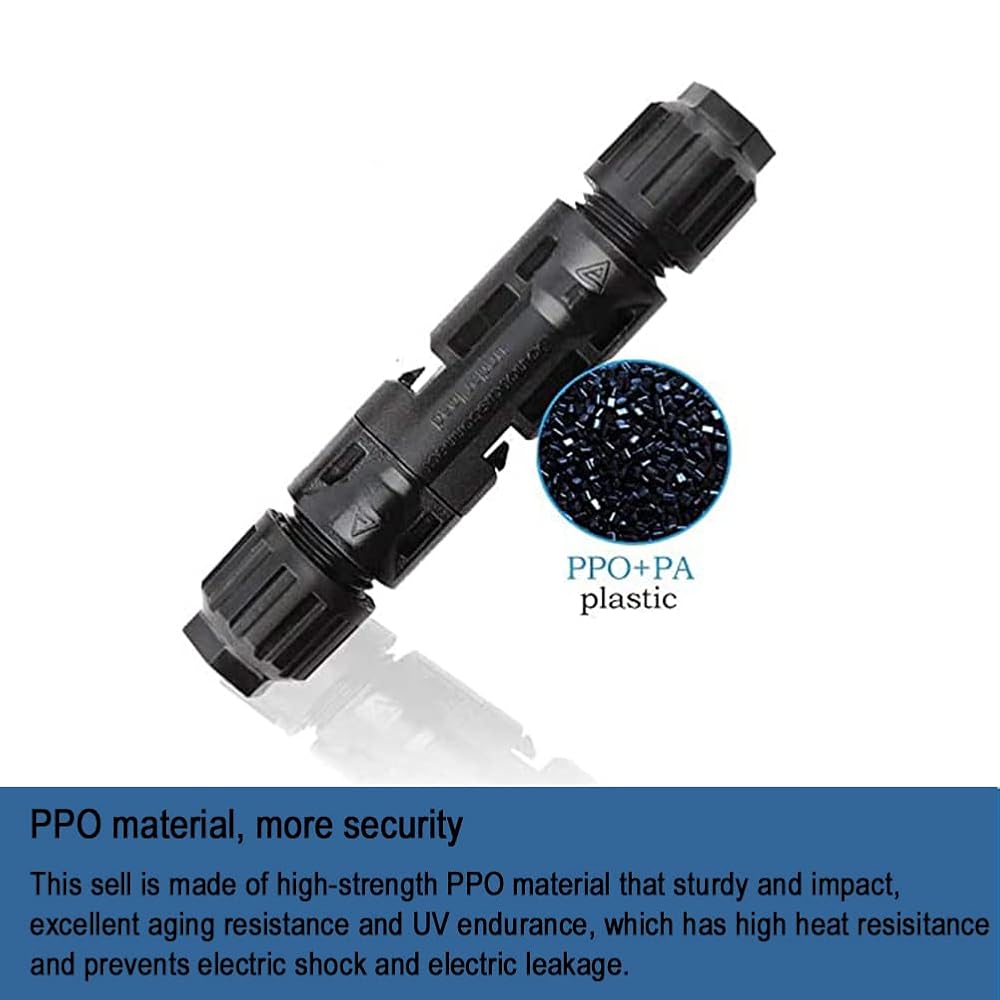

Insulation Material: Made of PPO + PA material.
Specifications:
Maximum working voltage: DC 1000 V
Rated Current: 20A (4 mm²), 30 A (6 mm²)
Suitable for: 1.5 mm² - 6 mm²(14AWG-10AWG)
Contact resistance: ≤0.5mmΩ
Temperature Range: -40 ℃ ~ +105℃
Flame class: UL94-V0

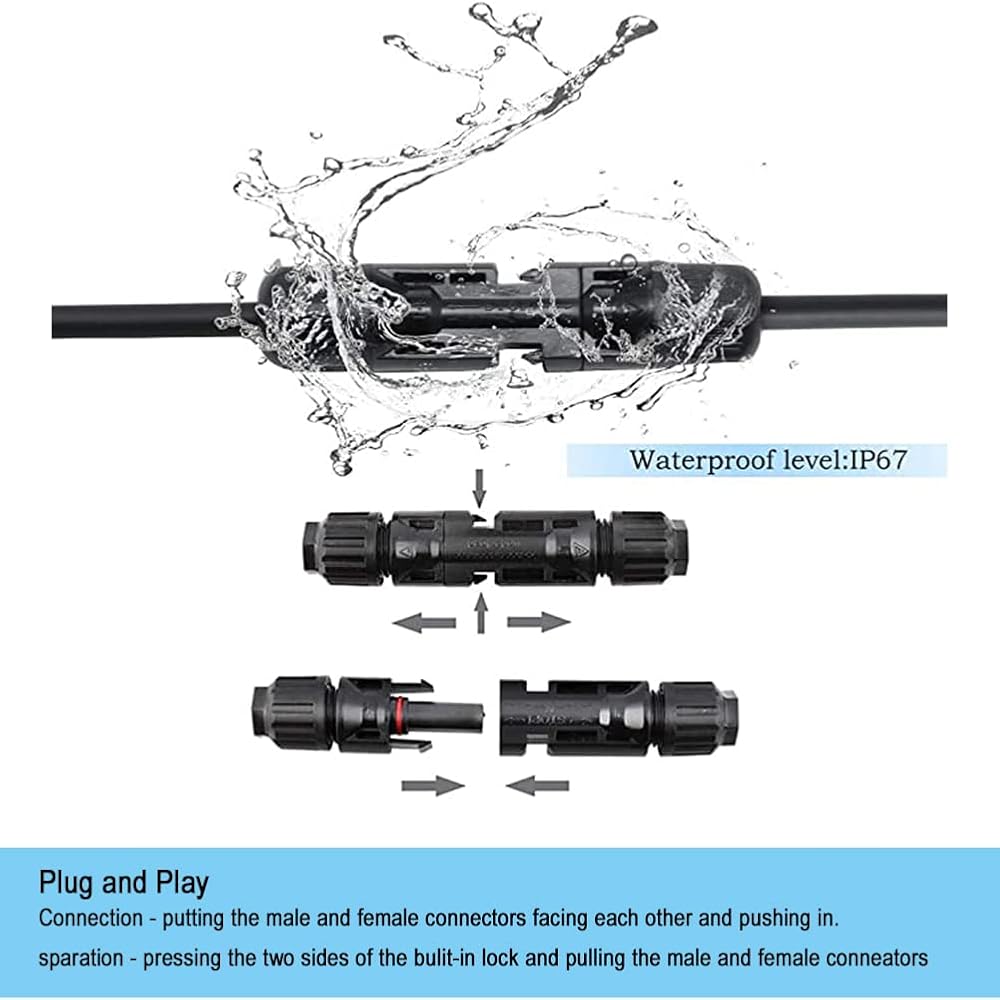

Waterproof Class: IP67
Insertion force: ≤50N
Withdrawal force: ≥50N

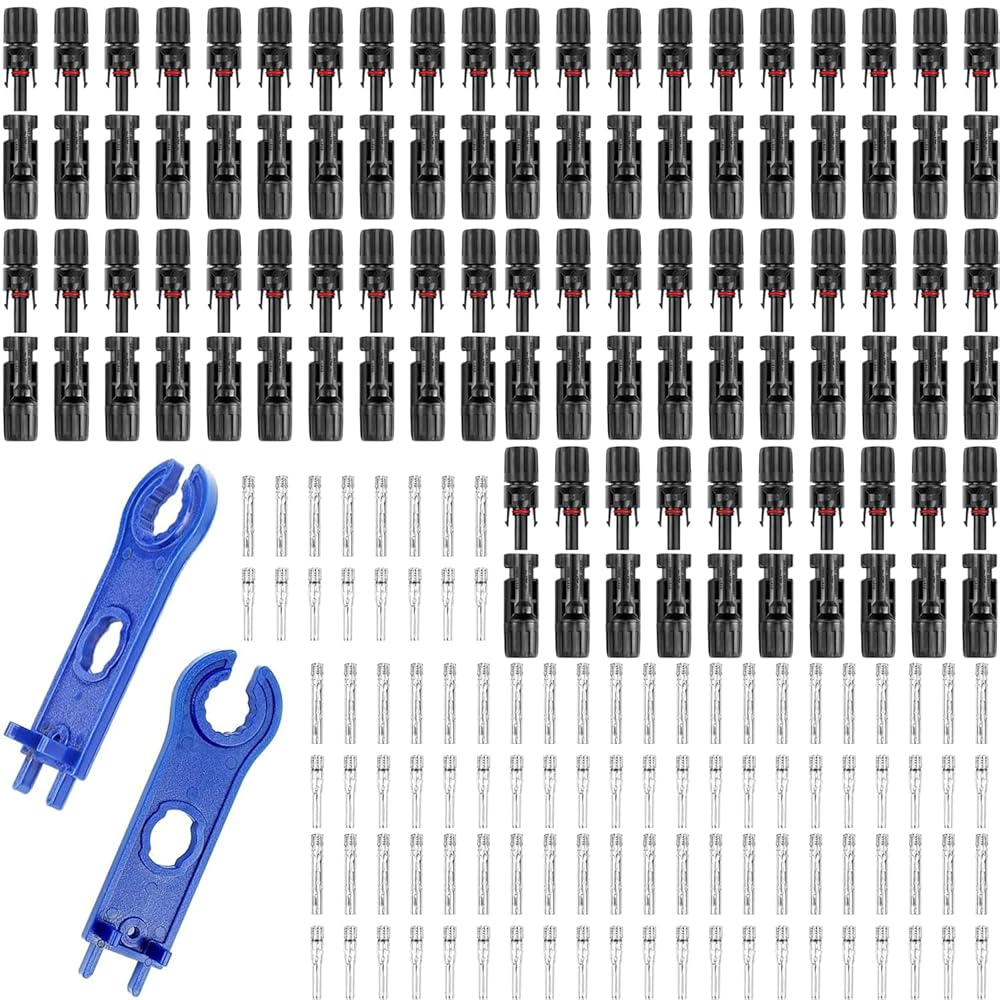

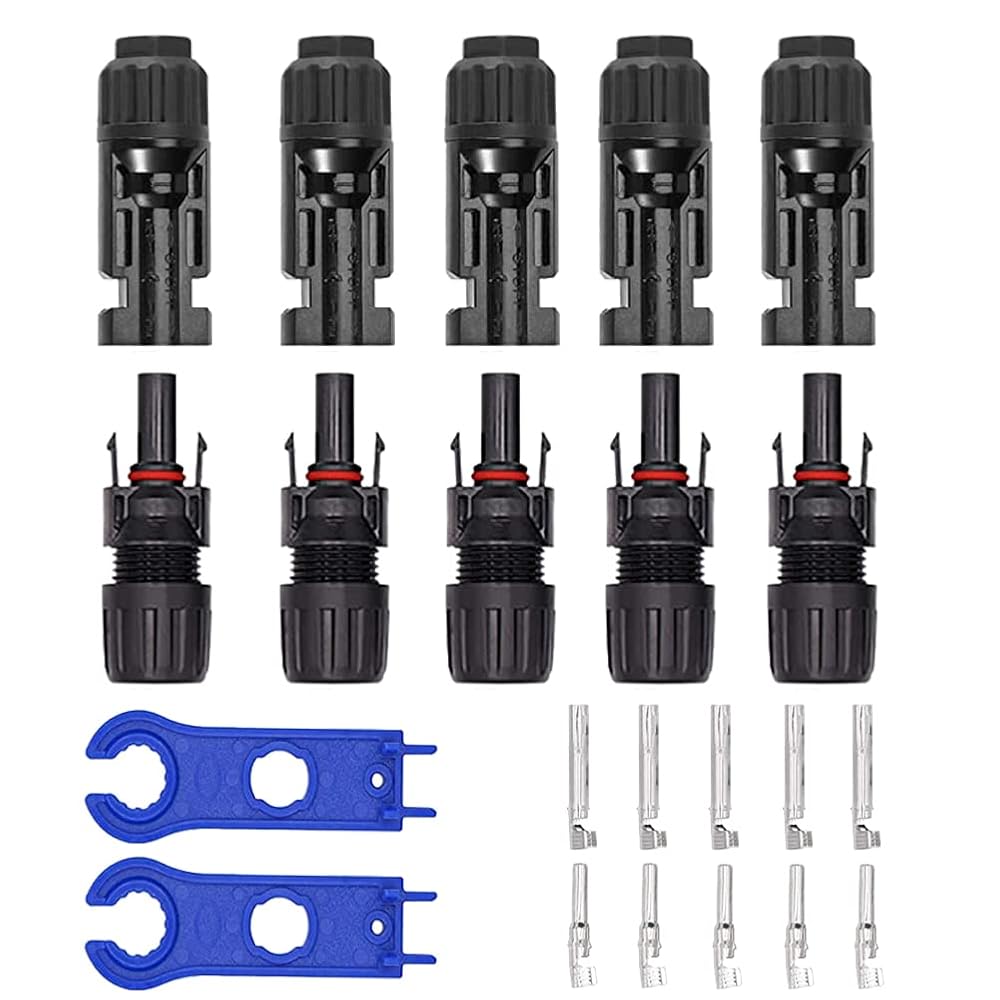

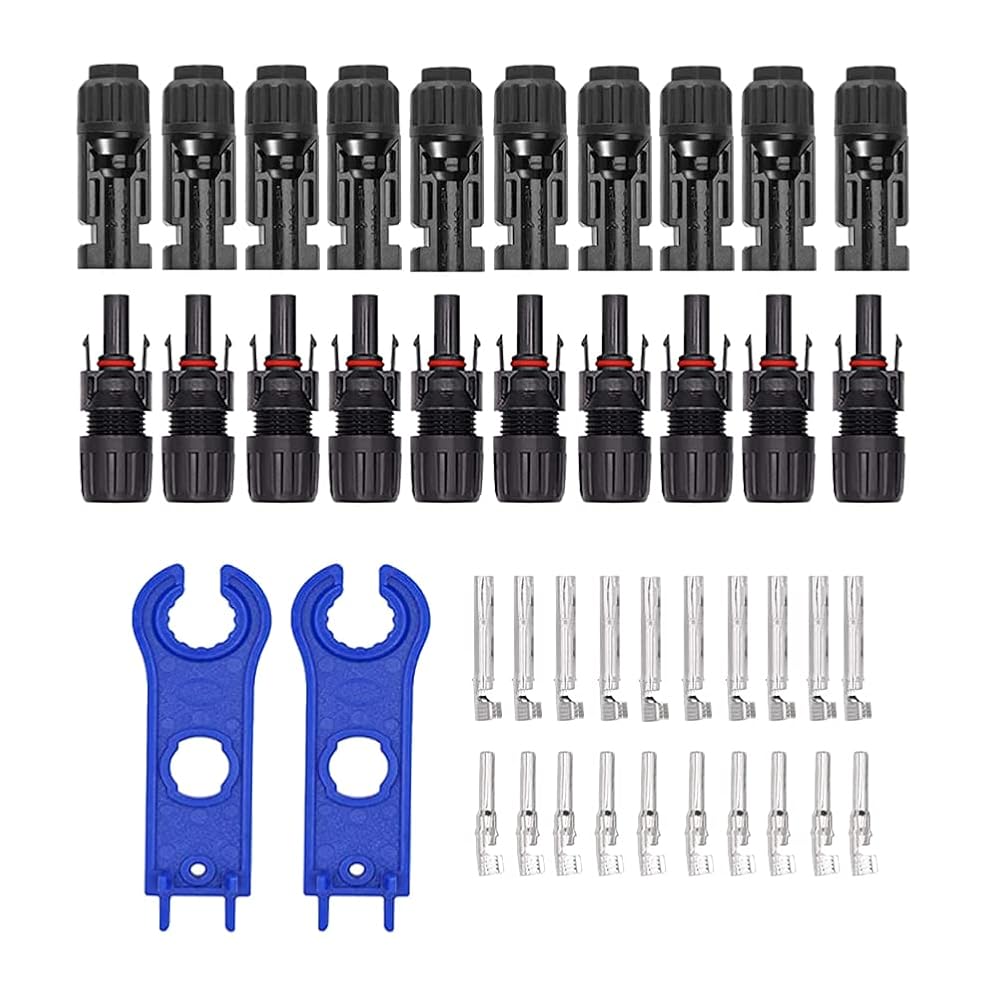

Package including:
5 pair M-C-4 solar panel cable connectors (5pcs Male + 5pcs Female)

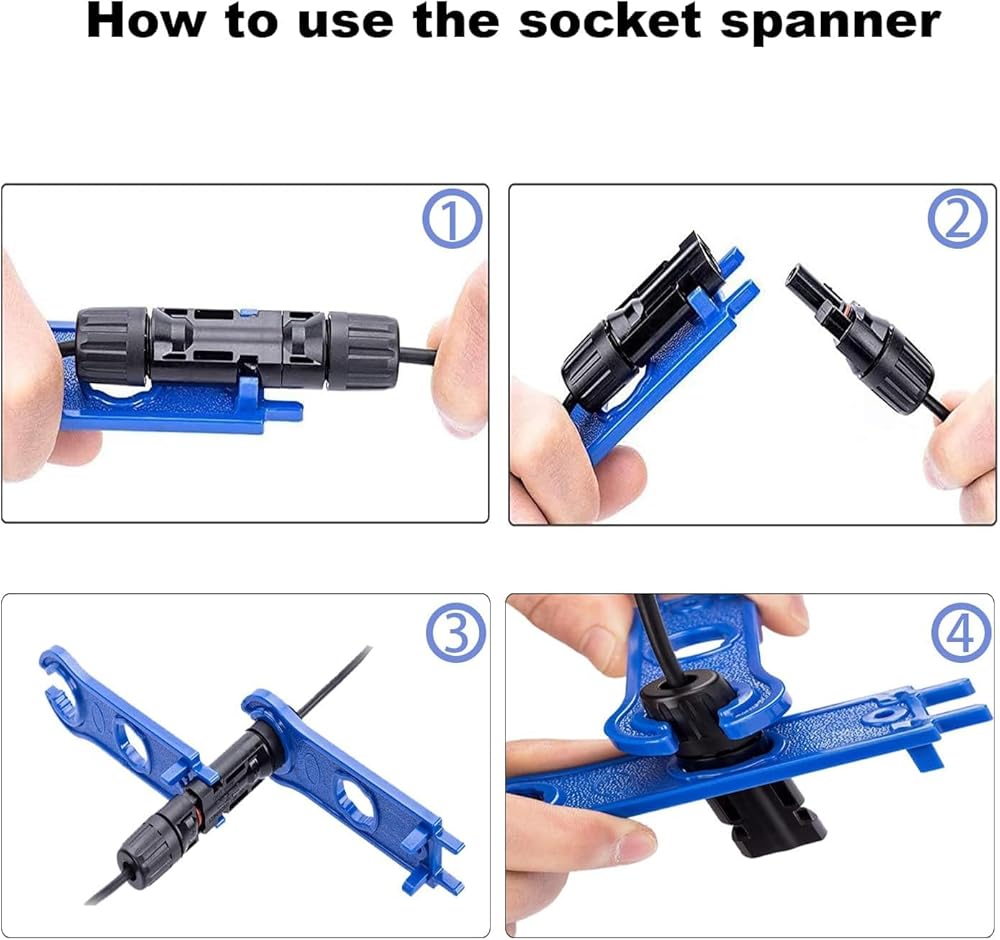

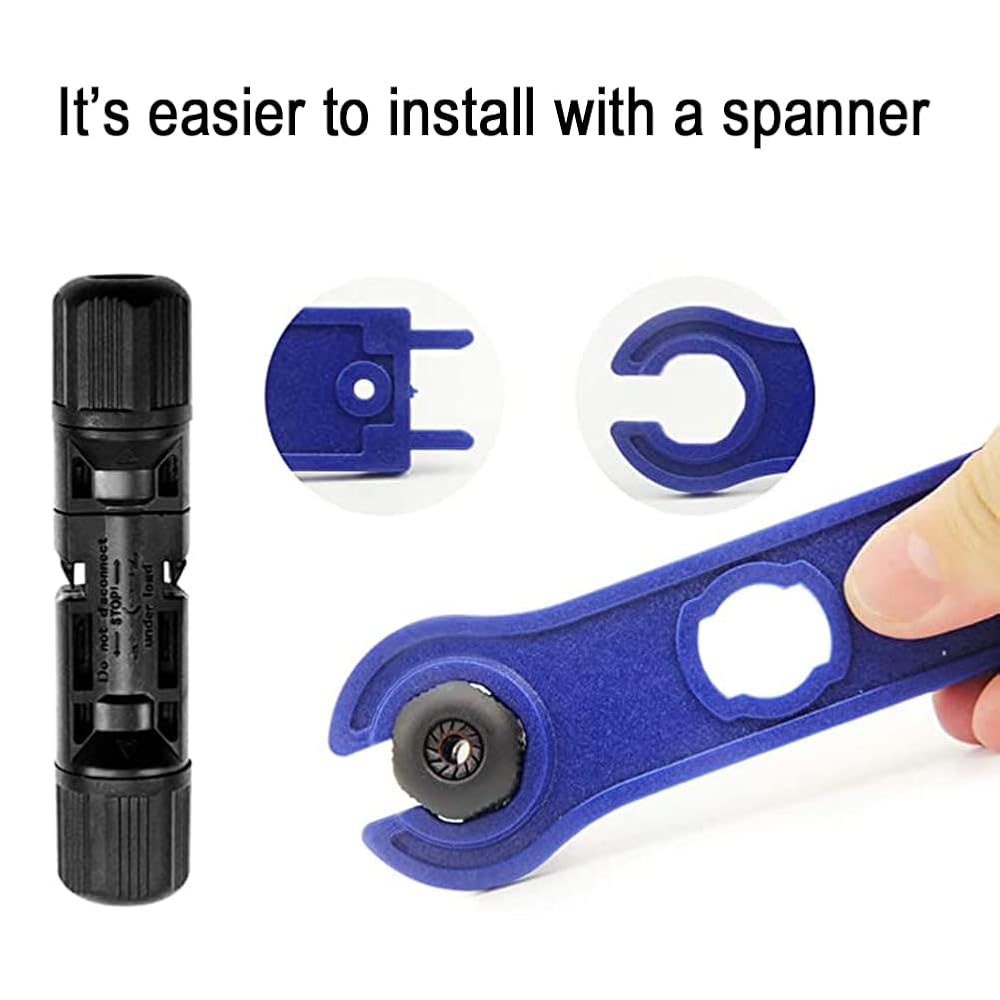

1 pair spanners
