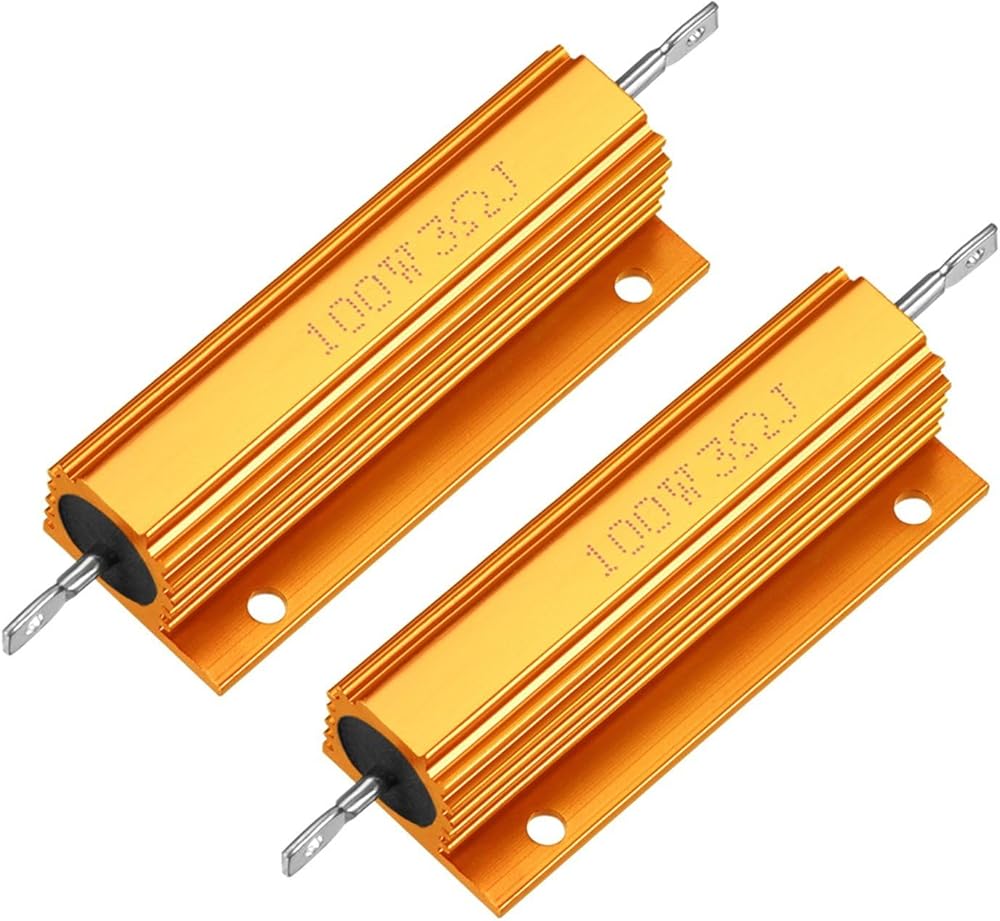

2 Pcs Aluminum Case Resistor 100W 3 Ohm Wirewound Yellow in Kuwait 2 Pcs Aluminum Case Resistor 100W 3 Ohm Wirewound Yellow in Kuwait

2 Pcs Aluminum Case Resistor 100W 3 Ohm Wirewound Yellow

KWD 12.500
Brand
Generic
– 1 +

Special Features

  • Aluminum Housed. An insulated cover on the wires would block out the heat, which the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.
  • This 100W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.

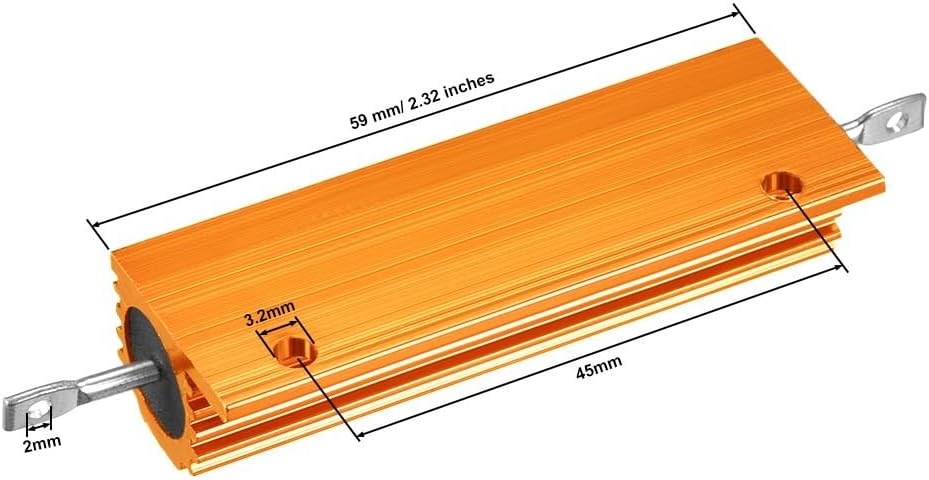

  • Board length 2.32 inches(59mm) and two rods with 2mm hole for a soldering connection. Dia. 3.2mm anchoring hole for holding.
  • Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.

Description

Specification: Main Body Length: 59 mm/ 2.32 inches. Power: 100 Wattage. Rated : 3 R. Tolerances: 5%(J). Connection Type: Rod terminals with hole. Rod Length: 12mm/0.47 inches. Screw Hole: 3.2mm. Distance between screw hole: 45mm. Weight: 60g/2.1 Oz. Materials: Nickel alloys Wire Wound Resistor with Aluminum Case.
