Applications:

Yamaha 700 Carburetor to Manifold Gasket Fitment:

1996-2016 Yamaha Super Jet 700
1996 Yamaha Wave Blaster 700
1994-1995 Yamaha Wave Raider 700
1995-1998 Yamaha Wave Venture 700
1999-2004 Yamaha XL 700

Verify your part number before purchasing to confirm fitment.

/ Reference Part Numbers:

Yamaha 62T-13556-00-00
62T135560000

Specifications:

Product Type: Carburetor to Manifold Gasket
Engine: 701cc 2-Stroke Twin Cylinder
Bore x Stroke: 81mm x 68mm
Power Output: 80 HP
Fuel System: Twin Mikuni Carburetor
Ignition: CDI
Lubrication: Oil Injection
Gasket Location: Carburetor to Intake Manifold

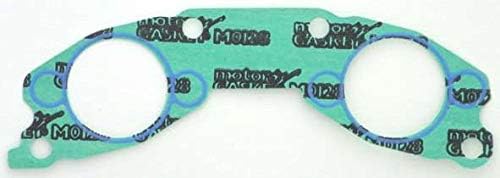

Carburetor Manifold Gasket Yamaha 700 Series
Carburetor to manifold gasket for Yamaha 700 personal watercraft with the 701cc 2-stroke twin cylinder engine producing 80 HP. The engine has an 81mm bore and 68mm stroke with twin Mikuni carburetors CDI ignition and oil injection. This gasket provides the critical seal between the carburetor body and the intake manifold. On 2-stroke engines any air leak at this junction introduces unmetered air into the crankcase creating a lean fuel condition. A lean mixture causes elevated combustion temperatures that lead to detonation piston scoring and potential engine seizure. This replacement gasket is manufactured to specifications for a precise fit and reliable seal. Replace the carburetor manifold gasket whenever the carburetors are removed for service or rebuilding. Ensure both mating surfaces are clean and free of old gasket material before installation. Torque all fasteners to factory specification.

Fitment Note:
