Temp Control Sensor
Package included:
Measuring accuracy: ±0.5%FS
Cold-end compensation tolerance: ±2C can be modified by software in 0~50C
Resolution: 14 bit
Sampling cycle: 0.5 Sec
Dimensions:48 x 48 x 110 (mm) ±0.2mm

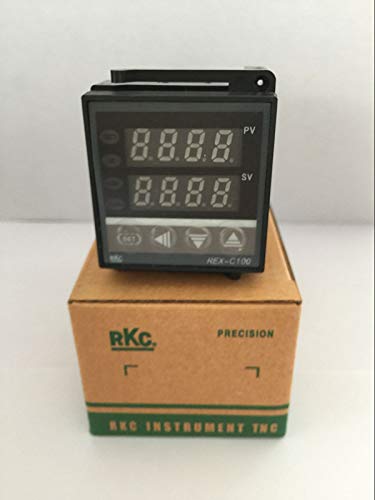

Process value (PV), Setting value (SV)
Relay output: contact capacity 250V AC 3A (resistive load)
Alarm function output: 1 way
Contact capacity of output: 250V AC 3A (resistive load)
Heat-reset proportional cycle: 1~100 sec
Detective temperature range 0 to 400C
Insulation resistance: >50M ohm(500V DC)
Insulation resistance: 1500V AC/min
Power Consumption: 10 VA
Service environment: 0~50C,
environment with no corrosive gas 30~85% RH
Screw : M12*1.5
Cable Length : 1m
Theory : Temperature Controller
Display Type : DIGITAL
Power Type : None
Model Number : C100
