Vehicle Fitment:

For 1962-1967 Chevy Nova II Inline 6 Cylinder V8 Conversion

OE/OEM Part Number: 255,CC255,CU255,DPI255,EC255,MC255

Radiator Size:

Material: Full Aluminium

Core Row: ( 3 Row Core )

Core Dimension (H x W): 14 1/8 "x 18 1/8"

Overall Dimension (H x W): 22 1/8" x 24 1/2"

Hose Locations: IN: Driver / OUT: Passenger

Hose Fittings: IN: 1 1/4" - OUT: 1 3/4"

Trans Cooler: φ32*215*G1/4(Z)

Mounting Type: Bracket Mount

Fan:

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 14.050"

Thickness (in): 2.500"

Number of Blades: 8 S-Type blades

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Package Includes:

1 X 3-Row Aluminum Radiator w/Radiator Cap

1 X Aluminum Shroud

1 X 14" Fans (Includes mounting kits)

Aluminum Shroud Fan:

These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized.

Description:

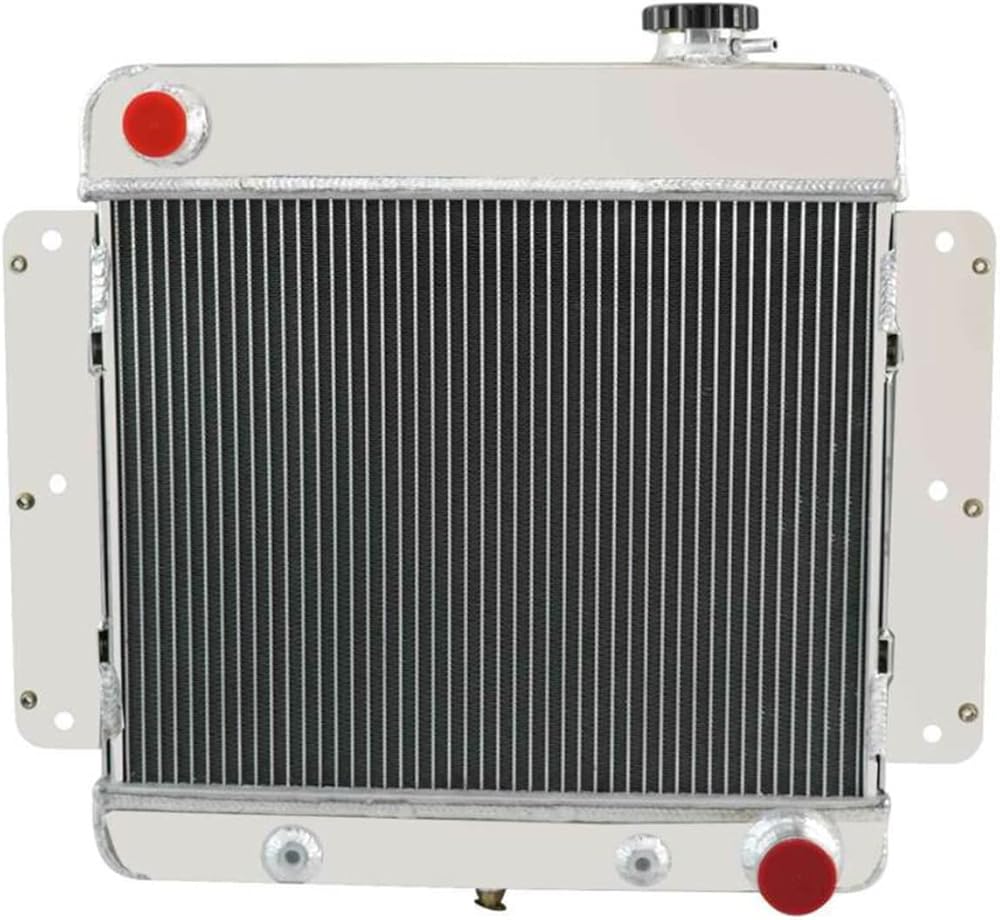

This Aluminum Radiator is light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 30%-45% more efficient. Most importantly, it has a much higher capacity for coolant.
