Description:
*By turning the real-time voltage value can accurately determine the amount of the remaining amount of electricity.
*To avoid traveling on the way without electricity and accurate of the lithium battery is damaged.
*By turning the real-time voltage value can accurately determine the judge the quality of lithium battery.
*Automatic to identification electric vehicles' voltage under 100V, support 36V or 48V ，60V，72V used and real-time display.
* throttle for electric bike, scooter , tricycle, and other electric vehicle.
*The upgraded model supports 3-speed speed adjustment
*Larger screen display can display more information, including mileage, speed, power, and voltage, .

Specifications:
Material:ABS + Rubber
Color:Black
Cable length: 1.7M (Approx.)
connection type :6pin， 8pin(only 8pin support 3 gears adjustable speed)
for :Electric scooters, bicycles, motorcycles, tricycles, .

A hall sensor needs to be connected to match the speed.
Line description
Brown: Hall speed wire
Dark blue: high speed
Light blue: low speed
White: Power+
Yellow: Electric door lock
Red: 5v power supply
Green: signal line
Black: GND

LCD throttle "M"
1. Press and hold "M" to turn on the power, and wait for P00 to be displayed to release the power.
2. Click "M" to switch adjustment options, main menu: P00-P09.
3. After selecting the corresponding option, long press to enter the next step. (For example: long press P00 to enter the voltage option: click the M button to select the voltage, then long press the M button to select, restart the LCD throttle to use

Package include:

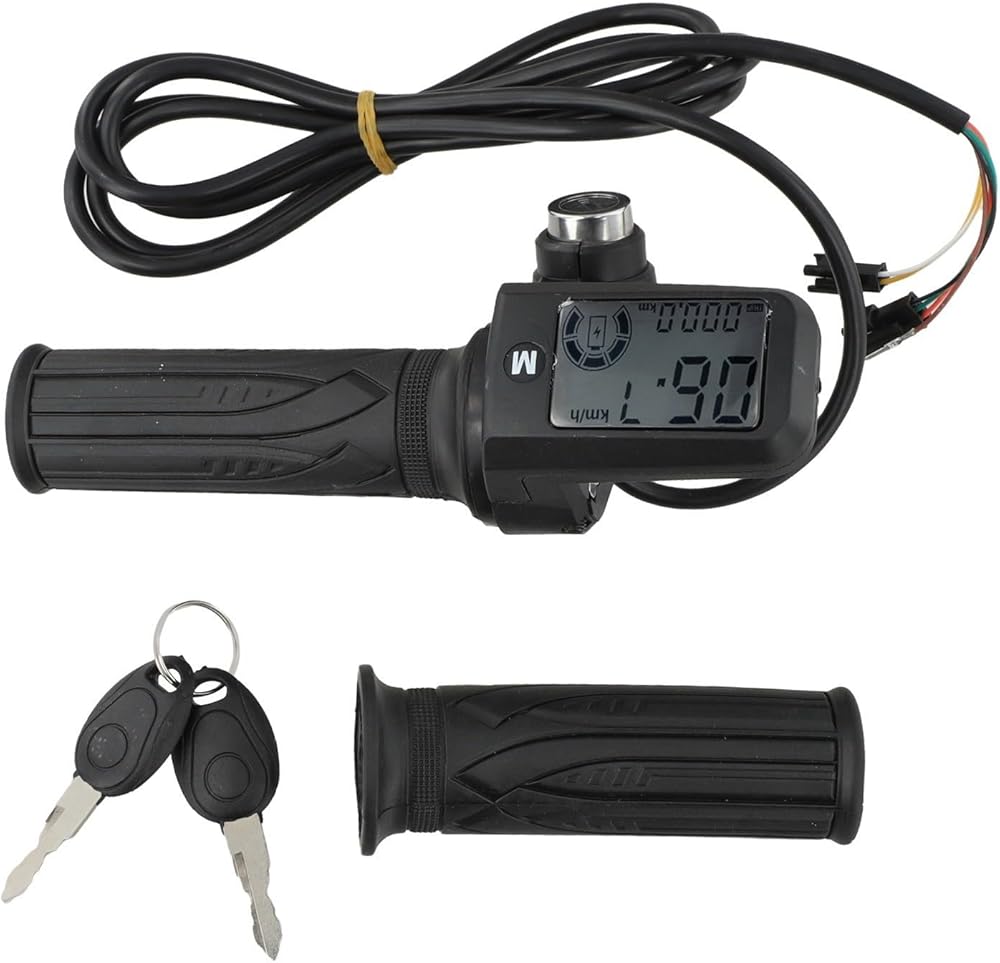

1 pair x Bicycle handlebar with display
