Upgrade Your Classic GM to 105A with 1-Wire Self-Exciting AlternatorIs your classic Chevy or Buick struggling to keep the battery charged? Original OEM 10SI alternators (typically 63A or 85A) were not designed for today's high-demand accessories – EFI, electric fans, high‑power stereos, LED lights, and cooling fans. Common symptoms include dim headlights at idle, battery drain after short trips, voltmeter drops when using accessories, or a dead battery after sitting.

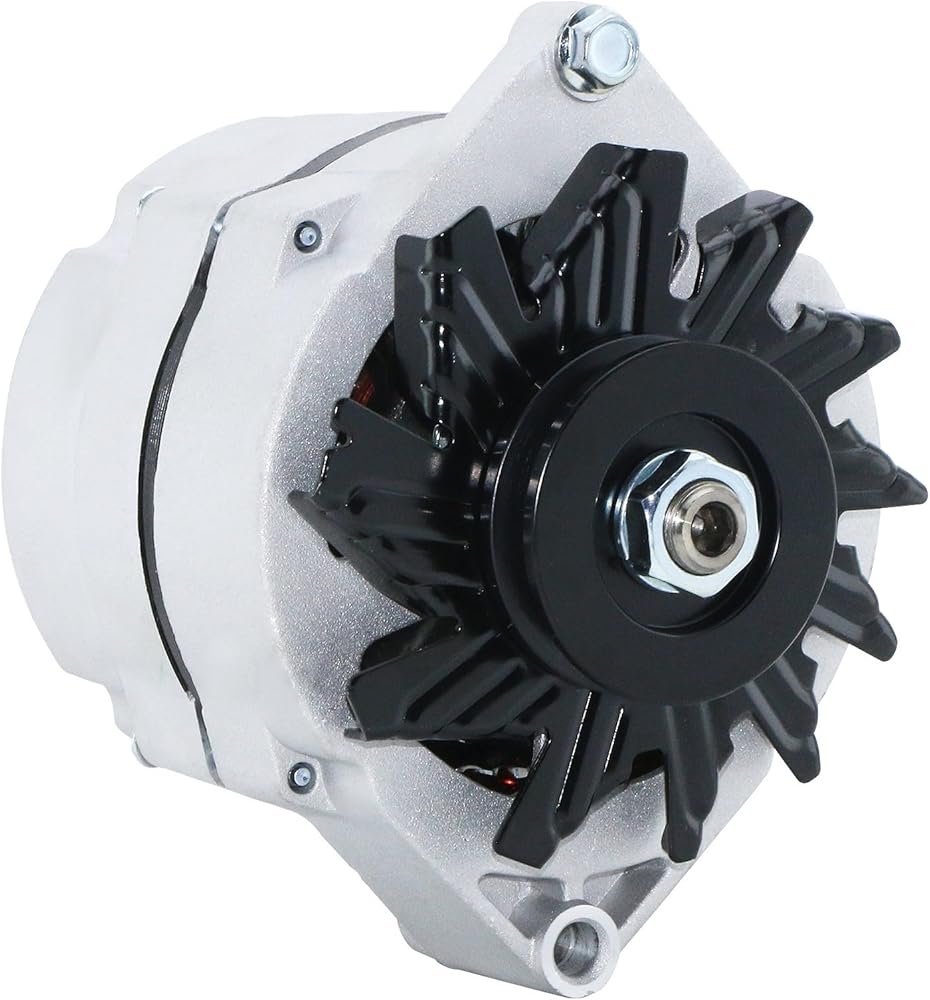

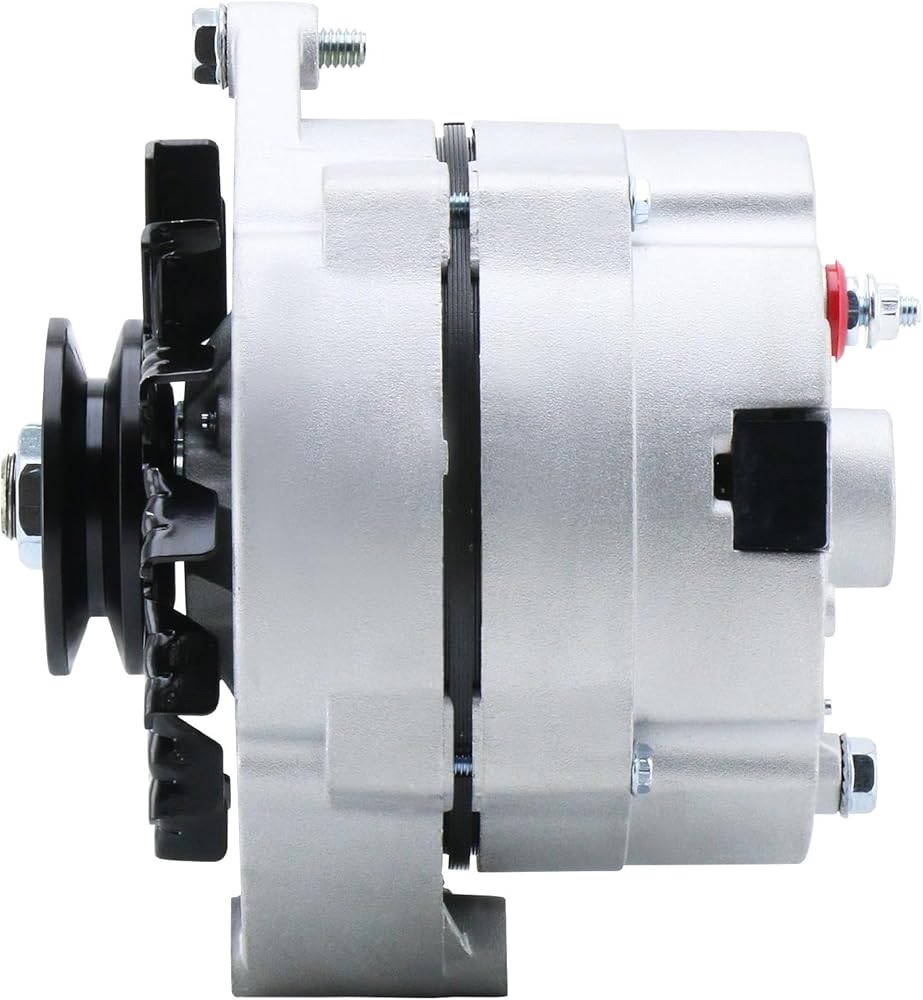

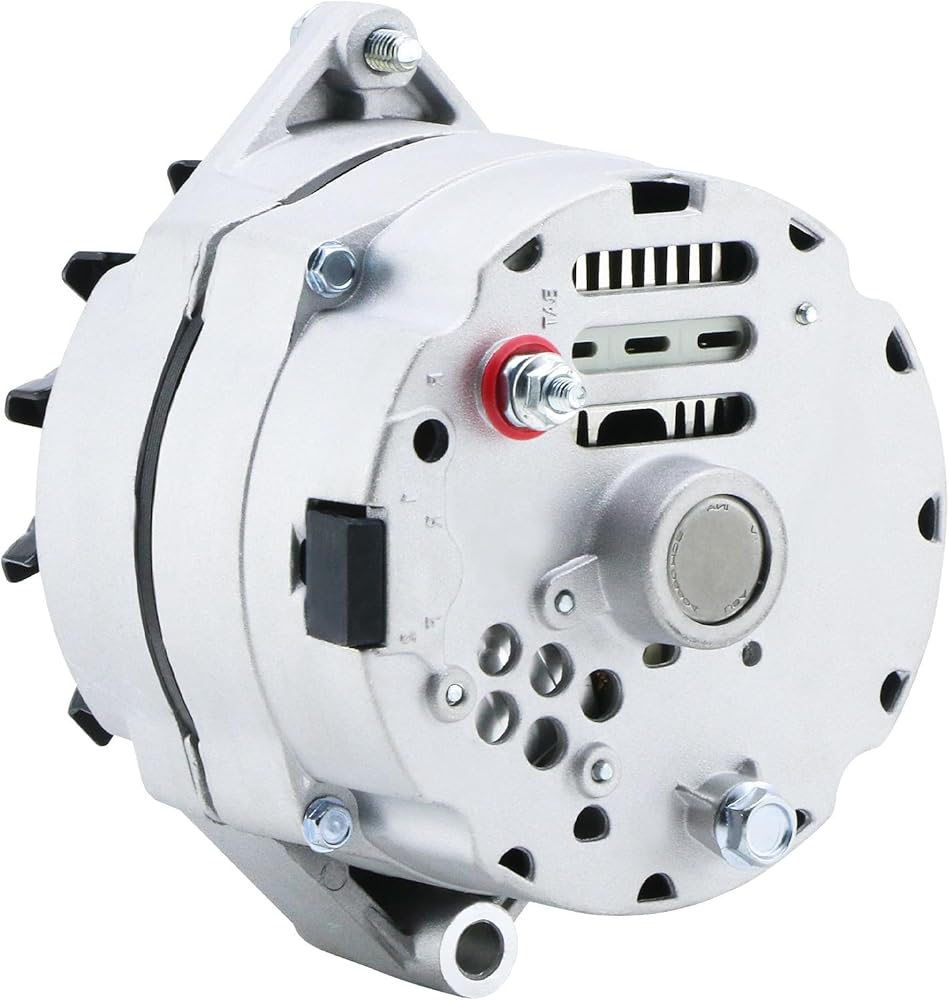

Our solution – 105A 1‑wire high‑output alternator
This direct‑fit replacement upgrades your factory 10SI alternator to 105 amps with self‑exciting one‑wire technology. No external voltage regulator. No excite wire to the ignition switch. Just connect the main output and it starts charging.
1‑wire self‑exciting – Turns on automatically at 1200‑1500 RPM (your engine idle or a slight rev)
105A output – Easily handles electric fans (20‑30A), fuel pump (5‑10A), stereo (10‑30A), lights (10‑20A), and other modern accessories
Direct 10SI bolt‑on – Same case dimensions, mounting ears, and belt alignment as the original 10SI
Internal voltage sensing – Regulates at approximately 14.5V (typical)
Clockable rear housing – Can be rotated to match your terminal orientation
No external regulator needed – Built‑in regulation simplifies installation
CW rotation with 1‑groove pulley – Pre‑installed and ready to run
Output: 105 Amps max
Regulated voltage: 13.5‑14.7V (nominal 14.5V)
Excitation speed: 1200‑1500 RPM
Pulley: 1‑groove, CW rotation
Housing: 10SI case (clockable)
Mounting: Direct replacement for 10SI series
Chevrolet: C10, C20, C30, Bel Air, Chevelle, Suburban (1970s‑80s) with small/big block V8 or V6
Buick: Century, LeSabre, Electra, Apollo (1970s‑80s)
Also fits: GMC, Oldsmobile, Pontiac with 10SI mounting
Engines: SBC (305, 350, 400), BBC (396, 427, 454), 4.1L V6, 3.8L V6, and many others
OE Replacement Numbers: ADR0335, 334-2114, ADR0325, 7127-SE105, 400-12340, 20-102-7
Alternator (105A, 1‑wire, 10SI case)
1‑groove pulley (installed, CW rotation)
No plug or pigtail needed – just the B+ terminal
Disconnect battery negative before starting.
Remove old alternator and mount the new unit using original brackets. Ensure belt alignment is straight (use shims if needed).
Connect a minimum 10‑gauge wire (8‑gauge recommended) from the alternator output (B+ stud) to battery positive or starter solenoid main terminal.
No excite wire is required – the alternator self‑excites when revved to about 1500 RPM.
If you have an original warning light, it can still work. However, the light may not turn off until the engine is revved – this is normal for 1‑wire self‑exciting units.
Reconnect battery, start engine, and rev briefly to 1500 RPM to excite. Check voltage at battery – should read 13.5‑14.7V.
Using too small gauge wire – causes voltage drop and heat
Poor engine ground – alternator won't charge properly
Belt too loose or misaligned – squealing or low output
Forgetting to rev the engine after installation to excite the alternator
1‑year hassle‑free replacement – If the alternator fails to charge, makes bearing noise, or has electrical issues within 12 months, contact us for a direct replacement.
Tested with DV Canada equipment
ISO 9001 & IATF 16949 certified
Upgrade your classic GM today – reliable charging for all your modern accessories.
